Description
Customer Benefits
Rugged for field use

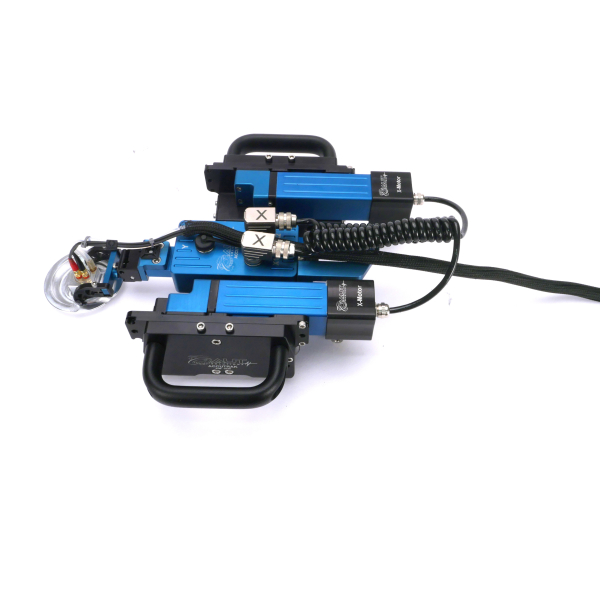

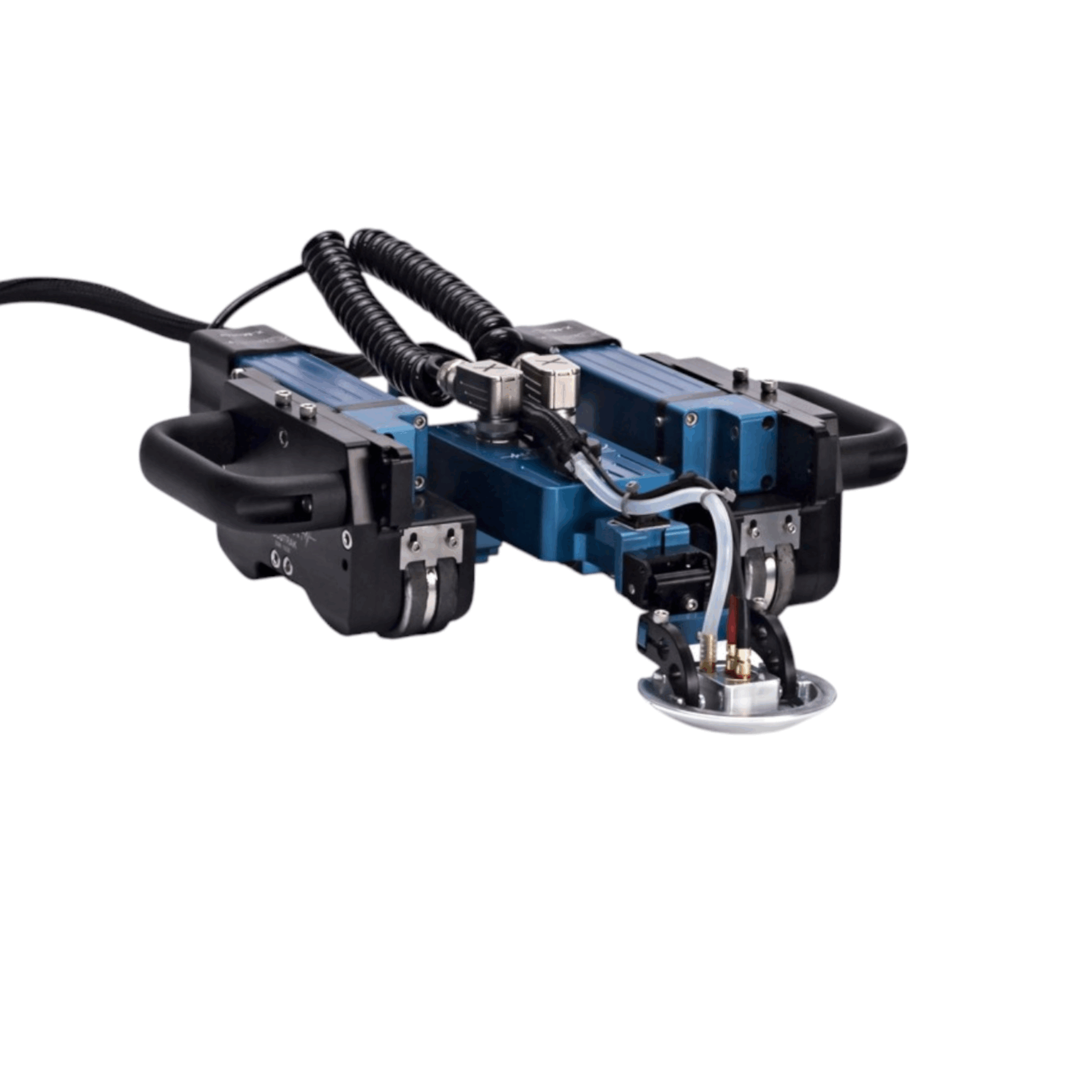

Built tough to handle demanding conditions and repeated use, ACCUTRAK has been in the field for 10+ years and is the group flagship of motorized crawlers.
Compatible with traceability requirements of most standards
With a precise encoding compatible with most flaw detectors (LEMO 16 connector), ACCUTRAK provides mapping coordinates to NDT data.
Increased job productivity
Easy to maintain with spare parts on the shelf, NDT jobs never get stuck.
Easy to deploy

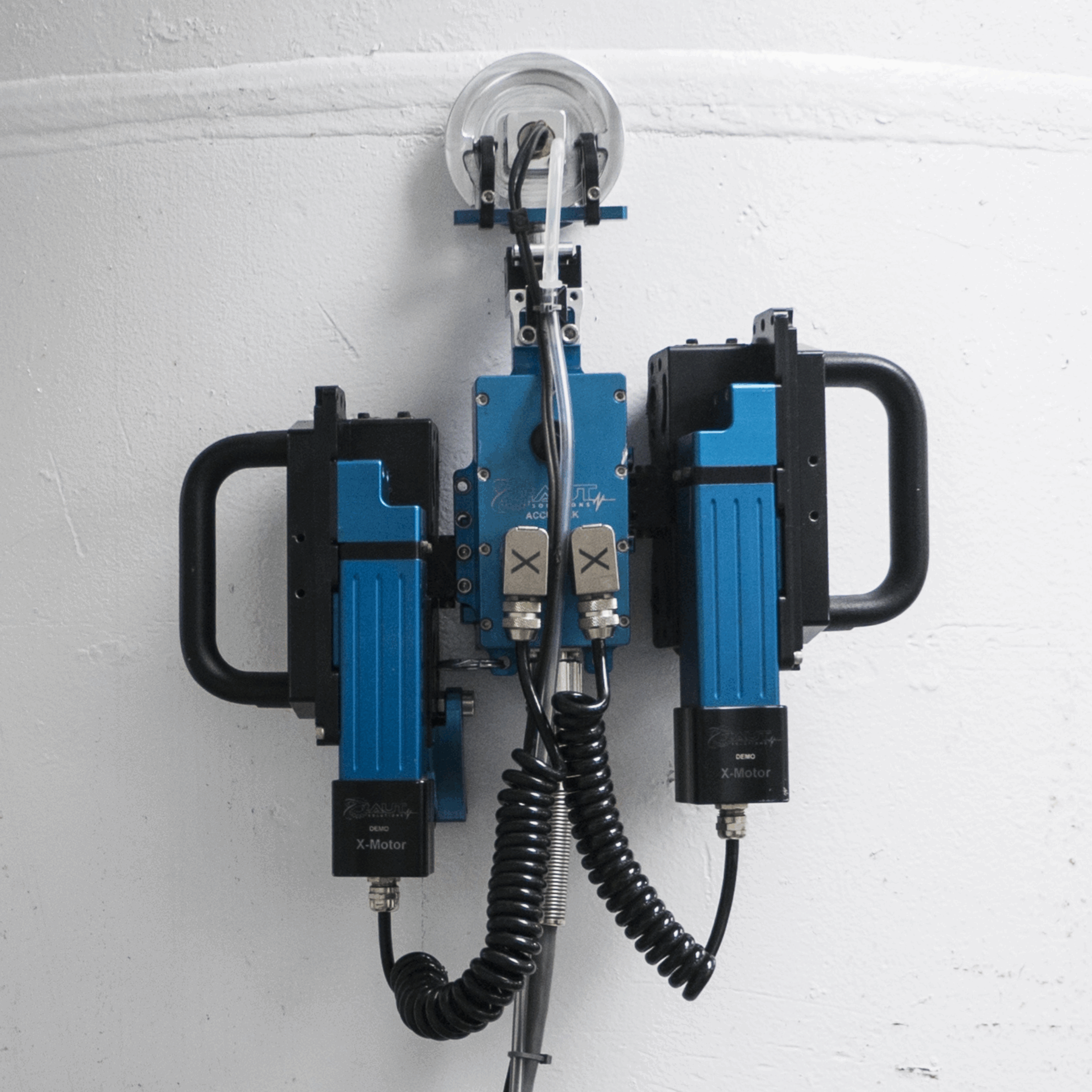

With quick & adjustable clamp design, ACCUTRAK is a 1-man operated intuitive scanner that is easily set up.
Technical specifications
| Scanner dimensions | 13.5 x 10.5 x 4.25” (33 x 25 x 10 cm) |
| X-axis Encoder resolution | X: 42725.56 ticks / in (1682 ticks / mm) |
| Scan speed | X-axis : 6”/s (150 mm / s) |
| 2-axis inspection | ✓ |
| Circumferential OD | From 4” (10 cm) |
| Axial OD | From 8” (20 cm) |
| Spiral weld OD | From 24” (61 cm) |
| Turn radius | 12” (30,5 cm) |
| Joystick | ✓ |
| Umbilical default length | 100 ft. (30 m) |

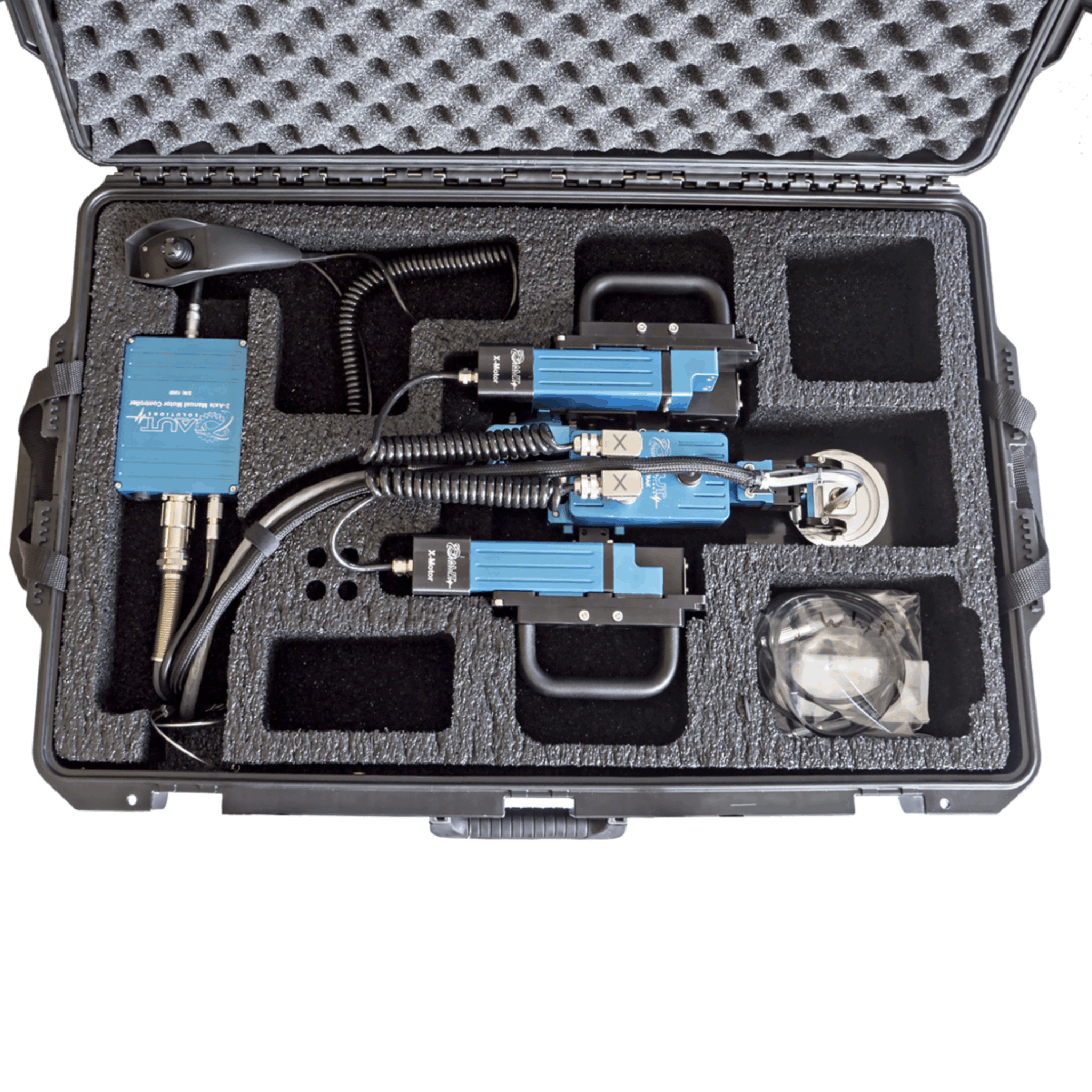

| Travel case dimensions | 32 x 21 x 16” (81 x 53 x 41 cm) |
