Description
Customer Benefits
Easy to deploy

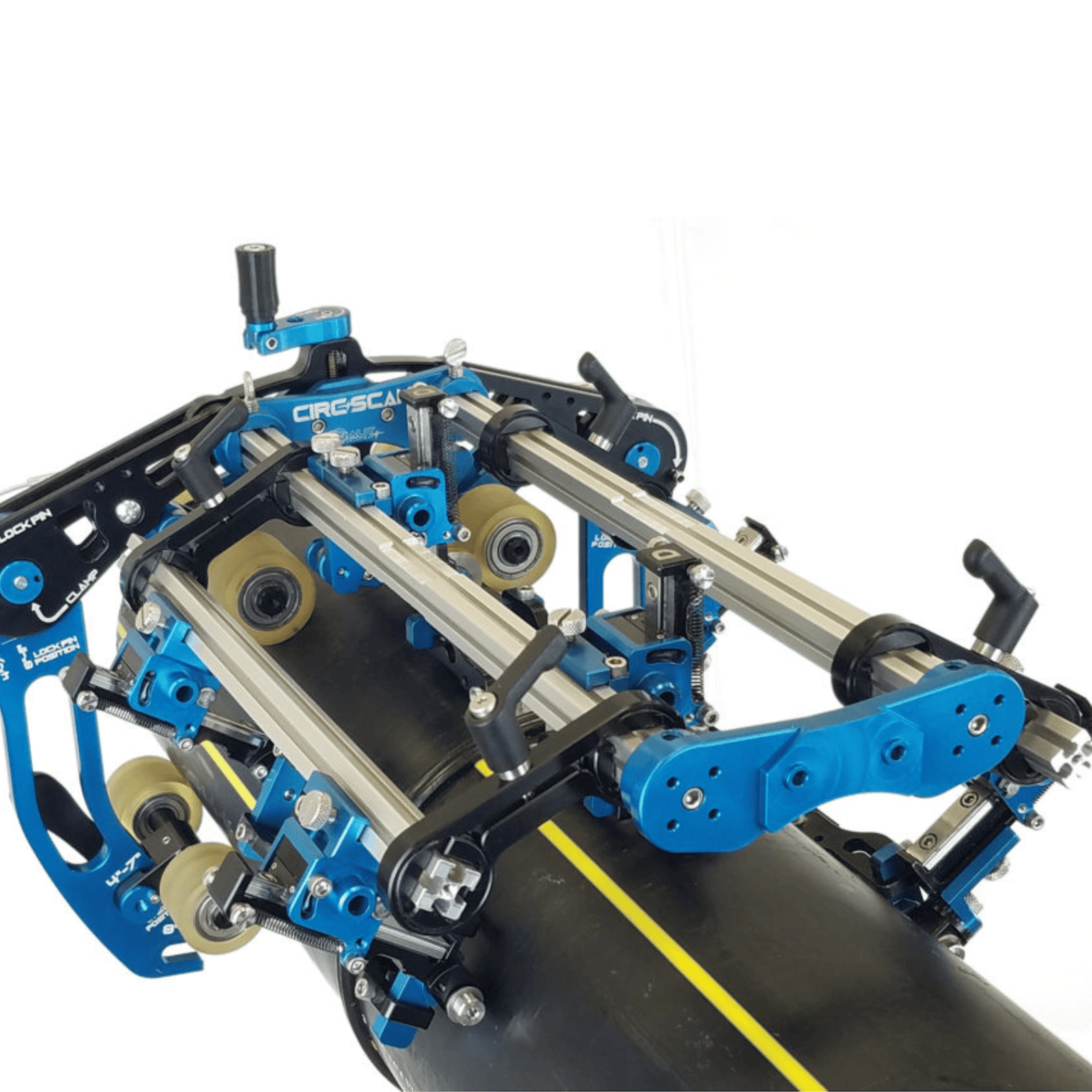

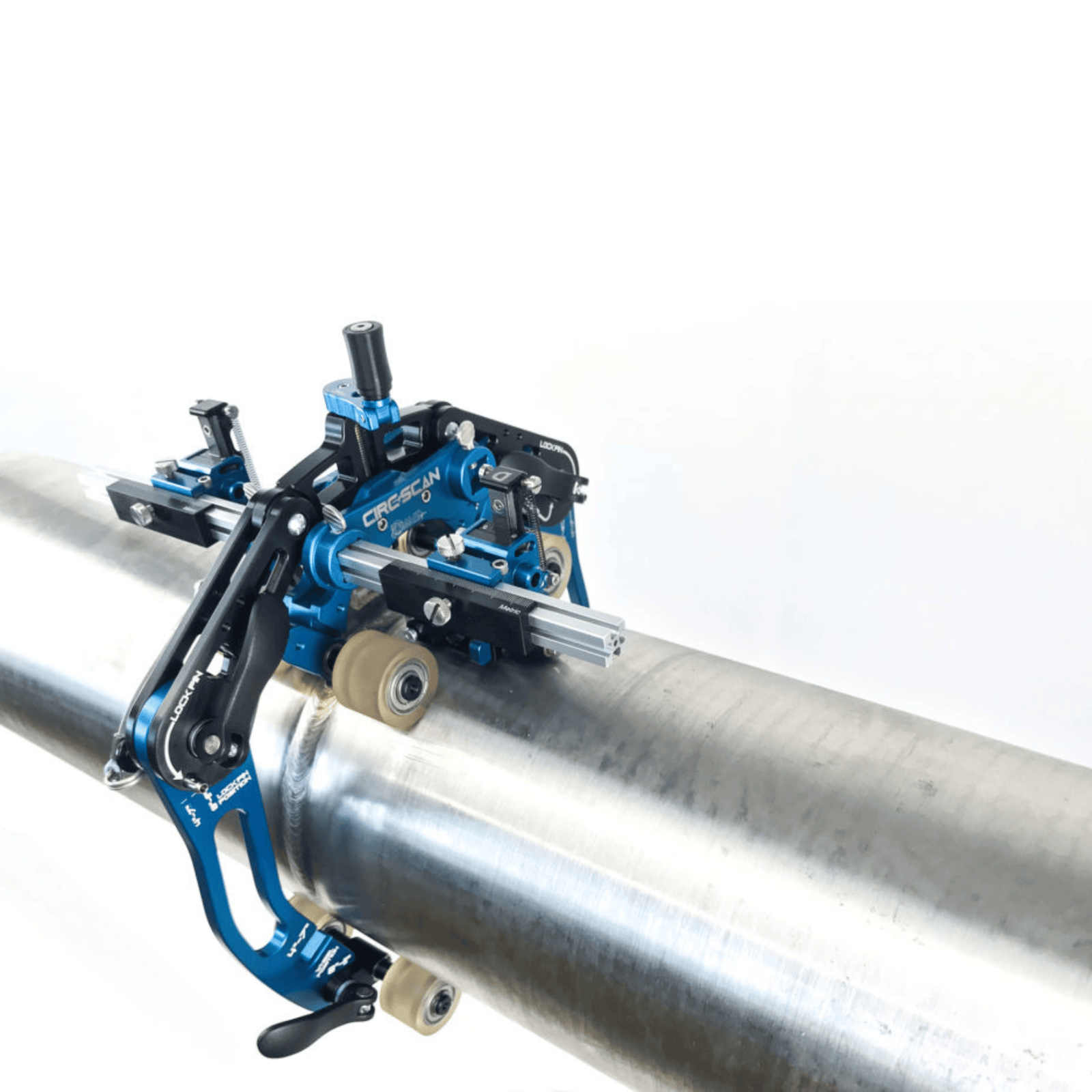

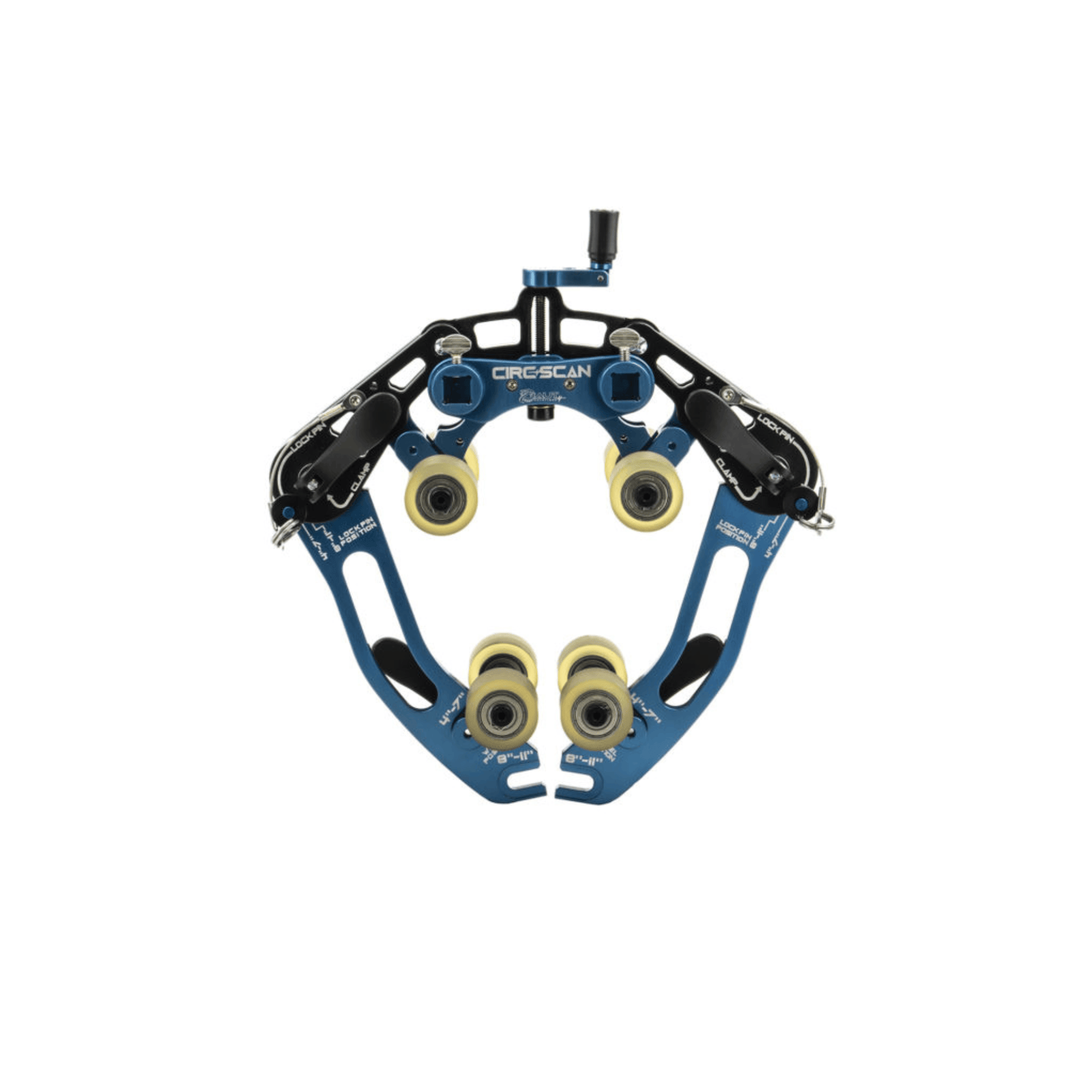

Lightweight and with quick & adjustable clamp design, CircScan is a 1-man operated intuitive scanner that requires no training.
Universal
Supports both weld and corrosion inspections on a wide range of pipe materials and schedules - with most common NDT technologies.
Rugged for field use
Built tough to handle demanding conditions and repeated use, CircScan has been in the field for 10+ years.
Compatible with traceability requirements
With a precise encoding compatible with most flaw detectors (LEMO 16 connector), CircScan provides mapping coordinates to NDT data.
Increased job productivity
Easy to maintain with spare parts on the shelf, NDT jobs never get stuck.
Technical specifications
| Scanner dimensions | 24 x 10 x 16” (61 x 25.4 x 41 cm) |
| Weight | 7.7 lbs (3.5 kg) |
| Operating environment | Up to 150°F (66°C) |
| Encoder type | RME-688-1000p |
| Encoder resolution | 1257.33 ticks / in (49.5 ticks / mm) |
| Encoder cable | 5 m |

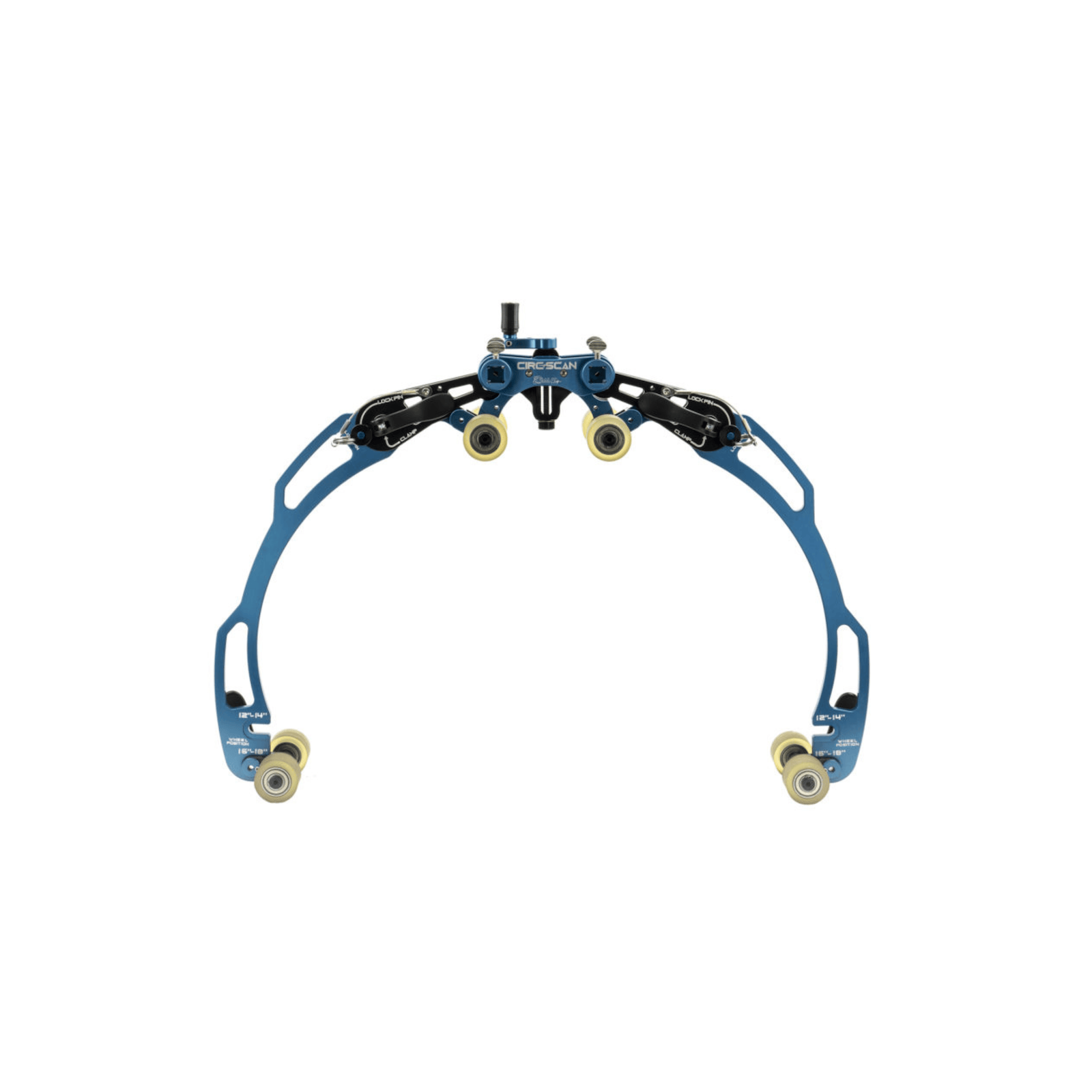

| Circumferential OD | From 4” to 36” (10 to 61 cm) |
| Travel case dimensions | 24 x 16 x 10.5” (61 x 41 x 25.4 cm) |
