DLM

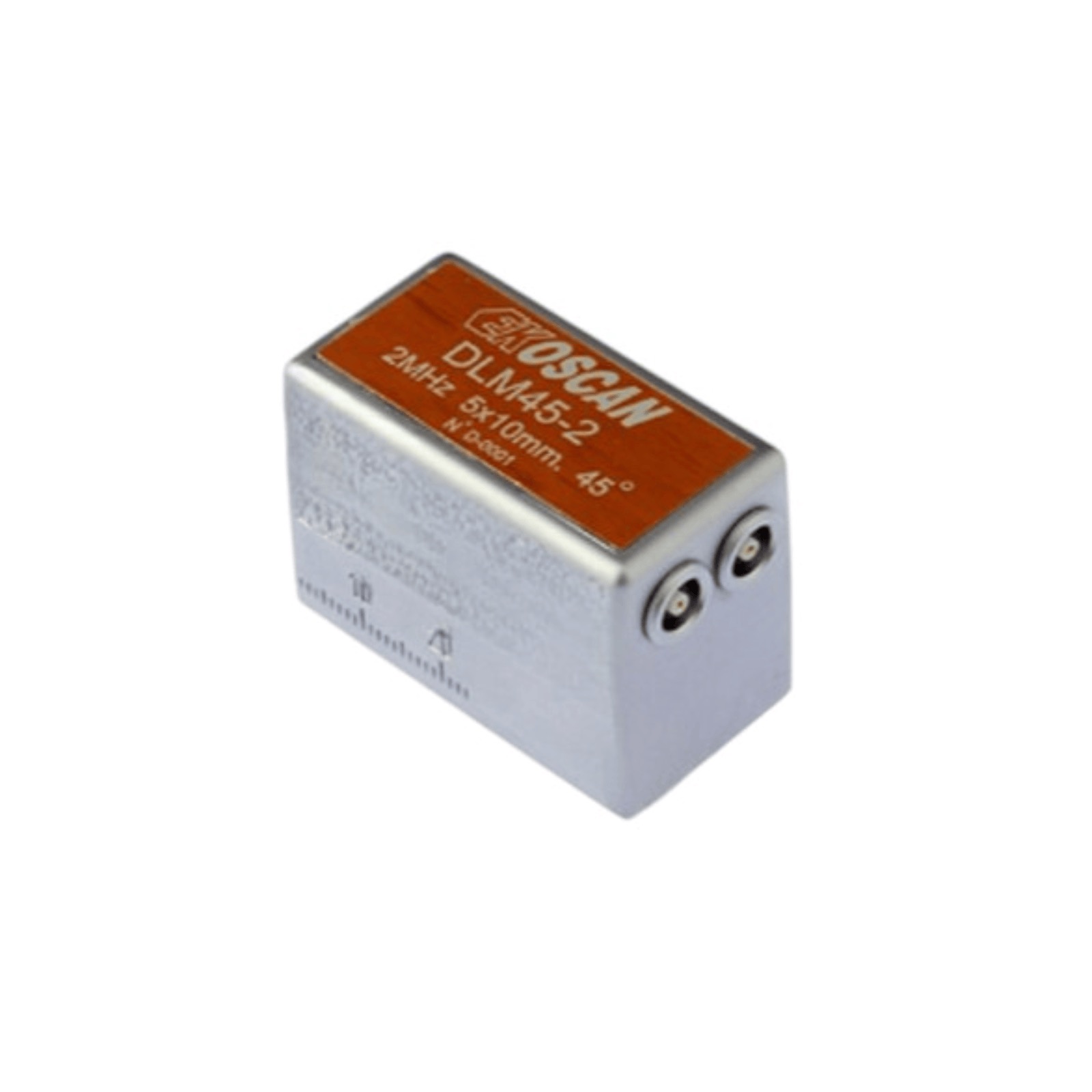

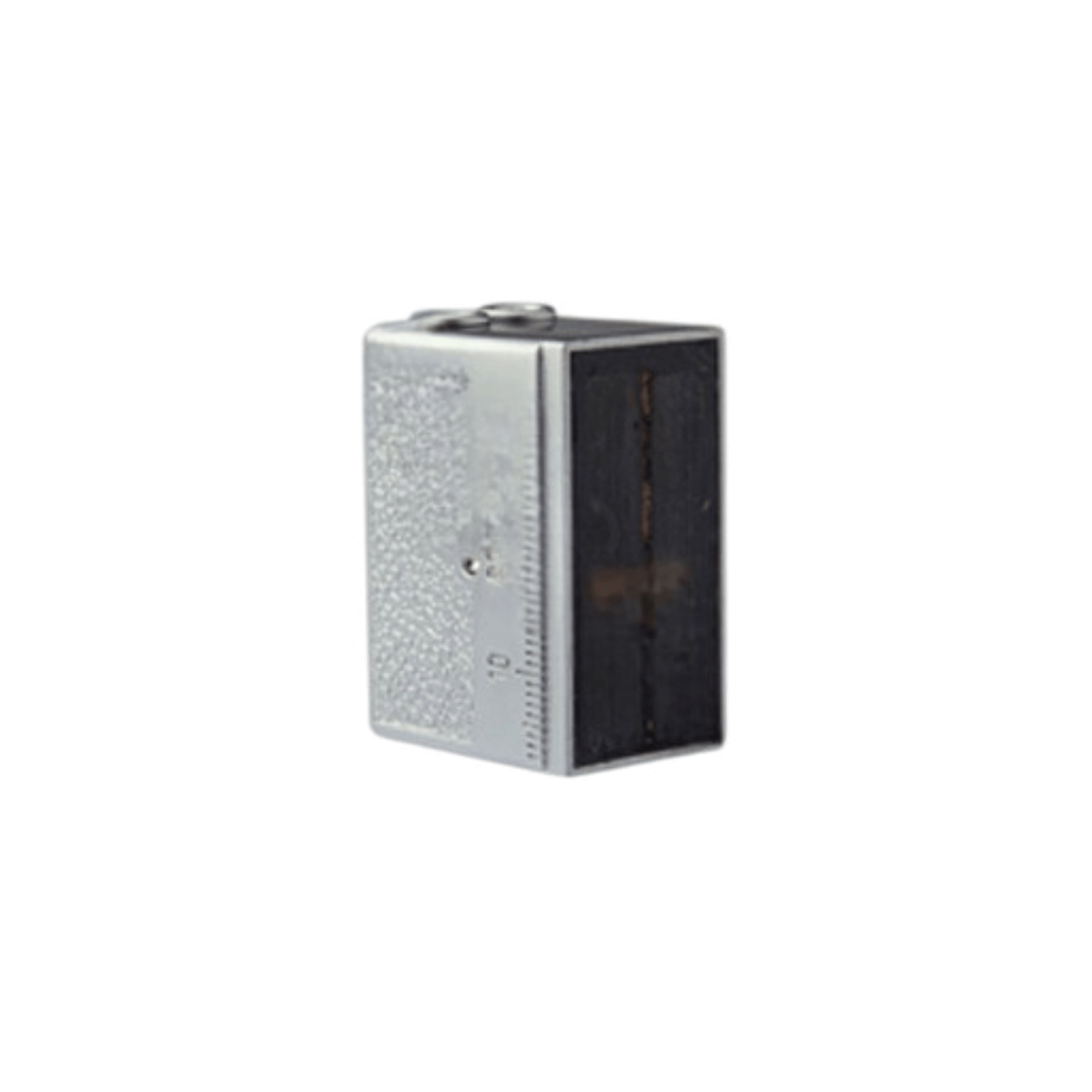

Mini dual-element probes with built-in refracted L-wave wedge.

Nomenclature: DLMXX-YY ZZxAA, where XX is the nominal refracted angle in steel in degrees, YY is the frequency in MHz, ZZ is width of 1 crystal in mm and AA is the length of 1 crystal in mm.

  • Features
  • Includes
  • Options
  • Applications
  • Available apertures5mm x 10mm
  • 6mm x 13mm
  • 7mm x 18mm
  • Available frequencies2MHz & 4MHz
  • Refracted L-wave angles38°, 45°, 60°, 70°
  • LEMO00 side connector
  • Probes delivered with certificate EN12668-2
  • LEMO00 cables
  • Adaptors
  • Research of small defects in noisy materials
  • Austenitic steel inspection
  • Casted steels inspection
  • Stainless steel inspections

Description

Technical specifications

Reference Refracted angle in ° Frequency MHz Crystal Size mm Connector
DLM38-2 5x10 38 2 5 x 10 Lemo00
DLM45-2 5x10 45
DLM60-2 5x10 60
DLM38-4 5x10 38 4
DLM45-4 5x10 45
DLM60-4 5x10 60
DLM38-2 6x13 38 2 6 x 13
DLM45-2 6x13 45
DLM60-2 6x13 60
DLM38-4 6x13 38 4
DLM45-4 6x13 45
DLM60-4 6x13 80
