Technical specifications
| Reference | Type | Frequency MHz | Crystal Size mm | Roof angle in ° | Connector |
|---|---|---|---|---|---|
| DVP10 | Bi-elements | 10 | 6 x 20 | 3 | Lemo00 |
| DVP2-3 | 2 | ||||
| DVP4-3 | 4 | ||||
| DVP10-3 | 10 |

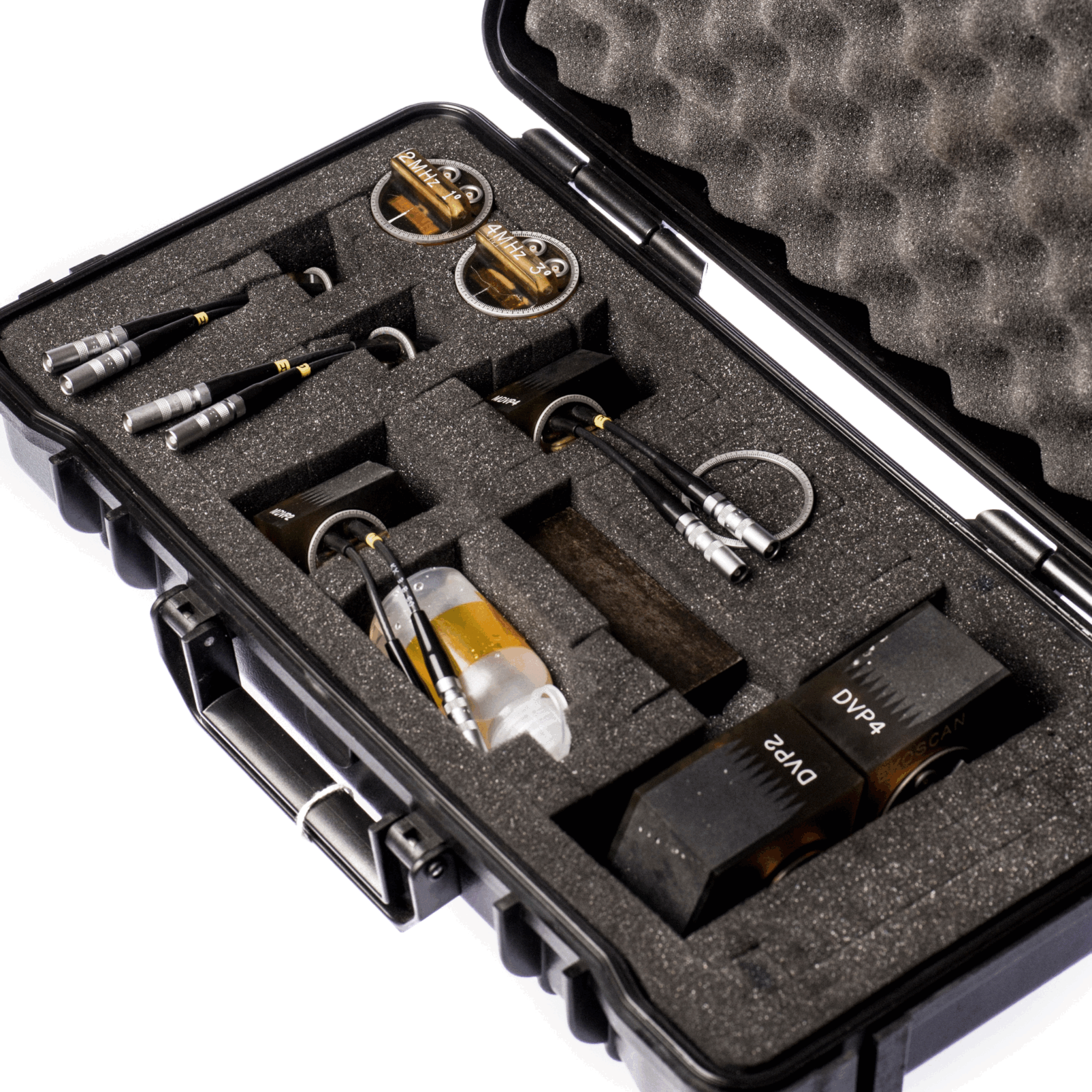

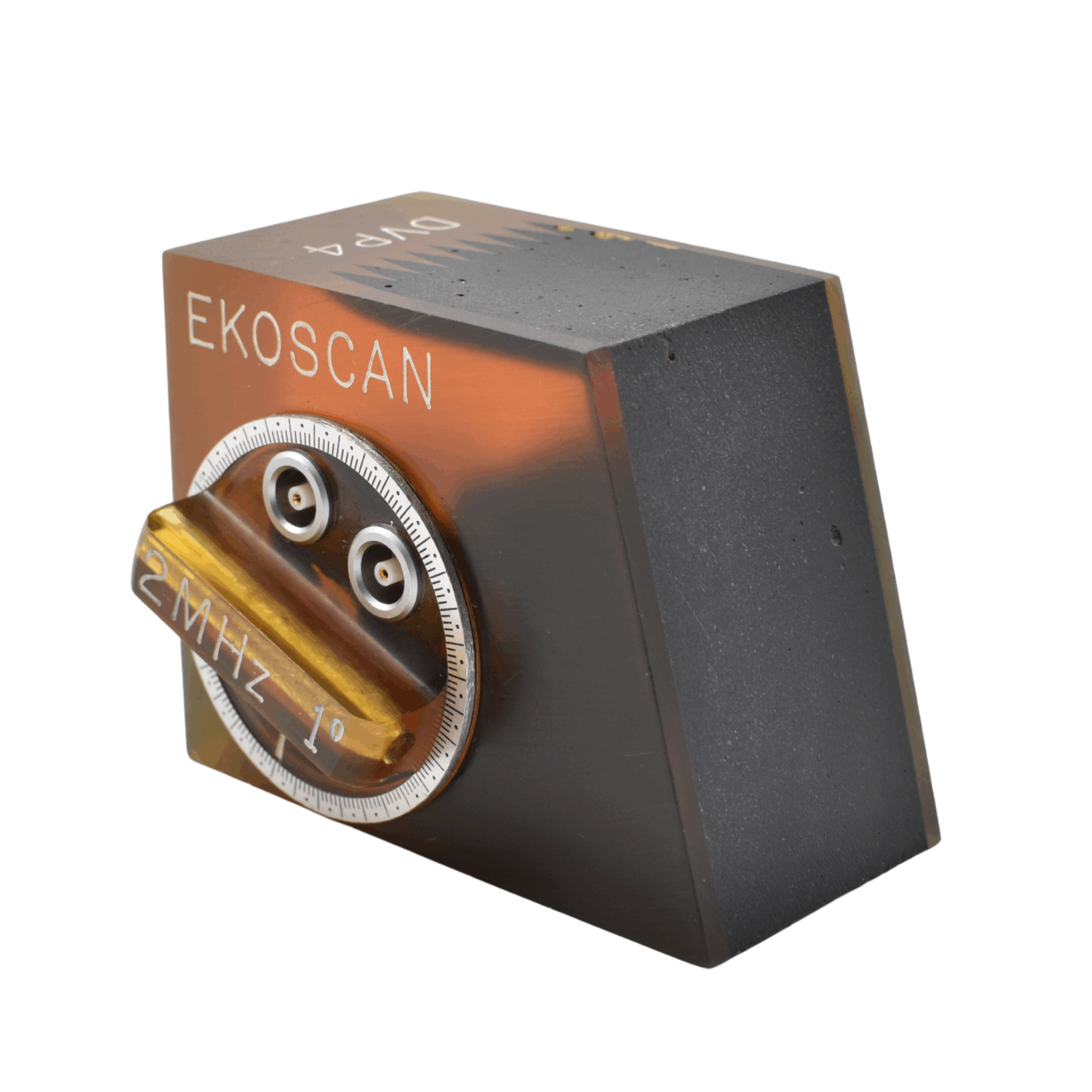

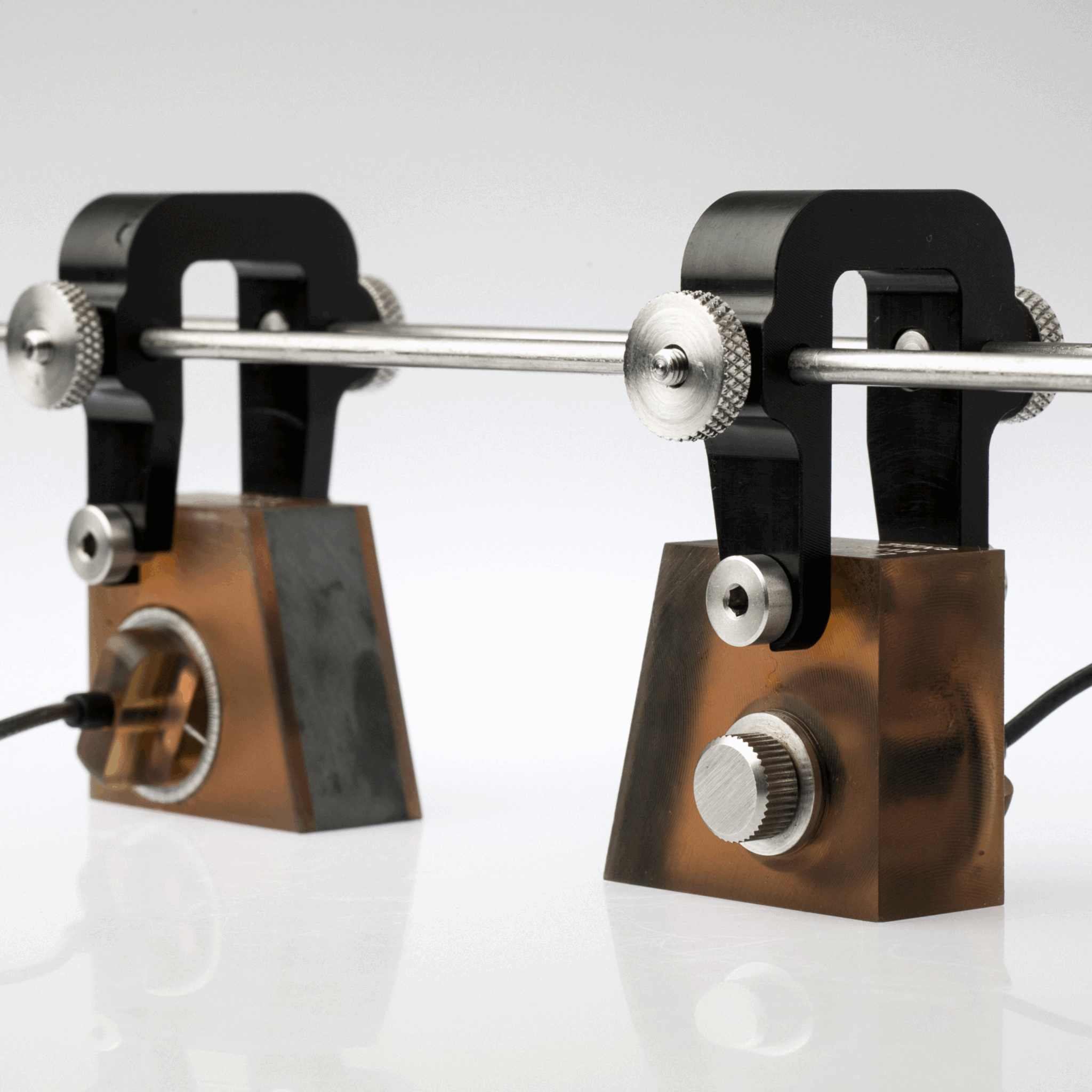

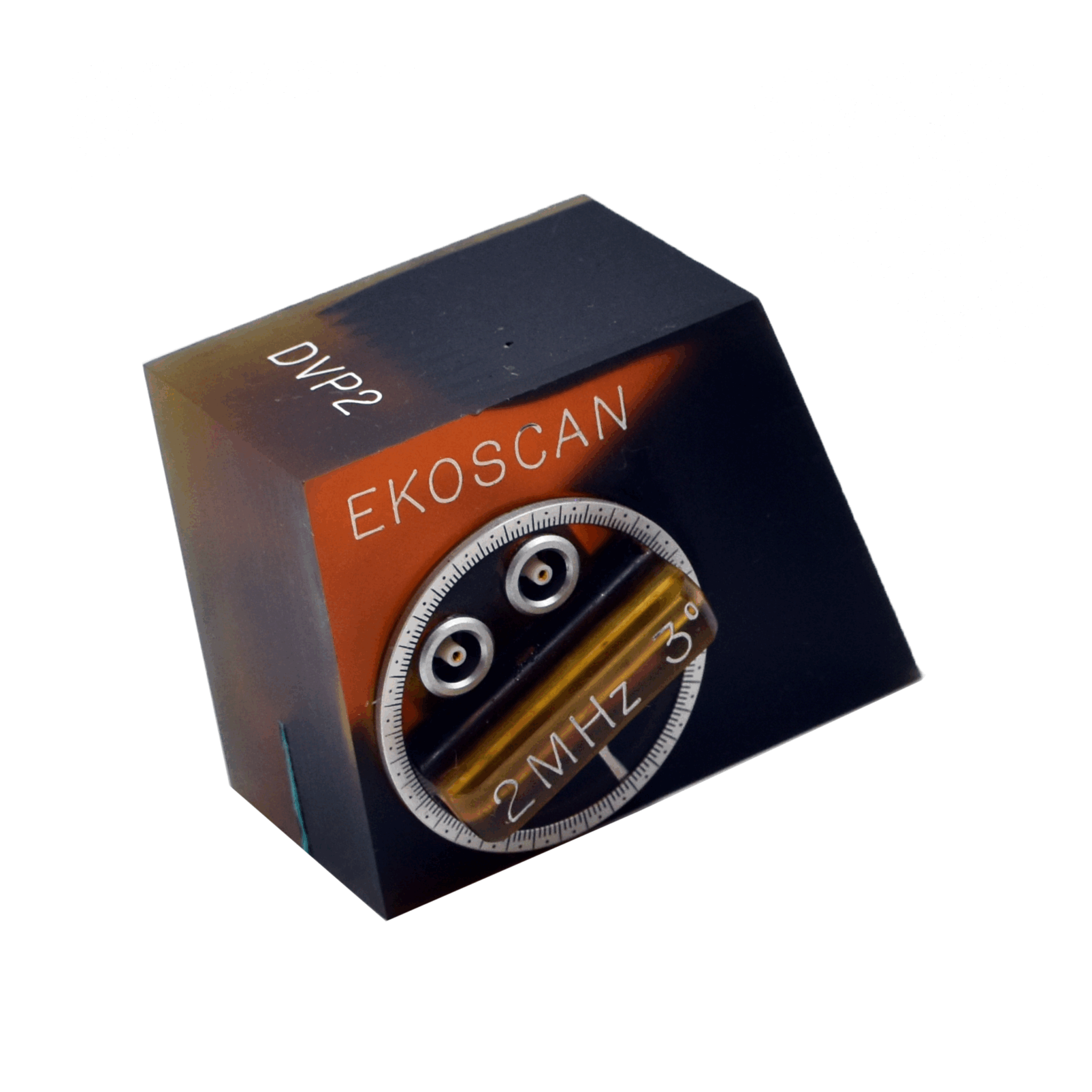

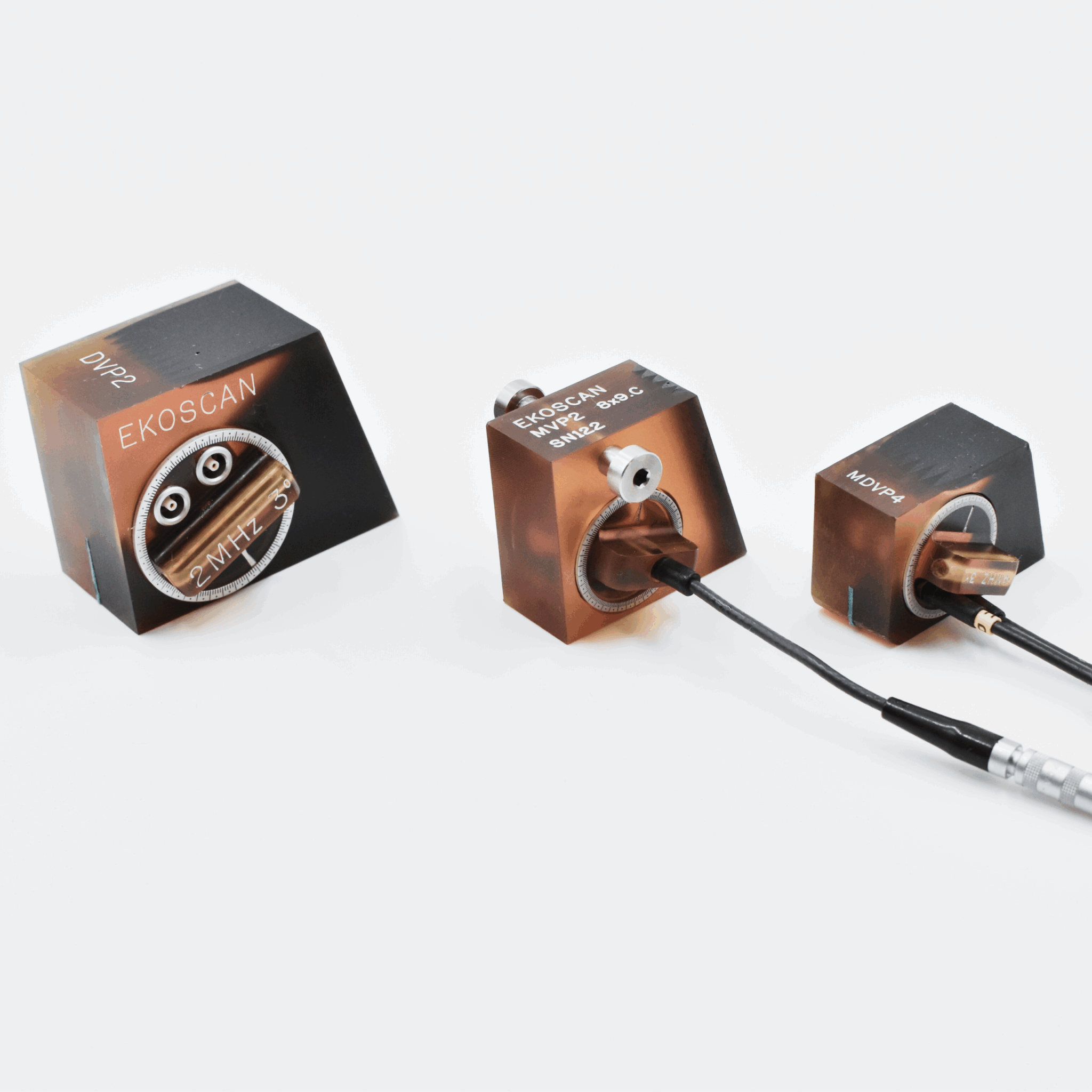

DVP
Dual element probes with variable refracted angle. Composed of a material, resistant to wear and abrasion.
- Features
- Includes
- Options
- Applications
- Aperture6 x 20 mm
- Available frequencies2 and 10 MHz
- LEMO00 top connector
- Probes delivered with certificate EN22232-2
- LEMO00 cables
- Adaptors
- Thickness measurement
- Weld inspection
- Coarse grain materials inspection
- Near surface resolution
