EK10 11 12

General purpose linear.

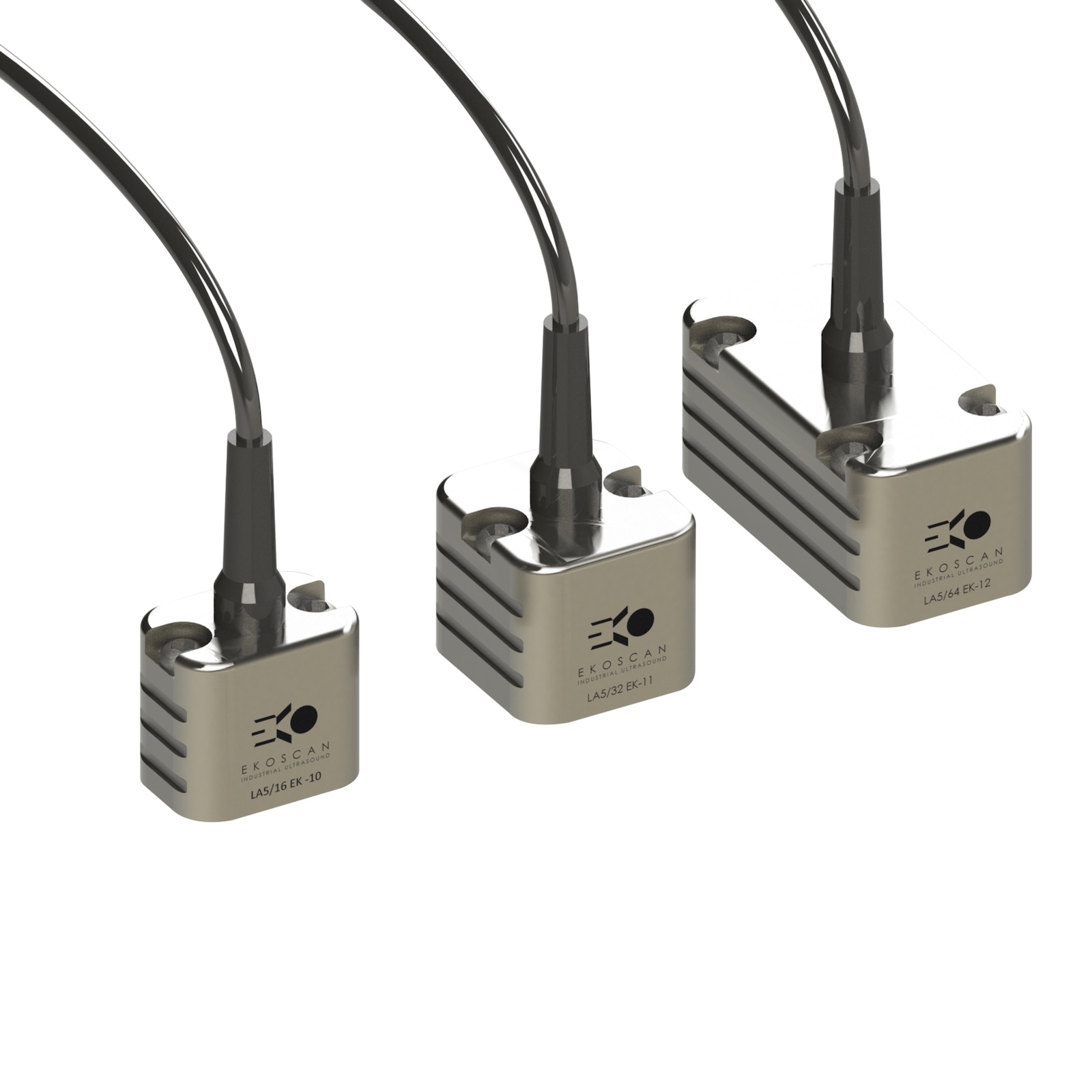

The EK10 probe features a small active aperture with 16 or 32 elements at a 0.3 or 0.6 mm pitch, making it ideal for tight access areas such as small-diameter pipes, nozzles, and complex geometries. The EK11 offers a slightly wider aperture and often includes 32 or 64 elements at a similar pitch, providing improved lateral coverage while maintaining a compact footprint, suitable for small-to-medium welds. The EK12 probe generally includes 32 or 64 elements allowing for broader sectorial coverage and better beam focusing at greater depths, which is advantageous for inspecting thicker welds and components where deeper penetration and larger steering ranges are required.

Features
Includes
Options
Applications

Elevation7-10 mm
Element count16 ,32 and 64 elements
Element pitch0.3 to 0.6 mm
Frequency2.5, 5, 7.5 and 10 MHz
Cable length2,5 m

Certificate of conformity compliant with ISO 18563-2 standard
Travel Case

IPEX, EAsy-latch, Zpac, Hypertronic Connectors
Custom cable length

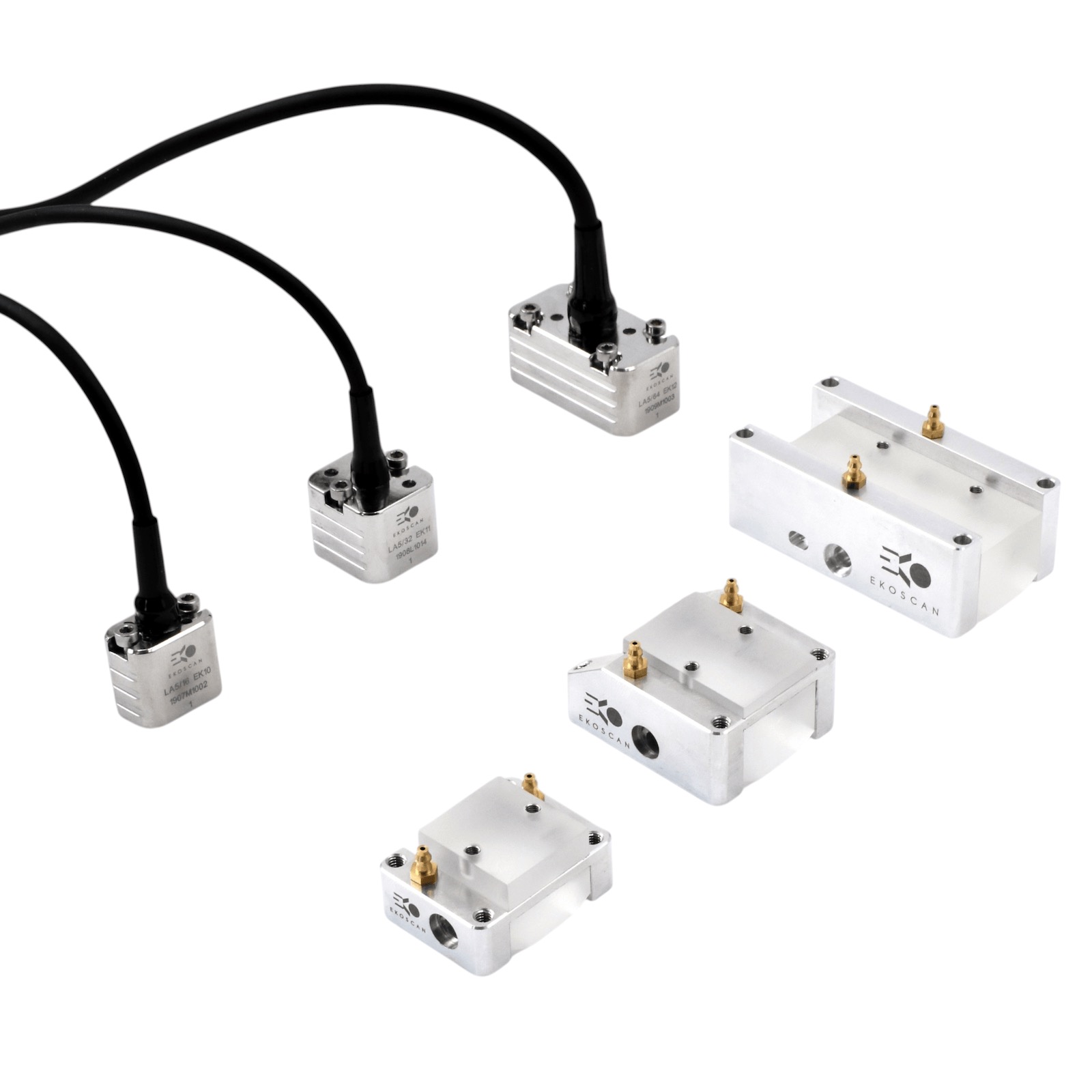

Standard, AOD and COD wedges with separate IDC
Standard, AOD and COD wedges with integrated IDC

Description

Customer Benefits

Quick delivery

The most common configurations (typically IPEX quick release connector, 2.5m cable length, standard pitch and frequency) of this series are kept on the shelf, ready to be shipped.

Universal

From contact to immersion, from plates to pipe, from large panels to low-clearance access conditions, from composite materials to steel alloys, this probe series are compatible with most applications. This probe series are compatible with most flaw detectors of the market and generally are already in configuration libraries, available for a direct use.

Competitive pricing

The most common configurations of this series are the most price-adjusted of the probe catalog.

Resources

EK10 11 12 PDF brochure

Probes General Catalogue

Technical specifications

					External dimensions
Reference	Frequency MHz	Number of elements	Pitch mm	Elevation mm	L	W	H
LINEAR PROBES
EK10-LA2.25/16	2.25	16	0.6	10	16	23	20
EK10-LA3.5/16	3.5
EK10-LA5/16	5
EK10-LA5/32	5	32	0.3	8
EK10-LA7.5/32	7.5			7
EK10-LA10/32	10			7
EK11-LA2.25/32	2.25	32	0.6	10	25
EK11-LA5/32	5	32	0.6	10
EK11-LA5/64	5	64	0.3	8
EK11-LA10/64	10			7
EK11-LA15/64	15			8
EK12-LA3.5/64	3.5	64	0.6	10	45
EK12-LA5/64	5
EK12-LA2.25/64	2.25
EK12-LA7.5/64	7.5		0.5	9

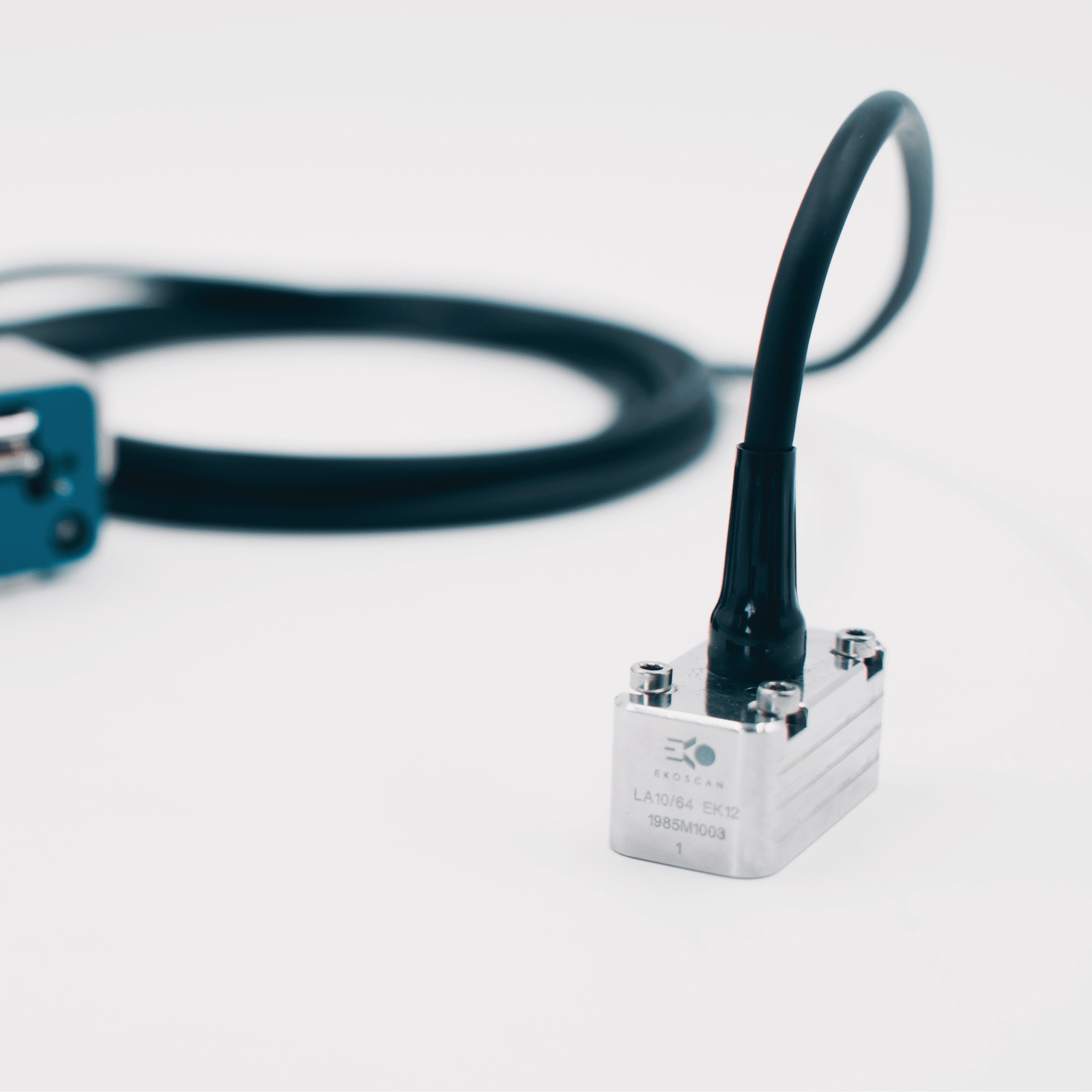

EK12-LA10/64	10		0.6	7
MATRIX PROBES
EK10-M10/64	10	64	0.8	1.3	16	23	20
EK11-M5/64	5		1.4	0.35	25
EK11-M7.5/64	7.5		1.3	1.8
EK11-M10/64	10		0.35	7.5
