EK31 32

Weld Inspection.

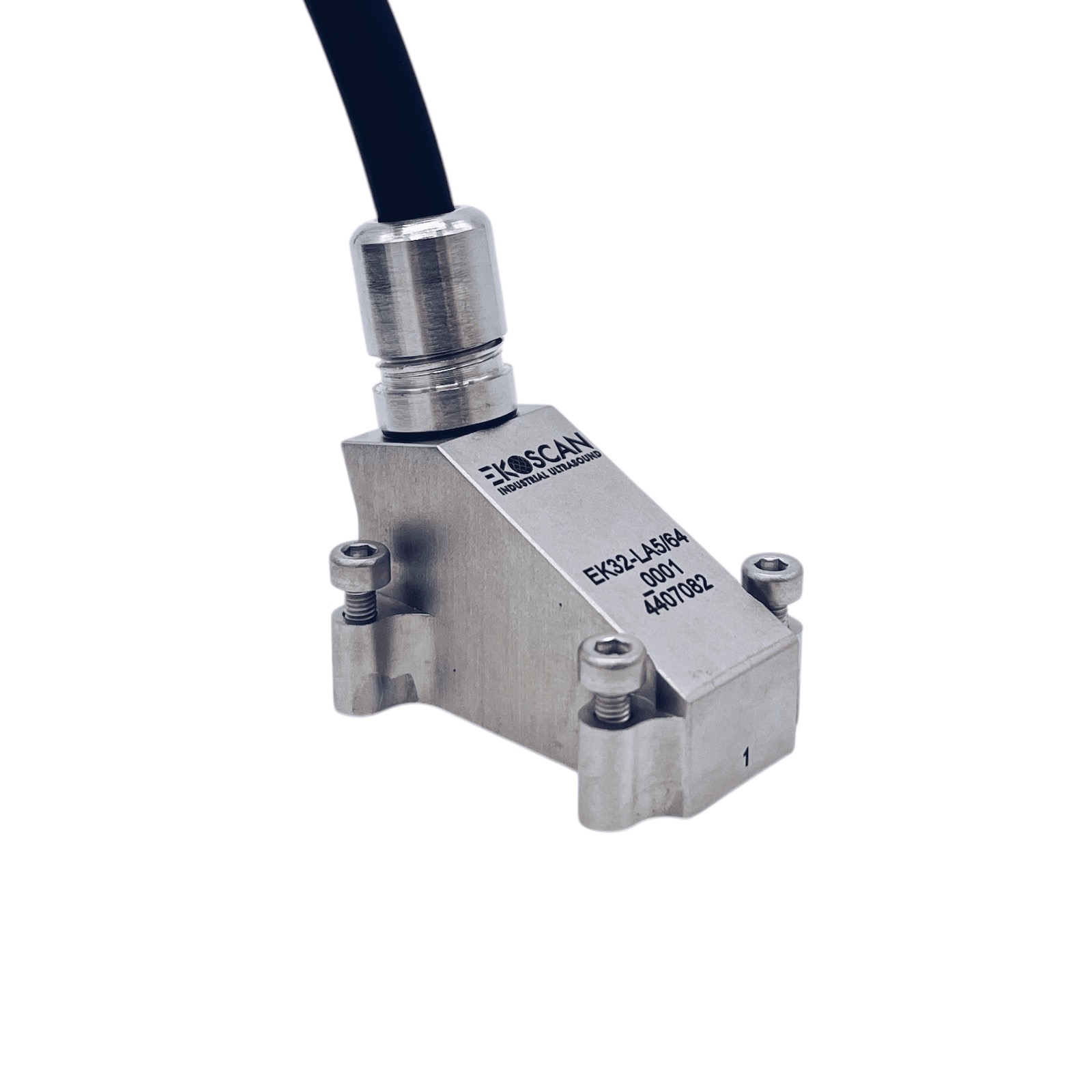

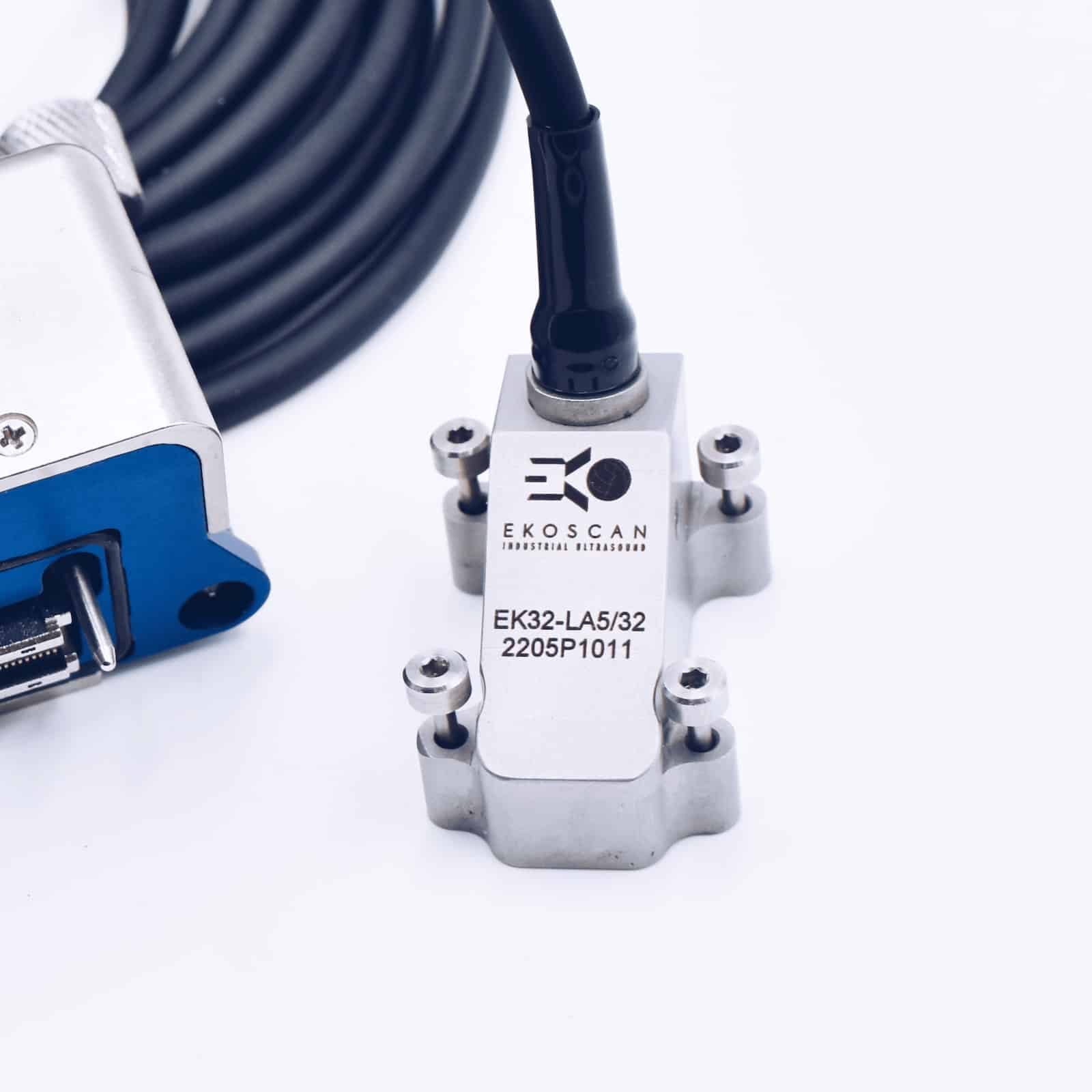

The EK31 and EK32 phased array ultrasonic testing (PAUT) probes are high-resolution linear array probes designed for advanced weld inspection . The EK31 and EK32 provide a strong balance between resolution and penetration, making them suitable for detecting embedded flaws, lack of fusion, or volumetric defects in heavy-duty pressure vessel welds, structural components, and large-diameter piping.

Features
Includes
Options
Applications

Elevation10 mm
Element count32 and 64 elements
Element pitch0.3 to 0.6 mm
Frequency5, 7.5 and 10 MHz
Cable length2.5 m

Certificate of conformity compliant with ISO 18563-2 standard
Travel Case

IPEX, EAsy-latch, Zpac, Hypertronic Connectors
Custom cable length
Standard, AOD and COD wedges with integrated IDC

Weld inspection
Tubes and bars
Pressure vessels

Description

Description

Customer Benefits

Quick delivery

The most common configurations (typically IPEX quick release connector, 2.5m cable length, standard pitch and frequency) of this series are kept on the shelf, ready to be shipped.

Competitive pricing

The most common configurations of this series are the most price-adjusted of the probe catalog.

Resources

EK31 32 PDF brochure

Probes General Catalogue

Technical specifications

					External dimensions
Reference	Frequency MHz	Number of elements	Pitch mm	Elevation mm	L	W	H
LINEAR PROBES
EK31-LA10/32	10	32	0.3	10	29	29	25
EK31-LA5/32	5		0.6
EK31-LA7.5/32	7.5		0.6
EK32 LA5/32	5	32	1	10	40	28	26
EK32 LA2.25/32	2.25	32	1	10	40	28	26
EK32 LA5/64	5	64	0.5	10	40	28	26
