EKD

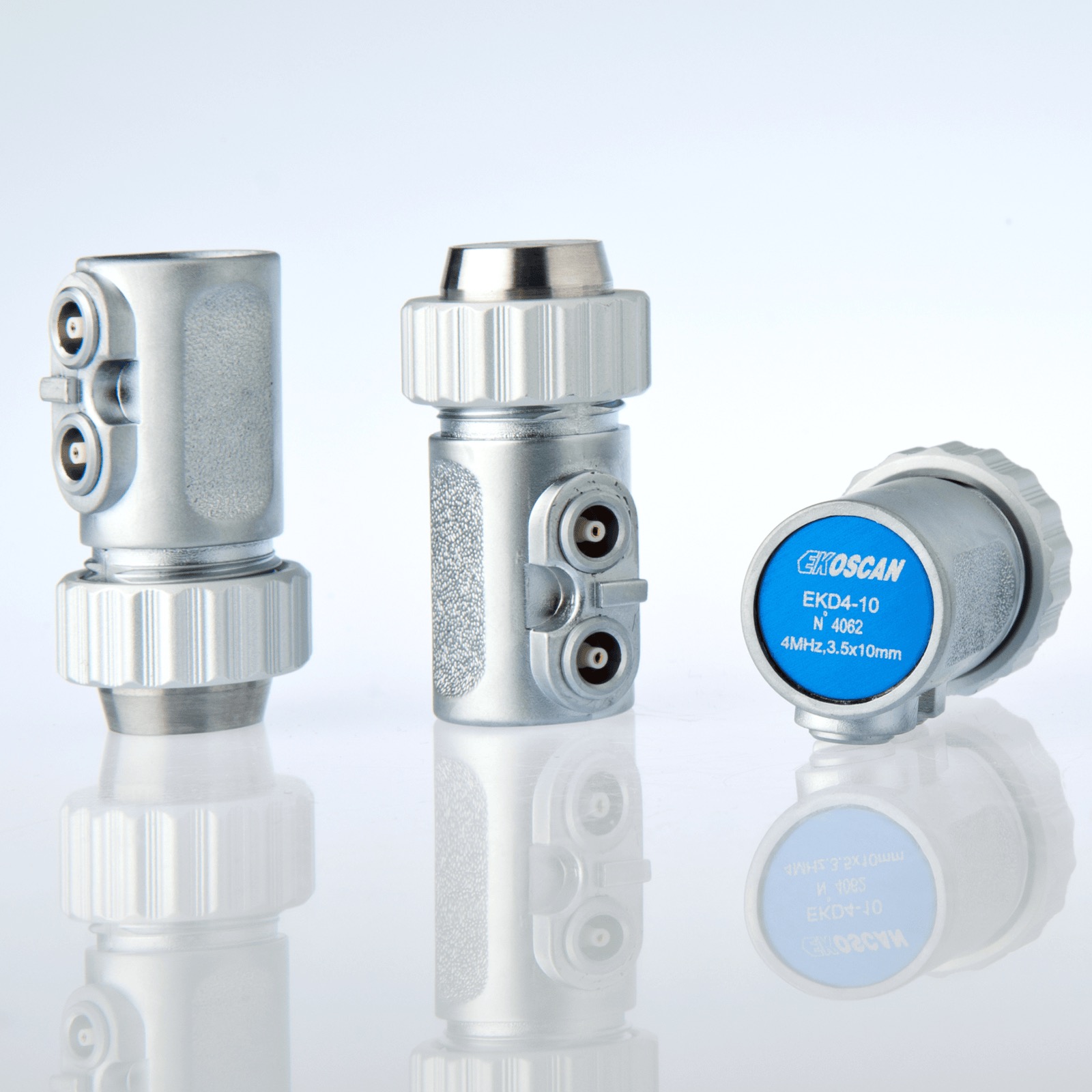

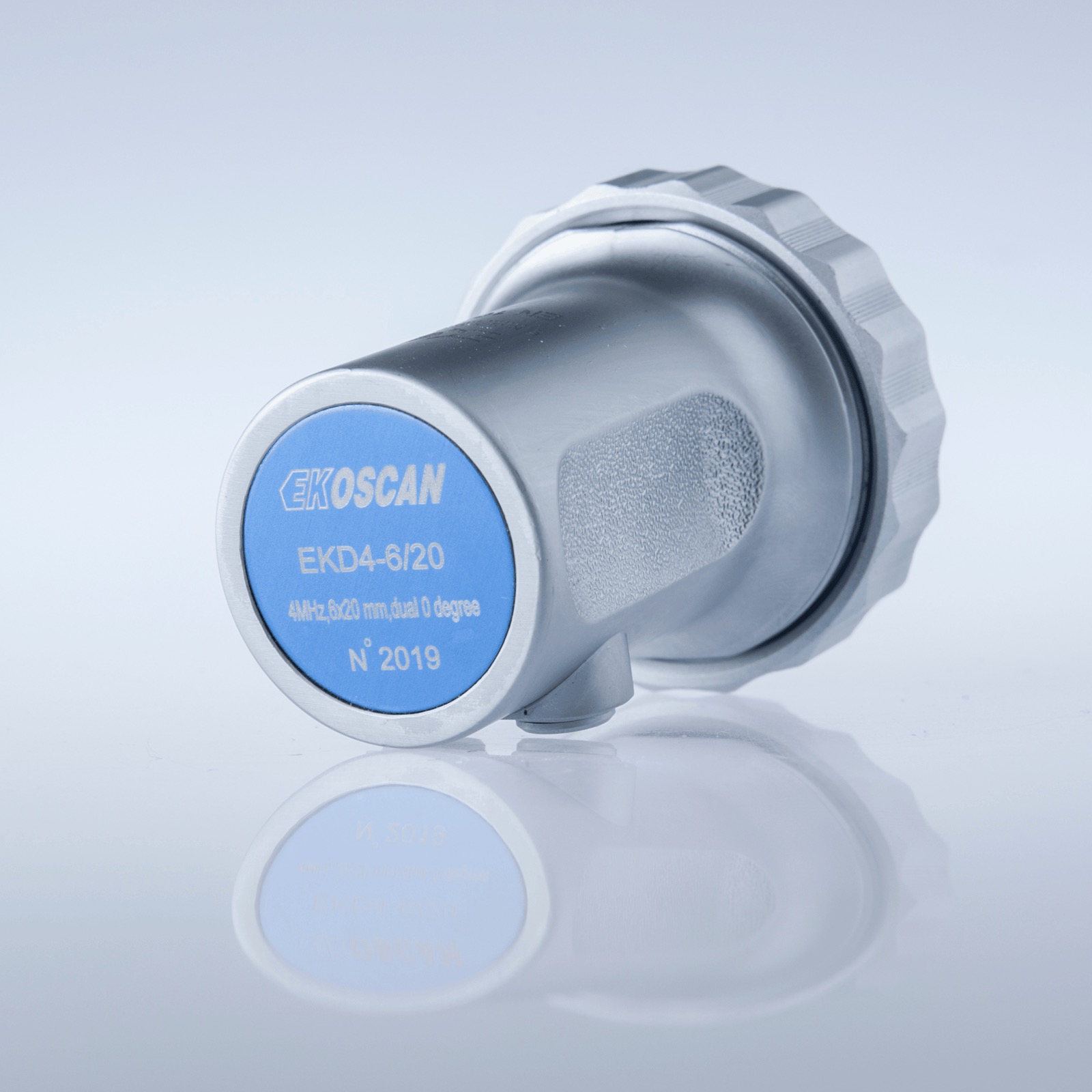

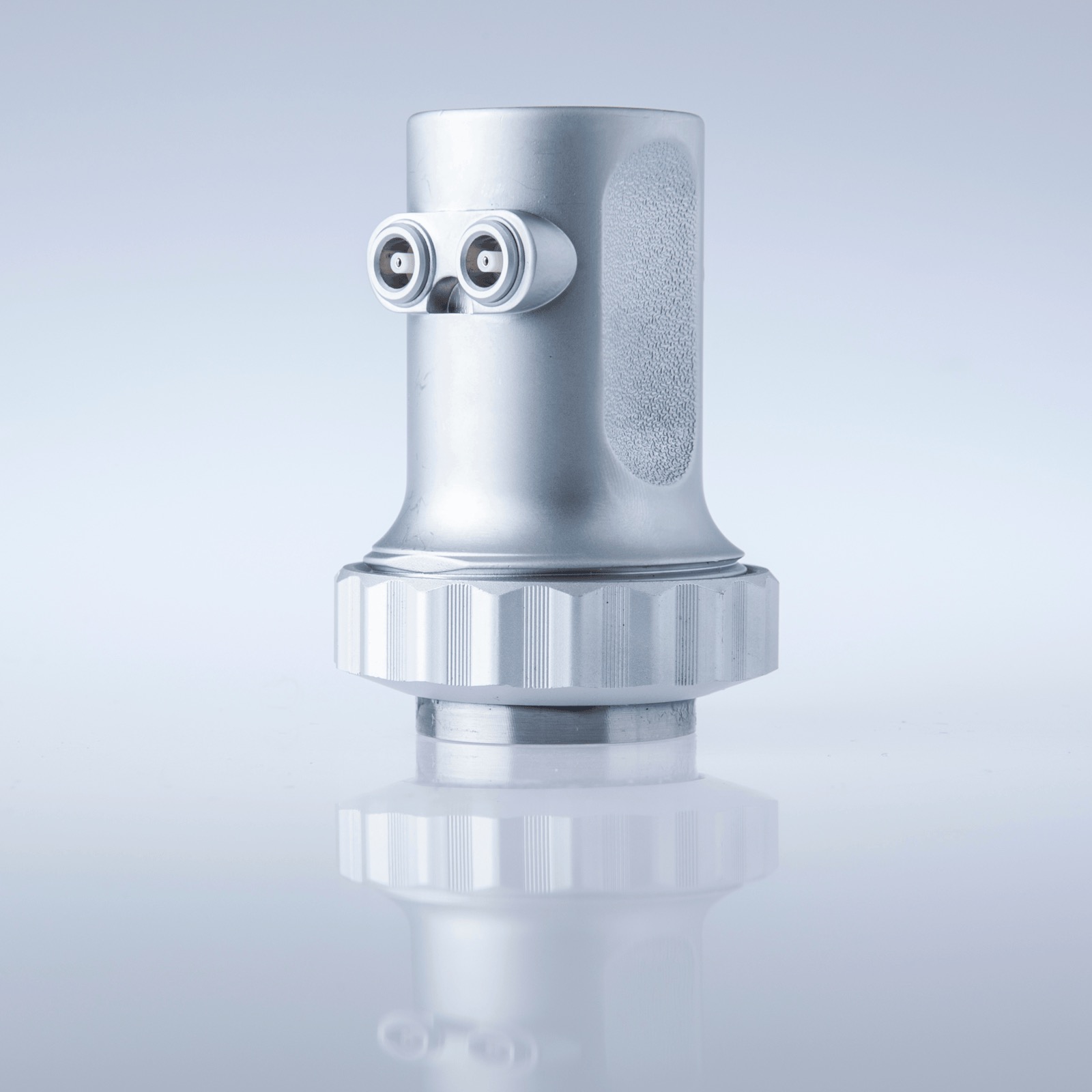

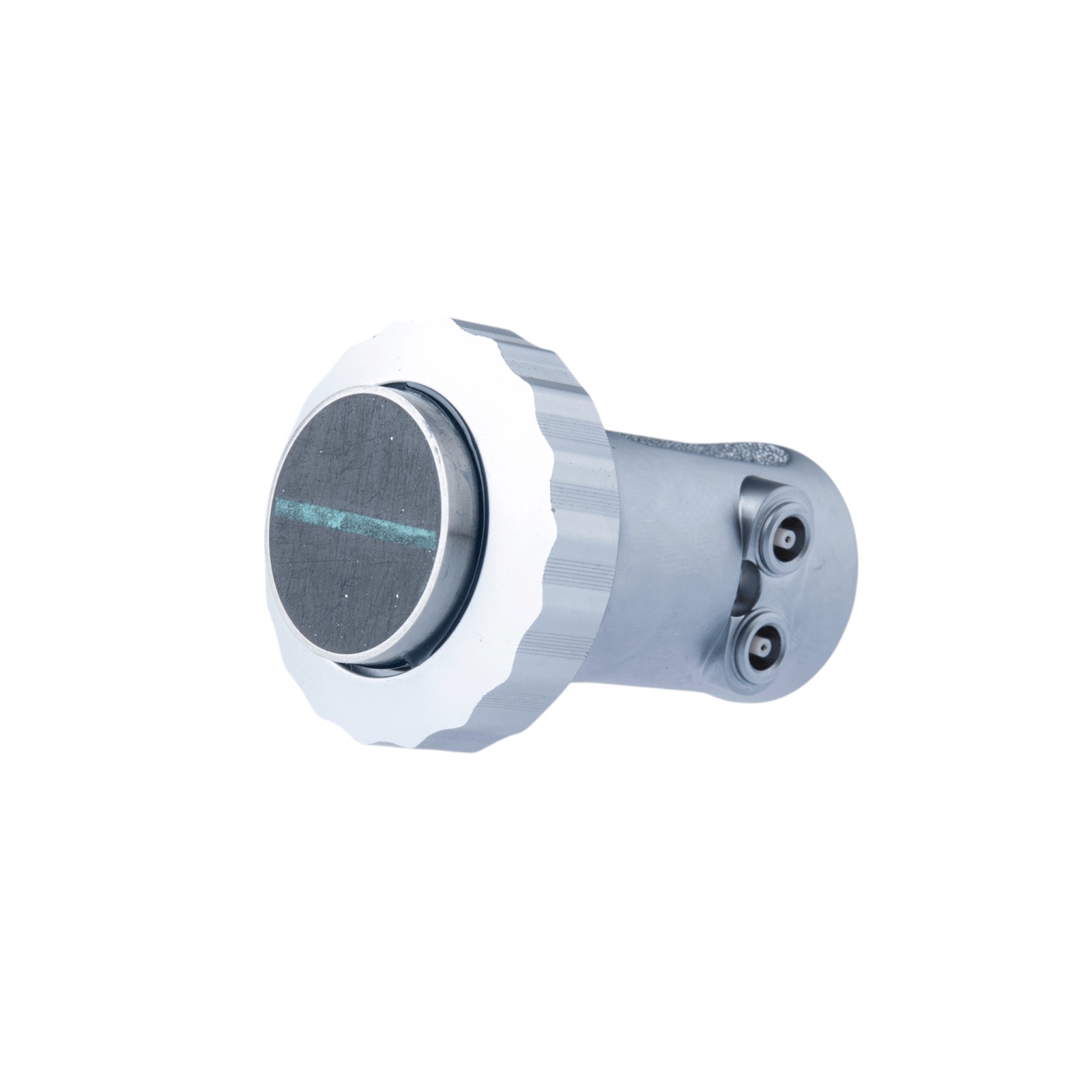

This transducer is a dual crystal probe designed to fit in automated scanners.

Nomenclature: EKDXX-YY/ZZFAA, where XX is the frequency in MHz, YY is the width of half crystal, ZZ is the length of half crystal and AA is the focal depth in mm (if applicable).

  • Features
  • Includes
  • Options
  • Applications
  • Available dual crystal apertures3.5mm x 10mm
  • 6mm x 20mm
  • 7mm x 18mm to
  • 1/2 disc 20mm diameter
  • 1/2 disc 5mm diameter
  • Nominal frequencyfrom 0.5MHz to 10MHz
  • Bandwidth30% to 50%
  • 0° longitudinal wave transducer
  • LEMO00 side connector
  • Transducer delivered with EN 22232-2 certificate
  • UHF cables
  • Adaptors
  • Thickness measurement
  • Coarse grain materials inspection
  • Composite materials inspection
  • Near surface resolution
  • Lab testing immersion tanks

Description

Technical specifications

Reference Frequency MHz Crystal Size mm Focal depth mm Connector
EKD1-21/2 1 Ø21/2 10 Lemo00
EKD2-7/18F15 2 7x18 15
EKD2-7/18 0° 20
EKD2-10 3.5x10 10
EKD2-20 Ø20/2 20
EKD4-6/20 F12 4 6x20 12
EKD4-6/20 F25 25
EKD4-10 3.5x10 10
EKD4-20 Ø20/2 20
EKD5-10 5 3.5x10 10

Serving all industrial sectors

Nuclear

Steam generators, primary and secondary piping, valves, etc.

Renewable energy

Wind turbine mats, blades, etc.

Aerospace & Defence

Fuselage, stiffeners, engine turbine blades, etc.

Railways

Rails, axles, wheels, welds, etc.

Hydrogen

SMR Steam Methane Reformer, Pressure Swing Adsorption, etc.

Oil & Gas

Pipe, pressure vessel, etc.

Manufacturing

Titanium billets, AA aluminum plates and sheets, forging parts, etc.

Other

Bridges, electric poles, etc.
