Technical specifications
| Reference | Frequency MHz | Crystal Size mm |
|---|---|---|
| EKD5-TG | 5 | Ø 10/2 |
| EKD5-TG SM | Ø 5/2 |

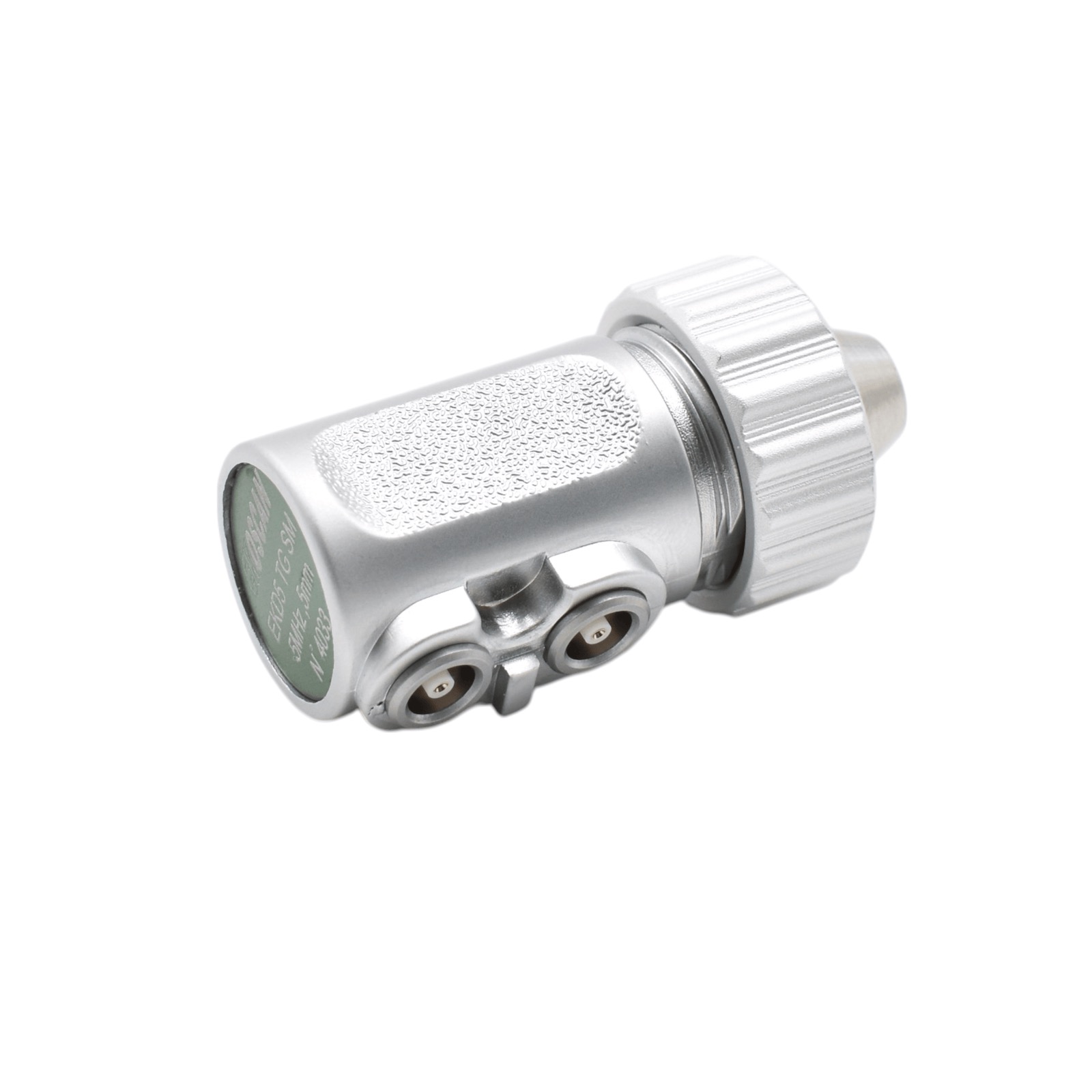

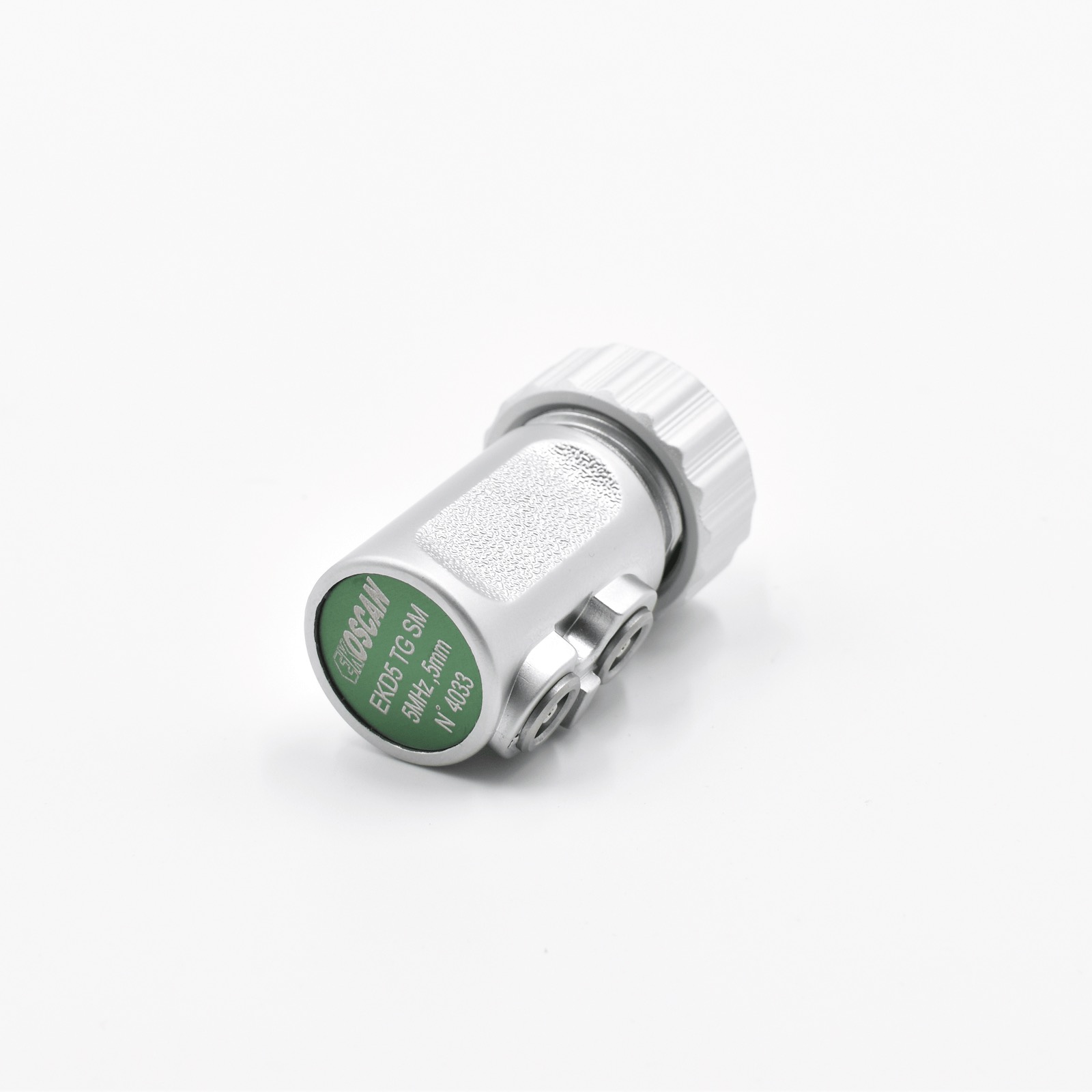

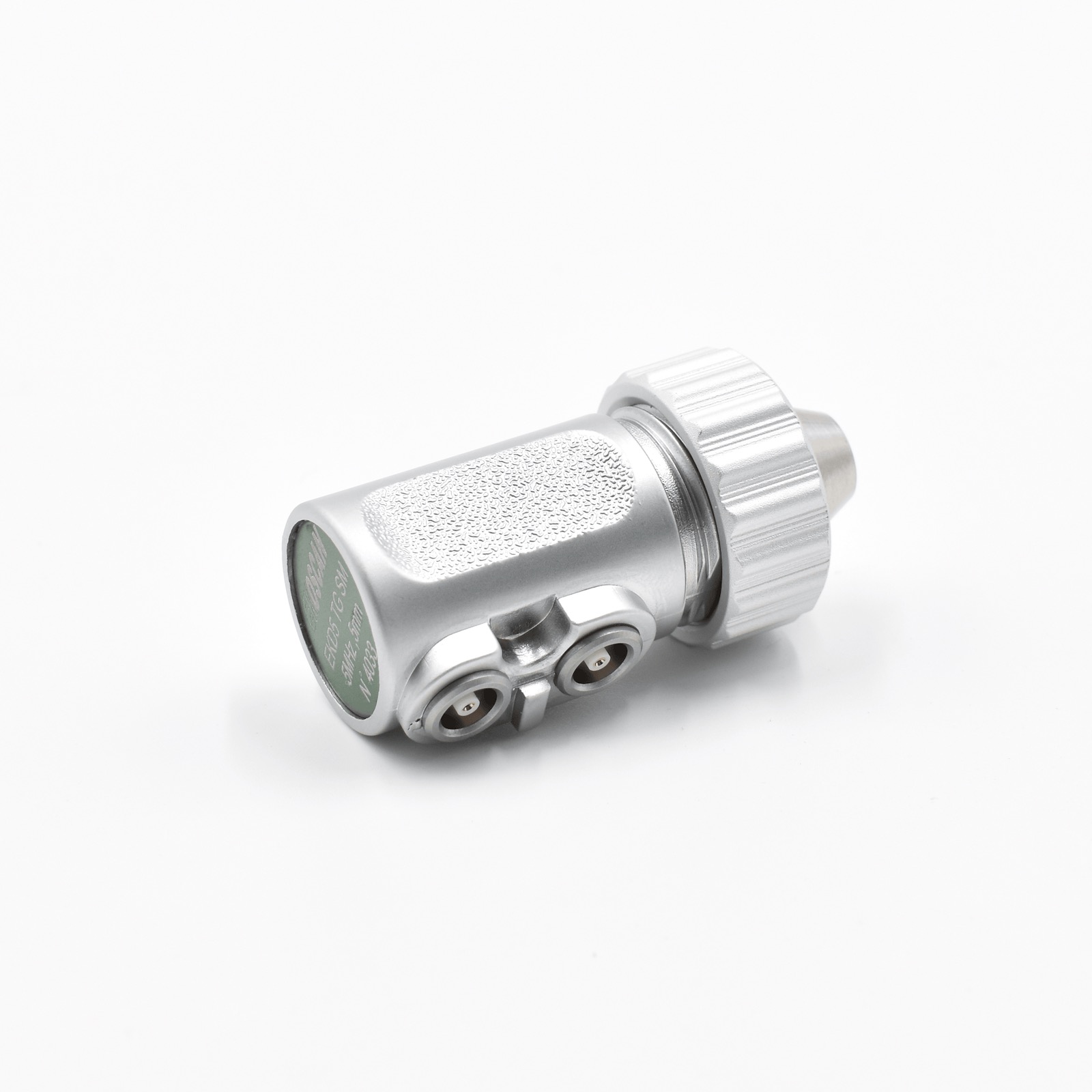

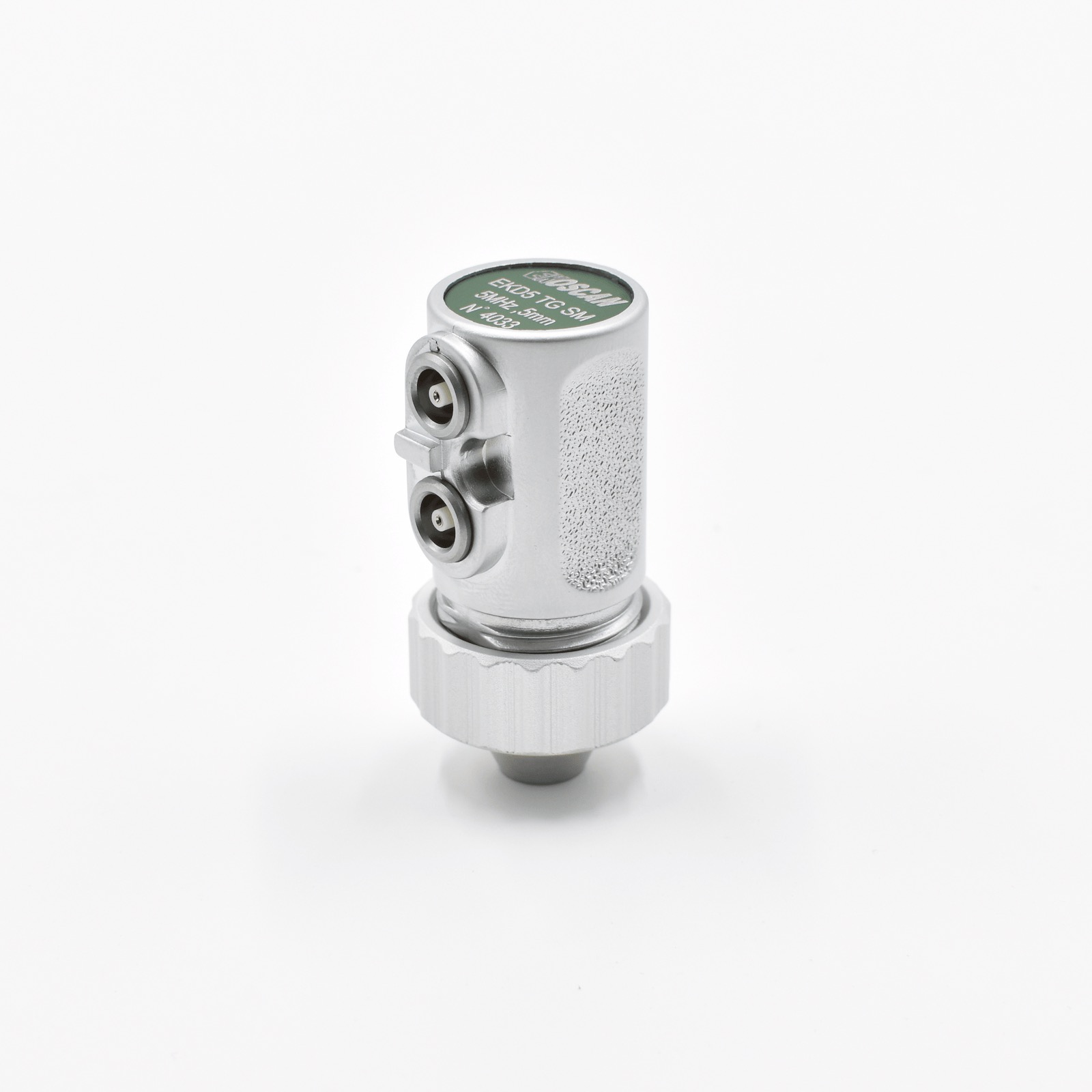

EKD-TG
This transducer is a dual crystal probe designed to for thickness gages.
Nomenclature: EKDXX-TG YY, where XX is the frequency in MHz, YY is the diameter of half disc apertures.
- Features
- Includes
- Options
- Applications
- Available dual crystal apertures1/2 disc 10mm diameter
- 1/2 disc 5mm diameter
- Available frequencies2MHz
- 5MHz
- 7.5MHz
- LEMO00 side connector
- Transducer delivered with EN 22232-2 certificate
- LEMO00 cables
- Adaptors
- Thickness measurement
- Coarse grain materials inspection
- Composite materials inspection
- Near surface resolution
- Lab testing immersion tanks
