Description
Resources
Technical specifications
| Reference | Type | Frequency MHz | Number of elements | Pitch mm | Elevation mm | L | W | H |
|---|---|---|---|---|---|---|---|---|
| EKPIPE-2.25/60 | Linear | 2.25 | 60 | 1 | 10 | 68 | 26 | 30 |
| EKPIPE-5/60 | 5 | |||||||
| EKPIPE-7.5/60 | 7.5 | |||||||
| EKPIPE-5/64 | 5 | 64 | 0.9 |
EKFX
Low profile.

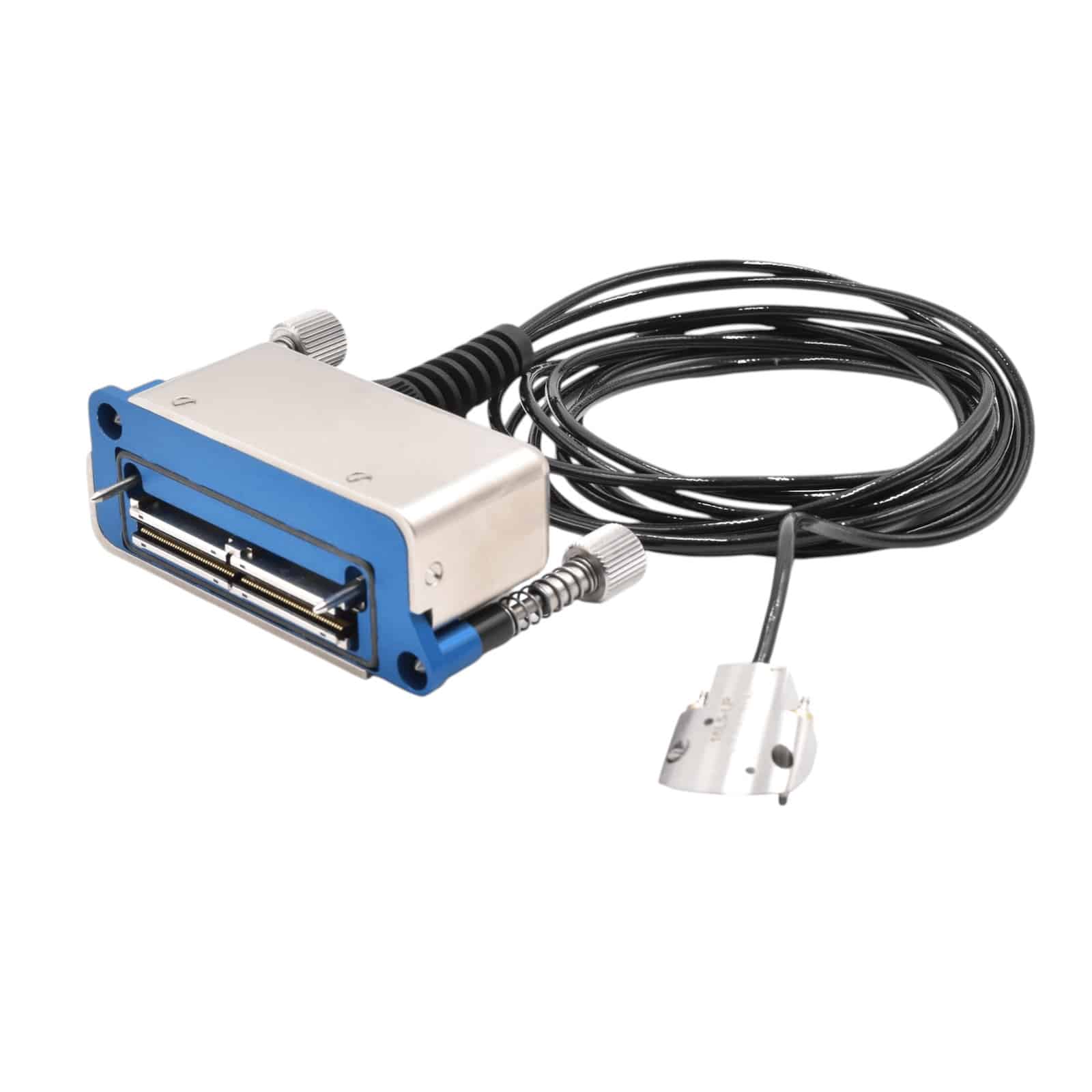

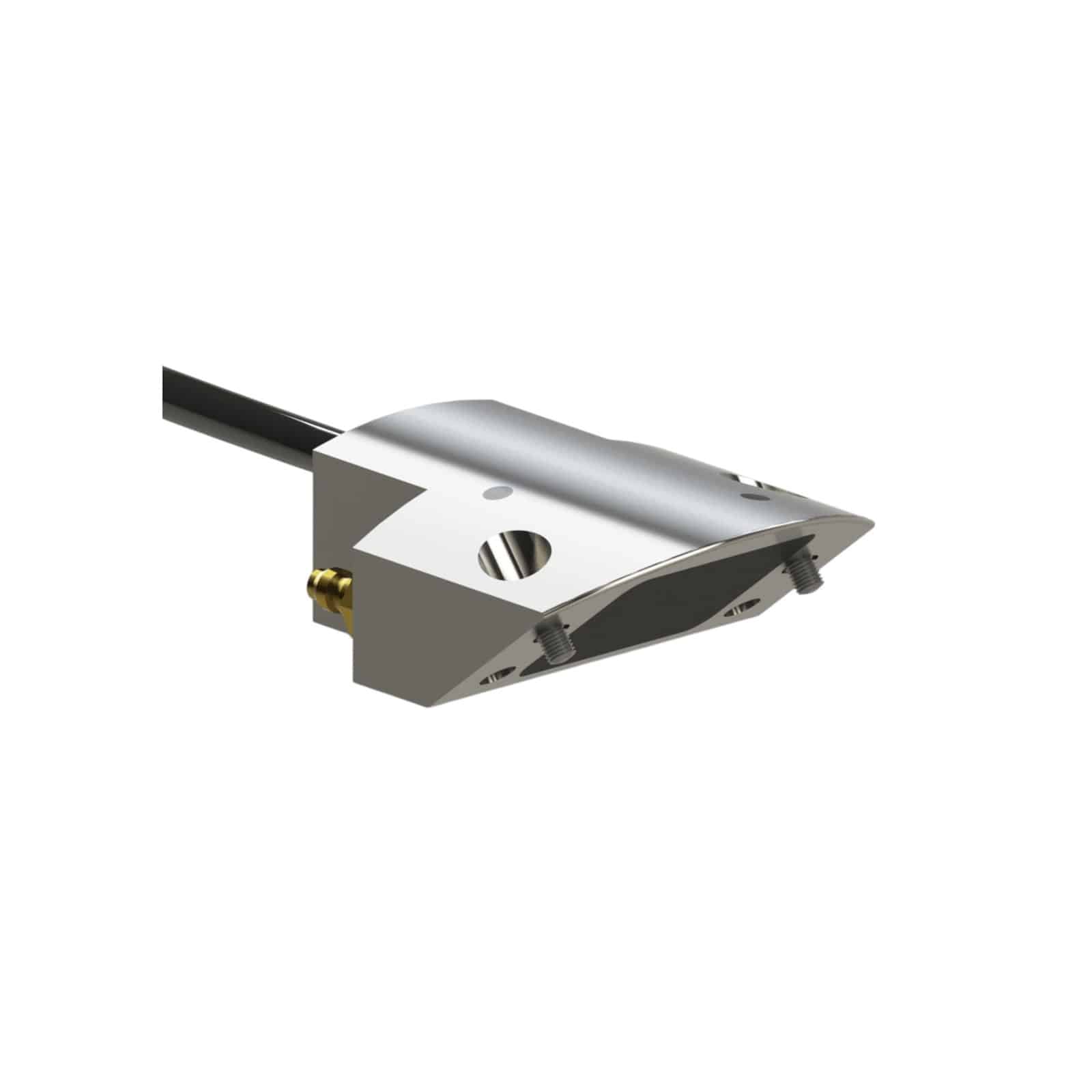

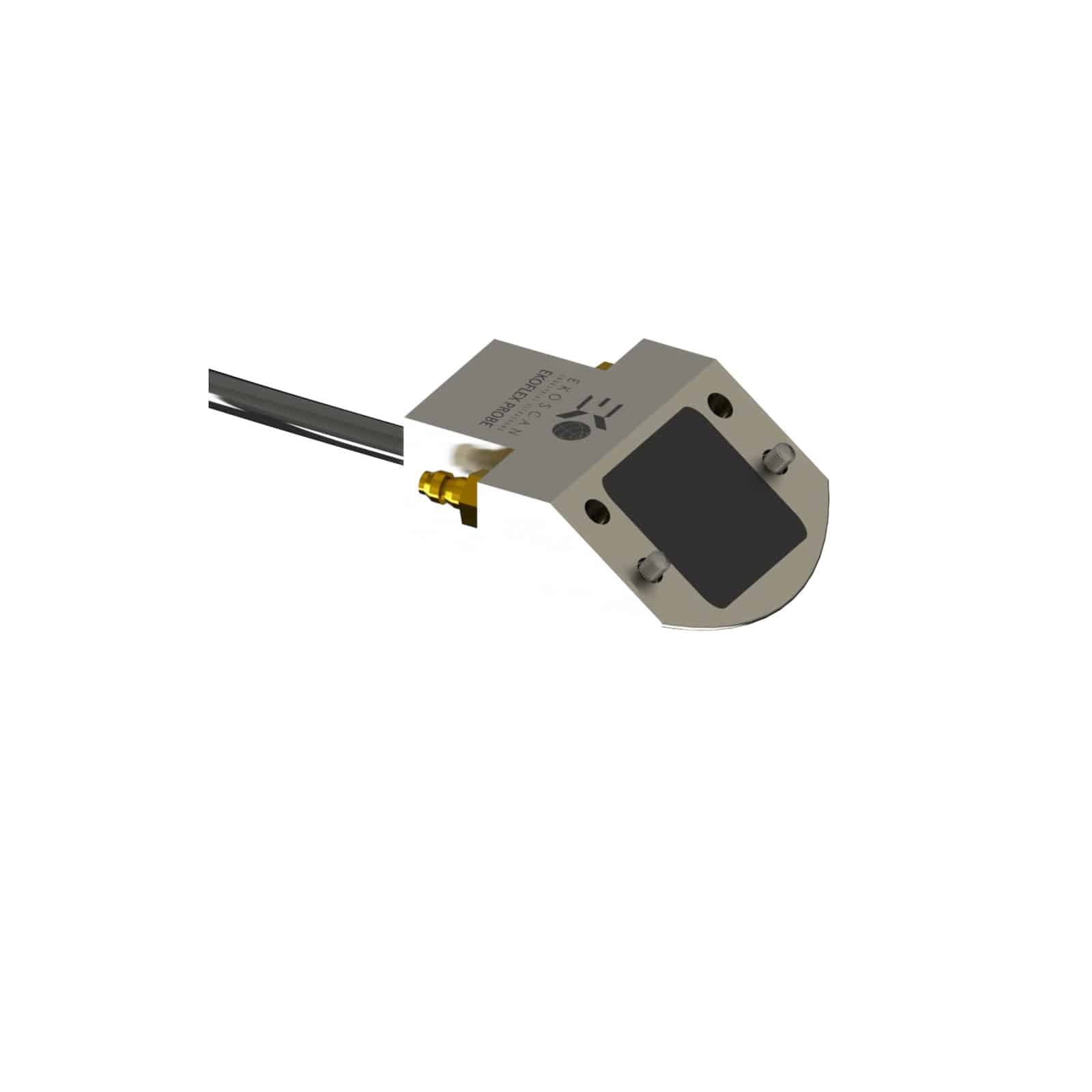

The EK FX phased array probe is commonly used for small-diameter tube inspections. One of its key advantages is its low-profile design, which makes it especially suitable for navigating tight spaces such as the narrow gaps between boiler tubes or heat exchanger bundles. It is designed with a concave Elevation focus that improves resolution in the passive plane.
- Features
- Includes
- Options
- Applications
- Elevation10 mm CCEV
- Element count16 and 32 elements
- Element pitch0,25 and 0.5 mm
- Frequency5, 7.5 and 10 MHz
- Cable length2.5 m
- Certificate of conformity compliant with ISO 18563-2 standard
- Travel Case
- IPEX, EAsy-latch, Zpac, Hypertronic Connectors
- Custom cable length
- Standard, AOD and COD wedges with integrated IDC
- Small tube
- Boiler tube
