Technical specifications
| Reference | Frequency MHz | Crystal Size mm | Connector |
|---|---|---|---|
| EK1H10 | 1 | 10 | Lemo00 |
| EK2H10 | 2 | ||
| EK4H10 | 4 | ||
| EK5H10 | 5 | ||
| EK1H20 | 1 | 20 | |
| EK2H20 | 2 | ||
| EK4H20 | 4 | ||
| EK5H20 | 5 | ||
| EK1H24 | 1 | 24 | Lemo01 |
| EK2H24 | 2 | ||
| EK4H24 | 4 |
EKH

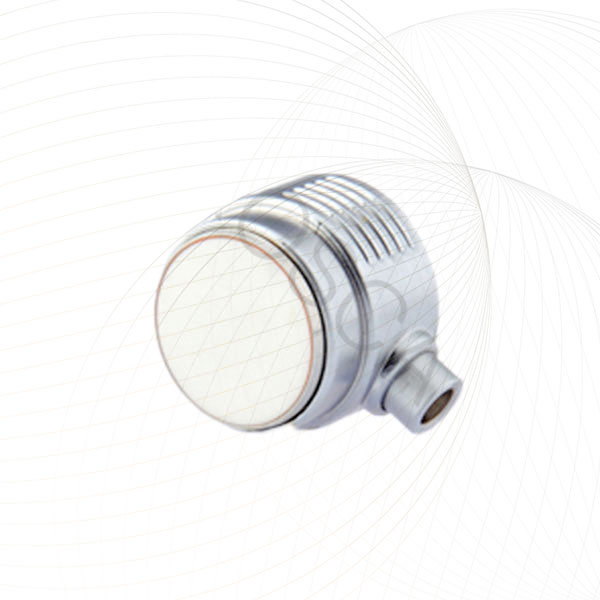

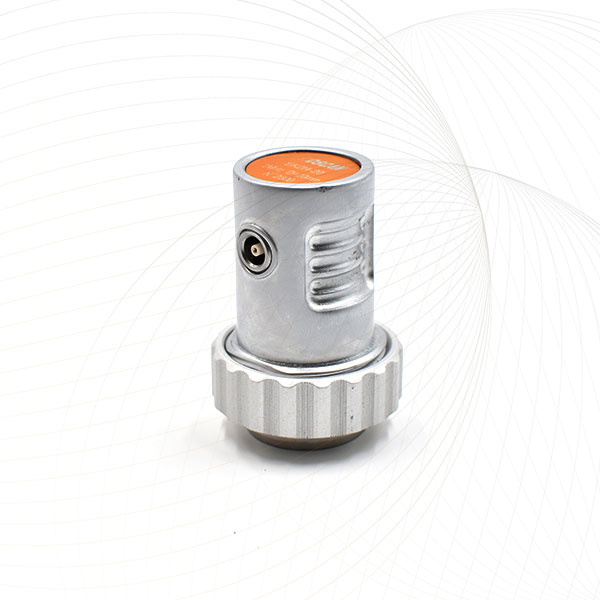

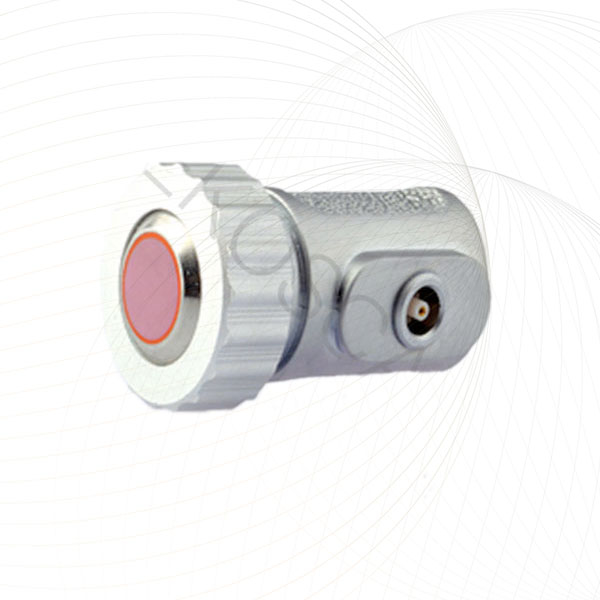

Single element probe 0° Longitudinal Wave (Pressure wave), hard face.
Nomenclature: EKXXHYY where XX is the frequency in MHz and YY is the diameter of the crystal.
- Features
- Includes
- Options
- Applications
- Available dual crystal apertures5mm
- 10mm
- 13mm
- 20mm
- 24mm
- 25mm
- Nominal frequencyfrom 1MHz to 10MHz
- LEMO00 side connector
- Probes delivered with certificate EN12668-2
- LEMO00 cables
- Adaptors
- Longitudinal Wave wedges
- Probes used for inspection of materials with fine or coarse structure. Inspection of rough or machined surfaces
Serving all industrial sectors
Nuclear
Steam generators, primary and secondary piping, valves, etc.
Renewable energy
Wind turbine mats, blades, etc.
Aerospace & Defence
Fuselage, stiffeners, engine turbine blades, etc.
Railways
Rails, axles, wheels, welds, etc.
Hydrogen
SMR Steam Methane Reformer, Pressure Swing Adsorption, etc.
Oil & Gas
Pipe, pressure vessel, etc.
Manufacturing
Titanium billets, AA aluminum plates and sheets, forging parts, etc.
Other
Bridges, electric poles, etc.
