Technical specifications
| Reference | Frequency MHz | Crystal Size mm | Connector |
|---|---|---|---|
| EK1M10 | 1 | 10 | Lemo00 |
| EK2M10 | 2 | ||
| EK4M10 | 4 | ||
| EK5M10 | 5 | ||
| EK1M20 | 1 | 20 | |
| EK2M20 | 2 | ||
| EK4M20 | 4 | ||
| EK5M20 | 5 | ||
| EK1M24 | 1 | 24 | Lemo01 |
| EK2M24 | 2 | ||
| EK4M24 | 4 |

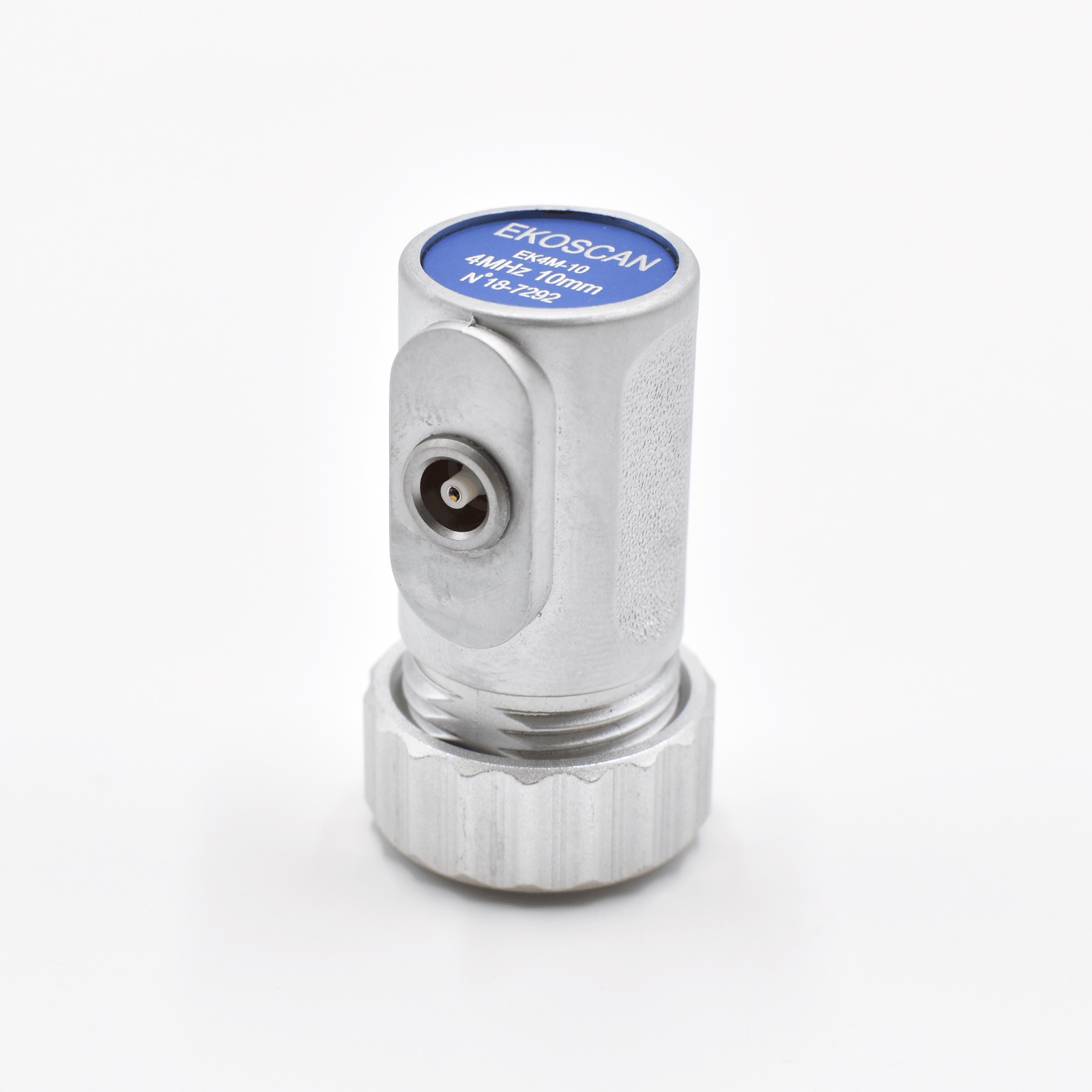

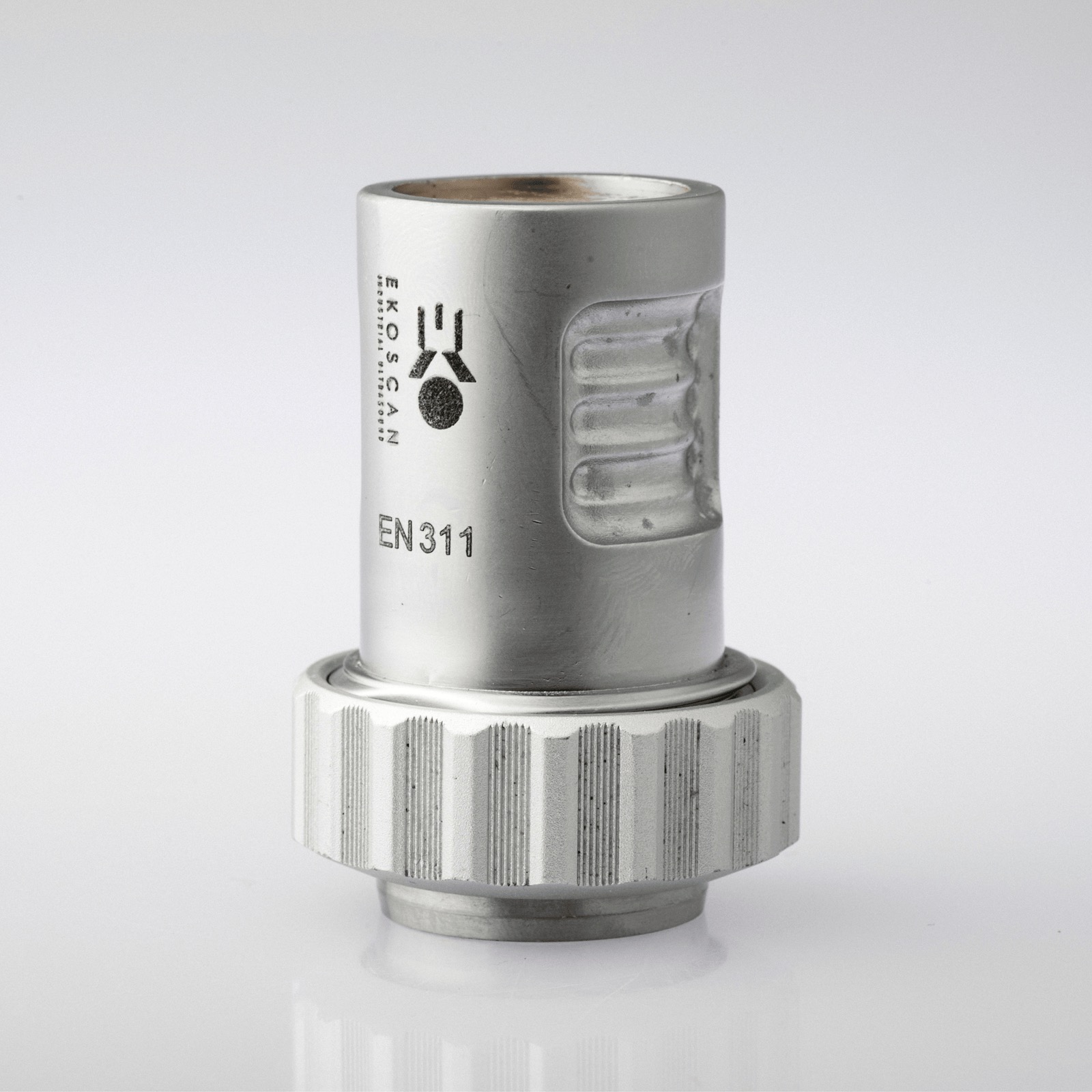

EKM

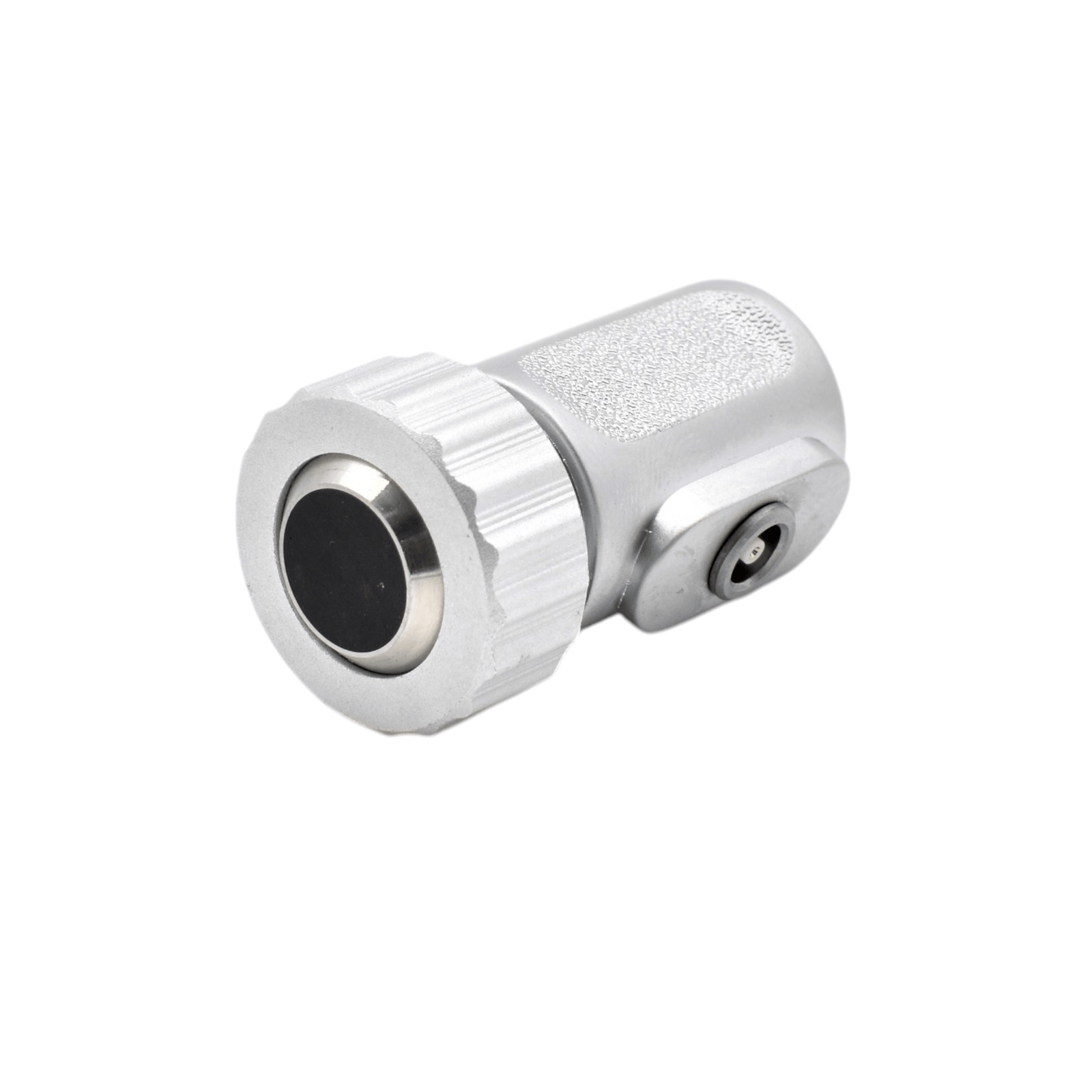

Single element probe with membrane 0° Longitudinal Wave (Pressure wave), soft face.
Nomenclature: EKXXMYY where XX is the frequency in MHz and YY is the diameter of the crystal.
- Features
- Includes
- Options
- Applications
- Available apertures10mm
- 20mm
- 24mm
- Nominal frequencyfrom 1MHz to 5MHz
- LEMO00 side connector
- Probes delivered with certificate EN12668-2
- LEMO00 cables
- Adaptors
- Longitudinal Wave wedges
- Probes used for inspection of materials with fine or coarse structure. Inspection of rough or machined surfaces.
