HandScan

NDT wheel encoder with a smart clamp design.

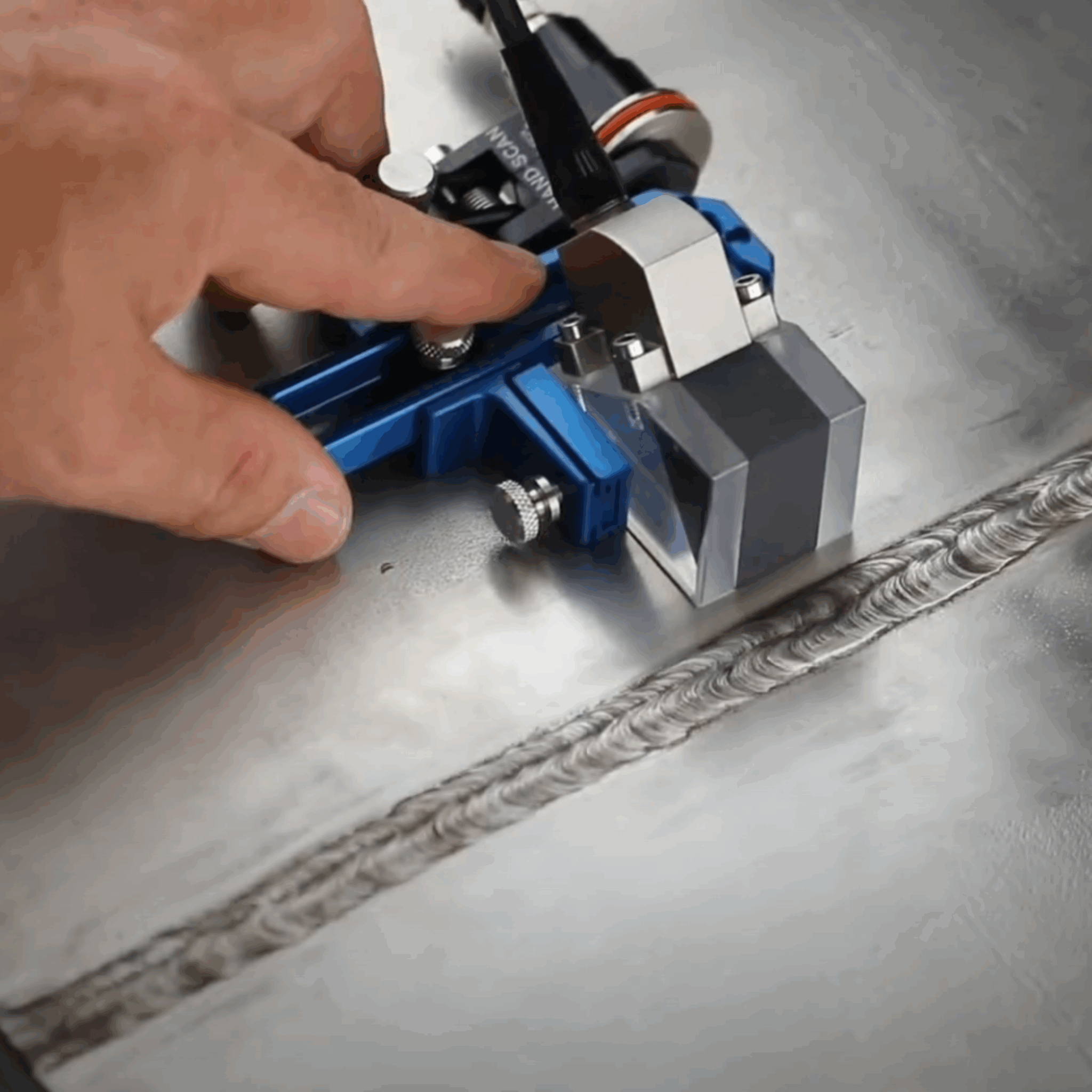

HandScan is the ideal scanner for quick and efficient 1-line scanning with conventional or array NDT probes, both for weld assessment and limited corrosion areas mapping. The clamp can be rotated for 5 native scanning probe orientations.

Features
Includes
Options
Applications

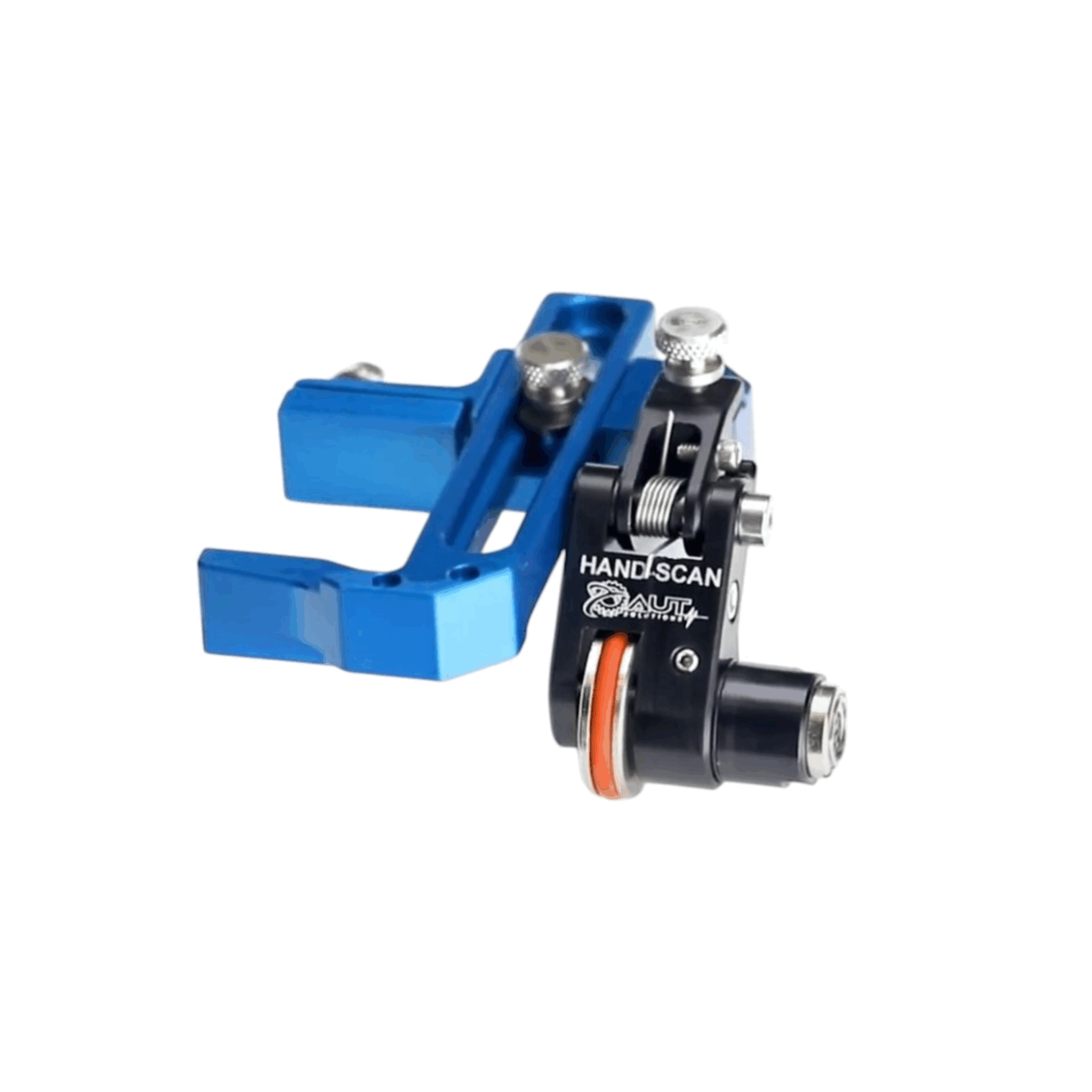

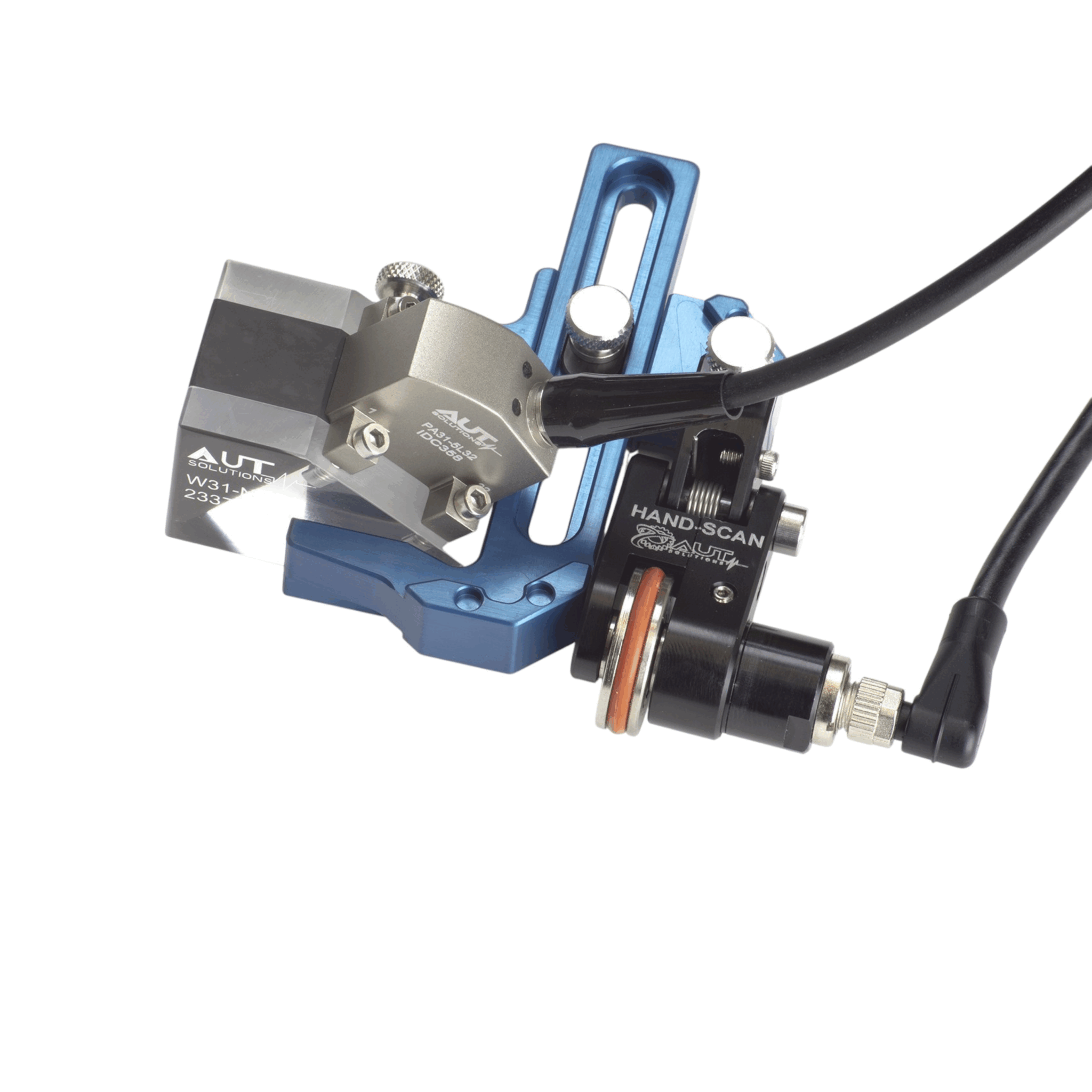

Quick adjustable clampHandScan handles probes and wedges up to 56 mm wide
IP68 ratingWith high-grade anodized aluminium parts, HandScan is built to last
IP68 LEMO16 encoderNanoscan comes with a waterproof, precise 1-axis encoder with a connector compatible with most flaw detectors of the market.

HandScan Dual Force Clamp
Spring loaded encoder arm
RME waterproof encoder

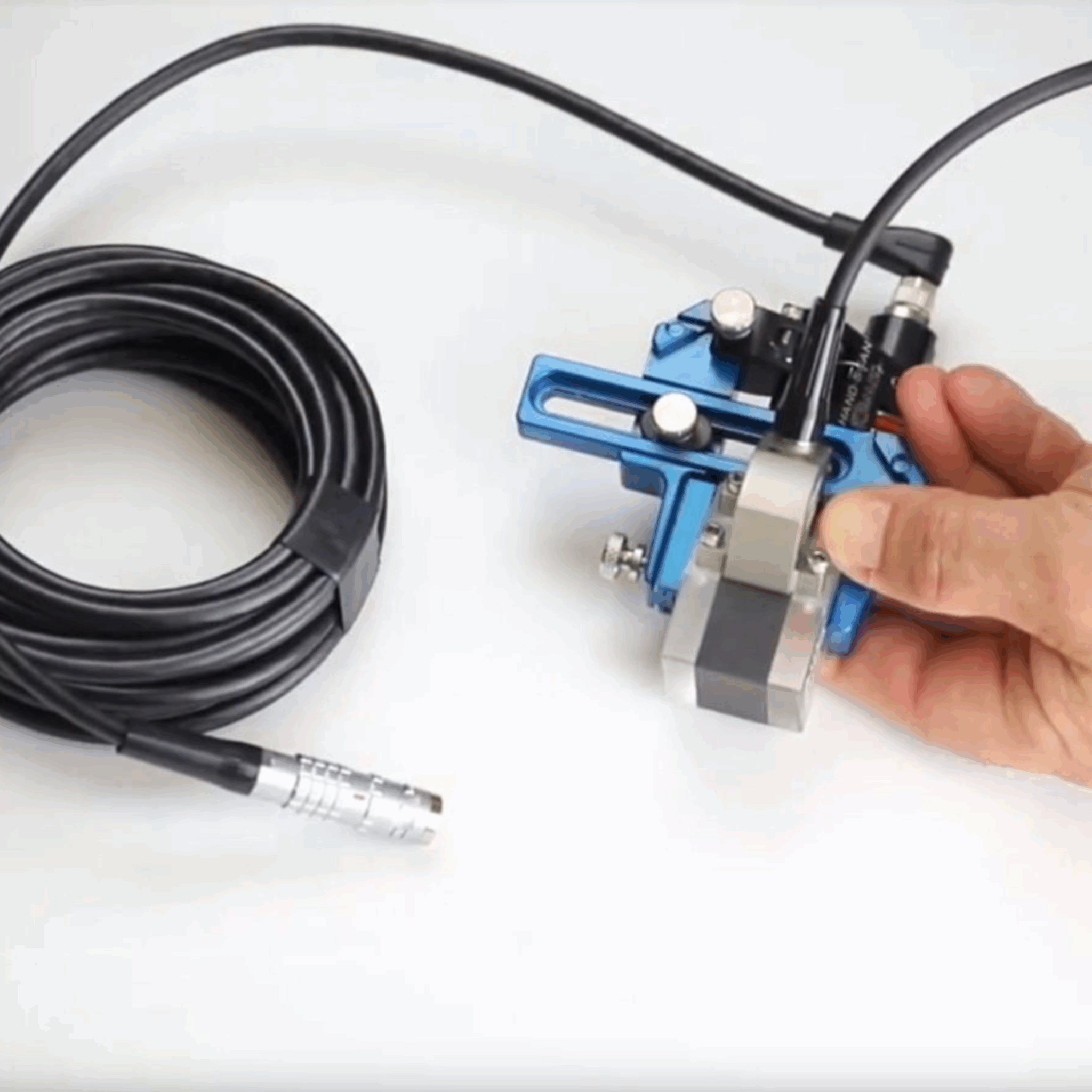

5m encoder cable (connector required)
Protective case

Additional encoded truck (to turn a dual into 2 singles)
Probe fork kit, including mounts, fork bars 1 inch long, 4 forks sets for 4 probe setup, wedge mount 3 mm / 5 mm, wedge width 25 mm / 1 inch

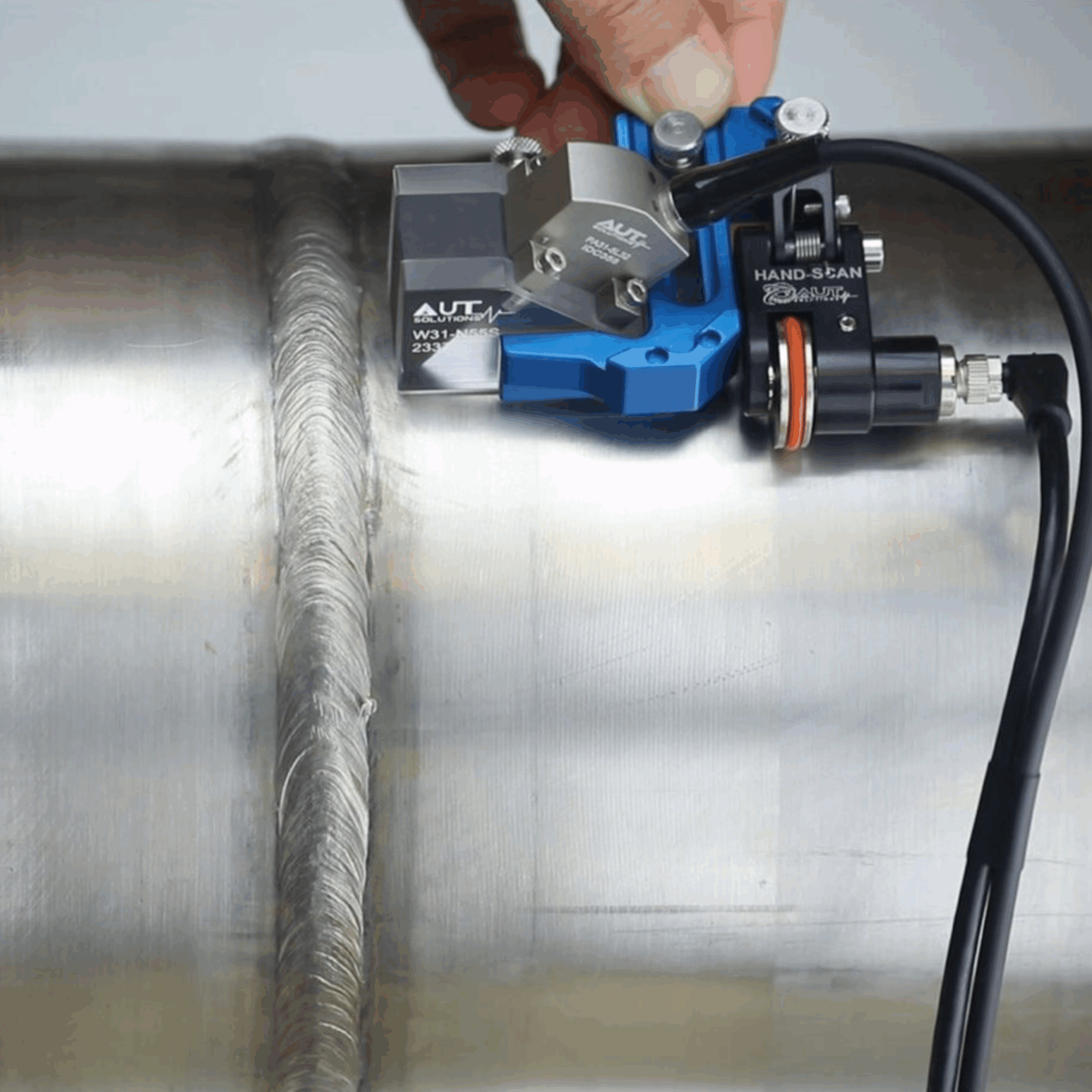

Pipe welds (O&G, Nuclear, Renewable Energy)
Nozzle welds (O&G, Nuclear, Renewable Energy)
Panel welds ((O&G, Nuclear, Renewable Energy)
ERW (O&G)

Description

Customer Benefits

Compatible with traceability requirements

With a precise encoding compatible with most flaw detectors (LEMO 16 connector), HandScan provides encoding to data.

Best value for the money

Within a small budget, HandScan improves NDT with encoding and traceability.

Easy to deploy

HandScan is a smart no-brainer encoder. Designed for agility, this 0.3 pounds (150g) encoder handles 5 skew angles natively.

Resources

HandScan PDF brochure

HandScan video

Scanners General Catalogue

Technical specifications

Scanner dimensions	1.5”x 3.5”x 3.75” (3 x 7.6 x 7.62 cm)
Weight	0.32 lb (0.15 kg)
Operating environment	Up to 150°F (66°C)
Encoder resolution	1257.33 ticks / in (49.5 ticks / mm)
Encoder cable	5 m
Travel case dimensions	10 x 9 x 3” (25.4 x 23 x 7.6 cm)
