LG

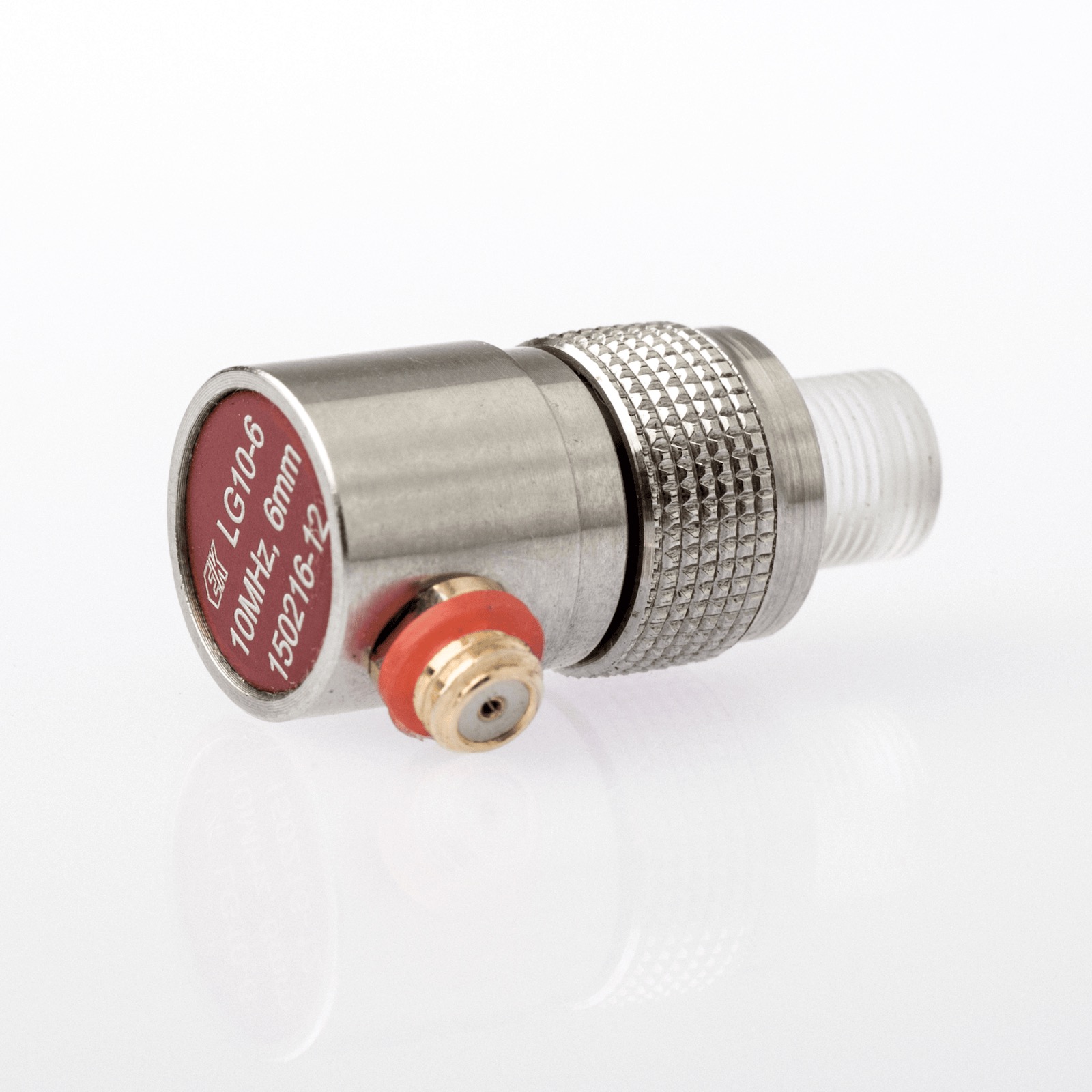

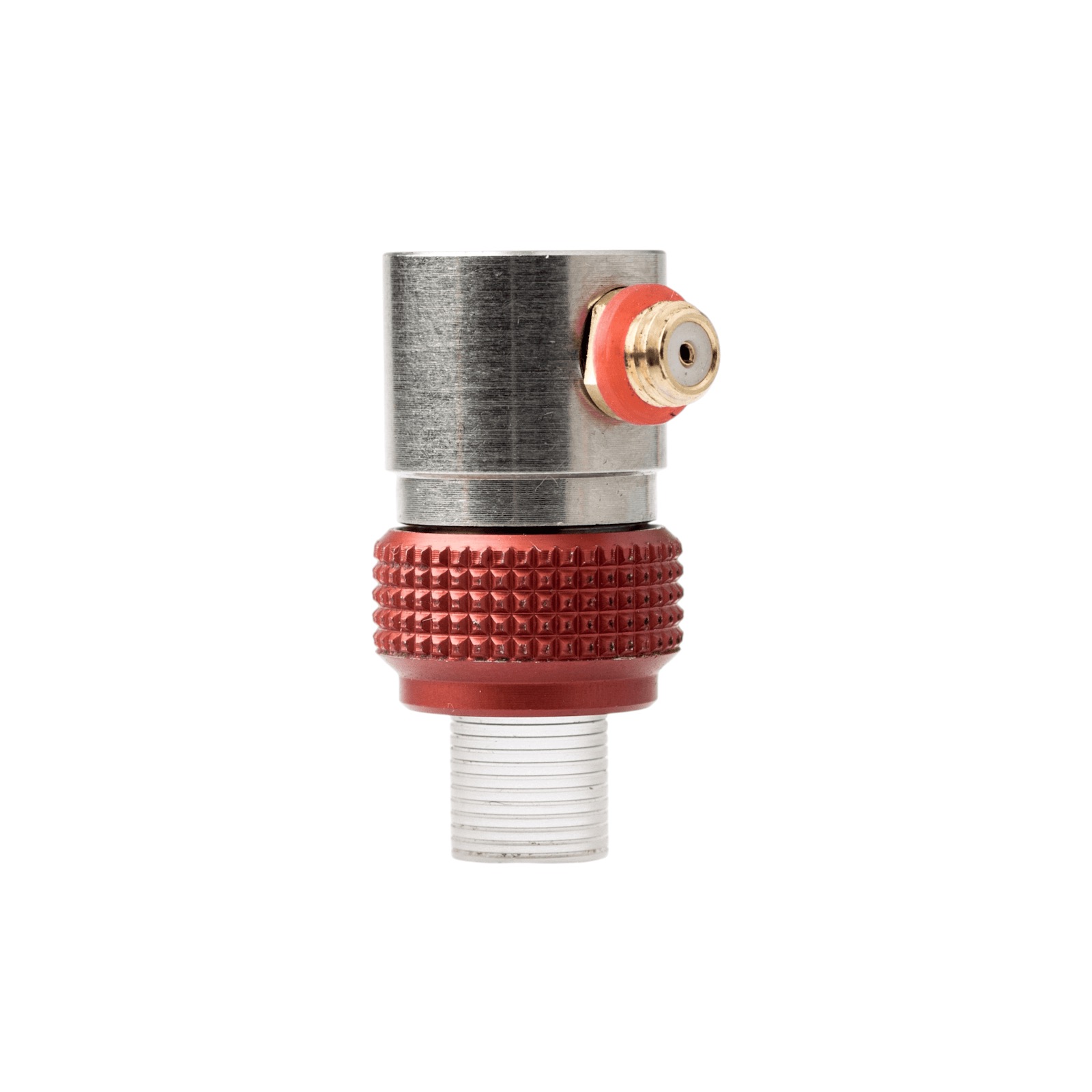

Single element probes. Longitudinal waves emission 0°. Interchangeable protective shields et relays.

Nomenclature: LGXX-YY where XX is the frequency in MHz and YY is the crystal diameter in mm.

  • Features
  • Includes
  • Options
  • Applications
  • Available dual crystal apertures3mm
  • 6mm
  • 10mm
  • 13mm
  • 15mm
  • Nominal frequencyfrom 2.25MHz to 15MHz
  • Microdot side or top connector
  • Probes delivered with certificate EN12668-2
  • Microdot cables
  • Adaptors
  • Relay type ''S''

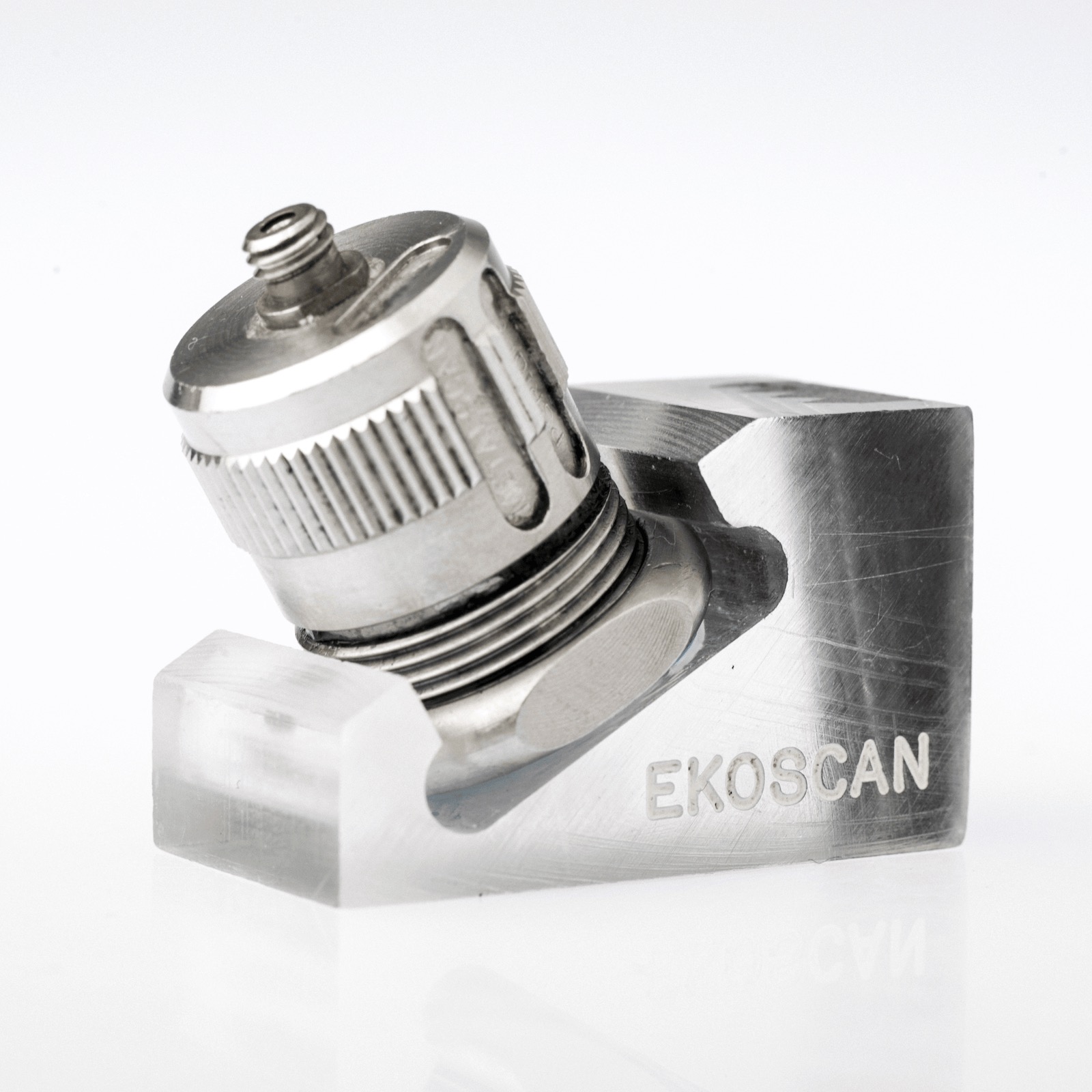

  • Wedge with holding by plating for OT control type ''TP''
  • Wedge with screw pitch for OL control type ''LS''
  • Wedge with holding by plating for OL control type ''LP''
  • Thickness measurement
  • Composite materials inspection
  • Near surface resolution
  • Lab testing immersion tanks

Description

Technical specifications

Reference Frequency MHz Crystal Size mm Delay line LW0° Connector
LG10-3 10 3 S10 (10 mm) Microdot
LG15-3 15
LG3-6 3 6
LG5-6 5
LG8-6 8
LG10-6 10
LG15-6 15
LG3-10 3 10 SG13 (13 mm)
LG5-10 5
LG8-10 8
LG10-10 10
LG3-13 3 13
LG5-13 5
LG10-13 10
LG15-13 15
LG3-15 3 15 SH13 (13 mm)
LG5-15 5
LG8-15 8
