MW

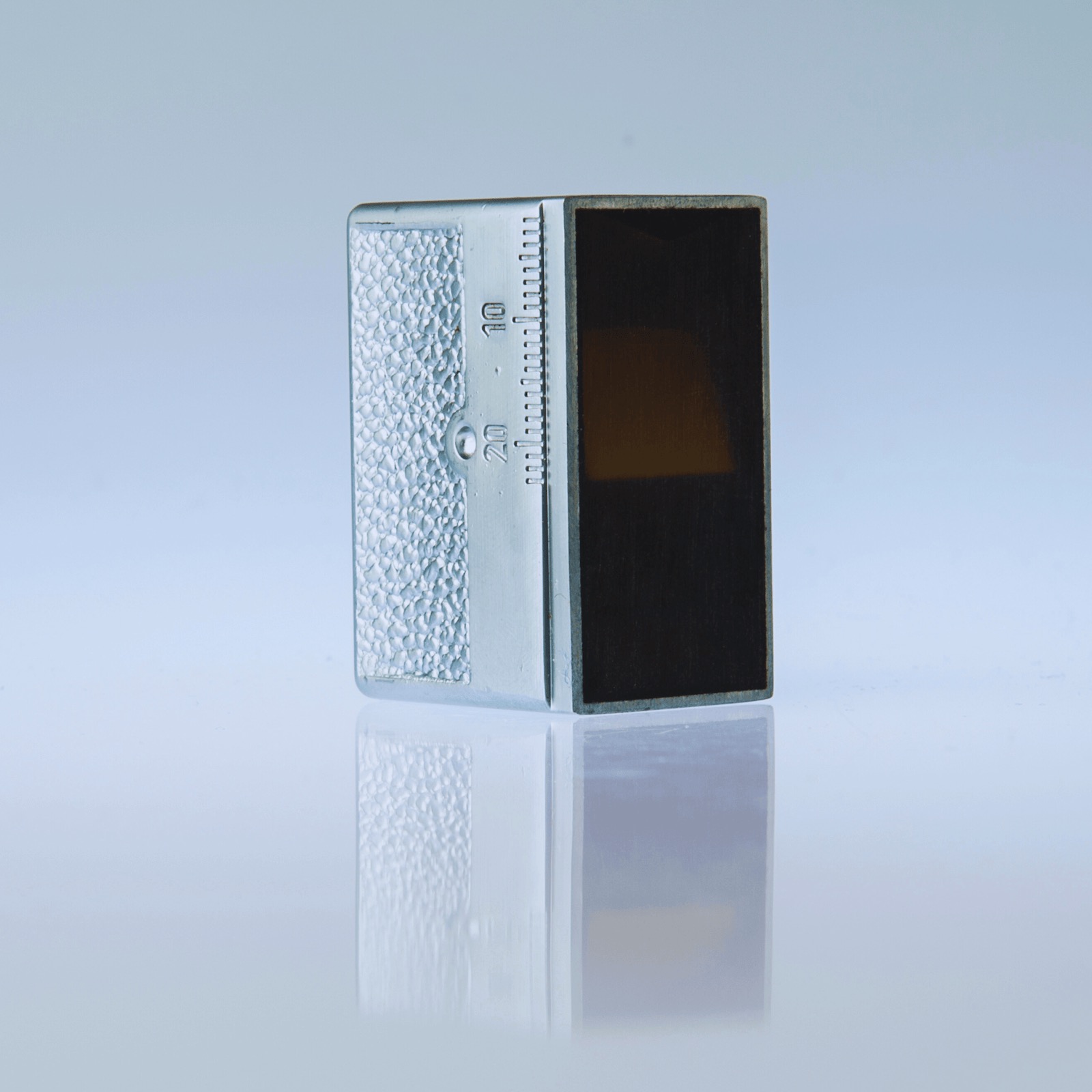

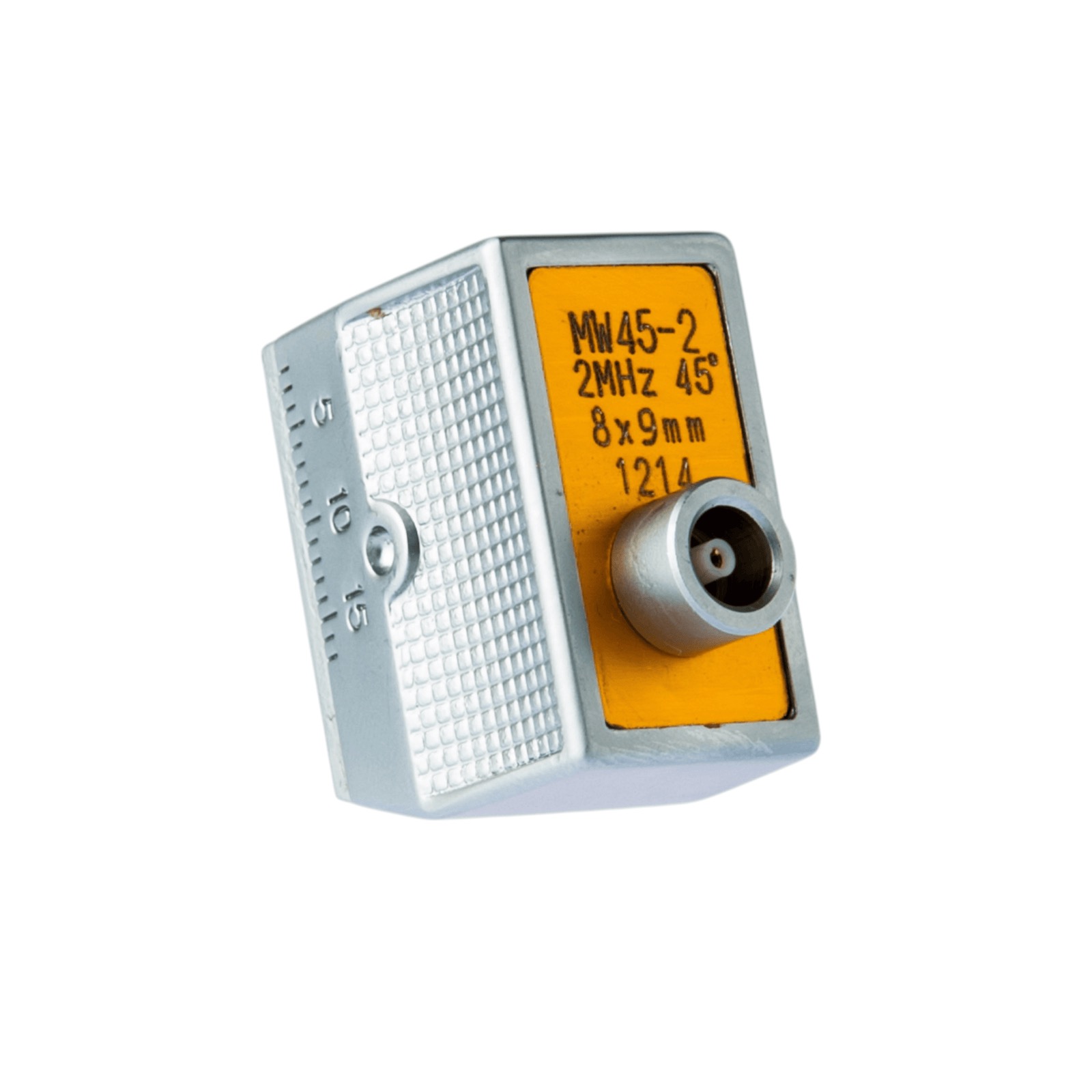

Miniature single-element probe series, with built-in shear-wave wedge.

Nomenclature: MWXX-YY PC ZZ, where XX is the nominal refracted angle of the shear-wave in steel, YY is the frequency in MHz, and ZZ is void or TC for top connector.

  • Features
  • Includes
  • Options
  • Applications
  • Aperture8 x 9mm
  • Available frequencies2MHz & 4MHz
  • Refracted S-wave angles35°, 38°, 43°, 45°, 47°, 50°, 54°, 60°, 70°

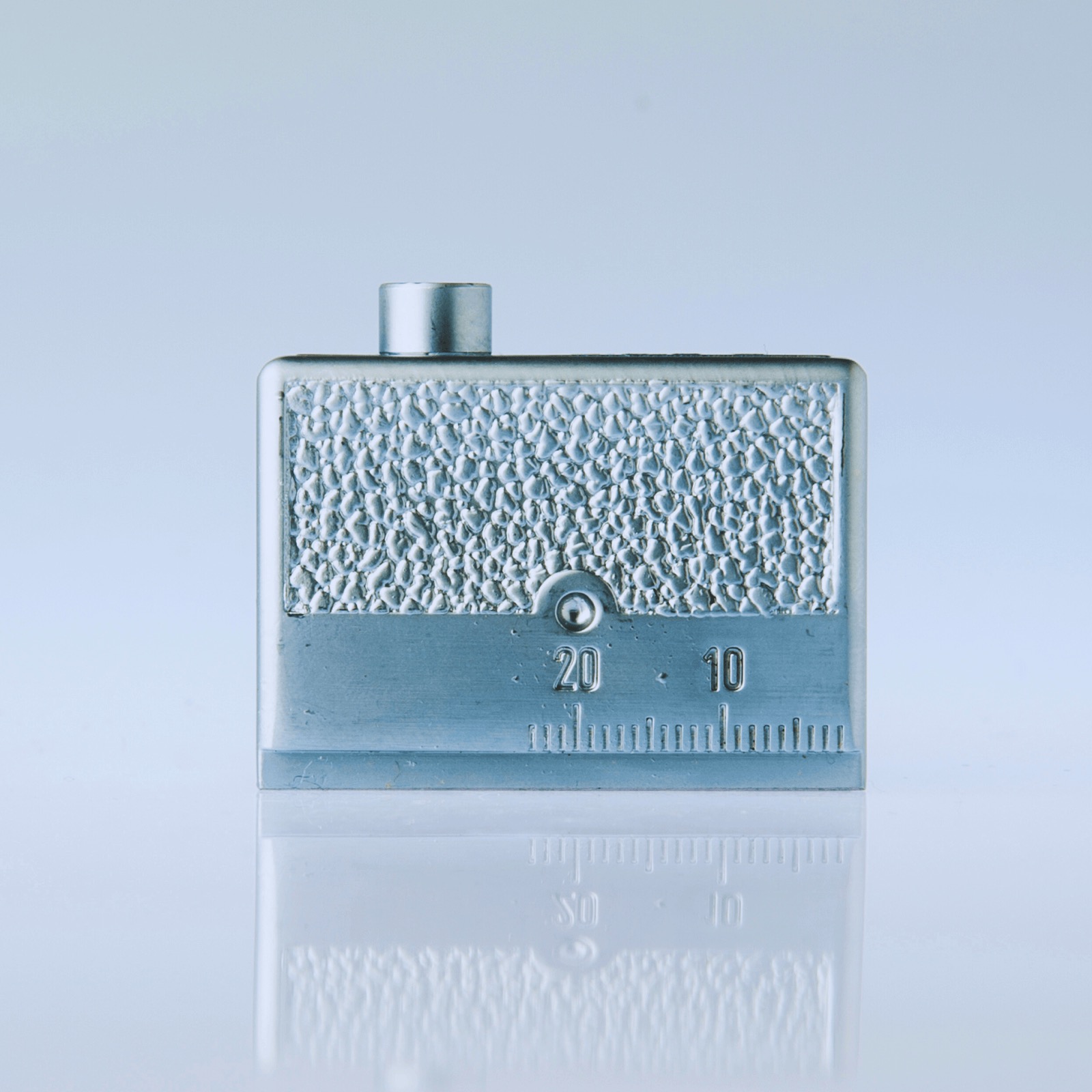

  • LEMO00 top or side connector
  • Probes delivered with certificate EN12668-2
  • LEMO00cables
  • Adaptors
  • Weld inspection
  • Thick components inspection
  • Research of defects in complex geometries

Description

Technical specifications

Reference Refracted angle in ° Frequency MHz Crystal Size mm Connector
SURFACE WAVE ANGLE BEAM TRANSDUCERS
MW35-4 35 4 8 x 9 Lemo00-Axial
MW38-438
MW45-445
MW60-460
MW70-470
MW35-4 TC 35 Lemo00-Top connector
MW38-4 TC38
MW45-4 TC45
MW60-4 TC60
MW70-4 TC70
SURFACE WAVE TRANSDUCER
DMW90-4 90 4 8 x 9 Lemo00-Axial
