Technical specifications
| Reference | Frequency MHz | Crystal Size mm | Focal depth mm | Connector |
|---|---|---|---|---|
| SMD4F8 | 4 | Ø 10/2 | 8 | Microdot |
| SMD5F8 | 5 | Ø 5/2 | ||
| SMD5F3 | 3 | |||

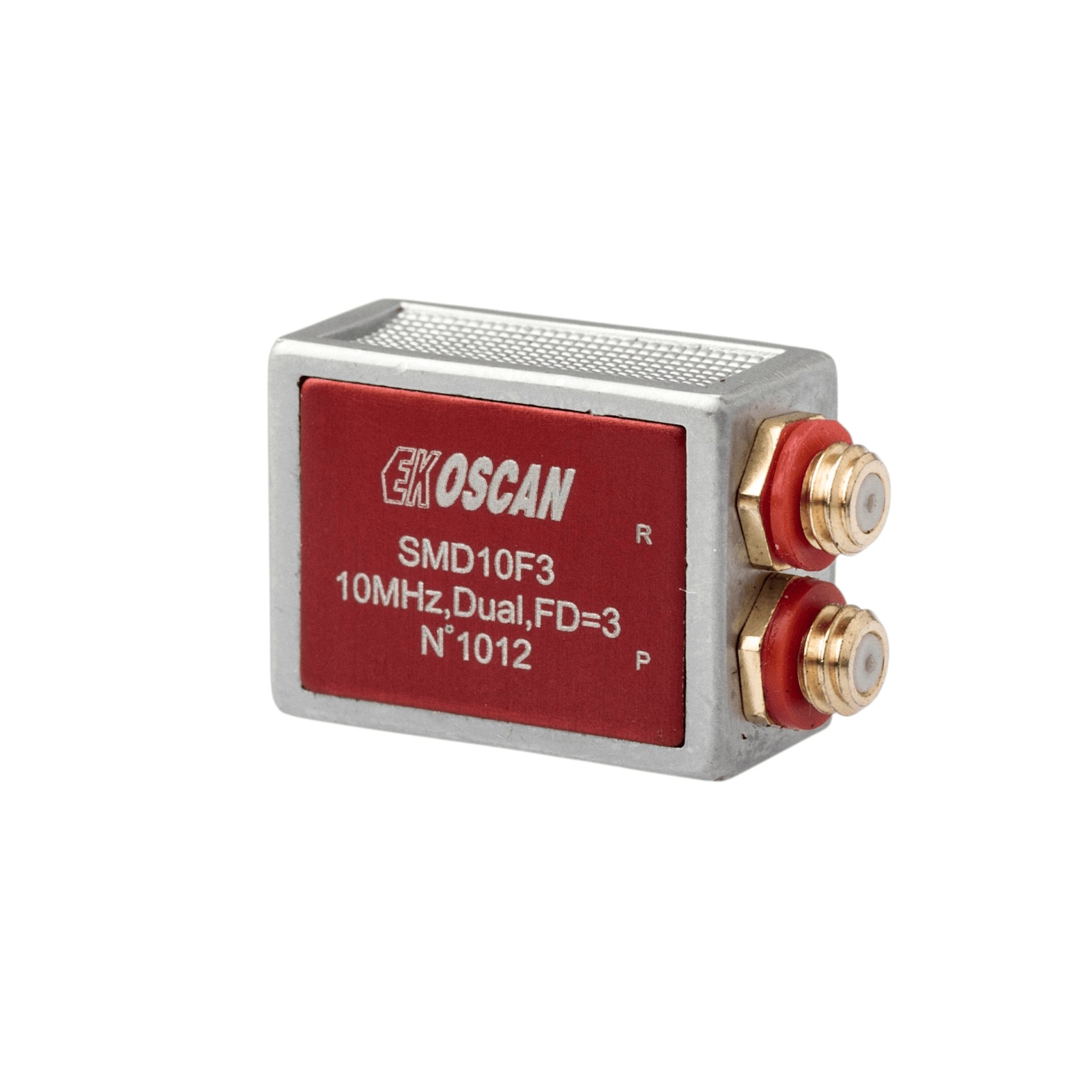

| SMD10F3 | 10 |
SMD

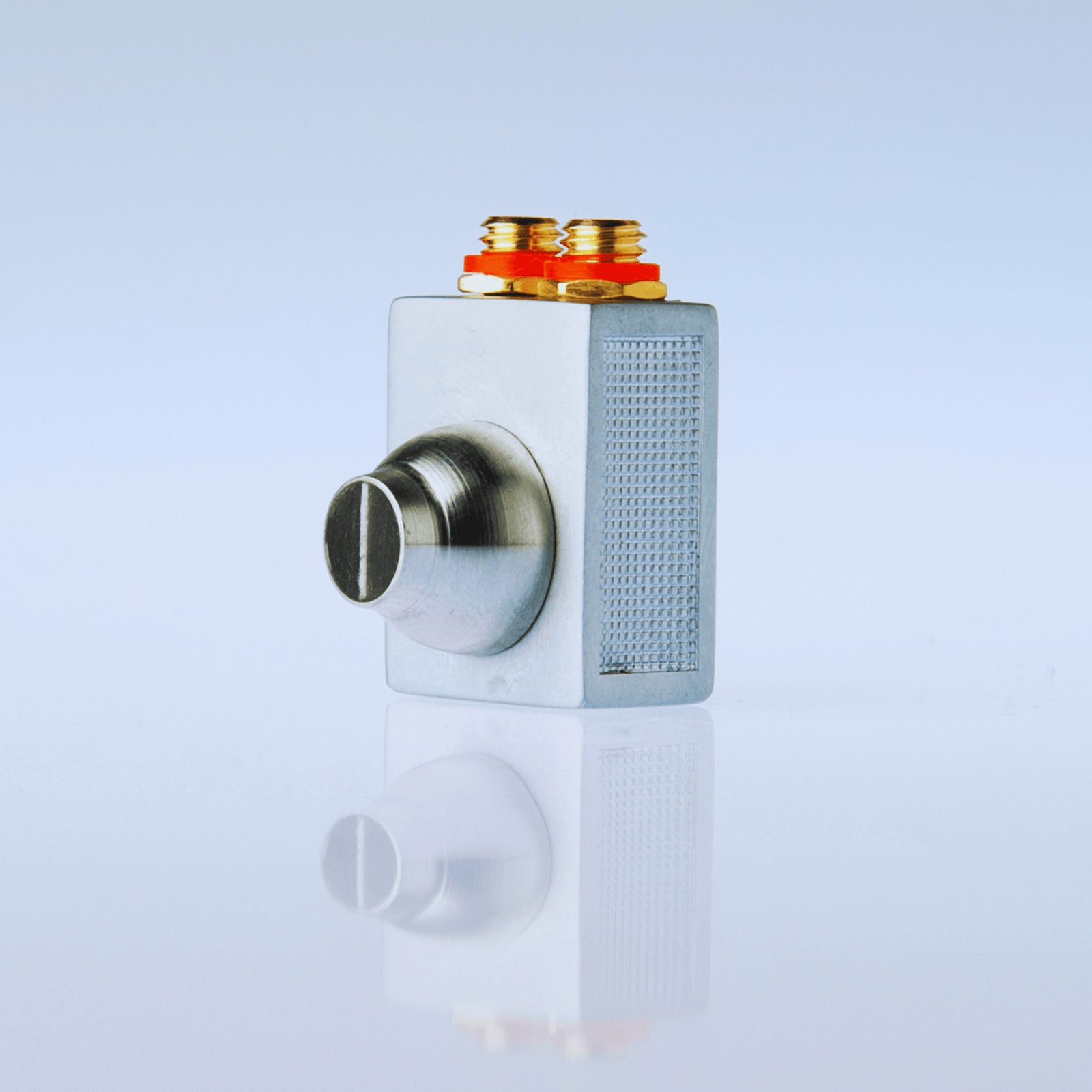

Dual-element probe series, longitudinal waves 0°.
Nomenclature: SMDXXFYY where XX is the frequency in MHZ and YY is the focal distance in mm.
- Features
- Includes
- Options
- Applications
- Available apertures 2 half discs of5mm
- 10mm
- Nominal frequencyfrom 2MHz to 10MHz

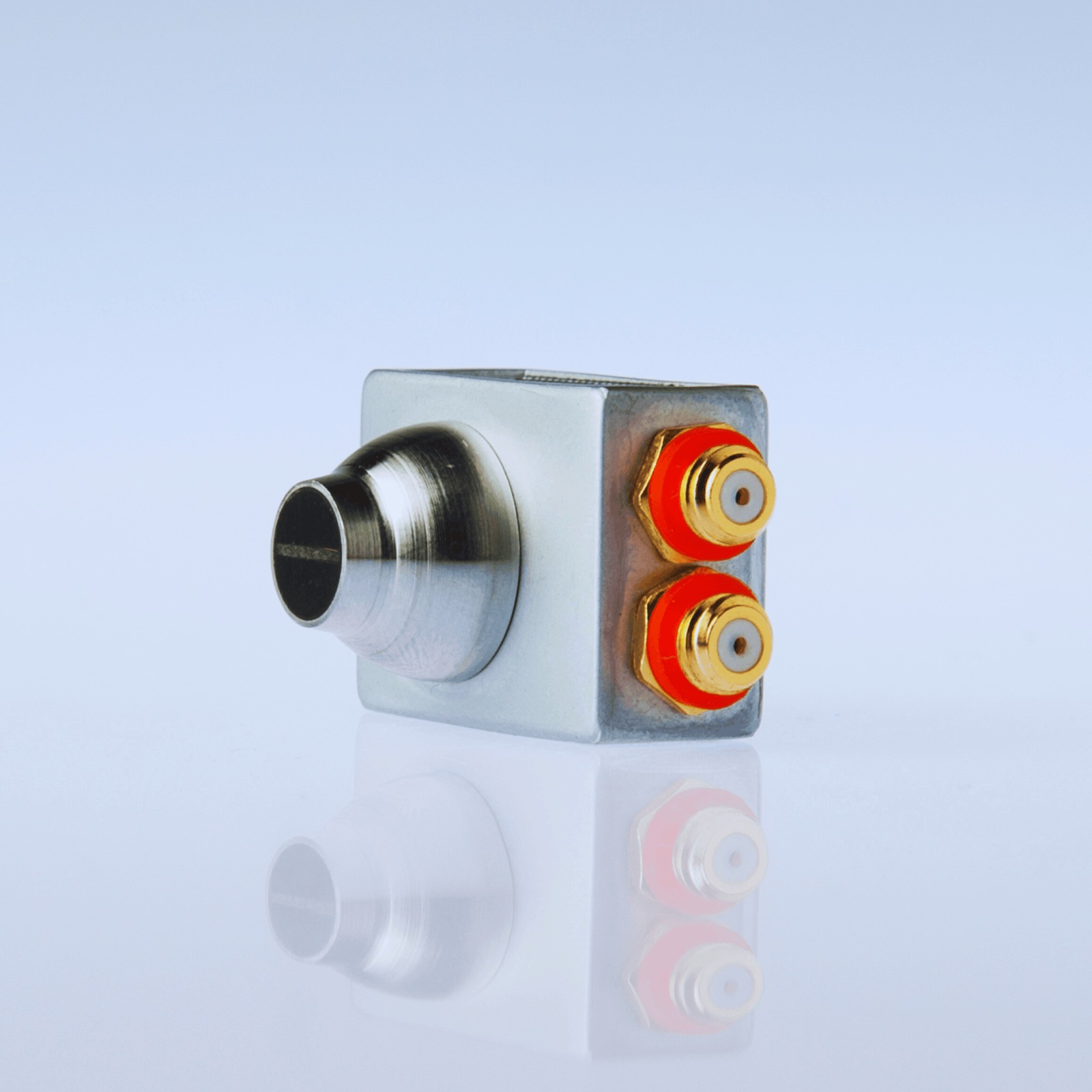

- Dual lateral output microdot
- Probes delivered with certificate EN12668-2
- Microdot cables
- Adaptors
- Relay type ''S''
- Wedge with holding by plating for OT control type ''TP''
- Wedge with screw pitch for OL control type ''LS''
- Wedge with holding by plating for OL control type ''LP''
- Thickness measurement
- Composite materials inspection
- Near surface resolution
- Lab testing immersion tanks
