SMW

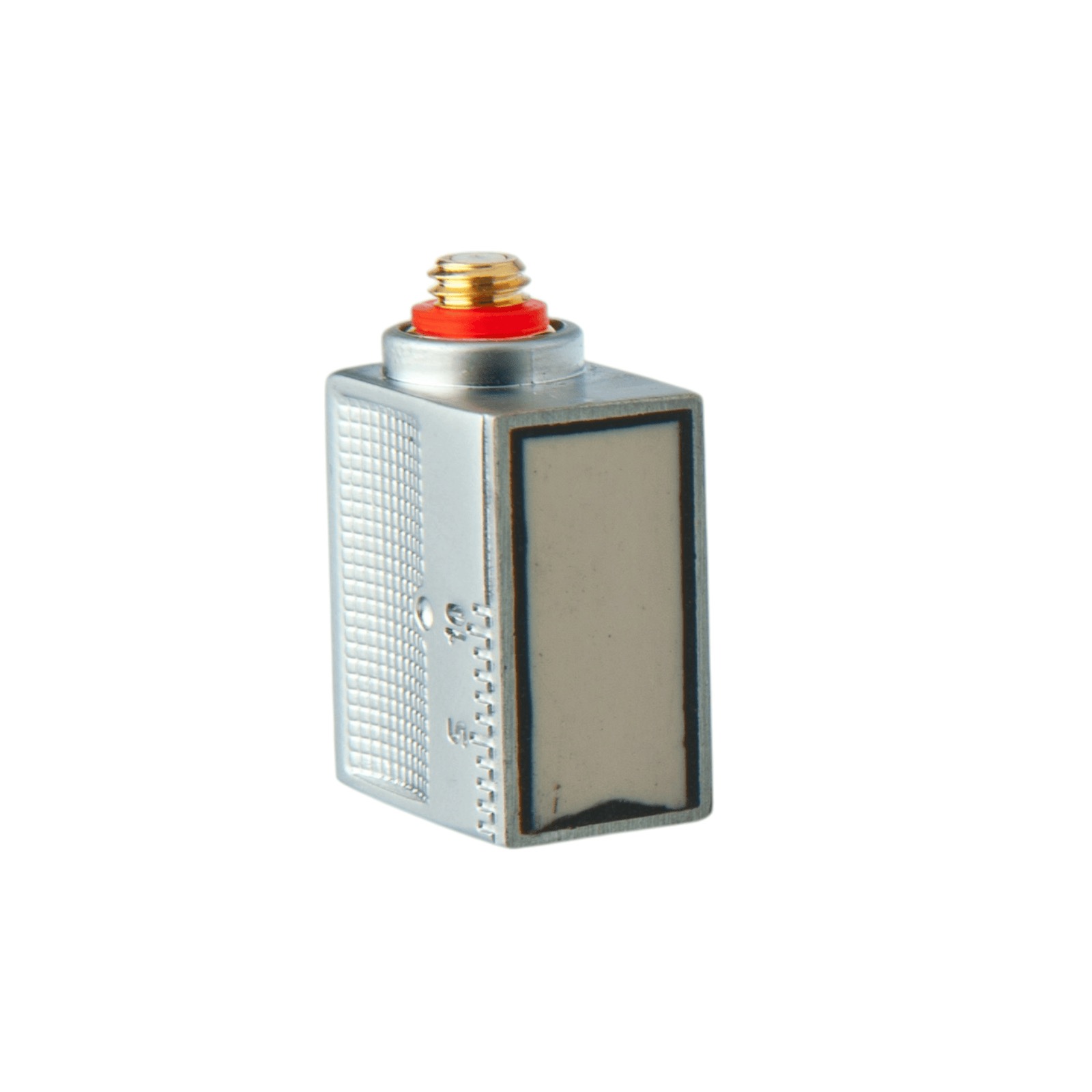

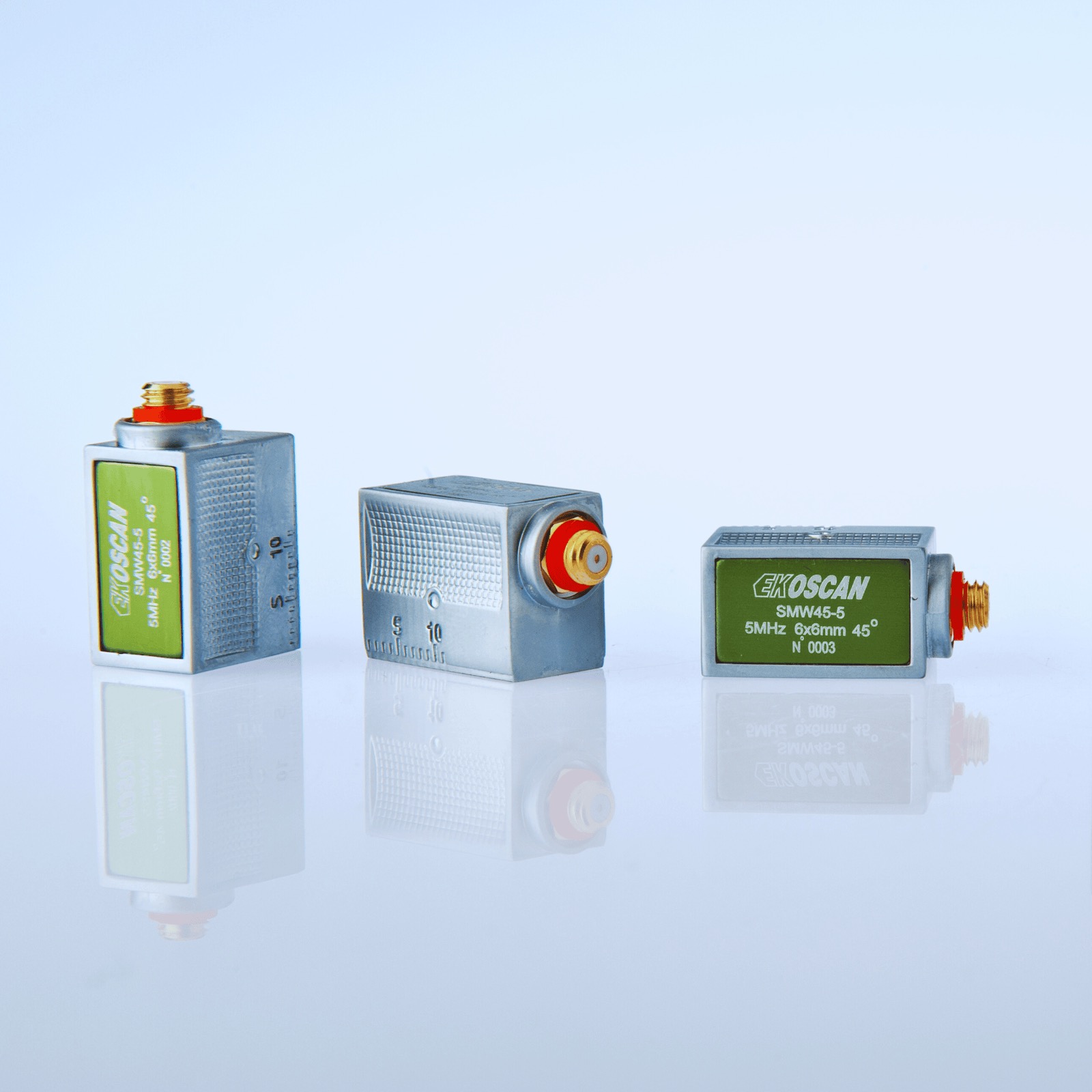

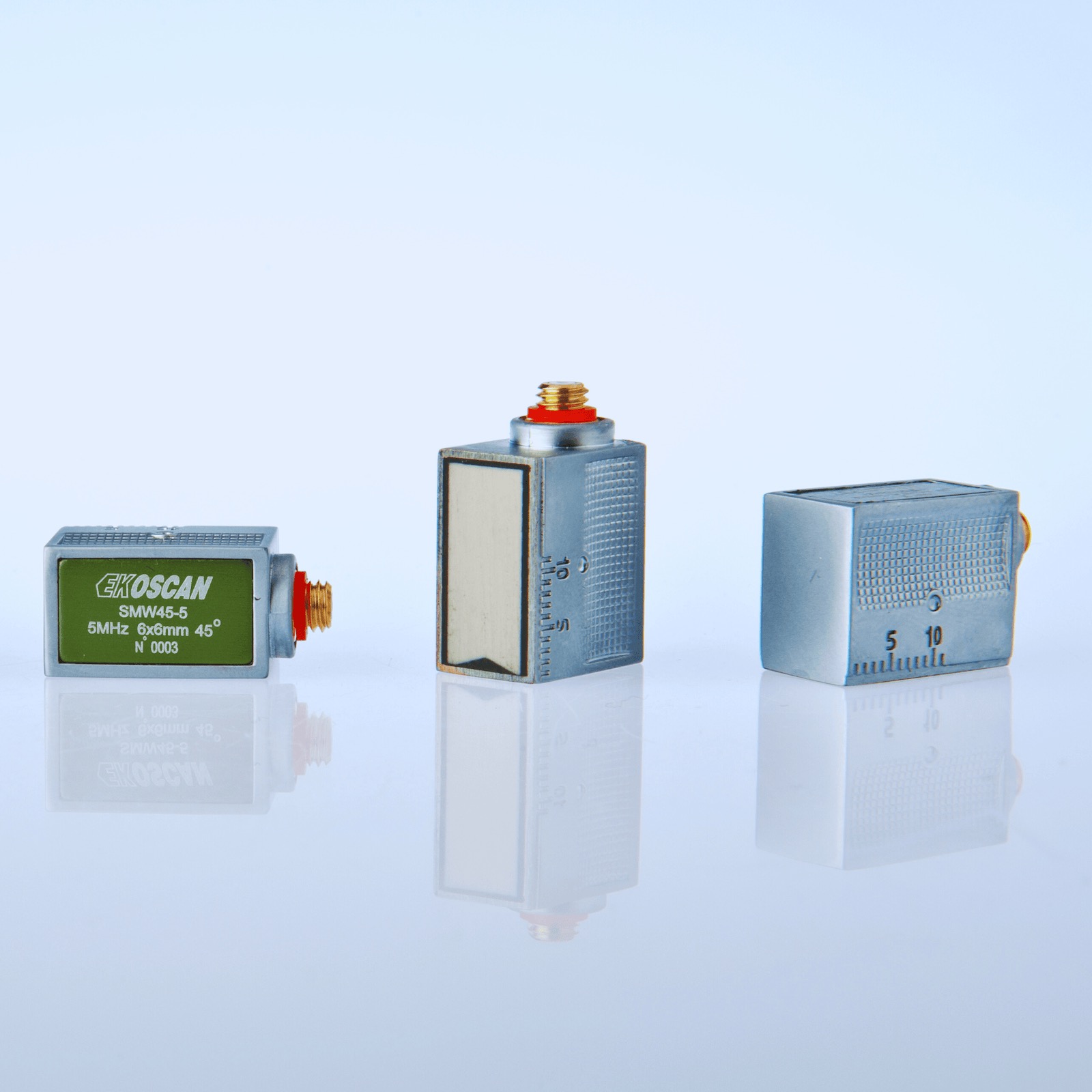

Subminiature single-element probe, with built-in shear-wave wedge.

Nomenclature: SMWXX-YY where XX is the nominal refracted angle of the shear-wave in steel, and YY is the frequency in MHz.

  • Features
  • Includes
  • Options
  • Applications
  • Aperture6mm x 6mm
  • Available frequencies5MHz, 7.5MHz & 10MHz
  • Refracted S-wave angles35°, 38°, 45°, 60°, 70°
  • Microdot top connector
  • Probes delivered with certificate EN12668-2
  • Microdot cables
  • Adaptors
  • Weld inspection
  • Research of small defects in complex geometries

Description

Technical specifications

Reference Frequency MHz Crystal Size mm Delay line LW0° Connector
SMW35-5 35 5 6x6 Microdot
SMW38-538
SMW45-545
SMW60-560
SMW70-570
SMW35-7.5 35 7.5
SMW38-7.538
SMW45-7.545
SMW60-7.560
SMW70-7.570
SMW35-10 35 10
SMW38-1038
SMW45-1045
SMW60-1060
SMW70-1070
