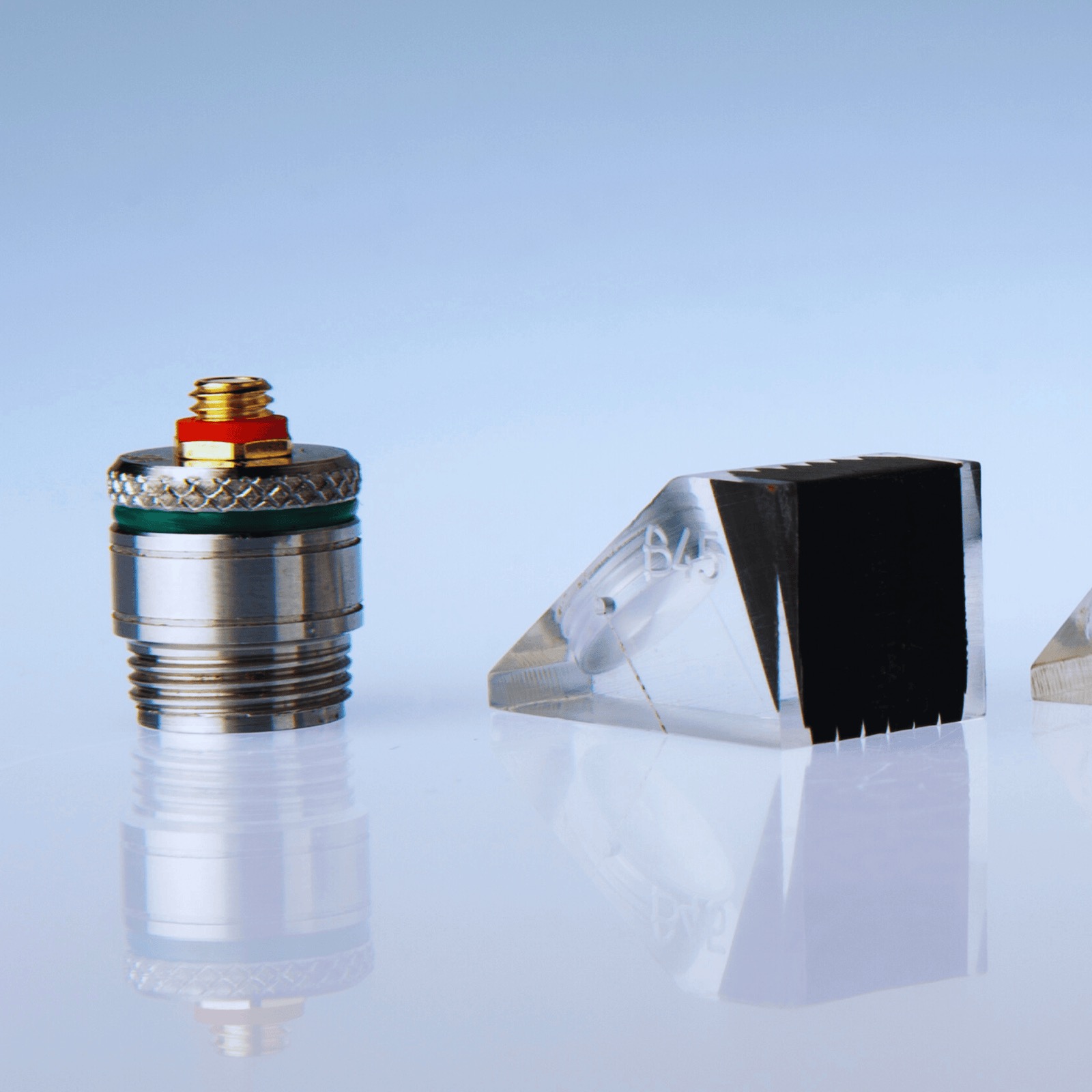

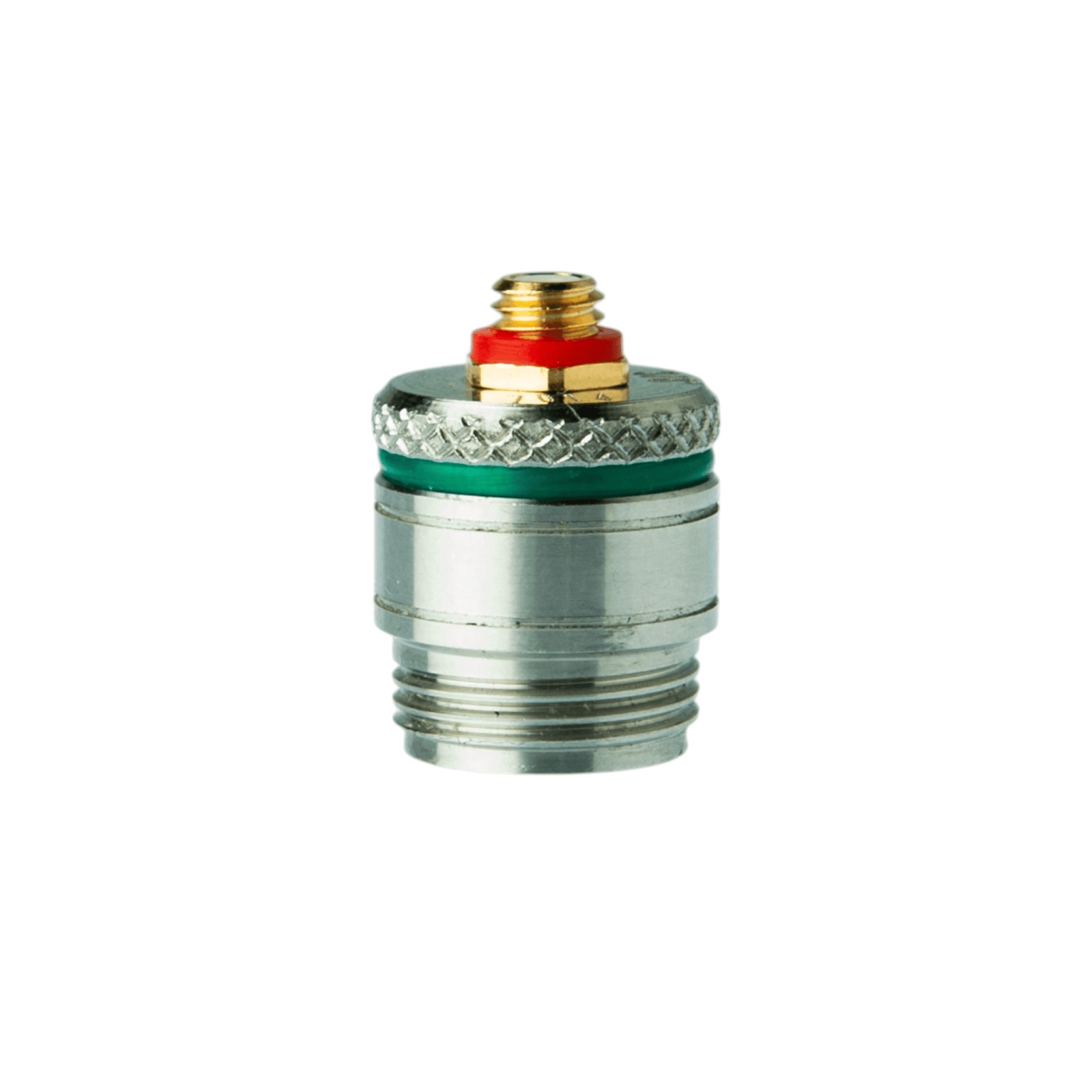

This transducer is a single crystal probe for Longitudinal Wave transmission.
Nomenclature: SWQXX-YY, where XX is the frequency in MHz and YY is the crystal diameter in mm.
| Reference | Frequency MHz | Crystal Size mm | Connector |
|---|---|---|---|
| SWQ2.25-6 | 2.25 | 6 | Microdot |
| SWQ3.5-6 | 3.5 | ||
| SWQ5-6 | 5 | ||
| SWQ7.5-6 | 7.5 | ||
| SWQ10-6 | 10 | ||
| SWQ2.25-10 | 2.25 | 10 | |
| SWQ3.5-10 | 3.5 | ||
| SWQ5-10 | 5 | ||
| SWQ7.5-10 | 7.5 | ||
| SWQ10-10 | 10 | ||
| SWQ2.25-13 | 2.25 | 13 | |
| SWQ3.5-13 | 3.5 | ||
| SWQ5-13 | 5 | ||
| SWQ7.5-13 | 7.5 | ||
| SWQ10-13 | 10 |
