Description
Technical specifications
| Reference | Frequency MHz | Crystal Size mm | Thread diameter of the wedge mm |
|---|---|---|---|
| IM-0.5-13 | 5 | 3 | Ø 10 |
| IM-0.5-19 | 7.5 | ||
| IM-0.5-25 | 10 | ||
| IM-0.5-29 | 15 | ||
| IM-0.5-38 | 5 | ||
| IM-1-13 | 3.5 | 5 | |
| IM-1-19 | 5 | 6 | |
| IM-1-25 | 7.5 | ||
| IM-1-29 | 10 | ||
| IM-1-38 | 15 |

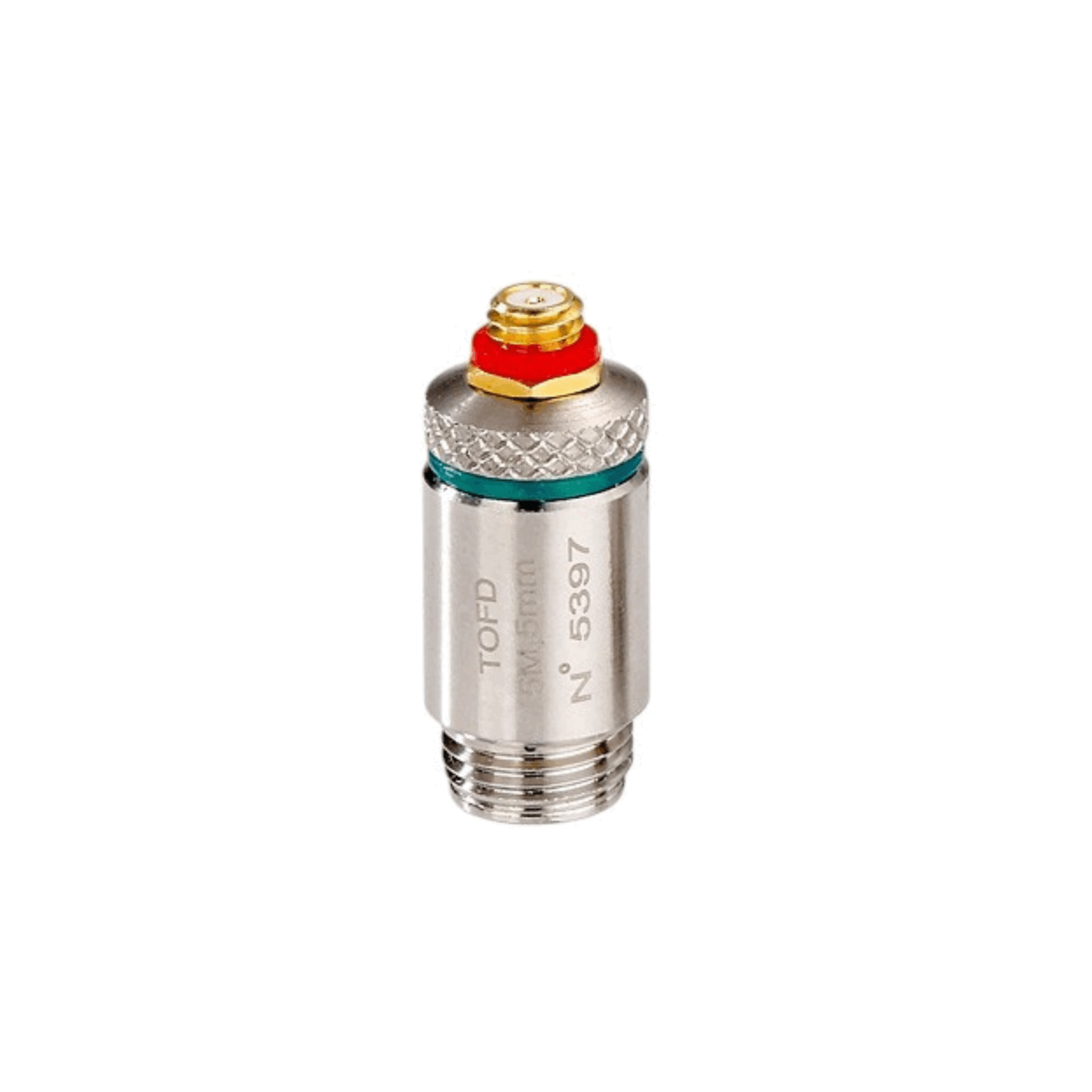

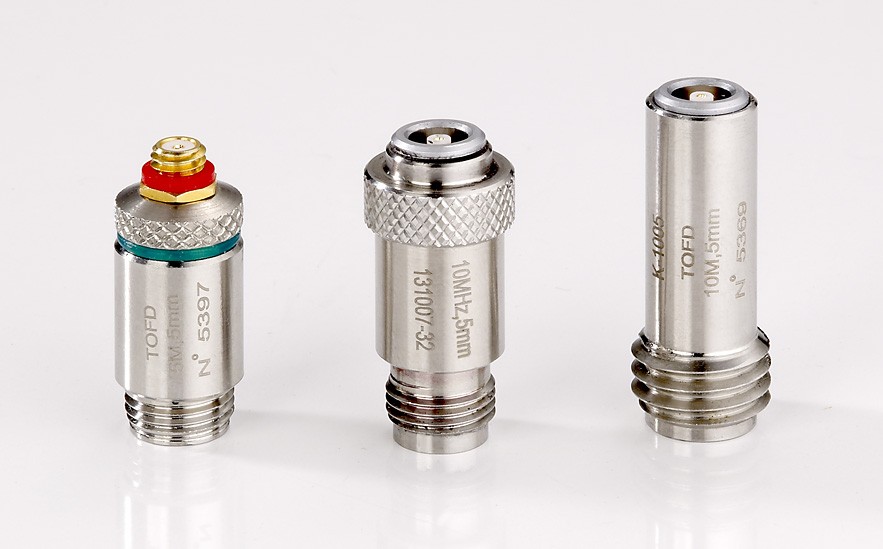

TFDT-M10
TOFD probes with thread diameter 10mm.
- Features
- Includes
- Options
- Applications
- Aperture3, 5 and 6 mm
- Available frequencies2.25, 3.5, 4, 7.5,10 and 15 MHz
- LEMO00 top connector
- Probes delivered with certificate EN12668-2
- LEMO00 cables
- WT M10 TOFD wedges
- Adaptors
- PREAMP pre amplifier
- Weld inspection
- HTHA
Serving all industrial sectors
Nuclear
Steam generators, primary and secondary piping, valves, etc.
Renewable energy
Wind turbine mats, blades, etc.
Aerospace & Defence
Fuselage, stiffeners, engine turbine blades, etc.
Railways
Rails, axles, wheels, welds, etc.
Hydrogen
SMR Steam Methane Reformer, Pressure Swing Adsorption, etc.
Oil & Gas
Pipe, pressure vessel, etc.
Manufacturing
Titanium billets, AA aluminum plates and sheets, forging parts, etc.
Other
Bridges, electric poles, etc.
