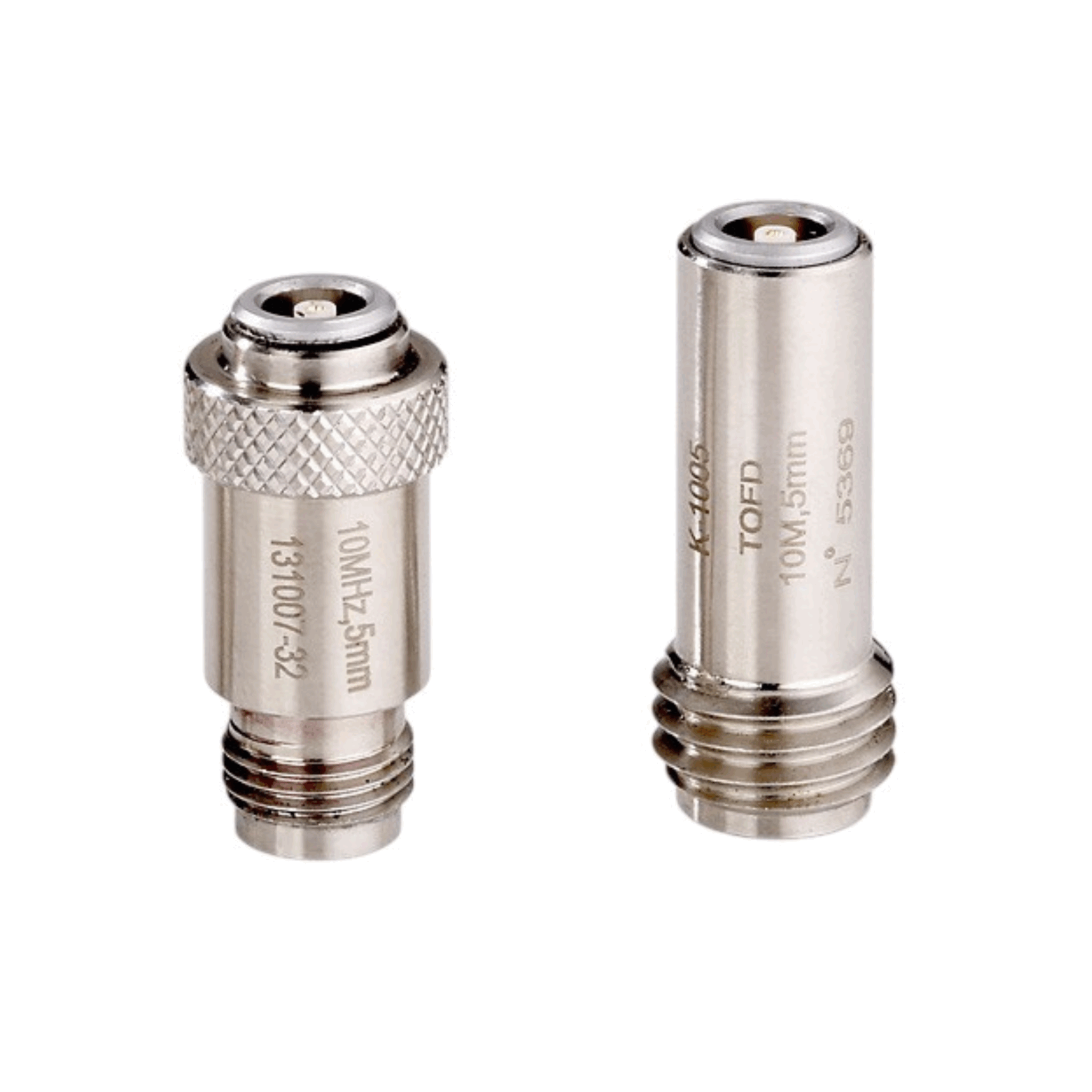

TFDT-M12

TOFD probes with thread diameter 12mm.

  • Features
  • Includes
  • Options
  • Applications
  • Aperture3, 5 and 6 mm
  • Available frequencies2.25, 3.5, 4, 7.5,10 and 15 MHz
  • LEMO00 top connector
  • Probes delivered with certificate EN12668-2
  • LEMO00 cables
  • WT M12 TOFD wedges
  • Adaptors
  • PREAMP pre amplifier
  • Weld inspection
  • HTHA

Description

Technical specifications

Reference Frequency MHz Crystal Size mm Thread diameter of the wedge mm
TFDT4-3/M12 4 3 Ø 12
TFDT5-3/M12 5
TFDT7.5-3/M12 7.5
TFDT10-3/M12 10
TFDT15-3/M12 15
TFDT10-5/M12 10 5
TFDT15-5/M12 15
TFDT4-6/M12 4 6
TFDT3.5-6/M12 3.5
TFDT5-6/M12 5
TFDT7.5-6/M12 7.5
TFDT10-6/M12 10
TFDT15-6/M12 15 10
TFDT5-10/M12 5
TFDT10-10/M12 10
