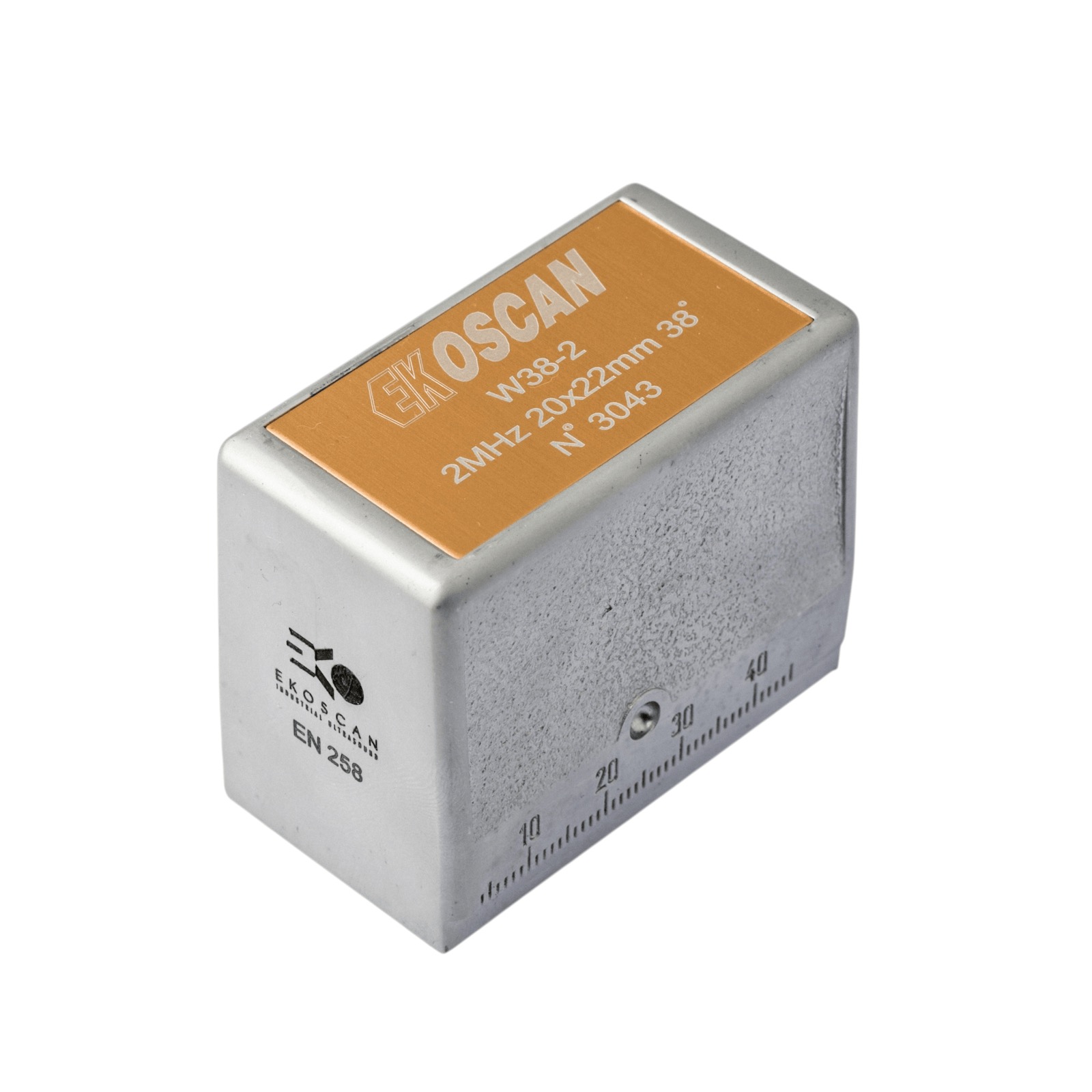

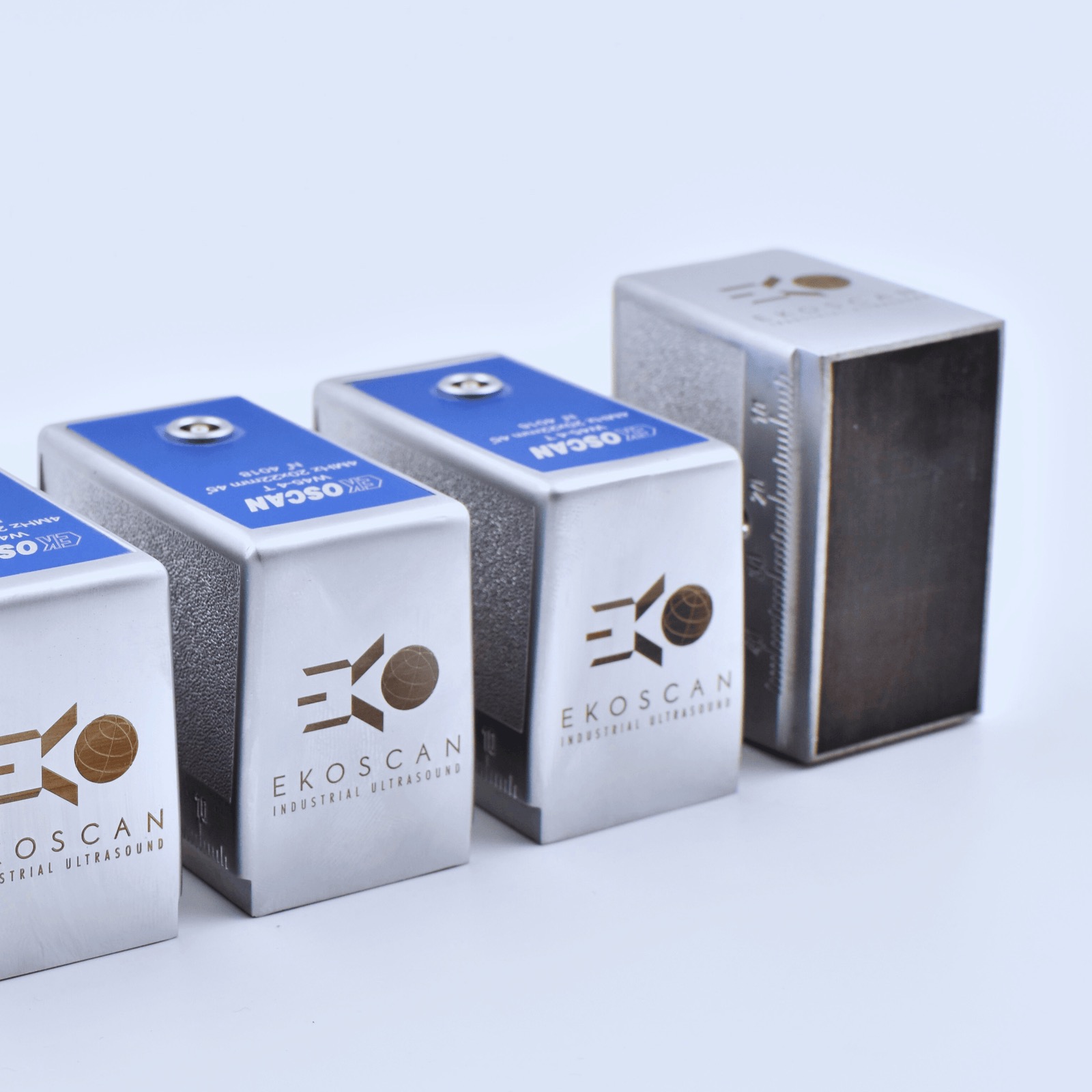

Single-element probe series, with built-in shear-wave wedge.

Nomenclature: WXX-YY ZZ, where XX is the nominal refracted angle of the shear-wave in steel, YY is the frequency in MHz, and ZZ is void or TC for top connector.

Features
Includes
Options
Applications

Aperture20mm x 22mm
Available frequencies1MHz, 2MHz & 4MHz
Refracted S-wave angles35°, 38°, 45°, 53°, 54°, 60°, 70°
LEMO00 top or side connector

Probes delivered with certificate EN12668-2.

LEMO00 cables
Adaptors

Weld inspection
Thick components inspection
Research of defects in complex geometries

Description

Description

Resources

W PDF brochure

Probes General Catalogue

Technical specifications

Reference	Refracted angle in °	Frequency MHz	Crystal Size mm	Connector
W35-1	35	1	20 x 22	Lemo01-Axial
W38-1	38
W45-1	45
W60-1	60
W70-1	70
W35-2	35	2
W38-2	38
W45-2	45
W60-2	60
W70-2	70
W35-4	35	4
W38-4	38
W45-4	45
W60-4	60
W70-4	70
W35-1 TC	35	1	20 x 22	Lemo01-Top connector
W38-1 TC	38
W45-1 TC	45
W60-1 TC	60
W70-1 TC	70
W35-2 TC	35	2
W38-2 TC	38
W45-2 TC	45
W60-2 TC	60
W70-2 TC	70
W35-4 TC	35	4
W38-4 TC	38
W45-4 TC	45
W60-4 TC	60
W70-4 TC	70
