Description
Technical specifications
| Reference | Refracted angle in ° | Adaptable probes |
|---|---|---|
| WT38/M10 | 38 | TFDT/M10 |
| WT45/M10 | 45 | |
| WT55/M10 | 55 | |
| WT60/M10 | 60 | |
| WT70/M10 | 70 |

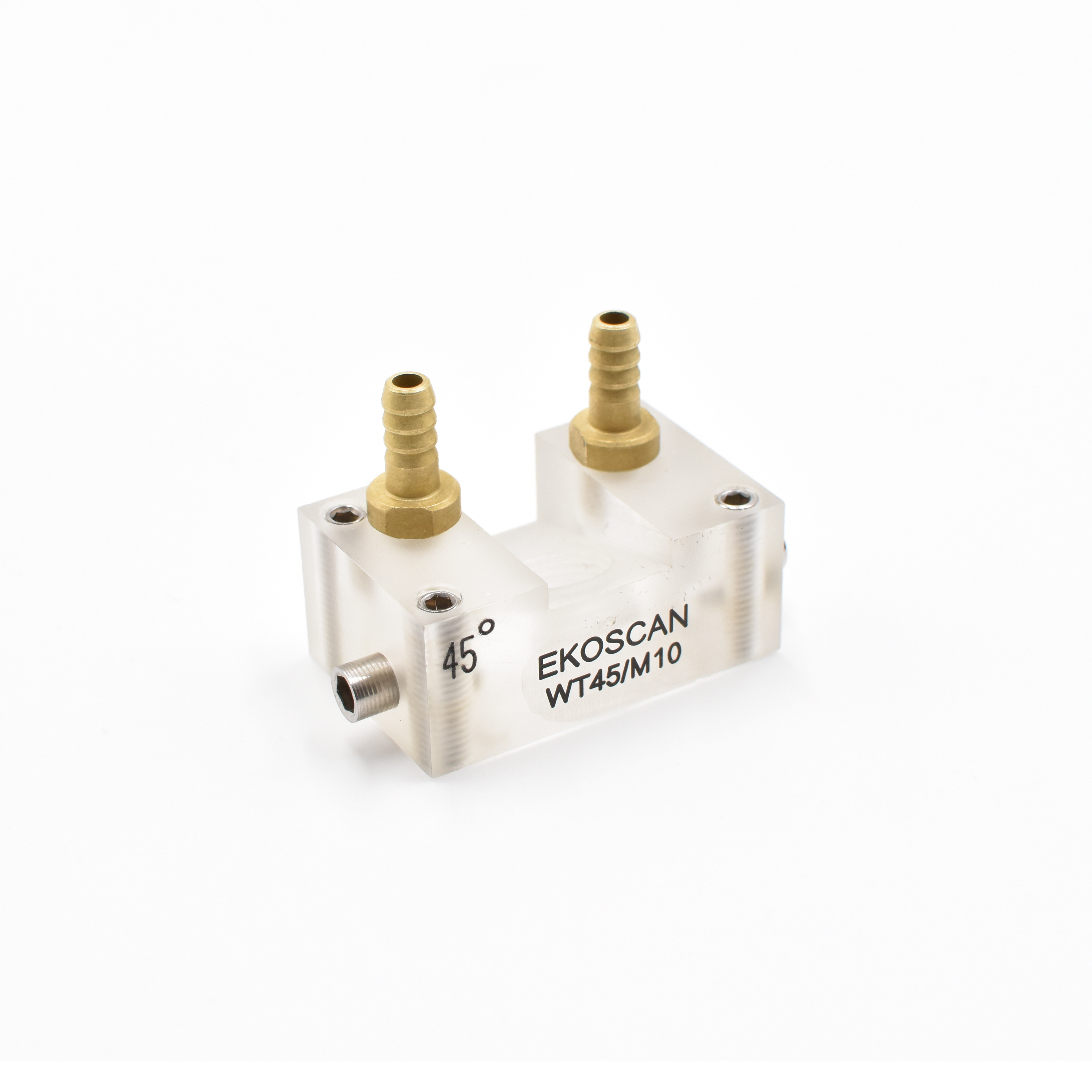

WT M10

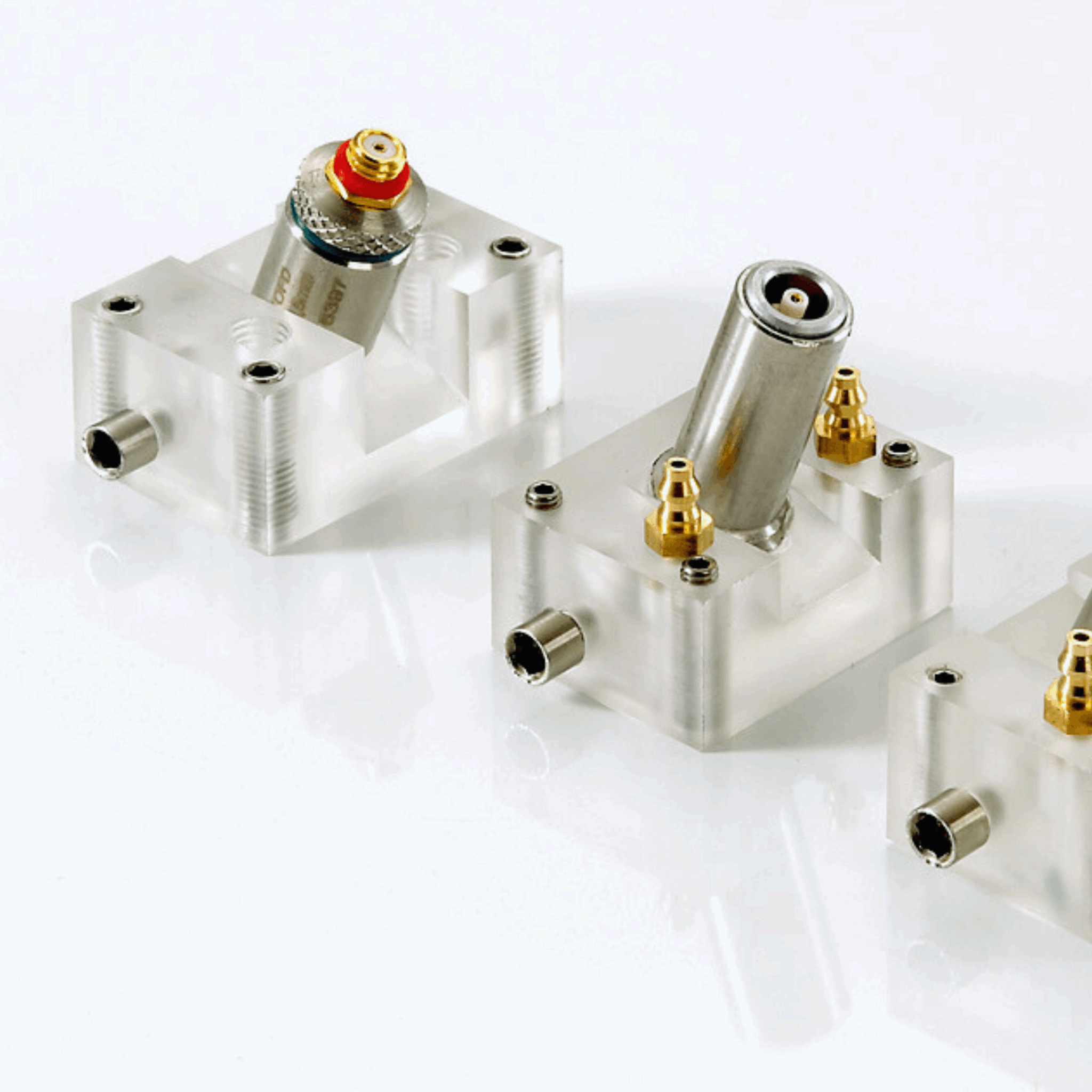

Wedges adapted to TOFD inspection. Compatible with TFDT/M10. They are available for 38, 45, 55, 60 and 70 ° longitudinal waves. They are provided with integrated irrigation and carbides. Attached to scanner with dowel pins.
- Features
- Options
- Applications
- Probe compatibleTFDT/M10
- MaterialRexolite
- Ultrasonic velocity2340m/s
- AOD and COD wedges on demand
- Weld inspection
