Description
Technical specifications
| Reference | Refracted angle in ° | Adaptable probes |
|---|---|---|
| WTI35/M10 | 35 | TFDT/M10 |
| WTI38/M10 | 38 | |
| WTI45/M10 | 45 | |
| WTI55/M10 | 55 | |
| WTI60/M10 | 60 | |
| WTI70/M10 | 70 |

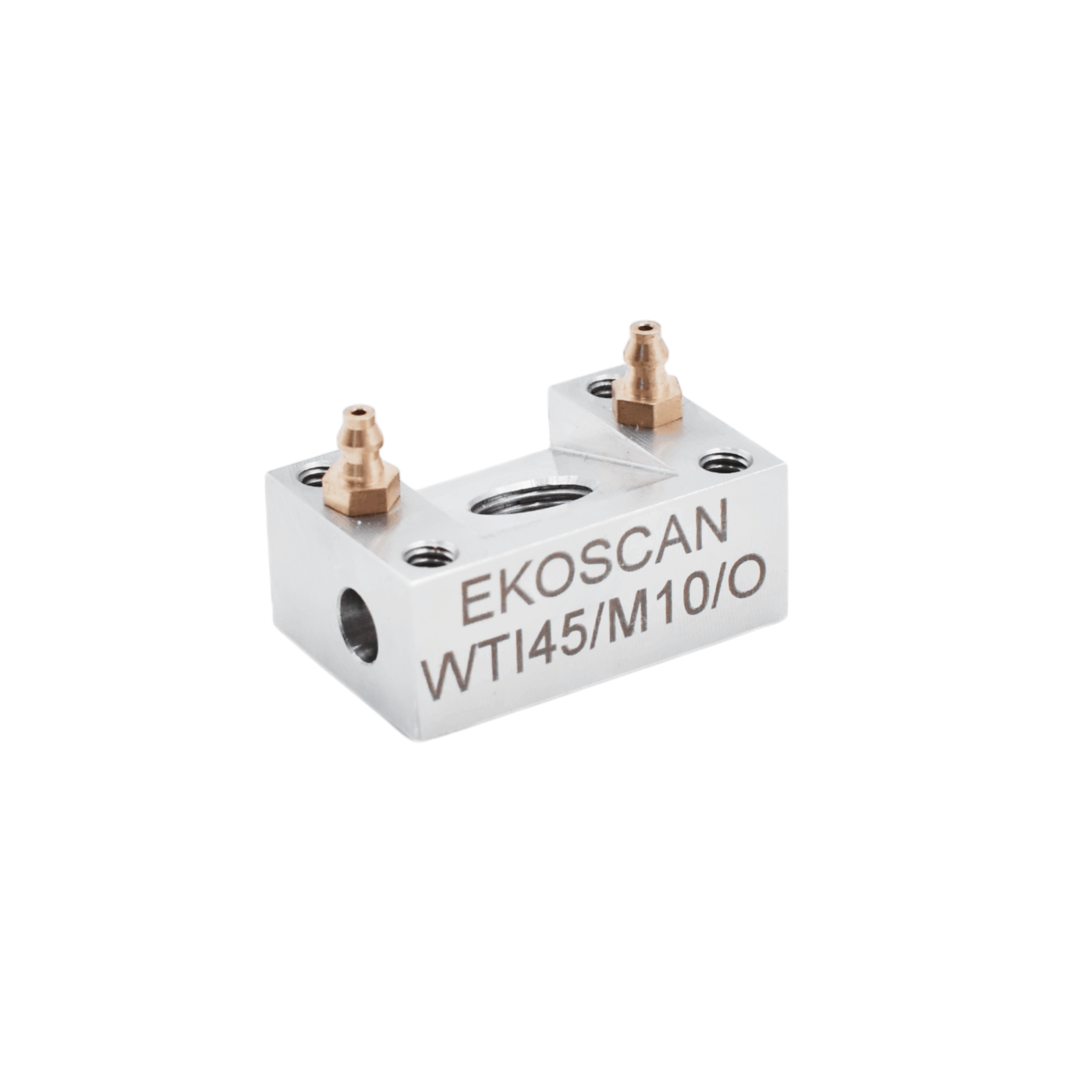

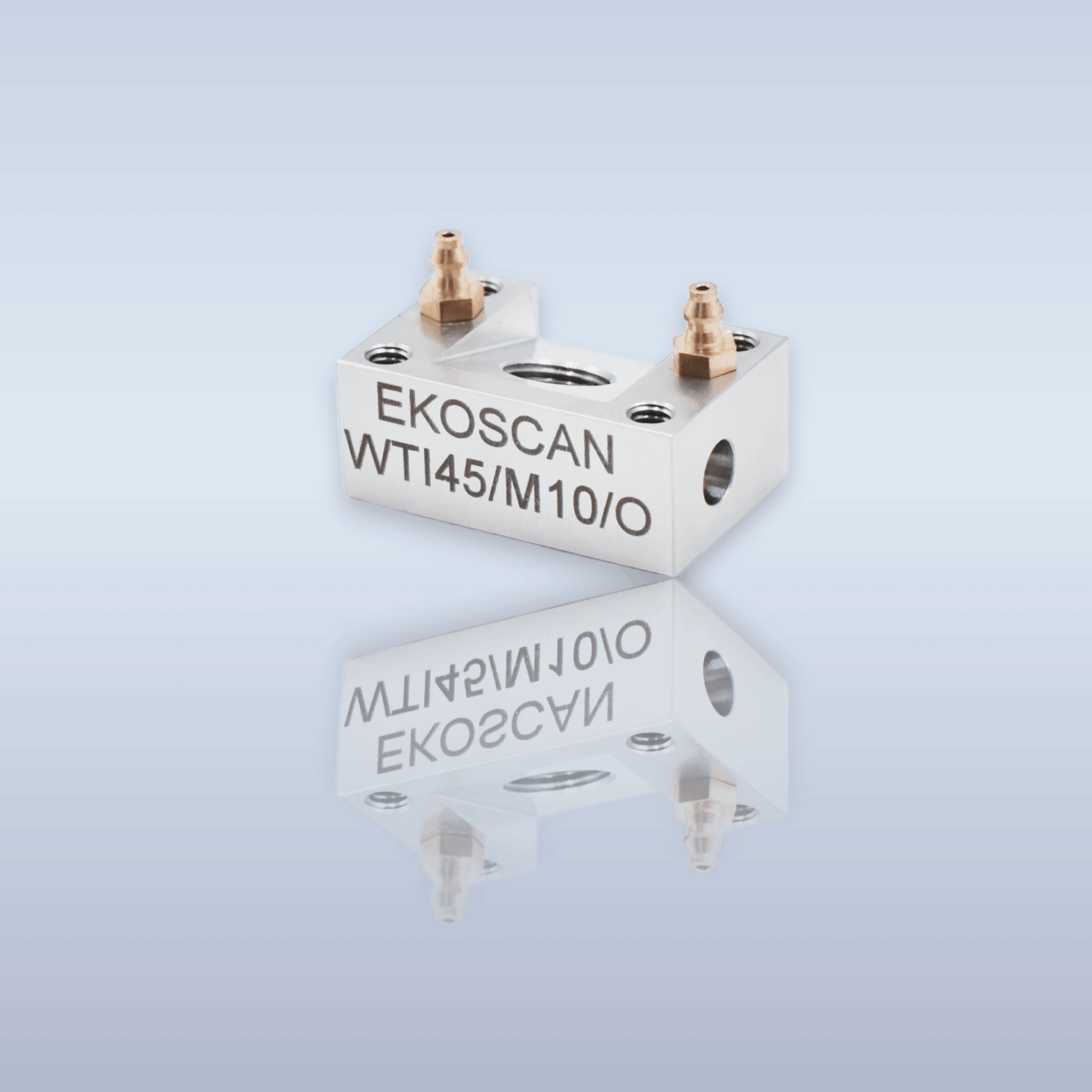

WTI M10
Stainless steel wedges adapted to TOFD inspection. Compatible with TFDT/M10. They are available for 35, 38, 45, 55, 60 and 70 ° longitudinal waves. They are provided with integrated irrigation and carbides. Attached to scanner with dowel pins.
- Features
- Applications
- Probe compatibleTFDT/M10
- MaterialStainless steel and Rexolite
- Ultrasonic velocity2340m/s
- Weld inspection
