Eddy Current Array

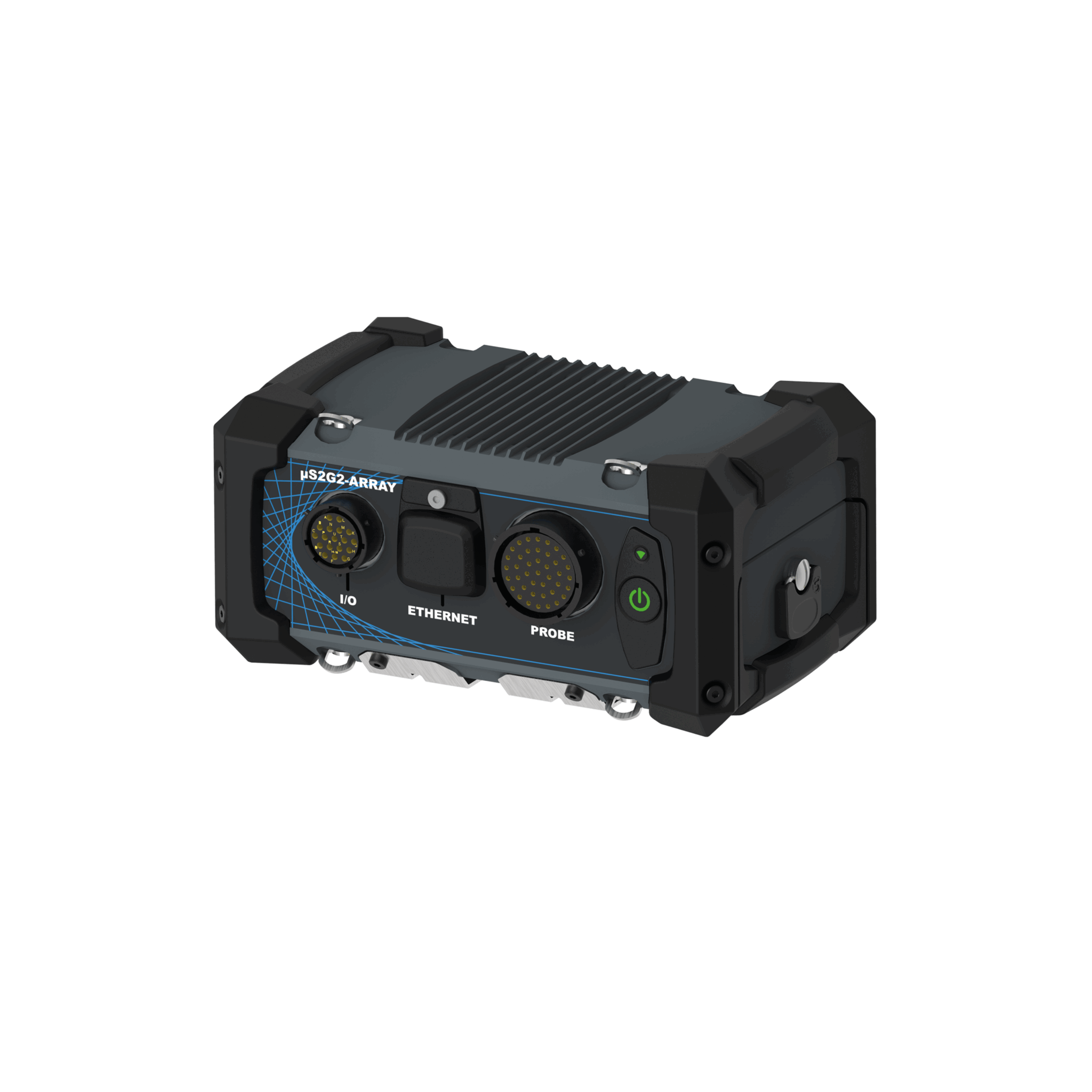

µS2G2-ARRAY

The microS2G2 represents refined design principles, simplicity and superior technical capability, all wrapped up in a rugged, attractive case. “Everything you need, nothing you don’t.”.

  • Features
  • Includes
  • The μS2G2 is a user-friendly instrument that has been designed specifically with portability and ease of use firmly in mind. It comes with only the essential connectors required for quick and efficient ECA inspections, yet it boasts an impressive 128-channel capacity and can function for up to 8 hours on battery power. Furthermore, the instrument and PC can be connected to the probe using only one cable, thanks to the Wi-Fi protocol connection. Connect the μS2G2 to a rugged tablet PC for the ultimate in portable ECA inspection, with no compromise on capability.
  • EC/ECA 2-input portable inspection device
  • EMMA software (acquisition only)
  • power supply
  • cables
  • 2x battery
  • rugged transport case.

Description

Technical specifications

General Specifications
Power Requirements 110V-220V, (Auto voltage sensing) 50-60Hz OR Lithium-Ion Battery DoT compliant (RRC2054-2) – 8Hrs typical run time
Operating Voltage 12 VDC Power
Environmental Sealed enclosure, designed for IP65
Size (external dimensions) 17.5cm x 9cm x 10cm (6.9” x 3.5” x 3.9”)
Weight (excl.batteries) 1.5 Kg (3.3lb)
Weight (incl.batteries) 1.7 Kg (3.7lb)
Computer Interface Gigabit Ethernet-1000 BASE-T OR Wi-Fi protocol
Compliance Standards CE, RoHS
Operating Temperature 0°C to 50°C (32°F to 122°F)
Inputs/Outputs
  • RJ45 Ethernet
  • 18-pin I/O Connector
  • 41-pin Amphenol – Extended ECT Connector
  • 18-pin I/O Connector
  • 12VDC Power Input
Encoders 2 quadrature encoder inputs
Remote Controls
  • Start/Stop
  • Balance
  • Status
Alarms 2 independent real-time alarms
Eddy Current
Frequency Range 20Hz to 6MHz
Generators / Probe Drivers 1 fully independent
Drive Voltage 0-10 Vpp (single driver)
Output Current 0.220 A max
Reference Generators 1 driver for Electronic balancing
Probe Inputs 2
Number of frequencies Up to 5 simultaneous
Number of ECA channels 128
Data Format 32 bits
Data rate 100,000 data points/s/ input
