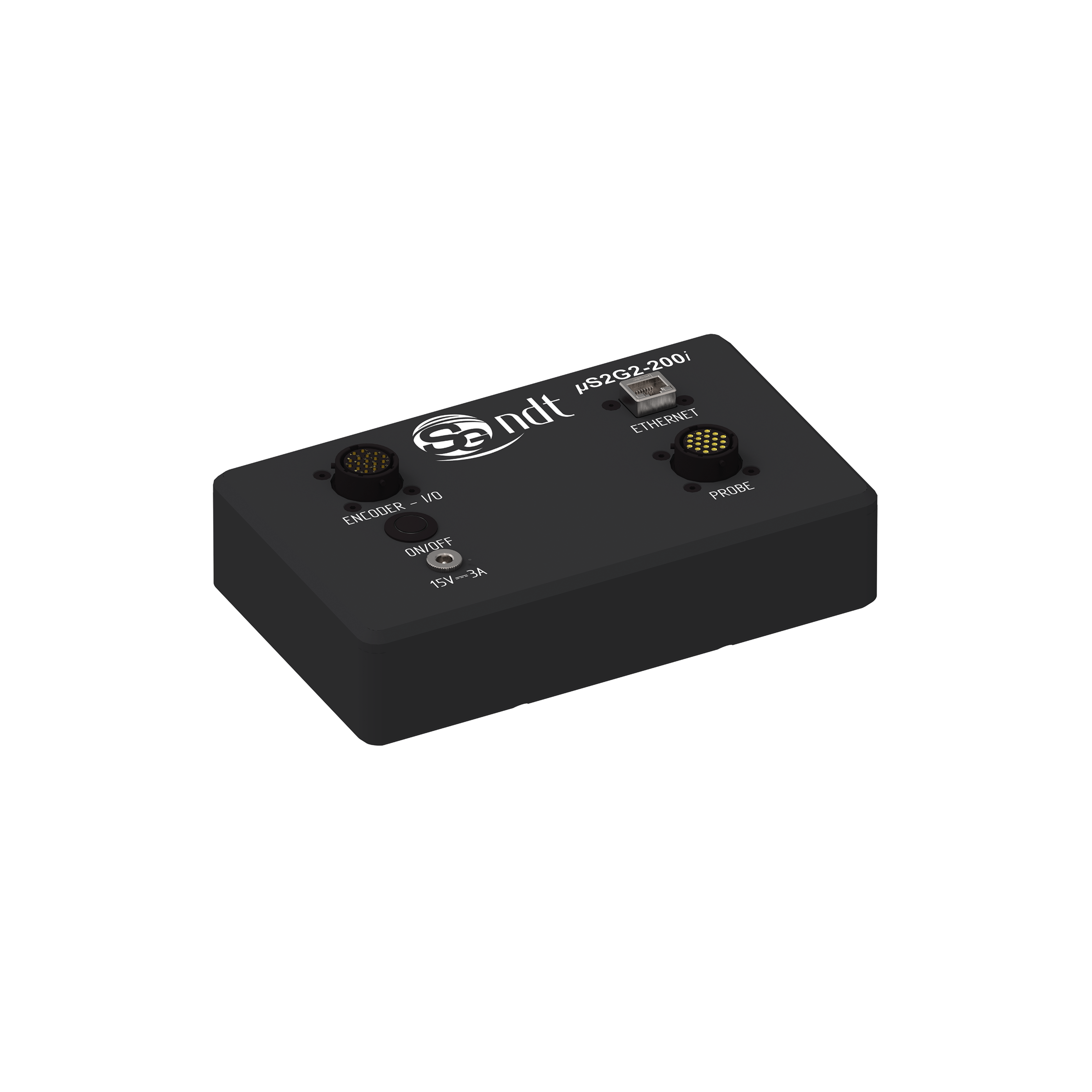

µS2G2-200i

The microS2G2-200i represents simplicity and superior technical capability. The μS2G2-200i has been designed specifically with functionality and capability firmly in mind, being supplied with industry-standard connectors for quick and efficient Electromagnetic inspections.

  • Features
  • Includes
  • The μS2G2-200i boasts a wide frequency range (20Hz-6MHz), double probe input, double encoder input, two independent real-time alarms, plus much more. The microS2G2-200i makes for a perfect integration platform for applications such as inline wire and bar inspection, material sorting systems or other applications requiring a simple high-end eddy current electronics platform.
  • EC/ECA 2-input portable inspection device
  • EMMA software (acquisition only)
  • power supply
  • cables
  • 19-pin to 4-pin adaptor
  • rugged transport case

Description

Technical specifications

General Specifications
Power Requirements 110V-220VAC, 50-60Hz (Auto voltage sensing)
Operating Voltage 12-15 VDC Power
Environmental Sealed enclosure, designed for IP65
Size (external dimensions) 20.2cm x 12.2cm x 4.8cm (7.9” x 4.8” x 1.9”)
Weight (excl.batteries) 1.5 Kg (3.3lb)
Computer Interface Gigabit Ethernet-1000 BASE-T
Compliance Standards CE, RoHS
Operating Temperature 0°C to 50°C (32°F to 122°F)

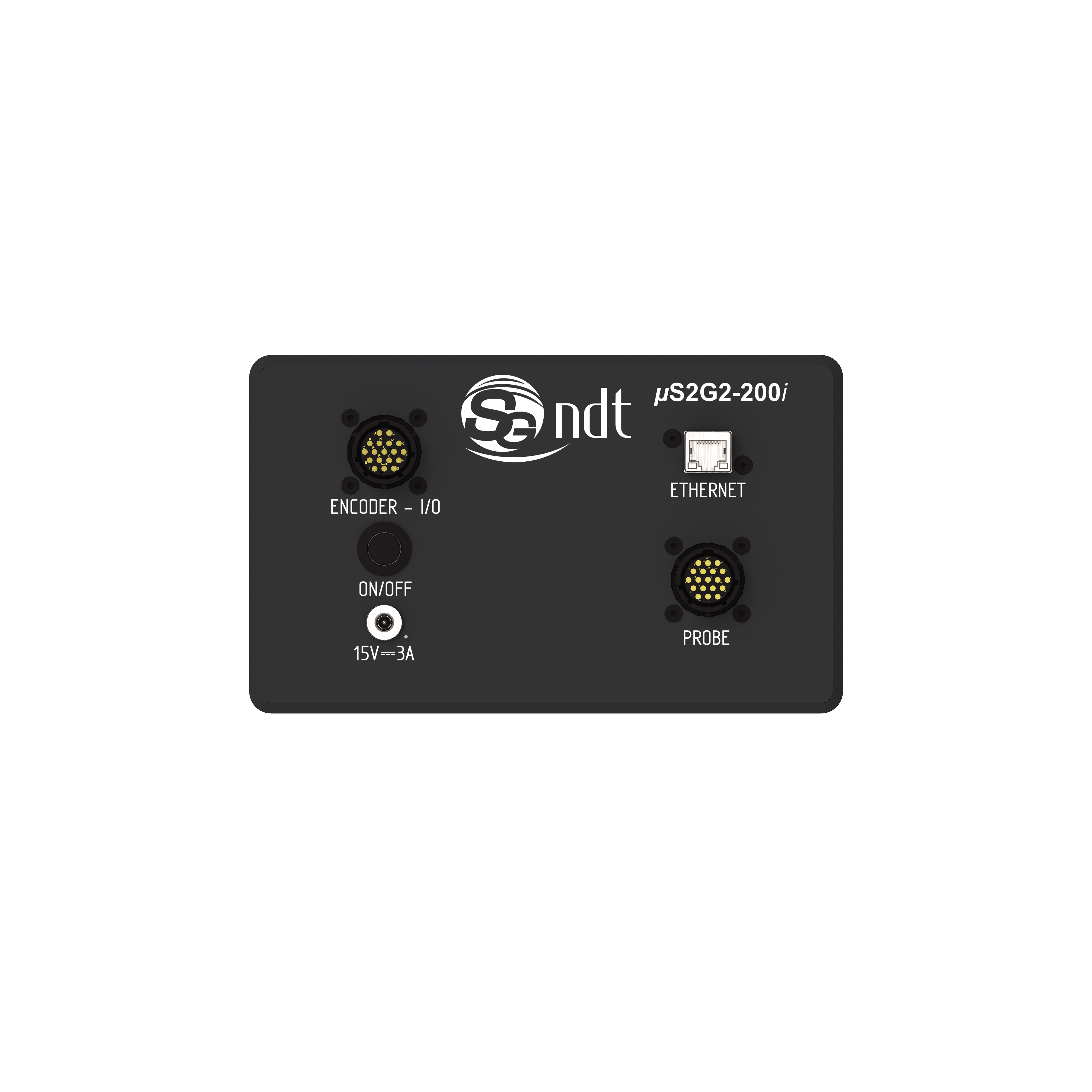

Inputs/Outputs
  • RJ45 Ethernet
  • 19-pin Amphenol – Extended ECT Connector
  • 18-pin I/O Connector
  • 12-15V DC Power Input
Encoders 2 quadrature encoder inputs
Remote Controls
  • Start/Stop
  • Balance
  • Status
Alarms 2 independent real-time alarms
Eddy Current
Frequency Range 20Hz to 5MHz
Generators / Probe Drivers 1 fully independent
Drive Voltage 0-10 Vpp (single driver)
Output Current 0.220 A max
Reference Generators 1 driver for Electronic balancing
Probe Inputs 2
Number of frequencies Up to 5 simultaneous
Data Format 32 bits
Data Rate 100,000 data points/s/ input
