Eddy Current Array

S2G2-800

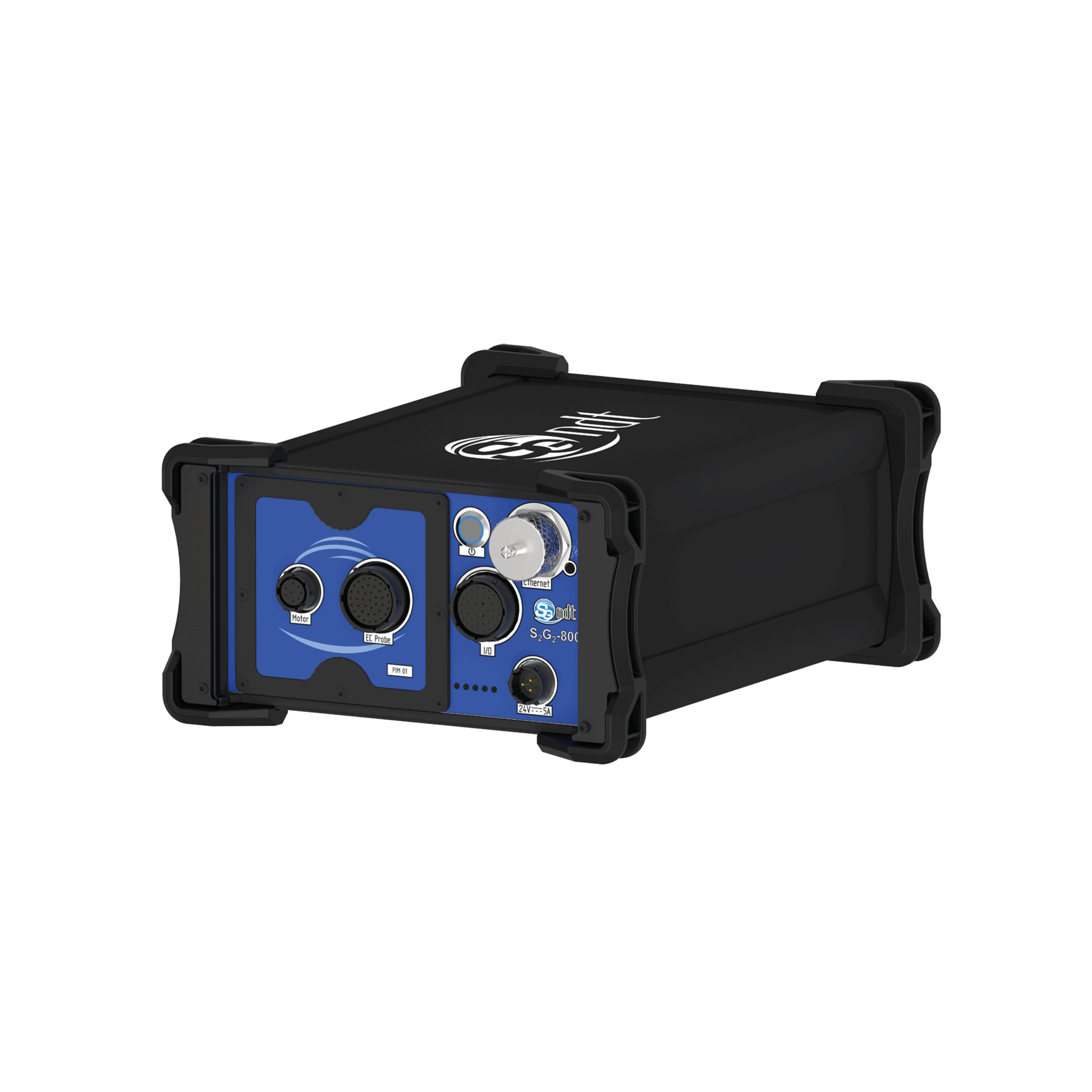

The S2G2-800 is the most recent multitechnology Eddy Current instrument of its generation.
The S2G2 combines a variety of technologies together.

  • Features
  • Includes
  • The S2G2-800 built-in capacities by combining any of the following testing technologies:
  • Eddy Current Testing (ECT)
  • Eddy Current Array (ECA)
  • Remote-Field Testing (RFT)
  • Near-Field Testing (NFT)
  • Near-Field Array (NFA)
  • Magnetic Flux Leakage (MFL)

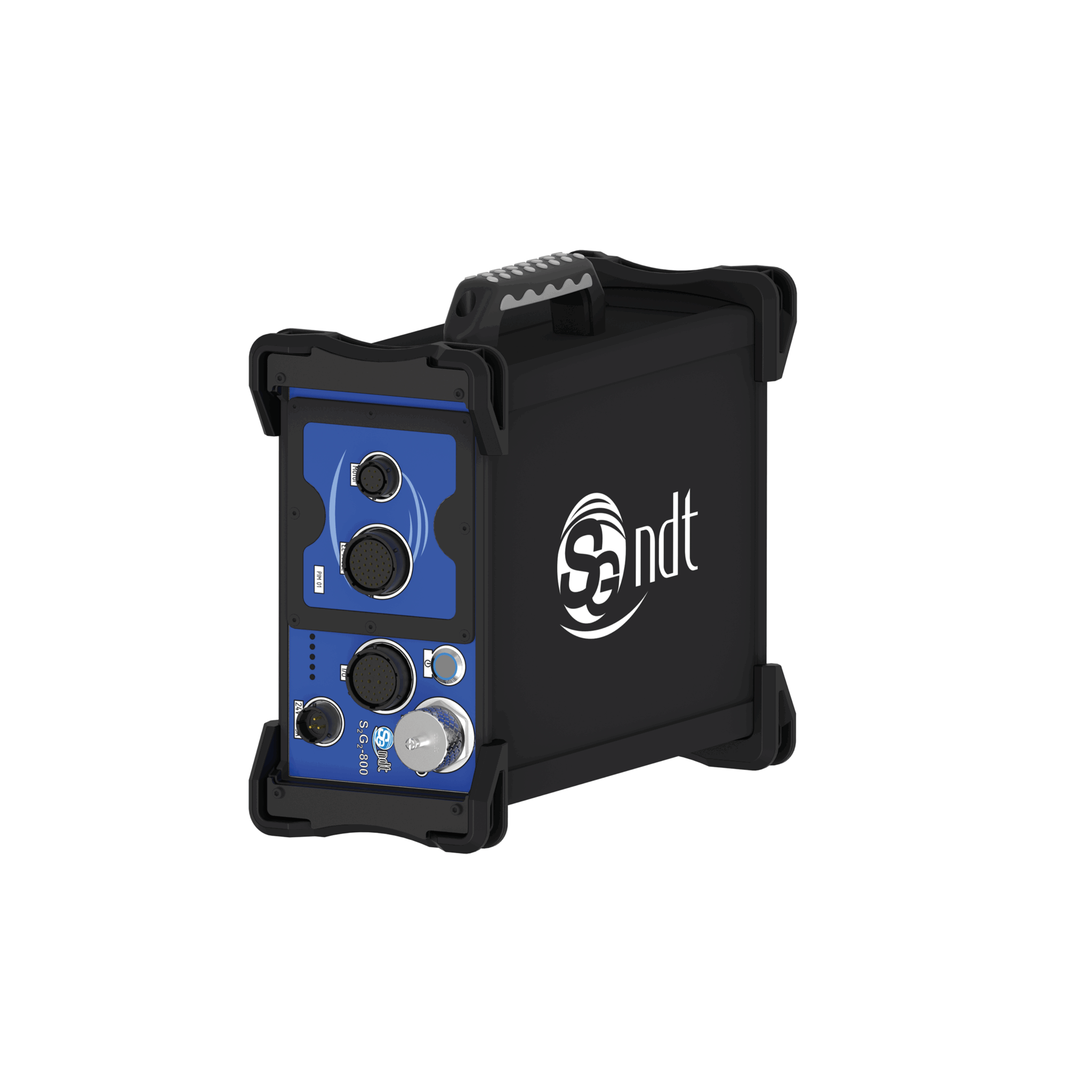

  • The S2G2 instrument weighs approximately 4.75 kg (10.5 lbs) with a volume of 10L (688 in3), making it one of the most compact Eddy Current Testing instrument on the market. It is easy to carry and very sturdy.
  • EC/ECA 8-input inspection device
  • EMMA software (acquisition only)
  • power supply
  • cables
  • rugged transport case.

Description

Technical specifications

General Specifications
Power Requirements 110V-220VAC, 50-60Hz (Auto voltage sensing)
Operating Voltage 24 Volts DC Power
Size (external dimensions) 33cm x 26cm x 14cm (13” x 10.2” x 5.5”)
Weight 4.75 Kg (10.5lb)
Environmental Sealed enclosure, designed for IP55
Computer Interface Gigabit Ethernet-1000 BASE-T
Compliance Standards CE, RoHS
Operating Temperature 0°C to 50°C (32°F to 122°F)
Inputs/Outputs
  • RJ45 Ethernet
  • 39-pin Amphenol I/O Connector
  • 41-pin Amphenol – Extended ECT Connector
  • 8-pin Amphenol Motor Controller Connector
  • 24VDC 3-pin Amphenol Power Input
Encoders 2 quadrature encoder inputs
Remote Controls
  • Start/Stop
  • Balance
  • Status
Alarms 4 independent real-time alarms
Eddy Current (ECT) / Eddy Current Array (ECA) Specifications
Frequency Range 20Hz to 2MHz
Generators / Probe Drivers 2 fully independent
Drive Voltage 0-20 Vpp (single driver)
Output Current 1 A Max
Reference Generators 2 generators for electronic balancing
Probe Inputs 8
Number of EC channels
  • 128 ECA channels
  • 256 ECA channels (upgradeable)
  • 512 ECA channels (upgradeable)
Number of frequencies Up to 5 simultaneous
Data Resolution 32 bits
Data Rate 100,000 data points/s/ input
Connector 41-Pin Amphenol Probe Connector
Additional Inspection Methods Supported
Remote Field (RFT) and Near Field (NFT) Via 41-pin connector and adaptor
Magnetic Flux Leakage (MFL)
  • Via 41-pin connector and adaptor

Probe types:

  • Inductive
  • Hall effect
  • Giant Magnetic Restrictive (GMR)
NFT Array (NFA) Via 41-pin connector
MFL Array Via 41-pin connector
