Eddy Current Array

S2G2-WS

Building on the technical success of the S2G2-800, SG NDT have introduced several key improvements to create the S2G2-WS, While maintaining the same industry leading signal-to-noise.

  • Features
  • Includes
  • The S2G2-WS built-in capacities by combining any of the following testing technologies:
  • Eddy Current Testing (ECT)
  • Eddy Current Array (ECA)
  • Remote-Field Testing (RFT)
  • Near-Field Testing (NFT)
  • Near-Field Array (NFA)
  • Magnetic Flux Leakage (MFL)

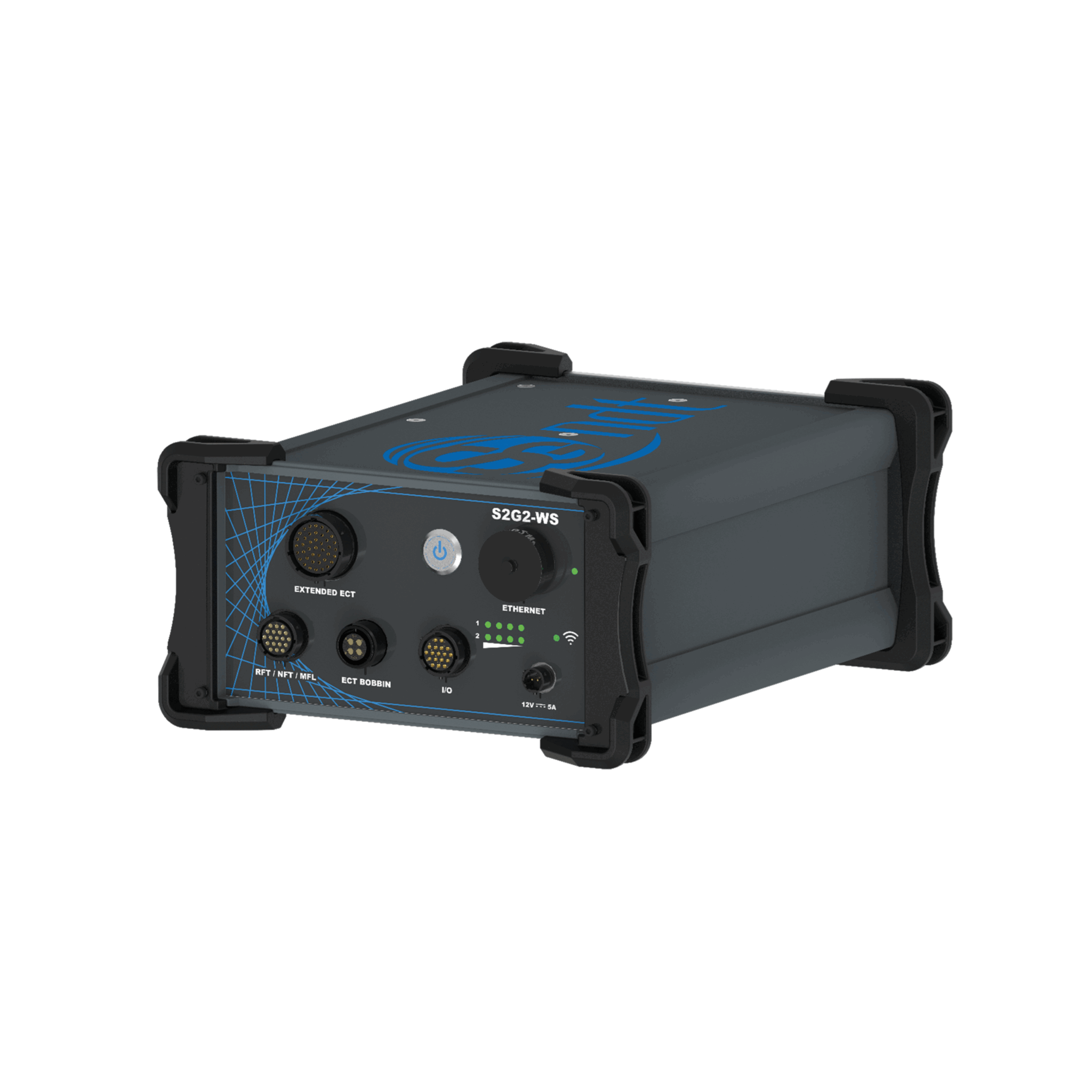

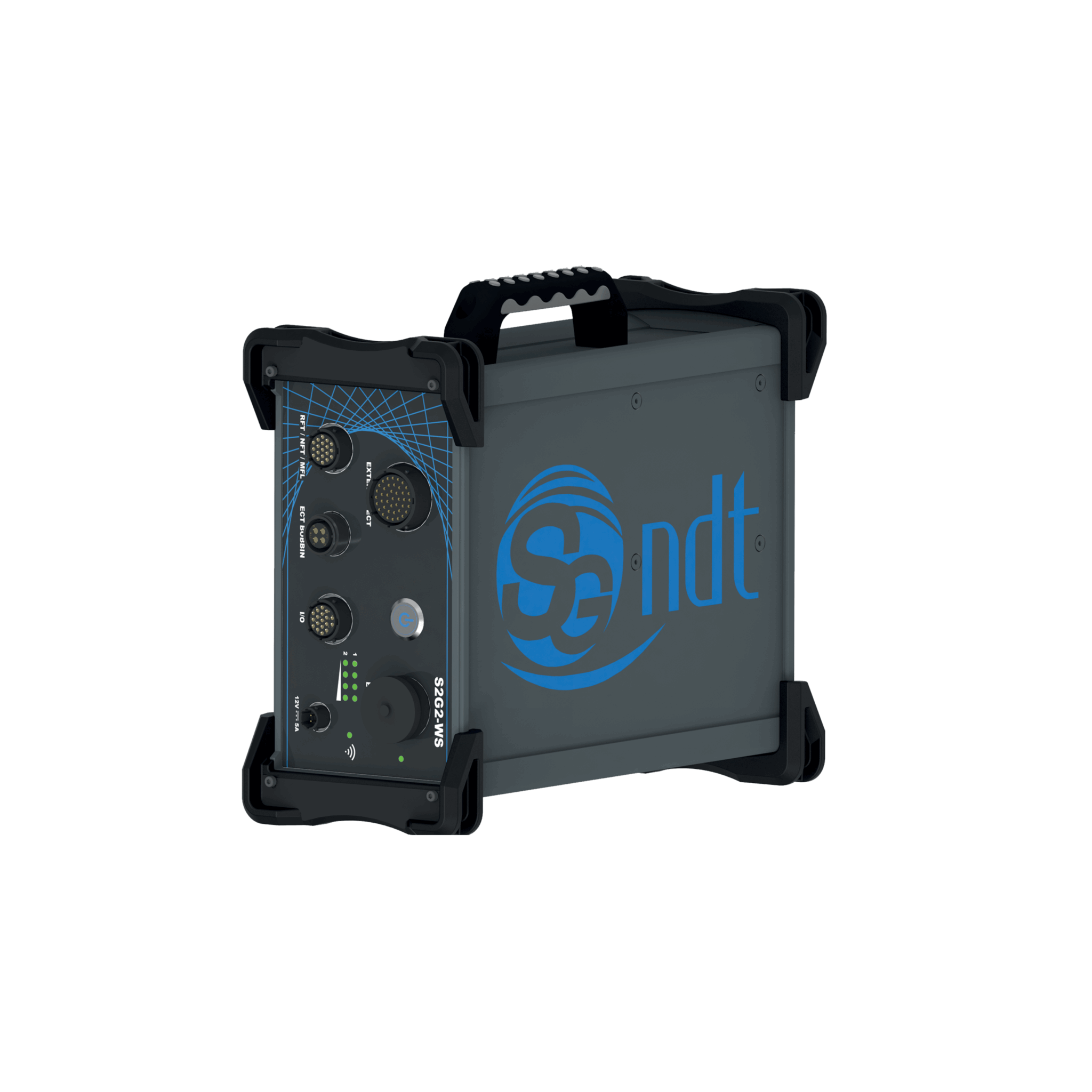

  • The S2G2 instrument weighs approximately 4.75 kg (10.5 lbs) with a volume of 10L (688 in3), making it one of the most compact Eddy Current Testing instrument on the market. It is easy to carry and very sturdy.
  • EC/ECA inspection device (128 channel capability)
  • EMMA software (acquisition only)
  • power supply
  • cables
  • 2x battery
  • double charger
  • rugged transport case

Description

Technical specifications

General Specifications
Power Requirements 110V-220VAC, 50-60Hz (Auto voltage sensing) OR Lithium-Ion Battery DoT compliant (RRC2054-2) – 10Hrs typical run time
Operating Voltage 12 VDC Power
Environmental Sealed enclosure, designed for IP55
Size (external dimensions) 33cm x 26cm x 14cm (13” x 10.2” x 5.5”)
Weight (excl. batteries) 4.75 Kg (10.5lb)
Weight (incl. batteries) 5.75Kg (12.7lb)
Computer Interface Gigabit Ethernet-1000 BASE-T OR Wi-Fi protocol
Compliance Standards CE, RoHS
Operating Temperature 0°C to 50°C (32°F to 122°F)
Inputs/Outputs
  • RJ45 Ethernet
  • 18-pin I/O Connector
  • 41-pin Amphenol – Extended ECT Connector
  • 19-pin Amphenol Connector (RFT/NFT/MFL)
  • 4-pin Amphenol Connector (ECT)
  • 12VDC-2-pin Amphenol Power Input
Encoders 2 quadrature encoder inputs
Remote Controls
  • Start/Stop
  • Balance
  • Status
Alarms 2 independent real-time alarms
Eddy Current / Array (ECA)
Frequency Range 20Hz to 2MHz
Generators / Probe Drivers 2 fully independent
Drive Voltage 0-20 Vpp (single driver)
Output Current 1 A max
Reference Generators 2 generators for Electronic balancing
Probe Inputs 8
Number of EC channels
  • 128 ECA channels
  • 256 ECA channels (upgradeable)
  • 512 ECA channels (upgradeable)
Number of frequencies Up to 5 simultaneous
Data Resolution 32 bits
Data rate 100,000 data points/s/input
Connector 41-Pin Amphenol connector OR 4-pin Amphenol connector
Additional Inspection Methods
Remote Field (RFT) and Near Field (NFT) Via 19-pin connector
Magnetic Flux Leakage (MFL)

Via 19-pin connector (may require an adaptor)

Probe types:

  • Inductive
  • Hall effect
  • Giant Magnetic Restrictive (GMR)
NFT Array (NFA) Via 41-pin connector
MFL Array Via 41-pin connector
