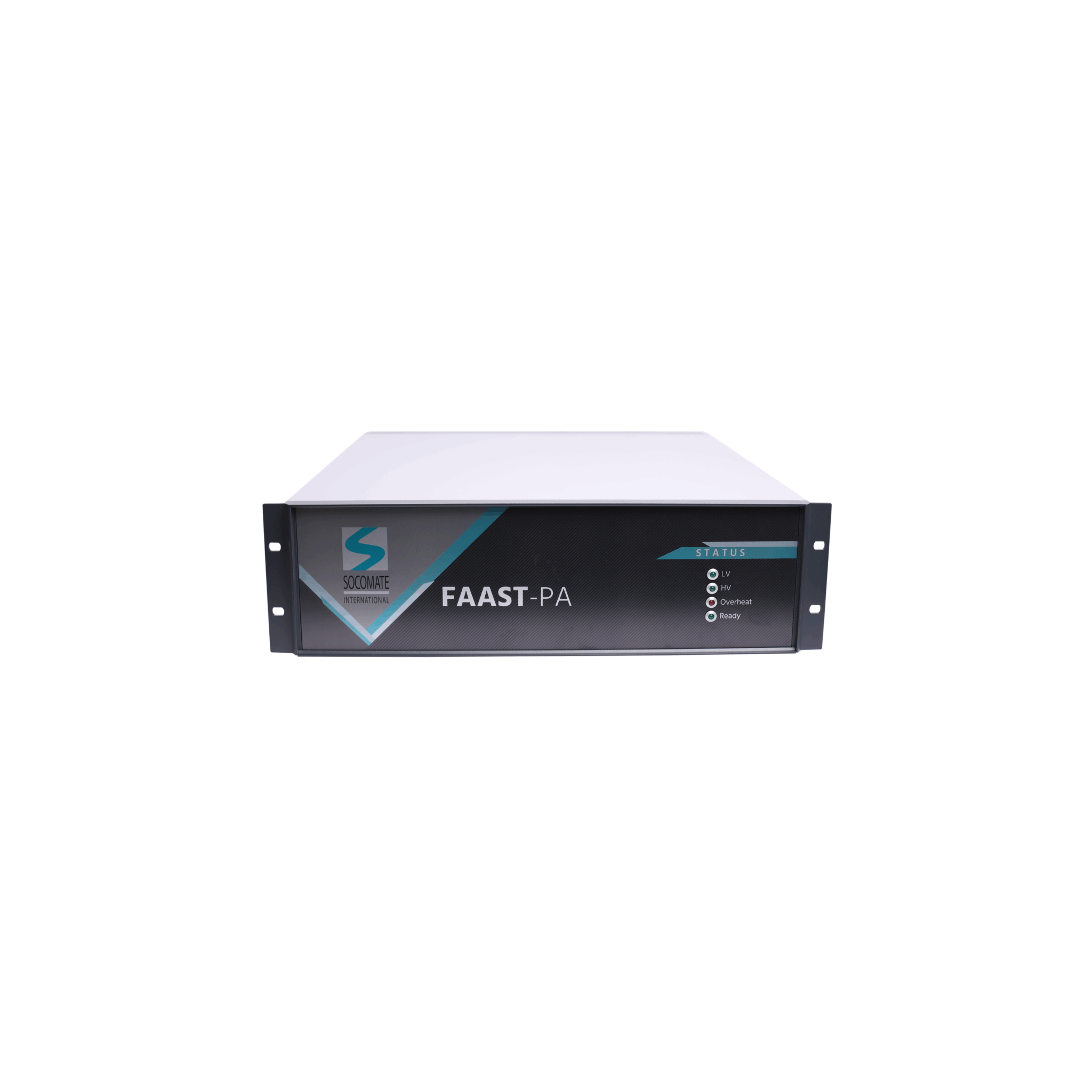

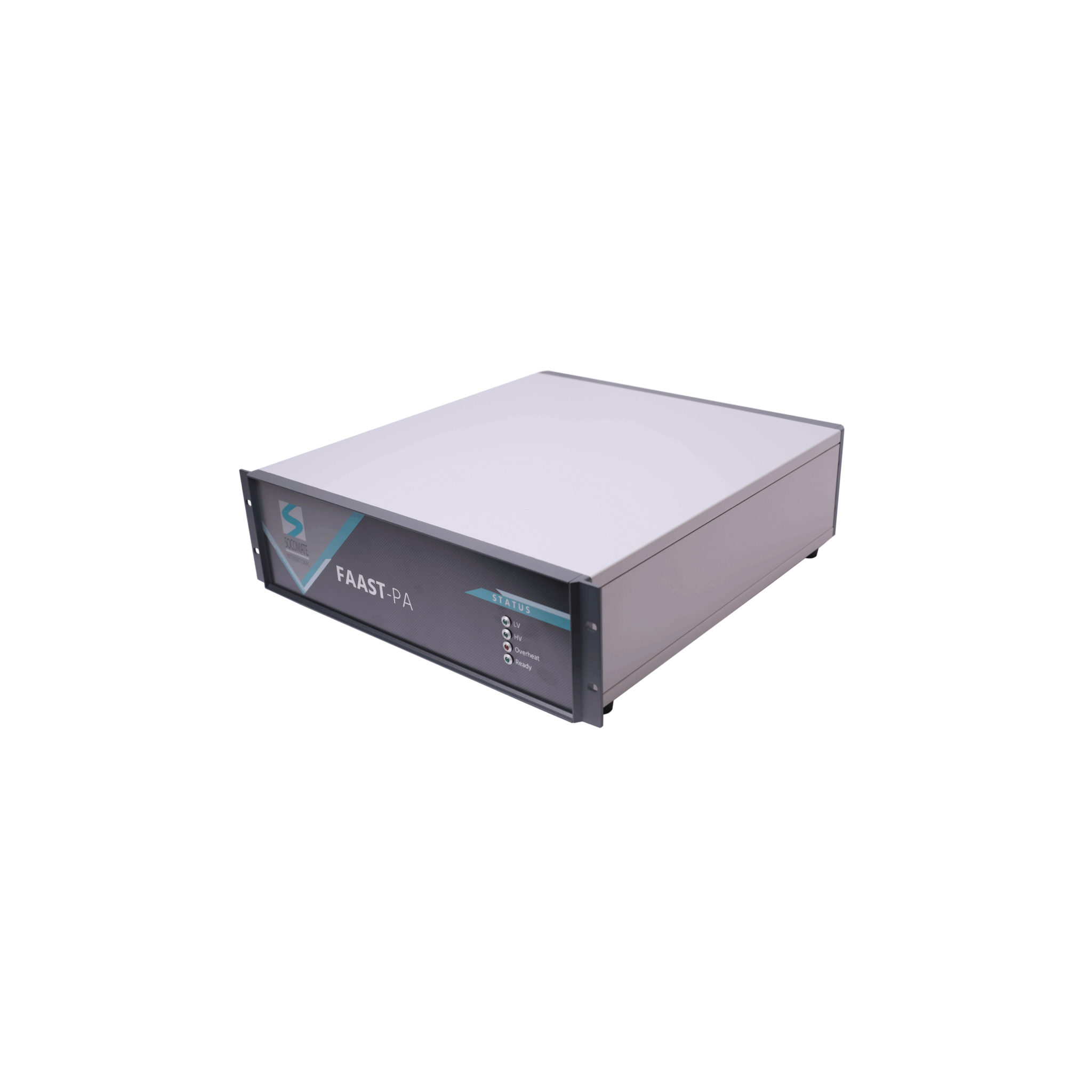

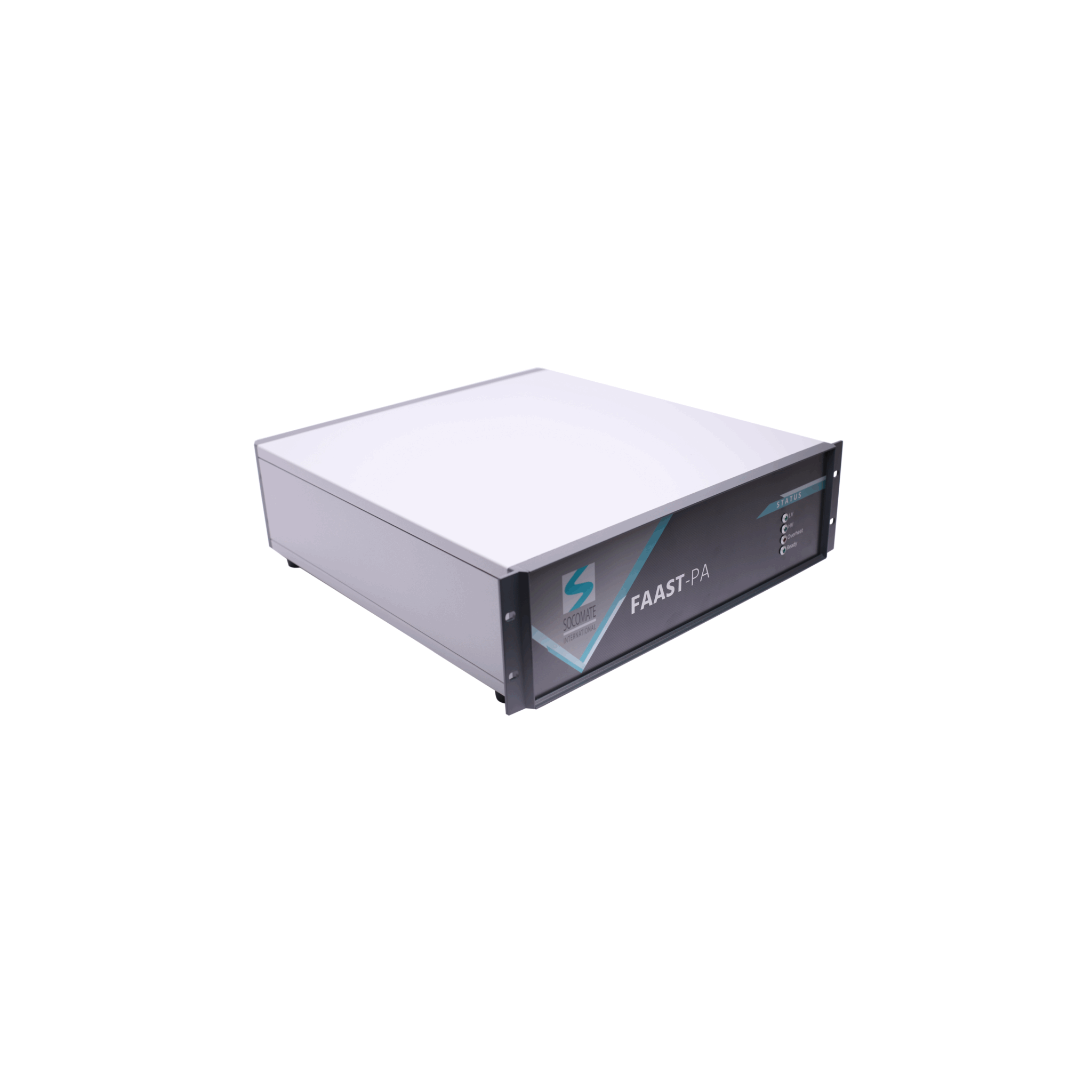

FAAST-PA

FAAST-PA is a phased-array ultrasonic instrument (PAUT) that is significantly more powerful than conventional phased-array electronics.

Equipped with sinusoidal transmitters and real-time embedded data processing firmware, FAAST can transmit multiple sound beams—multi-oriented and/or multi-focused—using multi-element probes in a single shot, while simultaneously processing all received signals in real time.

Features
Includes
Options
Applications

Multi-Angles (FAAST patent)The multi-angle capability is one of the key features of the FAAST Phased Array (PAUT) system, enabling the generation of angled beams through a multi-element probe in a single shot.
Advanced DDF Shot (FAAST patent)Advanced DDF (Dynamic Depth Focusing) is another major feature of the FAAST Phased Array (PAUT) system, allowing the generation of multi-depth focused beams through a multi-element probe in a single shot.
Multi-Frequency Shot (FAAST patent)The FAAST PA also provides the ability to transmit at different frequencies (within the probe’s bandwidth) using the same probe, firing simultaneously.

3 U racks with parallel architecture from 32 to 256
Ethernet connection to the PC
64 IOs
Possibilitty to drive up to 16 instruments with the same sotfware
Fully-documented SDK & DLL
UTView Software

IPEX connectors
32, 64, 128, 256 parallel architectures
Hypertronics connector
Stackable up to 16 units

In line inspections of tubular products (Oil & Gas)
Inspection of plates -titanium, steel or aluminum-(Manufacturing)
Inspection of rail (Railway)
Inspection of forgings (Aerospace)

Description

Customer Benefits

Increase inspection speed

Up to ten times faster than commercially available electronics, FAAST systems boost inspection productivity and eliminate NDT bottlenecks in manufacturing quality control.
