SOCOX-P OEM

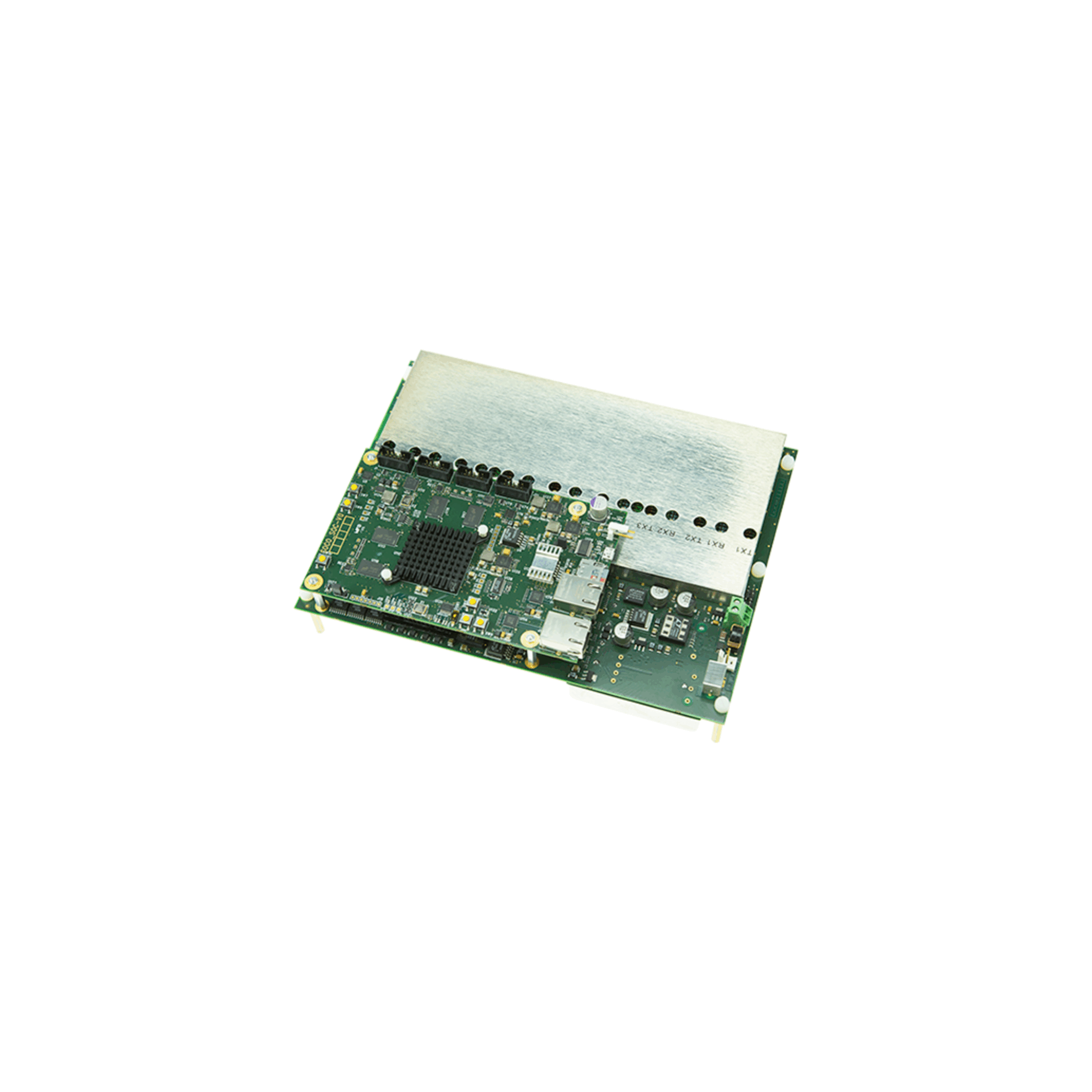

The SOCOX-P is a conventional UT electronics offering up to 8 channels in parallel for high speed inspection.

The SOCO line is designed for very demanding inspections requiring power and continuous use such as online control for production plants.

It can supply from 4 to 8 channels per board with up to 32 boards leading up to 256 channels in parallel.

This UT board is supplied on OEM basis. It offers the possibility to create the casing that fit with your requirements.

Thanks to Ethernet network, this UT board is the right solution for single or multiple channels as it can easily be placed near the probe to drastically reduce the cable length.

Features
Includes
Applications

Parallel 8-channel PR UT board
Stackable up to 32 boards (256 channels)
Alarms and encoders
High PRF and data throughput via ethernet link to PC
Running nonstop 24/7/365
Fully-documented SDK/DLL

An Advanced API's is provided to interface all instruments of the SOCO line and it comes with an evolutive software, UTVIEW, which is used to manage all necessary UT parameters. Our complete Software Development Kit (SDK) allows you to meet your most demanding needs to create customized inspection solutions.

Dimensional measurement . e.Rota evaluation bench for full dimensional measurement of high precision tubing on ROTA25© (Nukeml)
High Precision Tube Inspection . Our partner Provea (France) has developed an immersion tank for tube rotating technique. The system is using 4 channels for crack detection, and 1 channel for wall thickness.
HIgh Speed rail inspection. Socomate International has developed a complete system, electronics and software, to be integrated into inspection vehicle.
