SPEN-WELD-S-HT

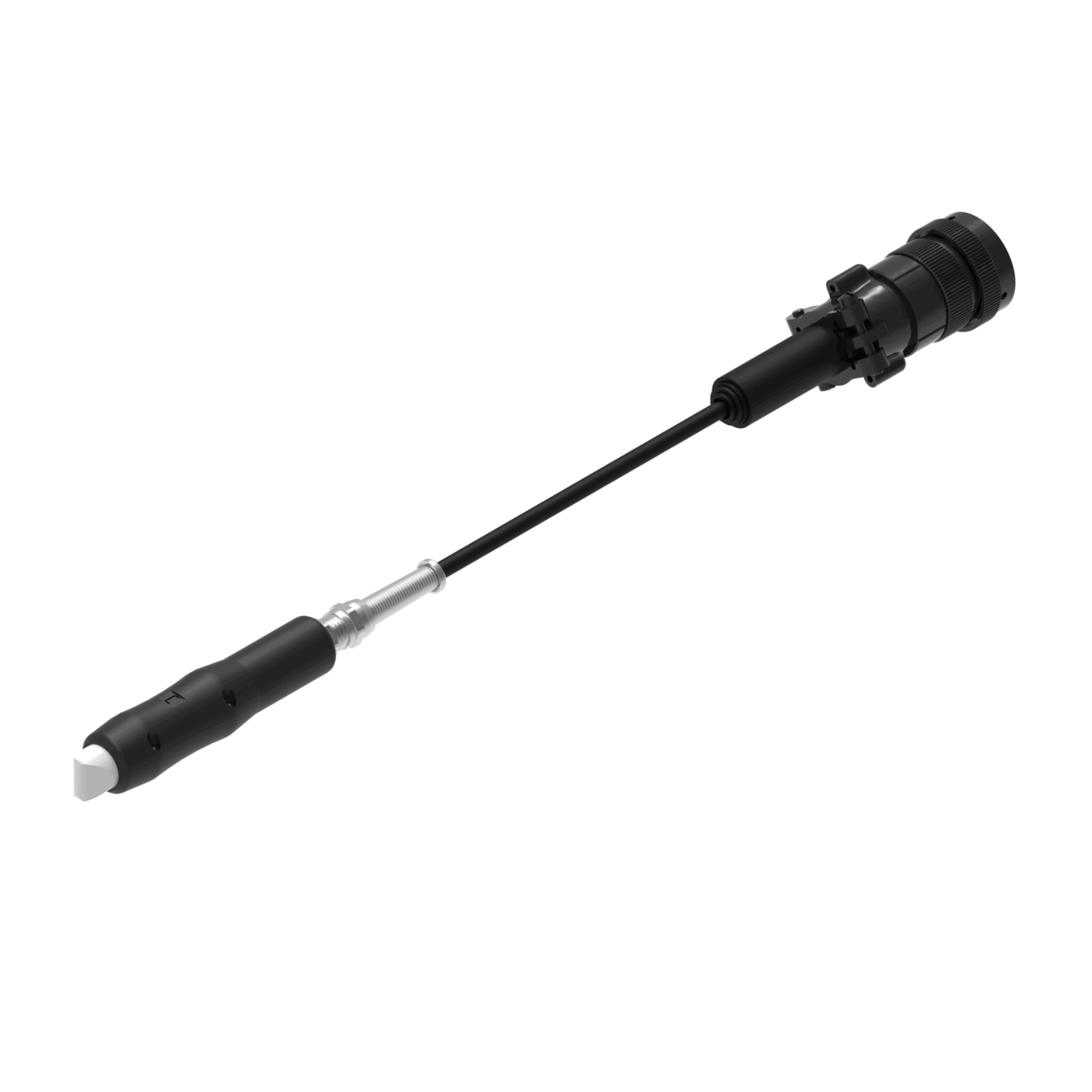

The SPEN-WELD-S-HT model is equipped with a durable, Abrasionresistant, straight ceramic tip, making it ideal for applications at elevated temperatures.

  • Features
  • Includes
  • Cable Length3m standard
  • Frequency Range50kHz fixed
  • Probe Coverage7mm
  • TopologyTangential
  • Eddy Current Channels1 Depth Channel
  • 1 Length Channel
  • Resolution3.75mm
  • Maximum Lift-Off4mm
  • Typical Penetration DepthUp to 5mm
  • Typical Detectable Defect>3mm
  • Maximum Temperature110°C
  • Standard Connector41-pin Amphenol compatible with SG NDT electronics. Can be customized.
  • Pencil style probe
  • Integrated cable, 3m, 5m or 10m.

Description

Technical specifications

Cable Length 3m standard
Frequency Range 50kHz fixed
Probe Coverage 7mm
Topology Tangential Eddy Current
Channels 1 Depth Channel<br>1 Length Channel
Resolution 3.75mm
Maximum Lift-Off 4mm
Typical Penetration Depth Up to 5mm
Typical Detectable Defect >3mm
Maximum Temperature 110°C
Standard Connector 41-pin Amphenol compatible with SG NDT electronics. Can be customized
