PAD-P-053-MR

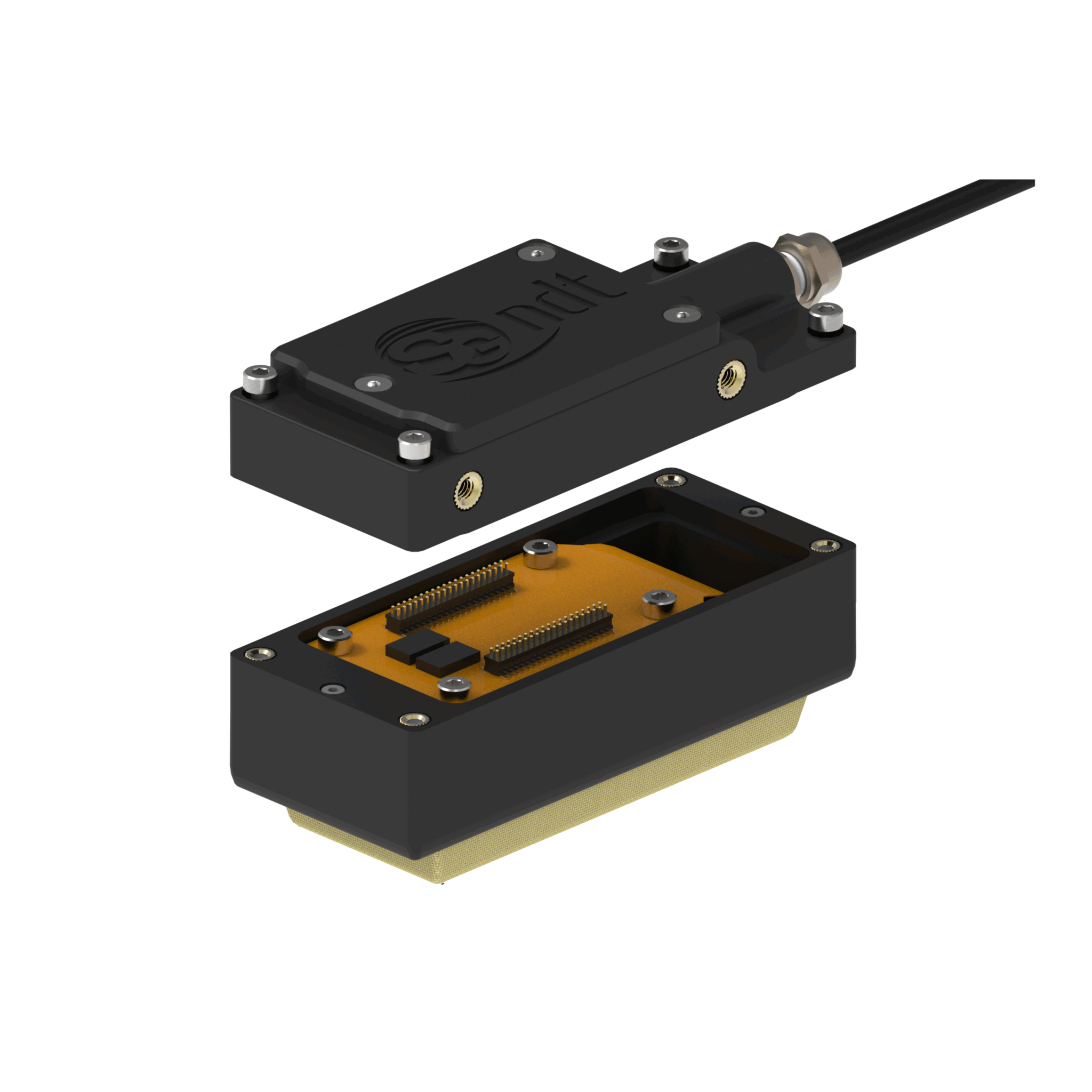

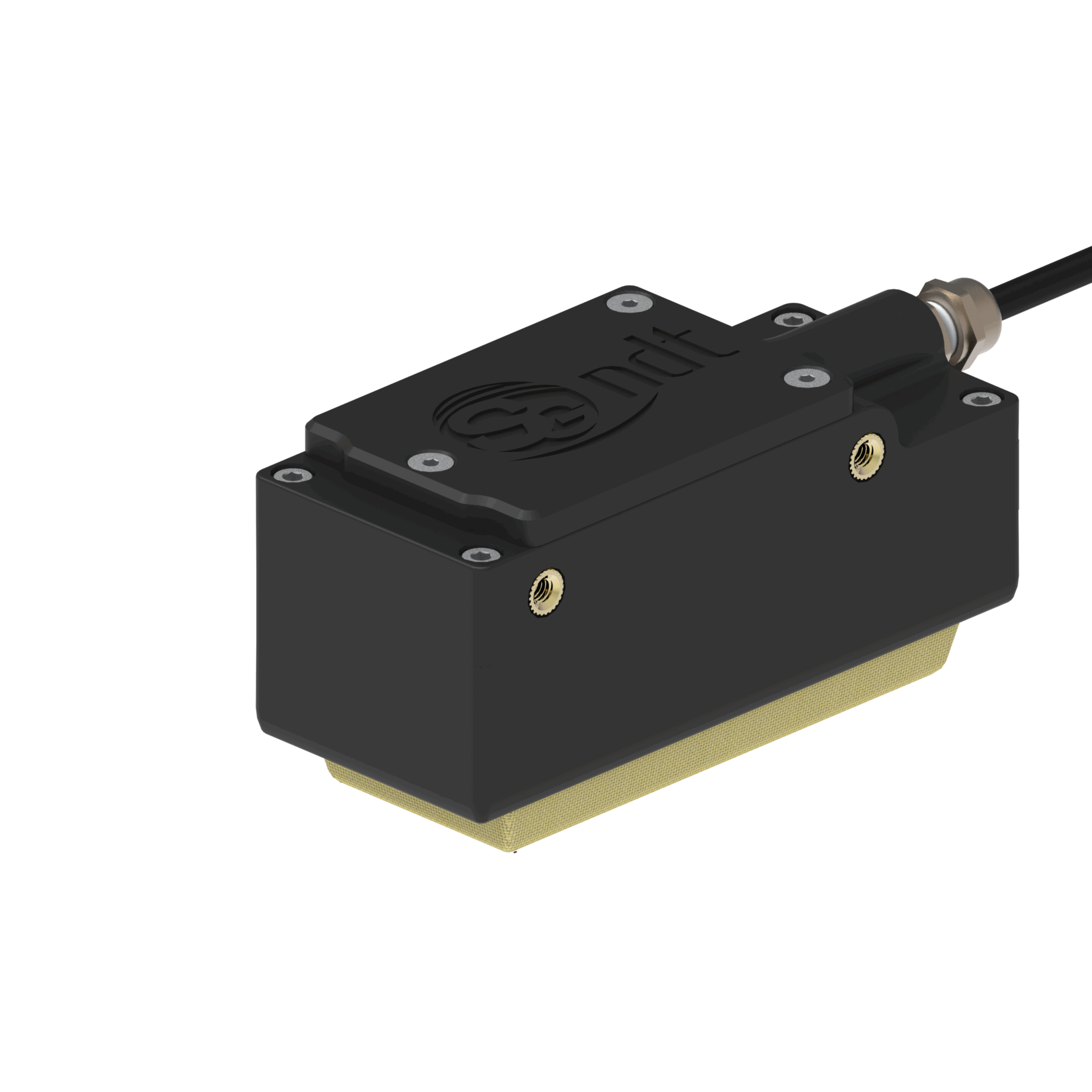

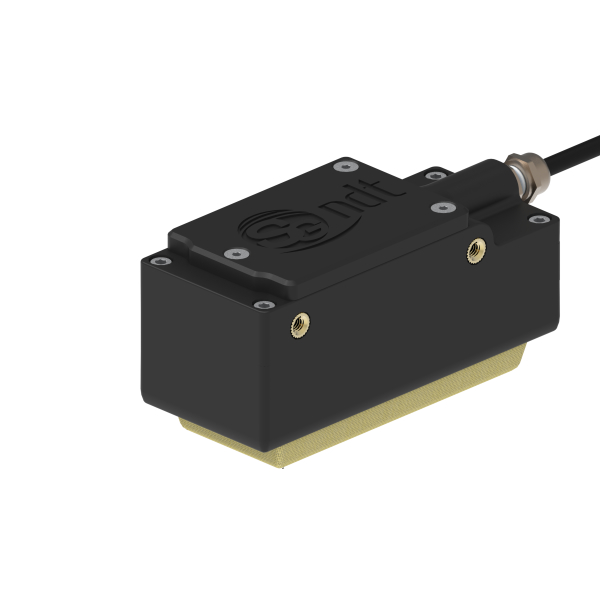

The PAD-P-053-MR probe is a mid-resolution inspection probe with a wear-resistant Kevlar cushioned face that can conform to gentle geometry changes.
- TechnologyPCB Coils
- Cable length3m standard
- Curve radius> 20mm
- Frequency range50kHz – 500kHz
- Probe coverage53mm
- TopologyLong Single Driver
- Coil quantity2 rows of 16 (32 total)
- Coil OD3.5mm
- Channels31 Axial, 15 Transverses (total 46)
- Resolution3.5mm Axial, 3.5mm Transverse
- Maximum liftoff2.75mm
- Typical penetration depthUp to 1.5mm
- Typical detectable defect> 2mm
- Irregular or low-radius curved surface inspection medium-resolution, printed coils, 53mm coverage, cushioned PAD probe kit.
- Includes: one 3m (10ft) CBLS-ECA-03M cable assembly and one SPAD-P-053-MR cushioned sensor array, shipped in a rugged transport case
- CBLS-ECA-05M Cable and MUX assembly for PAD probes, 5m (16ft) cable length, with 41-pin ECT Extended Connector
- CBLS-ECA-10M Cable and MUX assembly for PAD probes, 10m (32ft) cable length, with 41-pin ECT Extended Connector
- SPAD-P-053-MR Irregular or low-radius curved surface inspection medium-resolution, printed coils, 53mm coverage, cushioned PAD sensor array. (CBLS-ECA-03M cable assembly not included)
- ENCS-00-03M Clip-on style encoder for use with cushioned PAD probes. Includes: encoder, an integrated 3m (10ft) cable with 18-pin I/O connector.
