SHAPE-P-036-XR

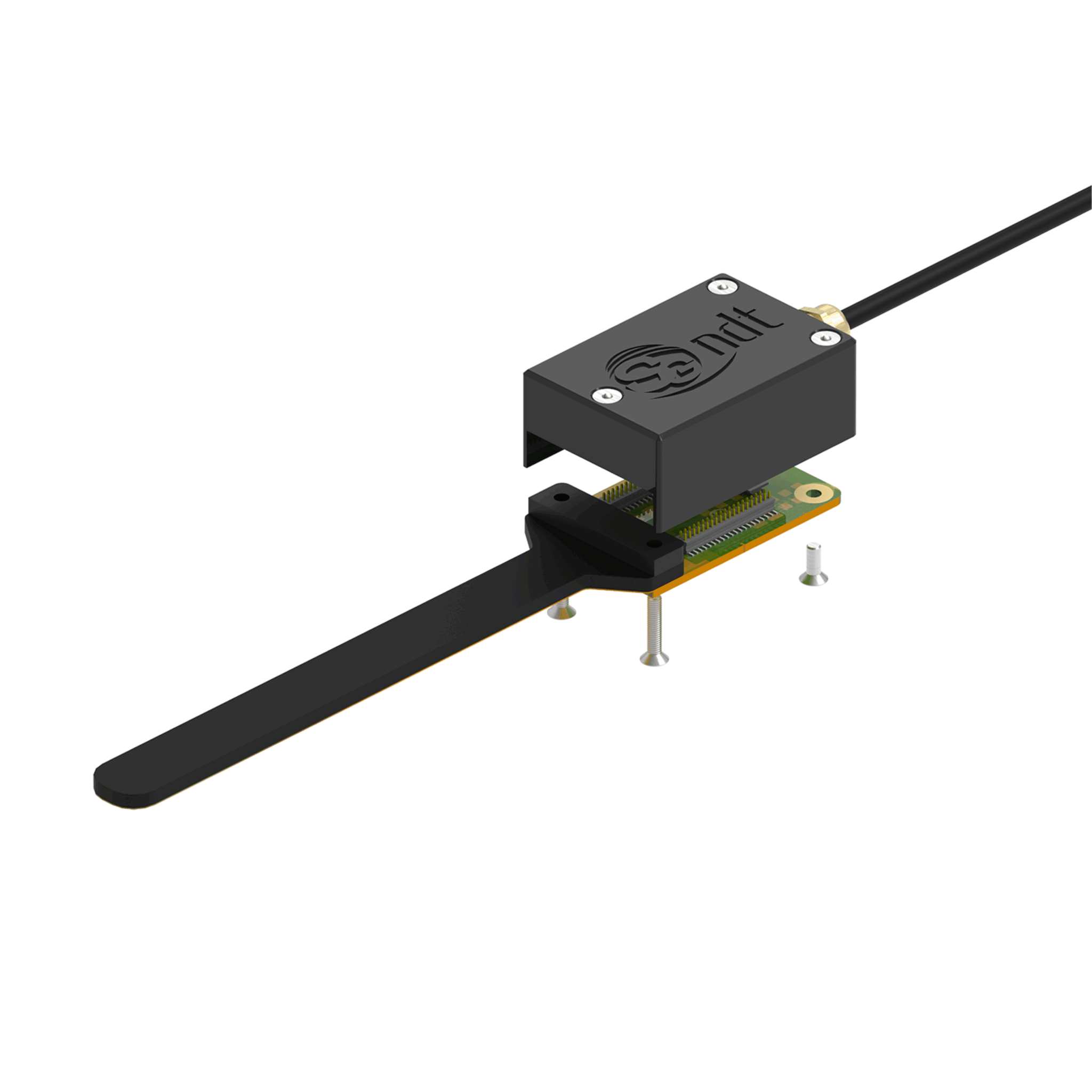

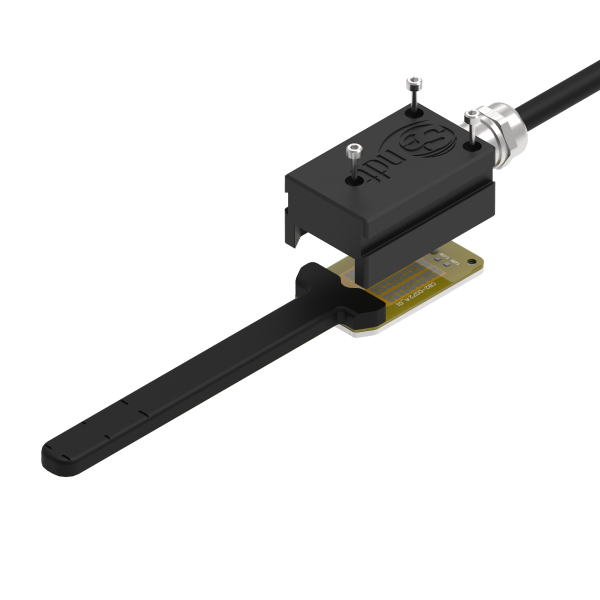

The SHAPE-P-036-XR probe is an extra-high resolution inspection probe with a rubber backing that ensures durability while minimizing the impact on flexibility.

  • Features
  • Includes
  • Options
  • TechnologyPCB Coils
  • Frequency Range500KHz – 5MHz
  • Coil OD2.35mm
  • Coil Quantity2 Rows of 32 Intertwined Coils (total 64)
  • Probe Coverage36mm
  • TopologyShort Single Driver
  • Channels31 Axial, 31 Transverse (total 62)
  • Resolution1.18mm Axial, 1.18mm Transverse
  • Curve Radius20mm
  • Typical Detectable Defect> 0.4mm
  • Cable Length3m Standard
  • Maximum Lift-Off0.5mm
  • Surface inspection extra-high resolution, printed coils, 36mm coverage, flexible SHAPE probe kit.
  • Includes: one 3m (10ft) CBLS-SHAPE-03M cable assembly and two SFLX-P-036-XR flexible sensor array, shipped in a rugged transport case.
  • CBLS-SHAPE-05M Cable and MUX assembly for SHAPE probes, 5m (16ft) cable length, with 41-pin ECT Extended Connector
  • CBLS-SHAPE-10M Cable and MUX assembly for SHAPE probes, 10m (32ft) cable length, with 41-pin ECT Extended Connector

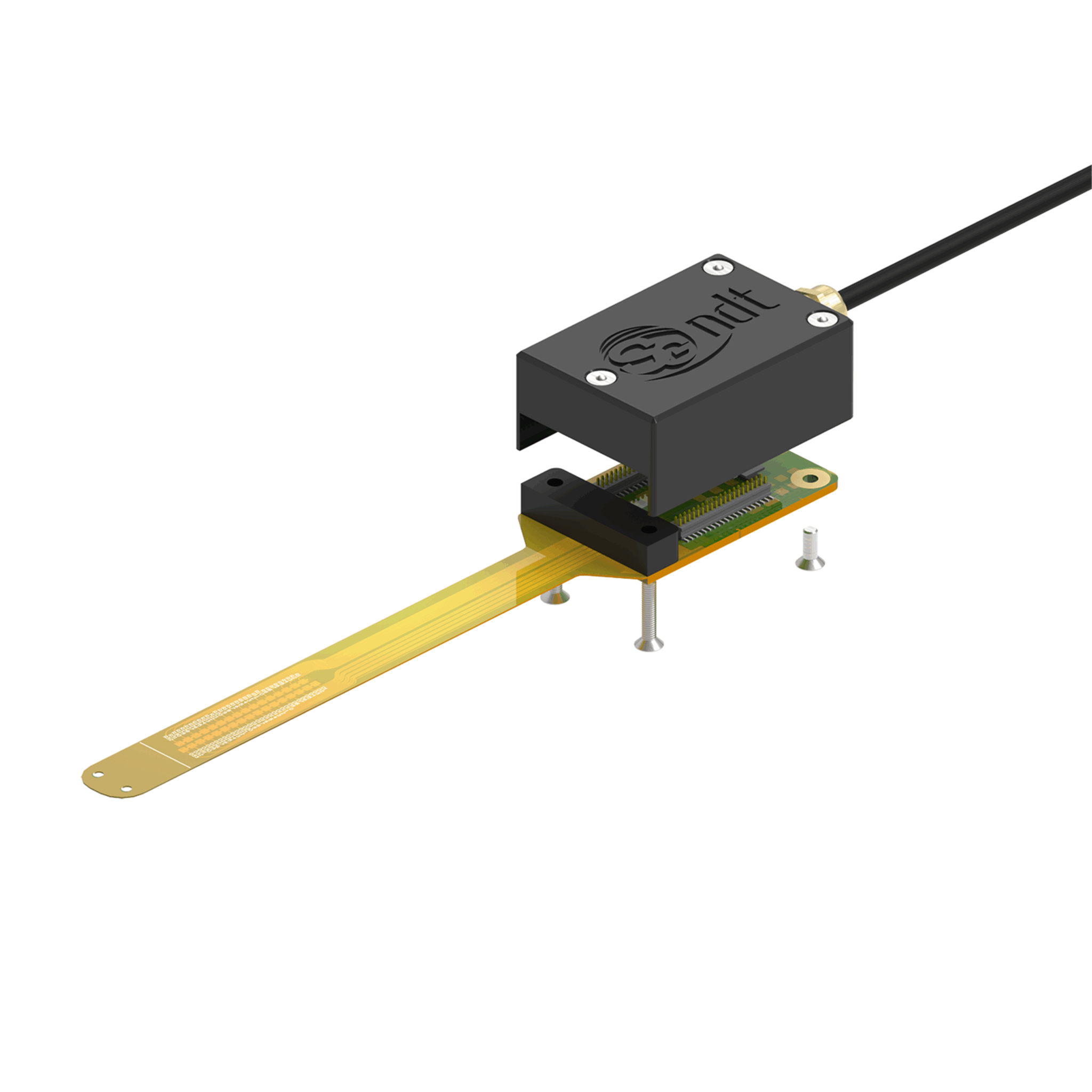

  • SFLX-P-036-XR Surface inspection extra-high resolution, printed coils, 36mm coverage, flexible SHAPE sensor array. (CBLS-SHAPE-03M cable assembly not included).

Description

Technical specifications

SHAPE-P-036-XR SHAPE-P-036-XR-f
Technology PCB Coils PCB Coils
Frequency range 500KHz – 5MHz 500KHz – 5MHz
Coil OD 2.35mm 2.35mm
Coil quantity 2 Rows of 32 Intertwined (total 64) 2 Rows of 32 Intertwined (total 64)
Probe coverage 36 mm 36 mm
Topology Short Single Driver Short Single Driver
Channels 31 Axial, 31 Transverses (total 62) 31 Axial, 31 Transverses (total 62)
Resolution 1.18 mm Axial, 1.18 mm Transverse 1.18 mm Axial, 1.18 mm Transverse
Curve radius 20 mm 20 mm
Typical detectable defect > 0.4 mm > 0.4 mm
Cable length 3 m standard 3 m standard
Maximum Lift-Off 0.5 mm 0.5 mm
