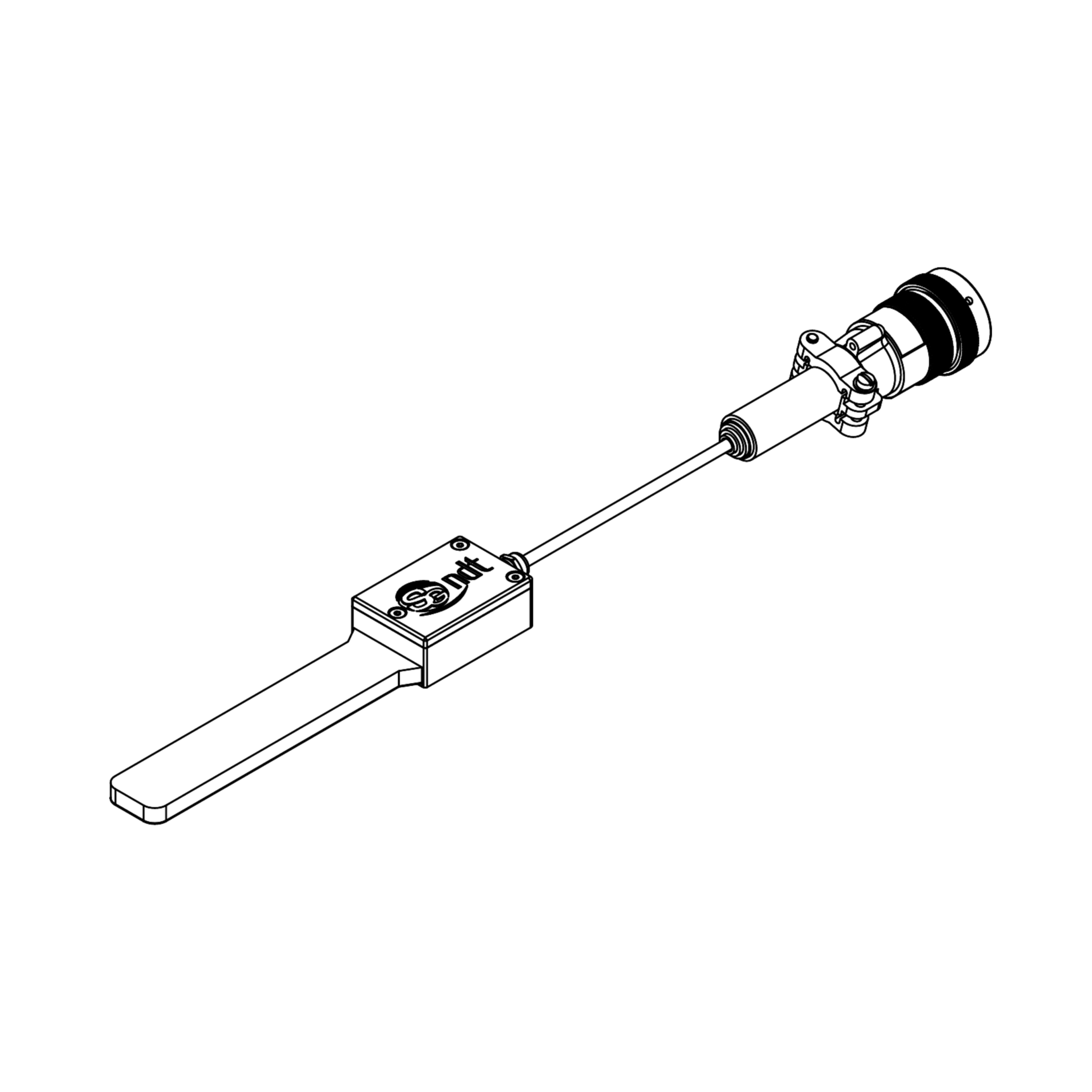

SHAPE-P-053-MR
The SHAPE-P-053-MR probe is a mid-resolution inspection probe with a rubber backing that ensures durability while minimizing the impact on flexibility.
These probes have been field-proven as an excellent probe choice for difficult inspections with geometric challenges.
- TechnologyPCB Coils
- Cable length3 m standard
- Frequency range50kHz – 800kHz
- Probe coverage53::54 mm
- Coil OD3.5 mm
- Typical minimum detectable defect sizefrom 0,5 to 2 mm
- Curve radiusfrom 20 to 50 mm
- TopologyLong Single Driver
- Coil quantity2 rows of 16 (32 total)
- Channels31 Axial, 15 Transverses (total 46)
- Resolution3.5mm Axial, 3.5mm Transverse
- Maximum liftoff2.75mm
- Typical penetration depthUp to 1.5mm
- 3m (10ft) CBLS-ECA-03M cable assembly

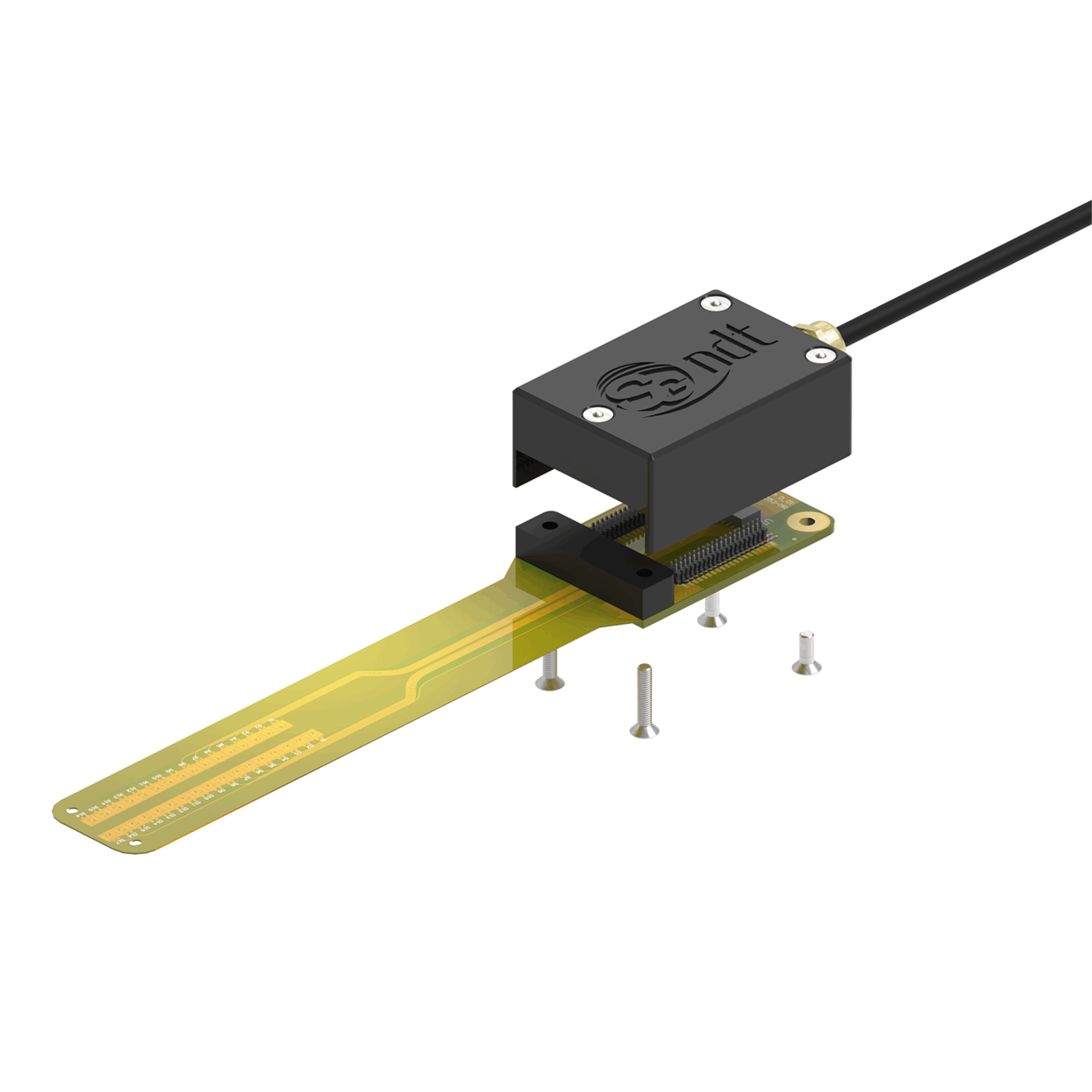

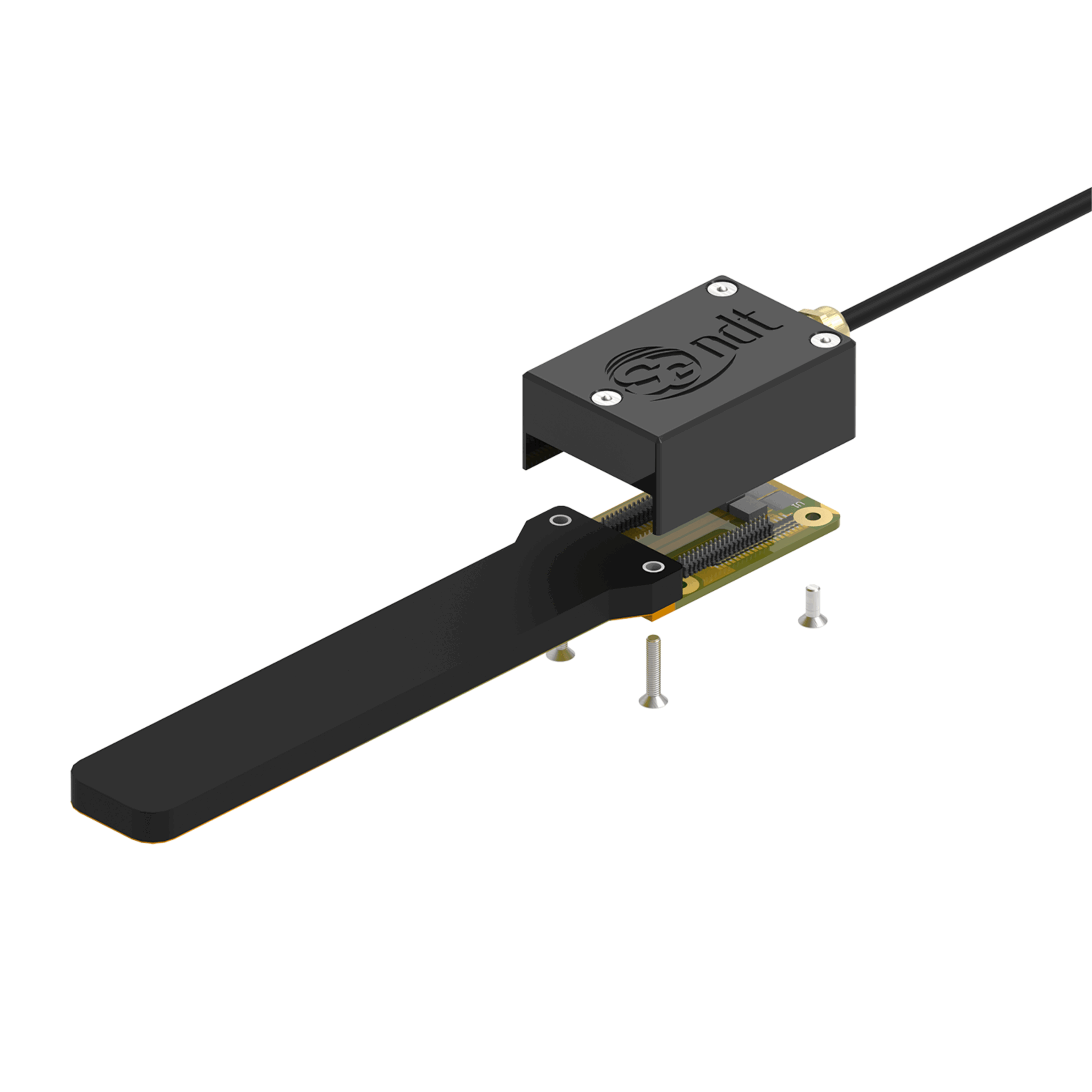

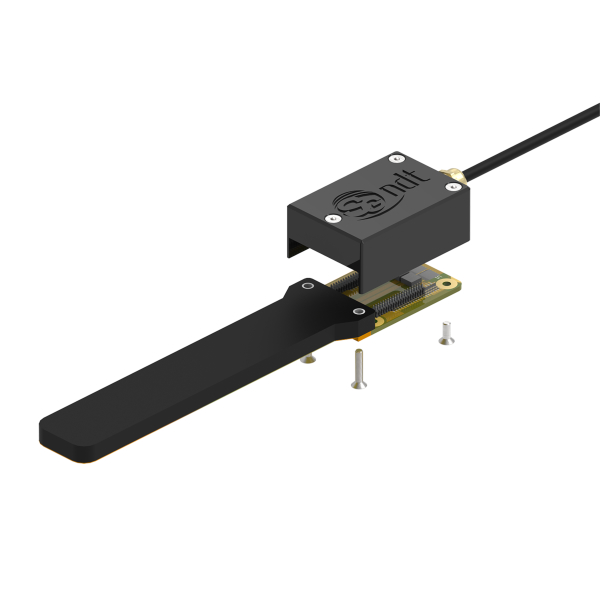

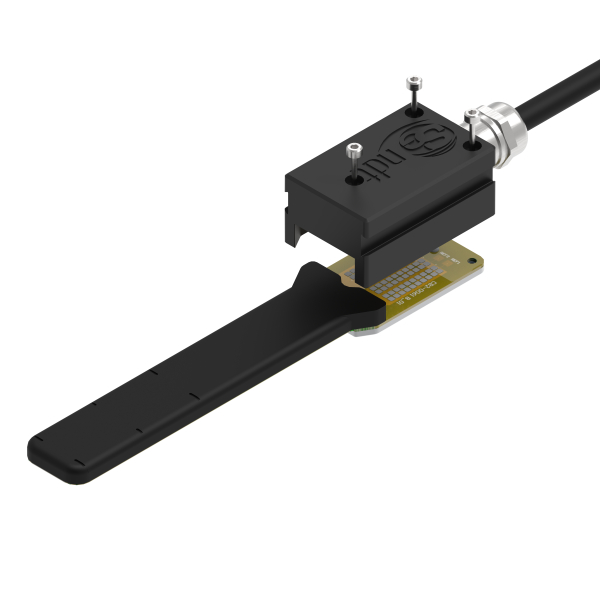

- 1 SPAD-P-053-MR cushioned sensor array
- Transport case.
- CBLS-ECA-03MCable and MUX assembly for PAD probes, 3m (10ft) cable length, with 41-pin ECT Extended Connector.
- CBLS-ECA-05MCable and MUX assembly for PAD probes, 5m (16ft) cable length, with 41-pin ECT Extended Connector.
- CBLS-ECA-10MCable and MUX assembly for PAD probes, 10m (32ft) cable length, with 41-pin ECT Extended Connector.
- SPAD-P-0XX Irregular or low-radius curved surface inspection medium-resolution, printed coils, 53mm coverage, cushioned PAD sensor array. (CBLS-ECA-03M cable assembly not included).
