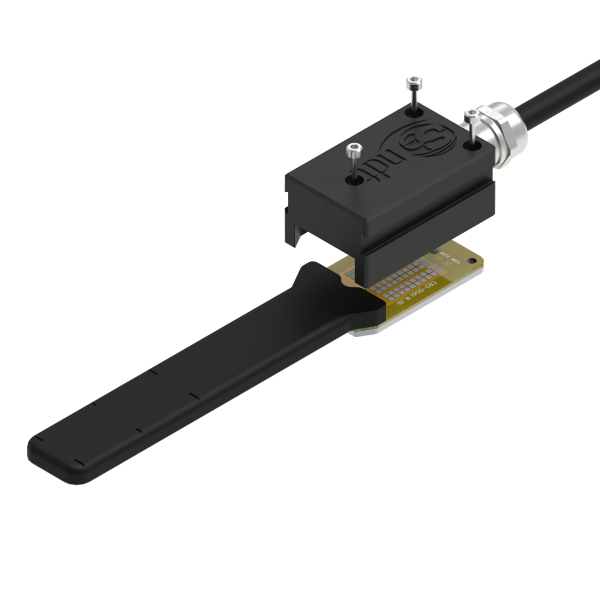

SHAPE-P-054-HR

The SHAPE-P-054-HR probe is a high-resolution inspection probe with a rubber backing that ensures durability while minimizing the impact on flexibility.

These probes have been field-proven as an excellent probe choice for difficult inspections or small defects.

  • Features
  • Includes
  • Options
  • TechnologyPCB Coils
  • Frequency Range100kHz – 800kHz
  • Coil OD3.5mm
  • Coil Quantity2 Rows of 32 Intertwined Coils (total 64)
  • Probe Coverage54mm
  • TopologyShort Single Driver
  • Channels31 Axial, 31 Transverse (total 62)
  • Resolution1.75mm Axial, 1.75mm Transverse
  • Curve Radius> 50mm
  • Typical Detectable Defect> 0.5mm
  • Cable Length3m Standard
  • Maximum Lift-Off1.25mm
  • 3m (10ft) CBLS-ECA-03M cable assembly
  • 1 SPAD-P-054-hR cushioned sensor array
  • Transport case.
  • CBLS-ECA-03M - Cable and MUX assembly for PAD probes, 3m (10ft) cable length, with 41-pin ECT Extended Connector.
  • CBLS-ECA-05M Cable and MUX assembly for PAD probes, 5m (16ft) cable length, with 41-pin ECT Extended Connector.
  • CBLS-ECA-10M Cable and MUX assembly for PAD probes, 10m (32ft) cable length, with 41-pin ECT Extended Connector.
  • SPAD-P-054-HR Irregular or low-radius curved surface inspection medium-resolution, printed coils, 53mm coverage, cushioned PAD sensor array. (CBLS-ECA-03M cable assembly not included).

Description

Technical specifications

SHAPE-P-054-HR SHAPE-P-054-HR-f
Technology PCB Coils PCB Coils
Frequency range 100kHz – 800kHz 100kHz – 800kHz
Coil OD 3.5 mm 3.5 mm
Coil quantity 2 Rows of 32 Intertwined (total 64) 2 Rows of 32 Intertwined (total 64)
Probe coverage 54 mm 54 mm
Topology Short Single Driver Short Single Driver
Channels 31 Axial, 31 Transverses (total 62) 31 Axial, 31 Transverses (total 62)
Resolution 1.75mm Axial, 1.75mm Transverse 1.75mm Axial, 1.75mm Transverse
Curve radius 50 mm 20 mm
Typical detectable defect > 0.5mm > 0.5mm
Cable length 3 m standard 3 m standard
Maximum Lift-Off 1.25 mm 1.25 mm
