EK27 DLA
Dual linear.

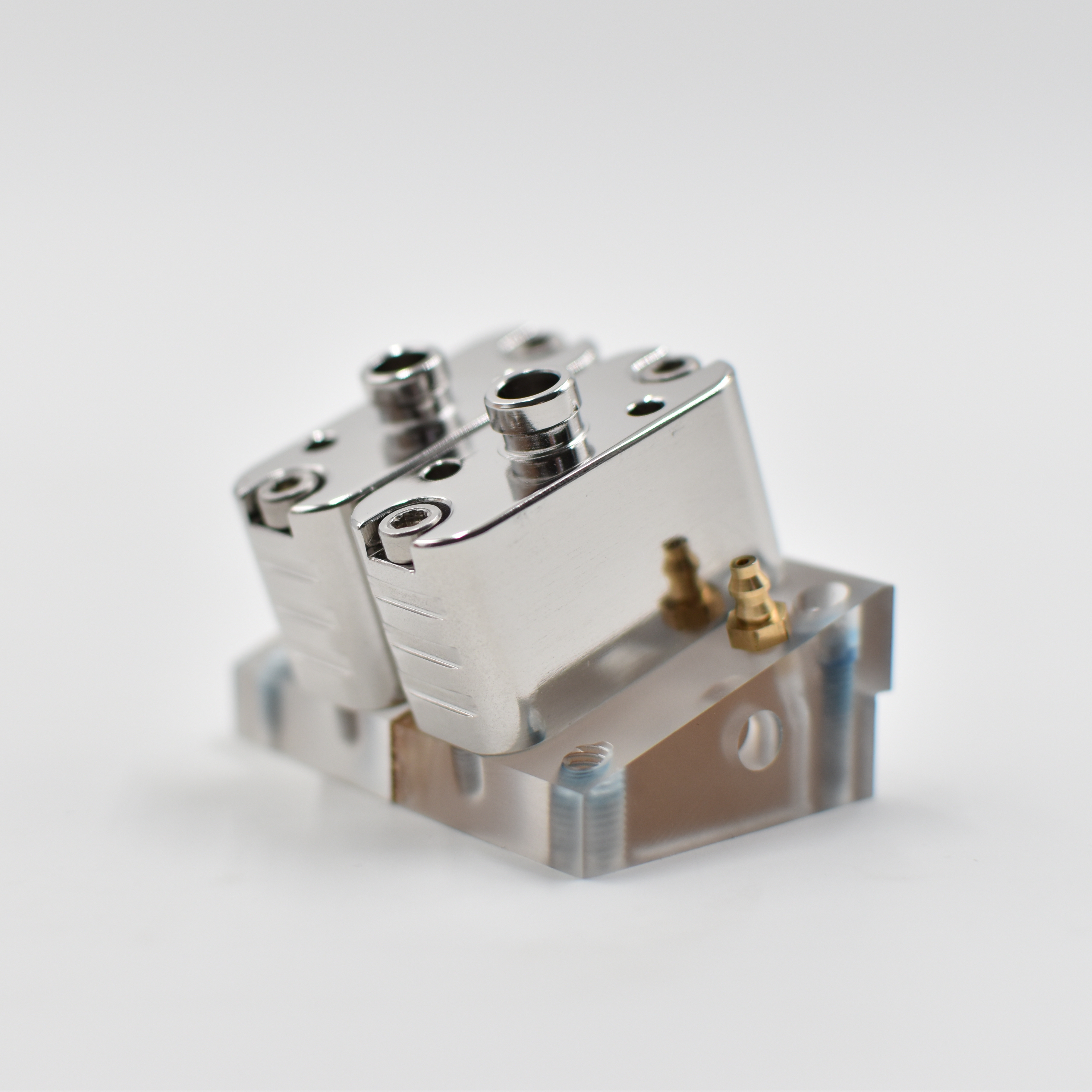

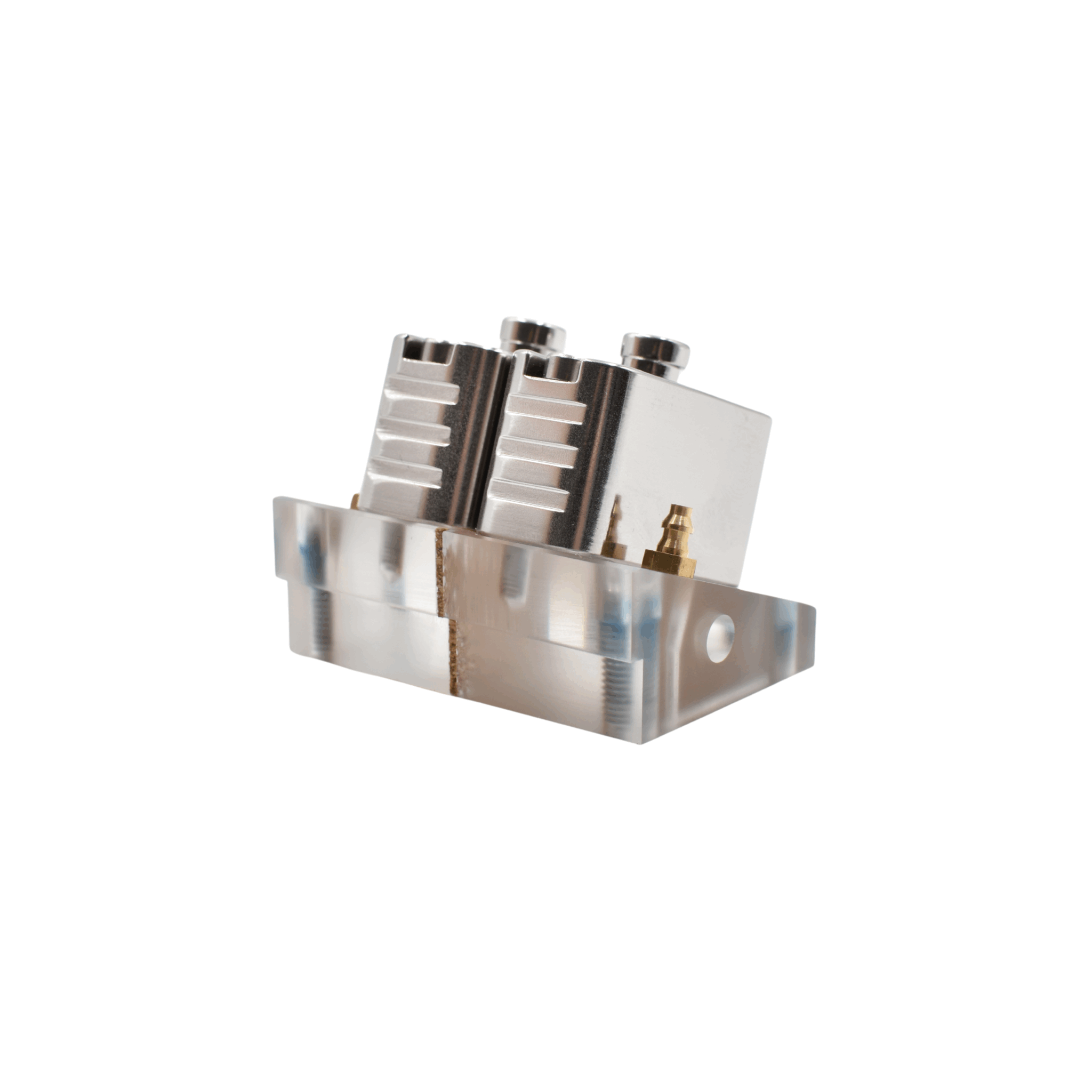

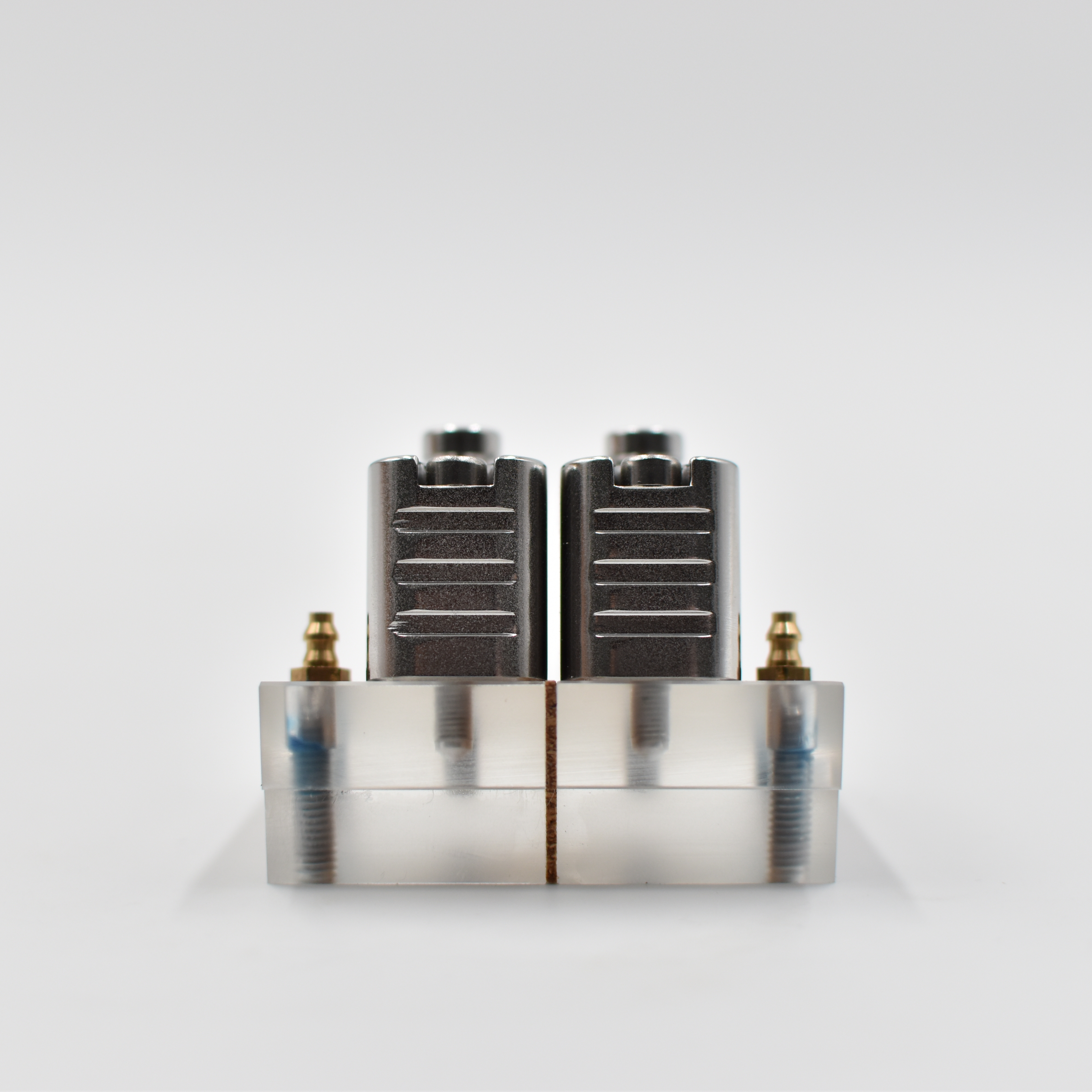

The EK27 is a Dual Linear Array (DLA) probe, and it’s designed specifically for weld inspection in materials with complex grain structures, such as austenitic stainless steel and CRA (corrosion-resistant alloy). DLA improves SNR in those materials due to separate transmit and receive apertures and the use of longitudinal waves.
- Features
- Includes
- Options
- Applications
- Elevation6 mm
- Element count16 x2 elements
- Element pitch1 mm
- Frequency4 and 5 MHz
- Cable length2.5 m
- Certificate of conformity compliant with ISO 18563-2 standard
- Travel Case
- IPEX, Easy-latch, Zpac, Hypertronic Connectors
- Custom cable length
- Standard, AOD and COD wedges with integrated IDC
- Austenitic material
- Corrosion Resistant Alloy
- Dissimilar weld
