EK27 DMA

Dual matrix.

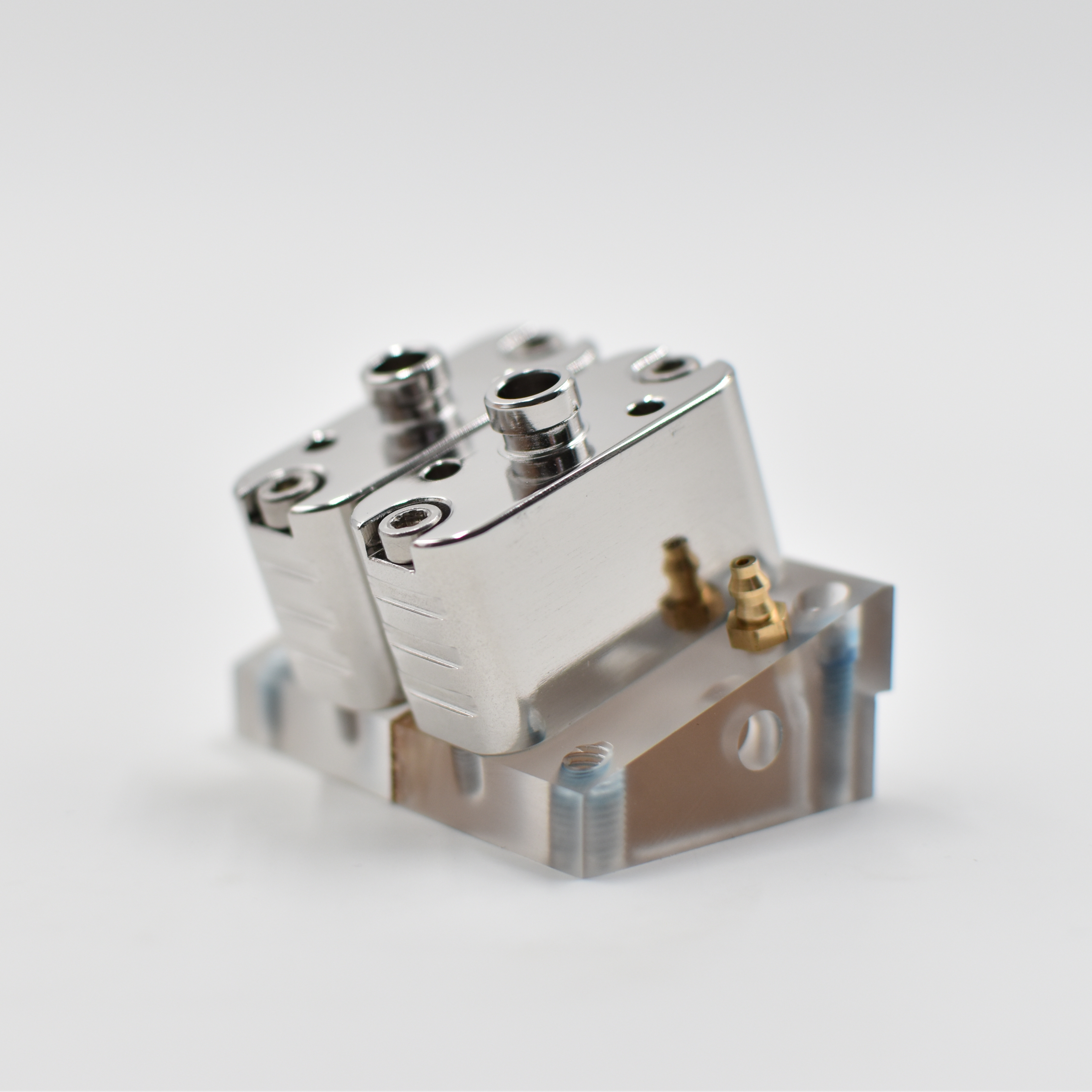

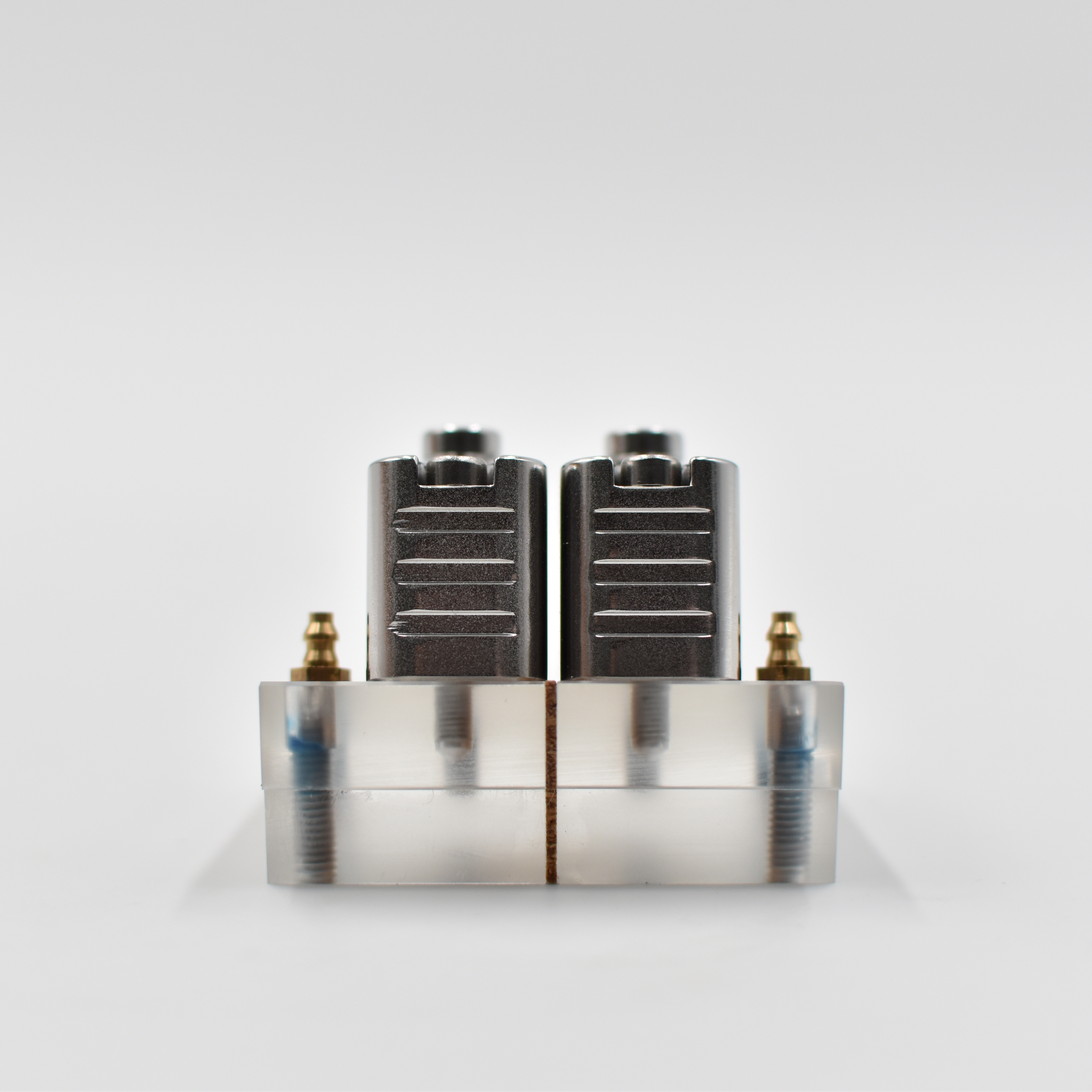

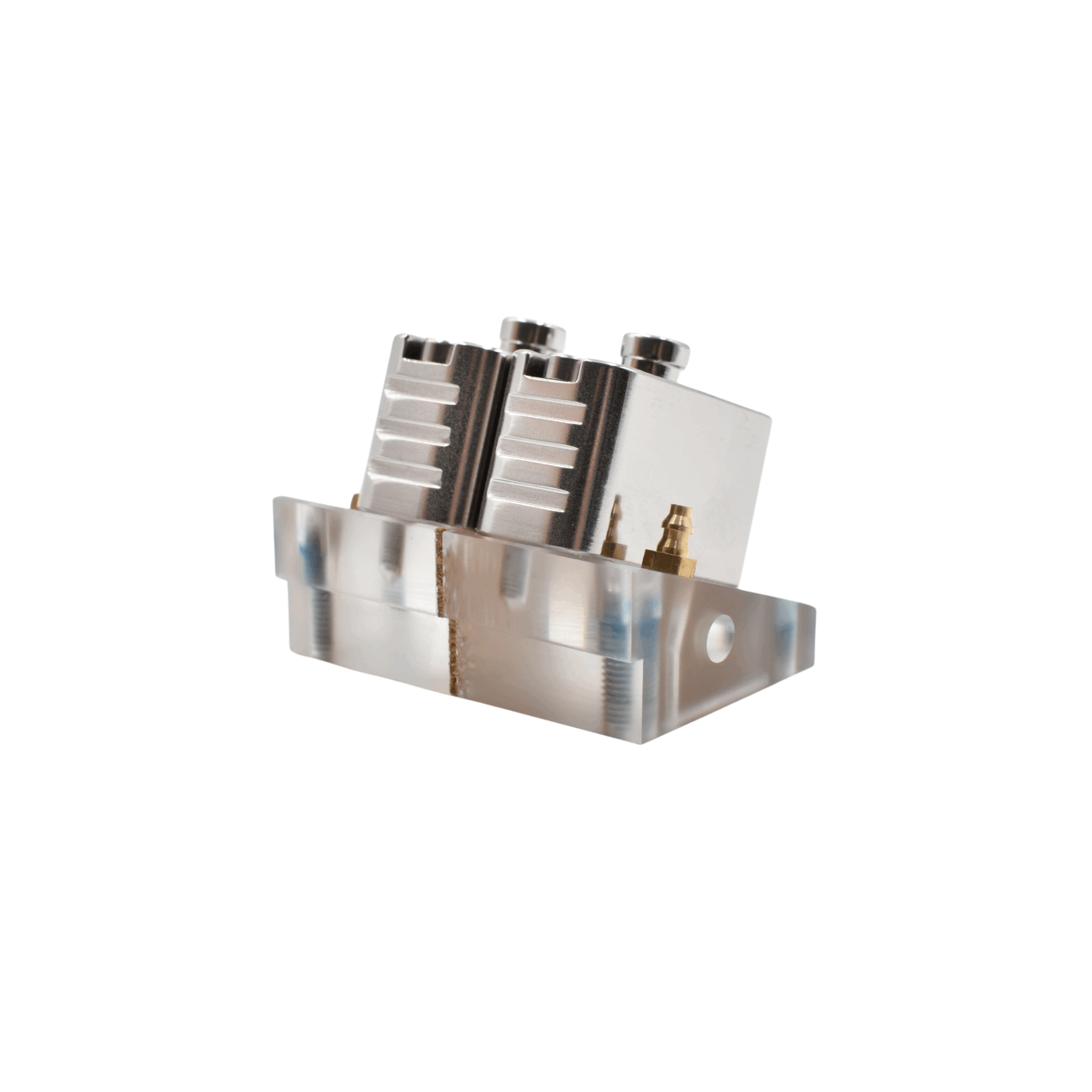

The EK27 is a Dual Matrix Array (DMA) probe, and it’s designed specifically for weld inspection in materials with complex grain structures, such as austenitic stainless steel and CRA (corrosion-resistant alloy). DMA improves SNR in those materials due to separate transmit and receive apertures and the use of longitudinal waves.

  • Features
  • Includes
  • Options
  • Element count16 x 2 (x2) elements
  • Element pitch1 x 3 mm
  • Frequency4 and 7.5 MHz
  • Cable length2.5 m
  • Certificate of conformity compliant with ISO 18563-2 standard
  • Travel Case
  • IPEX, Easy-latch, Zpac, Hypertronic Connectors
  • Custom cable length
  • Standard, AOD and COD wedges with integrated IDC

Description

Technical specifications

Reference Type Frequency MHz Number of elements Pitch mm Elevation mm L W H
EEK27-DMA4/64 DMA 4 2 x (16x2) 1 3 29 10 20
EK27-DMA7.5/64 DMA 7.5 2 x (16x2) 1 3 29 10 20
