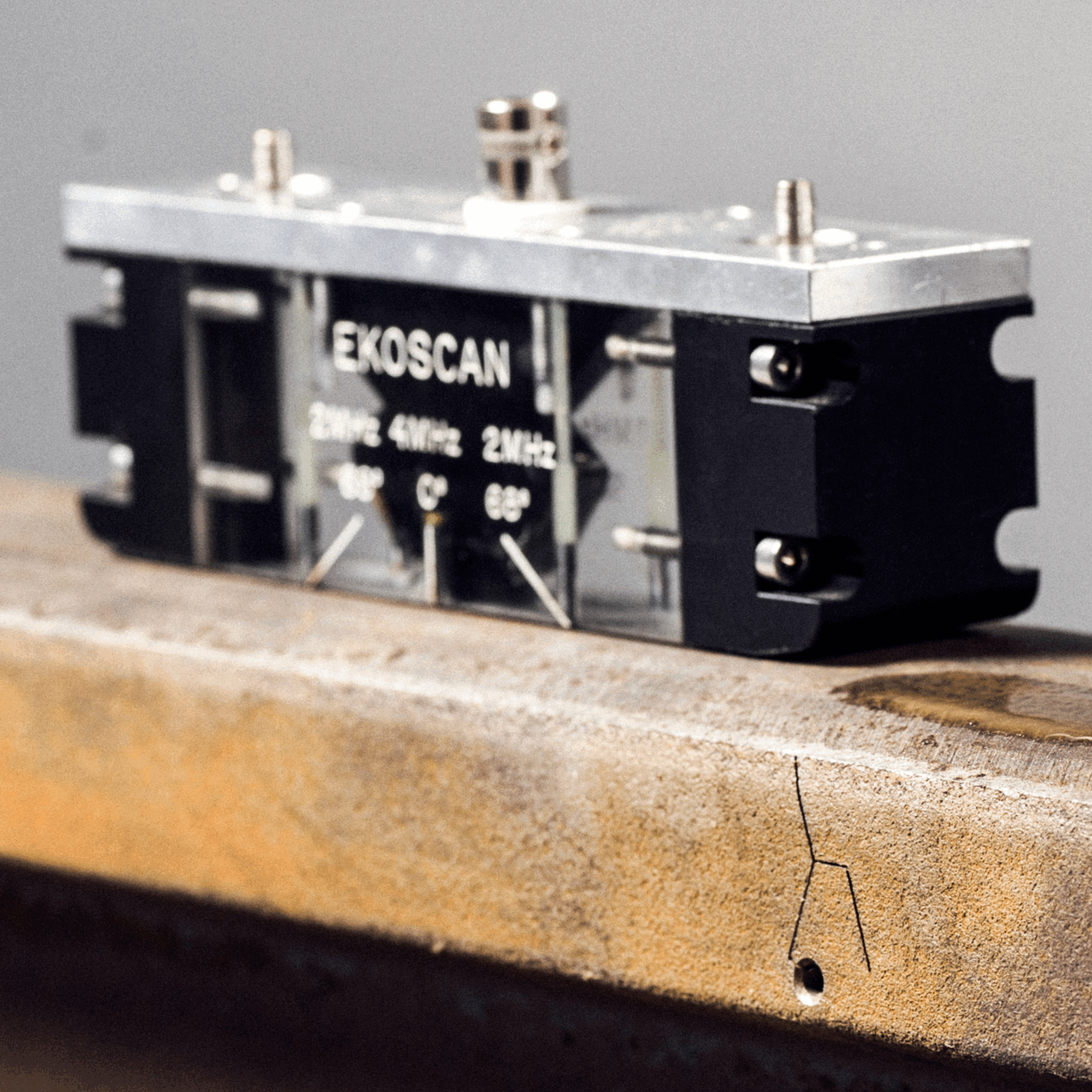

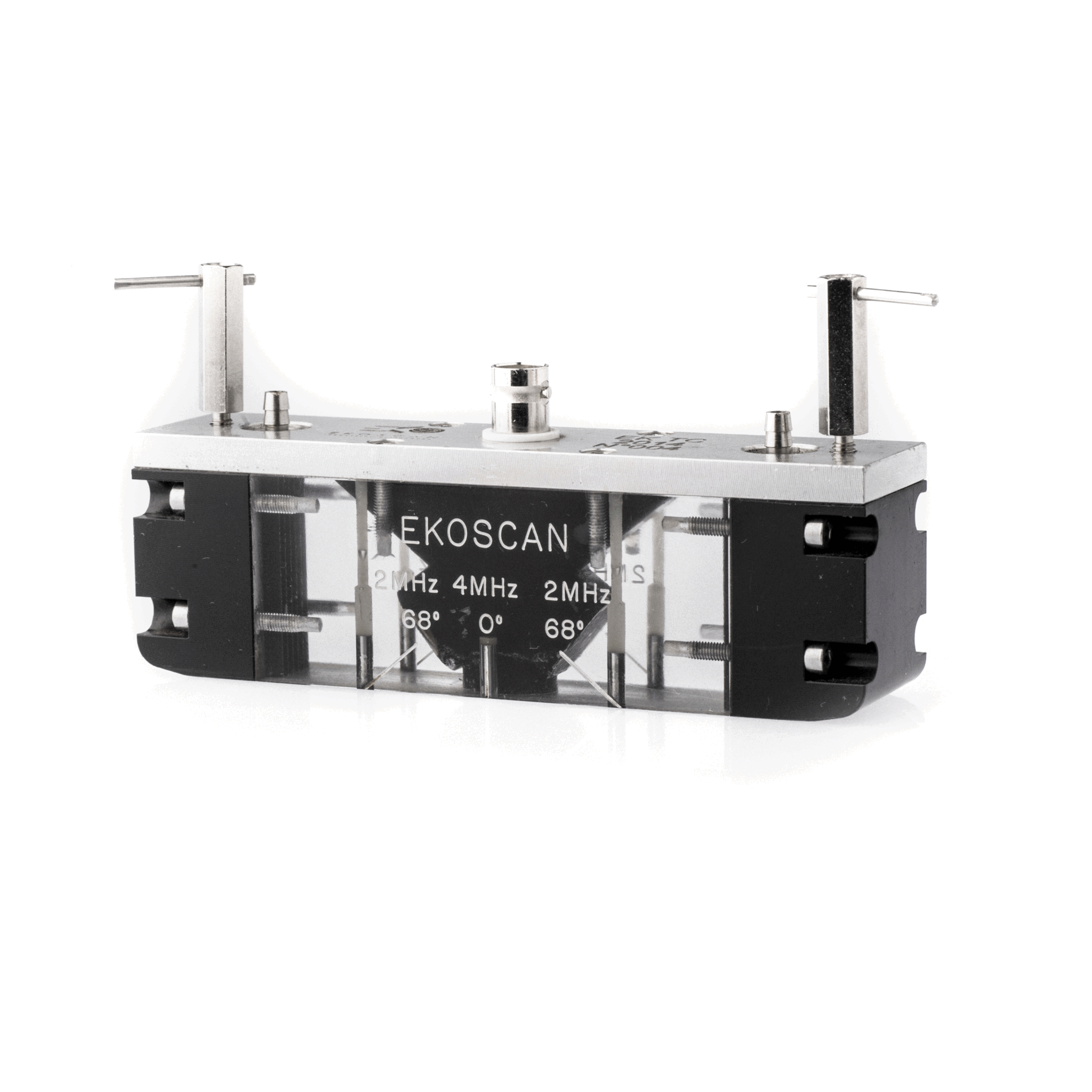

EKTC
Specific probe adjusted to inspection stick: EKORAIL.

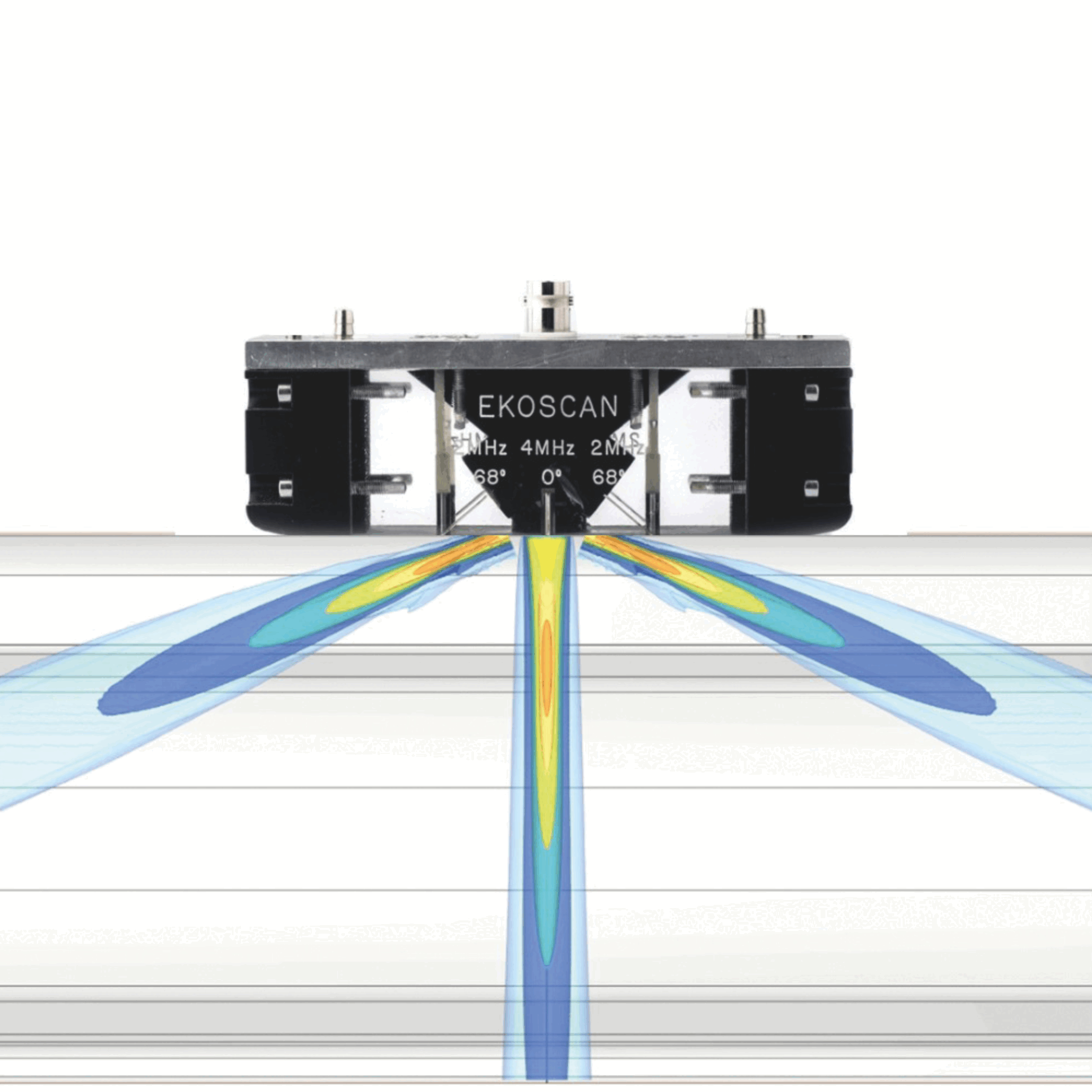

Composed of 3 ceramic piezo-electric enabling detection of transervase cracks and a rail head detachment. The 3 piezo-electric elements are balanced in sensitivity to allow simplified calibration (amplification and ound circuit).
This new generation “triple cane” translator is equipped with an anti-wear pad in the front and back sides of the wedge.
SNCF homologation.
- Features
- Includes
- Options
- Applications
- Shear wave 68°, frequency 2 MHz
- Longitudinal wave 0°, frequency 4 MHz
- Transducer delivered with EN 22232-2 certificate.
- BNC cables

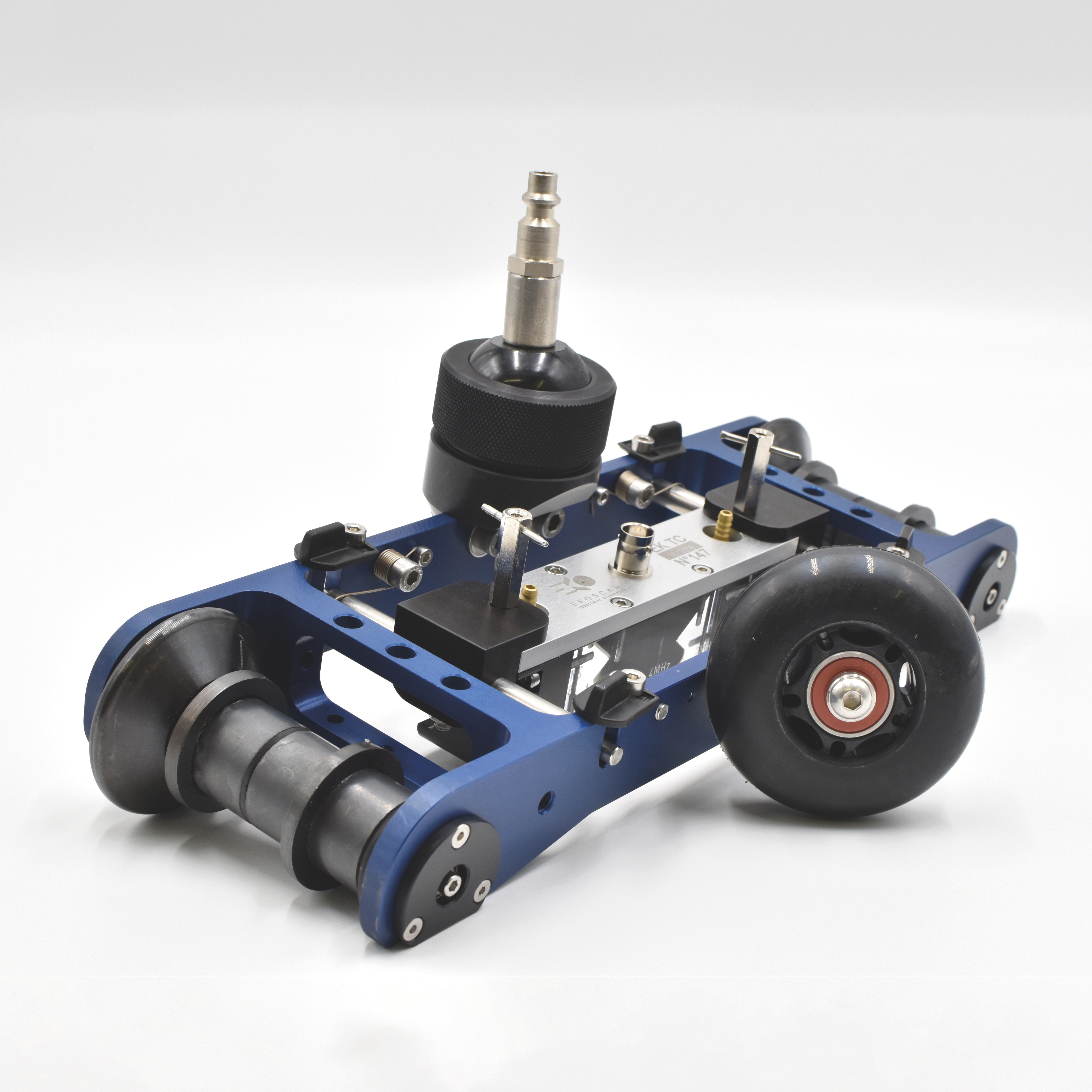

- EKORAIL scanner
- Rail inspection
