R-MOT

Internal pipe inspection crawler.

The R-MOT is an automated scanner designed to inspect pipes from the inside for 12 to 30” diameter and a single truck for 8 to 10” diameter.
This scanner is perfect for internal pipe inspection using ultrasound, laser, and visual technologies.

  • Features
  • Includes
  • Options
  • Applications
  • Strong magnetic wheelsAllows vertical climbing
  • Scan pipe from the ID surface12 to 30” (30 - 76 cm)
  • 100 ft. (30 m) umbilical with strain relief
  • Shipping case
  • Battery pack
  • AC/DC power supply
  • AccuTrak trucks with R-motor
  • 2 probes or 4 probes (depending on kit)
  • 1-year factory warranty
  • User's manual
  • Battery pack
  • Water irrigation pump system
  • Tank inspection (O&G)
  • Pipeline inspection (O&G)
  • Water pipes (Renewable Energy)

Description

Technical specifications

Scanner dimensions 12” x 11.5” x 12.5” (30 x 28 x 32 cm)
Weight 22 lbs (10 kg)
Operating environment 120°F ( 49°C) IP65 water resistant
Encoder resolution 42725.56 ticks / in (1682 ticks / mm)
Encoder cable 100 ft. (30 m)
Circumferential OD From 8” to 30” (20 cm to 76 cm)
Travel case dimensions 32 x 25 x 18” (81 x 63 x 46 cm)

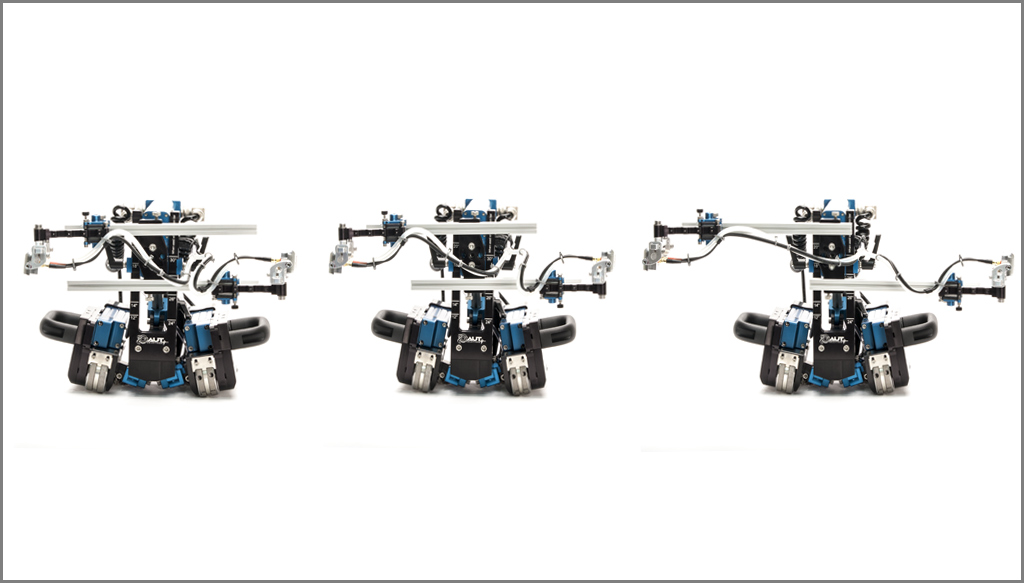

Easily adustable arm width

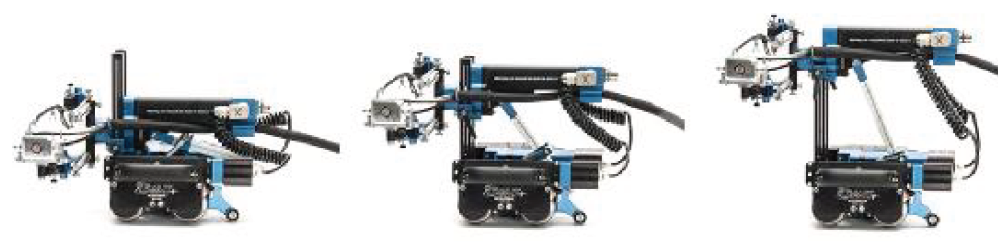

Easily adustable height
