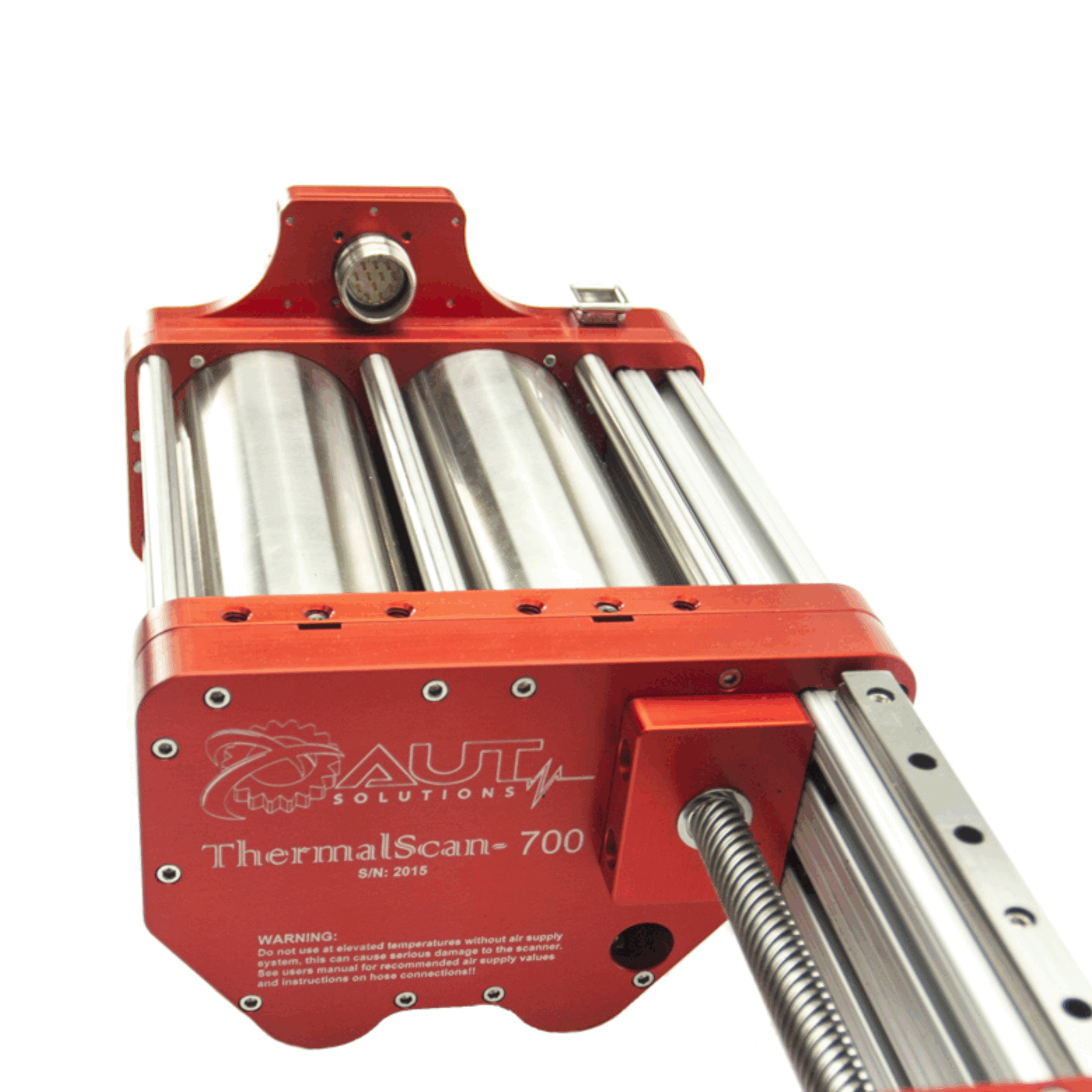

THERMALSCAN
Automated 2-axis scanner designed with a air cooled system for use on high temperature components up to 700°F (371°C).
The ThermalScan-700 is the best solution for performing high temperature scans on surfaces up to 700° F. This air cooled automated 2-axis scanner can scan at up to 15″per second with wheel speeds up to 5″per second. It will scan on components ranging from 3 inches in diameter to flat surfaces. The modular design of the scanner enables in-field switching of scanning arms or motors in minutes.
- FastScan up to 15″/s on the arm and 5″/s on the wheels
- PortableEntire system fits into three travel cases, optional battery pack for up to 8 hours per charge
- ModularArms and motors can be switched in minutes
- LightweightScanner with arm alone weighs only 28.5 lbs

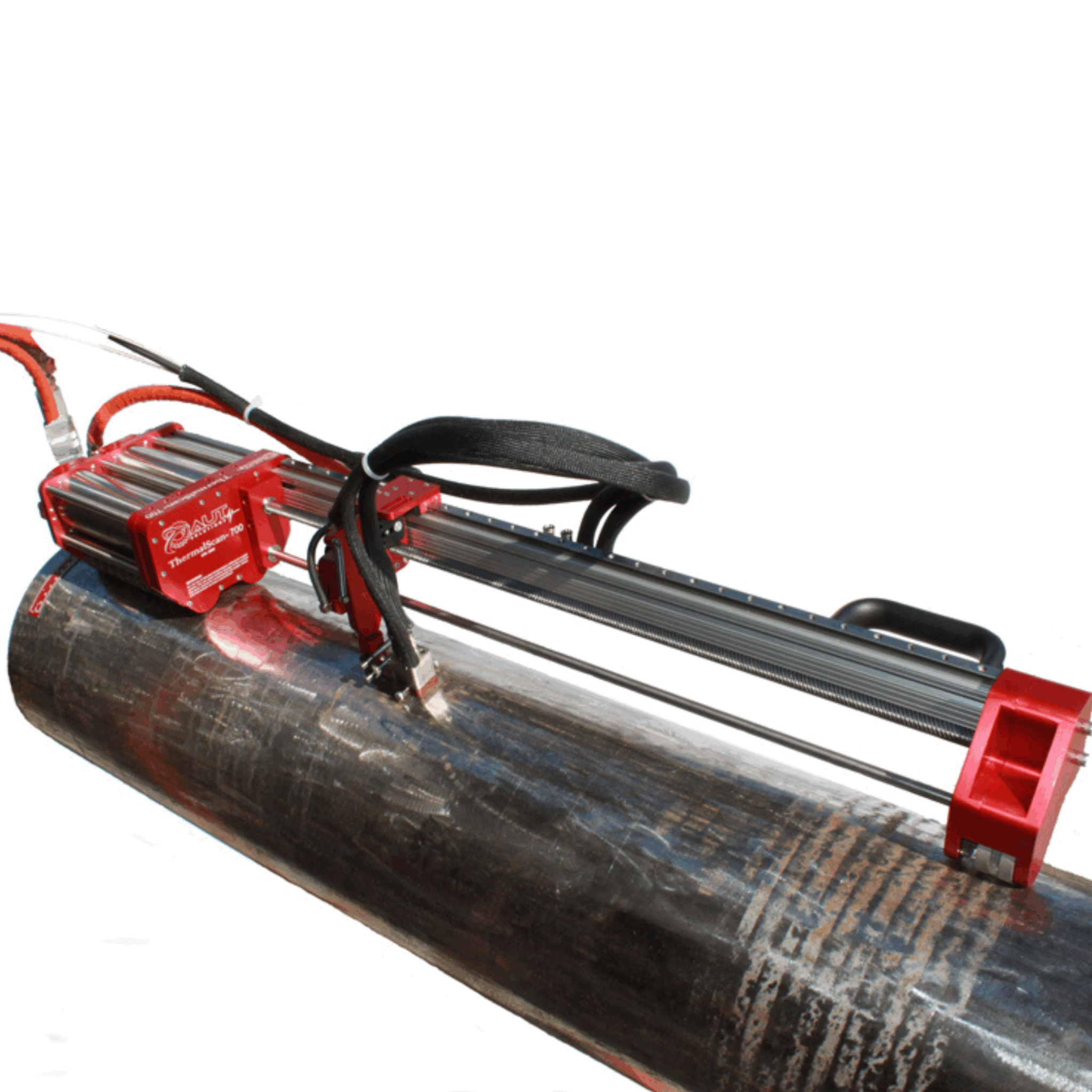

- VersatileWorks on 3″+ inch pipe and on surfaces that are up to 700°F
- High temp magnetic wheelsHigh curie point and long lasting
- Integrated CoolingBuilt in cooling for motors and magnets

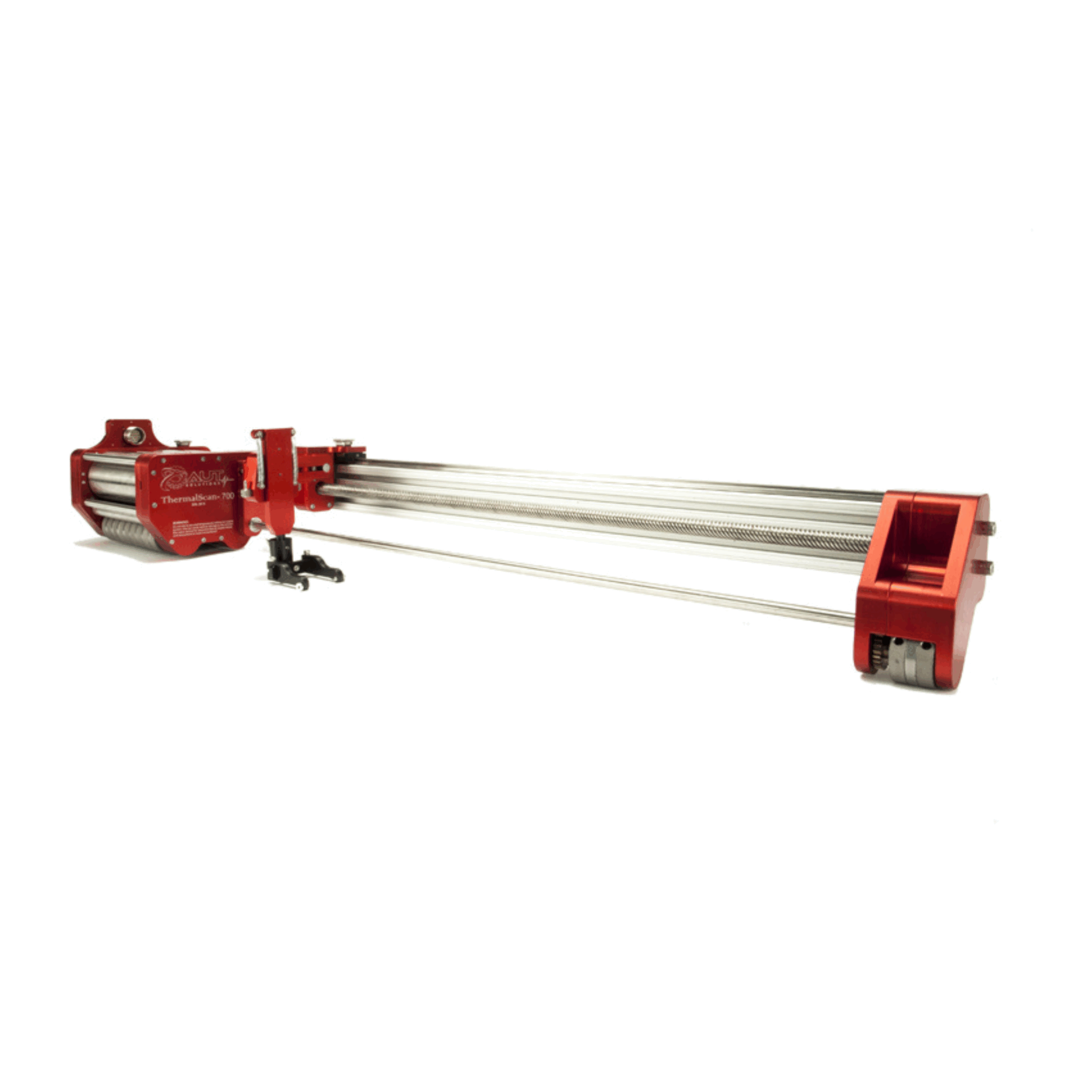

- 24 inch catamaran arm
- Air pressure and CFM regulator kit
- High temperature air / fluid tubing
- 2-axis motor controller
- High temp probe gimble
- Power supply
- All Windows OS compatible (32 or 64bit)
- 100 foot umbilical with irrigation and 4 UT lines
- 15 foot high temp umbilical extension

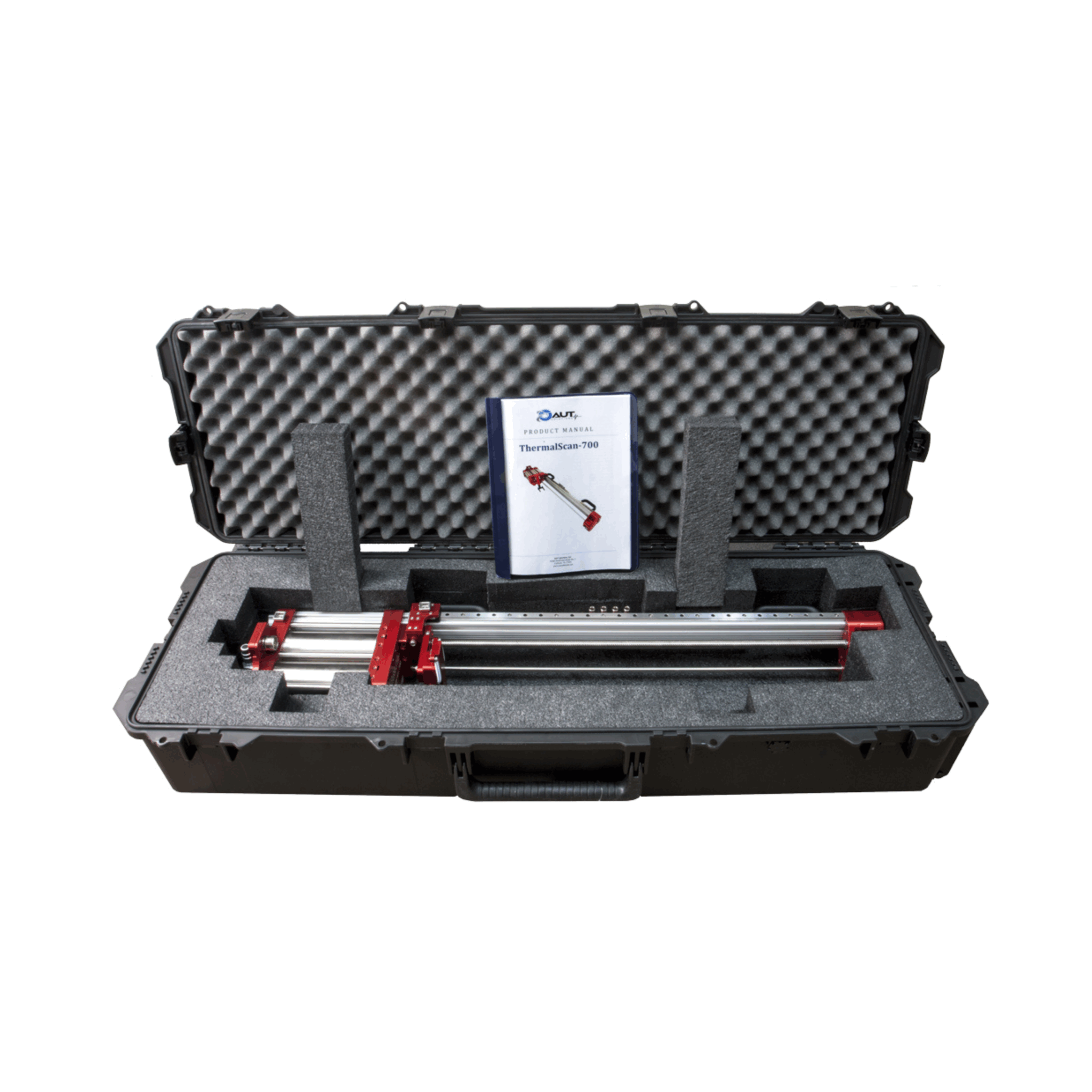

- Three robust Pelican shipping cases
- 12” or 18” arms (No secondary drive)
- Spare motor kit
- Rechargeable battery pack with charger
- 25 ft., 200 ft., or custom length umbilicals
- Multi-probe kit for TOFD/Phased Array
- High temperature dual focused transducers
