Description
Agile truck design
18 cm / 7” Min. OD
Longitudinal Scan
5 cm / 2”
Min. OD Scan
60 cm / 24”
Min. ID Scan
- Steerable 3-axis crawler
- Zero-turn radius
- Low-profile crawler with removable handles
- Handles circumferential and axial scanning from 2″ OD to ∞
- Soft-contact wheels for surface protection
- High-payload wheels
- Built-in hub for NDT electronics and accessories

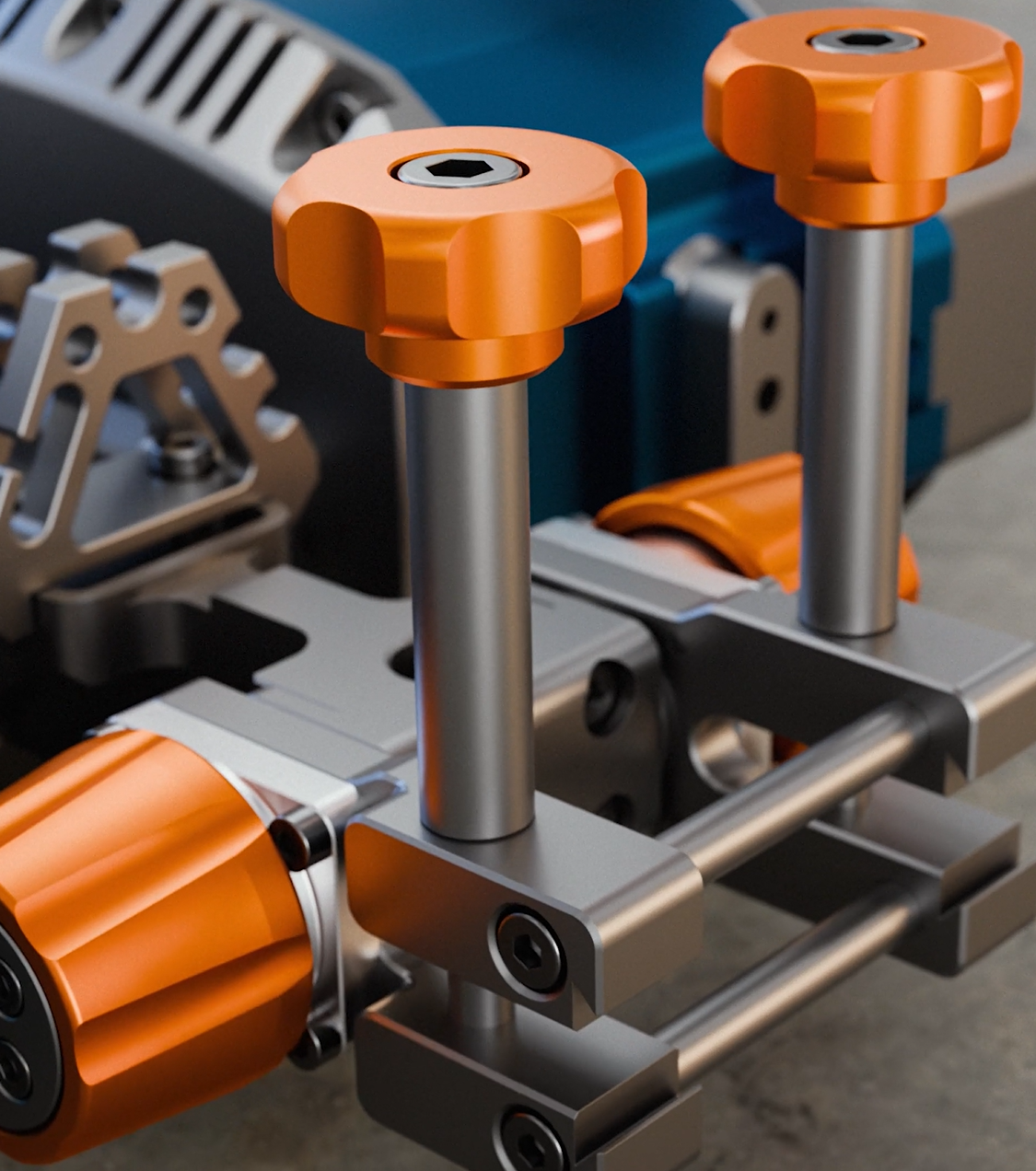

Robust
- Built-in motors, controls, and cable management
- IP68 design
- High-grade aluminum
- High net payload capacity
- Truck designed for maintenance

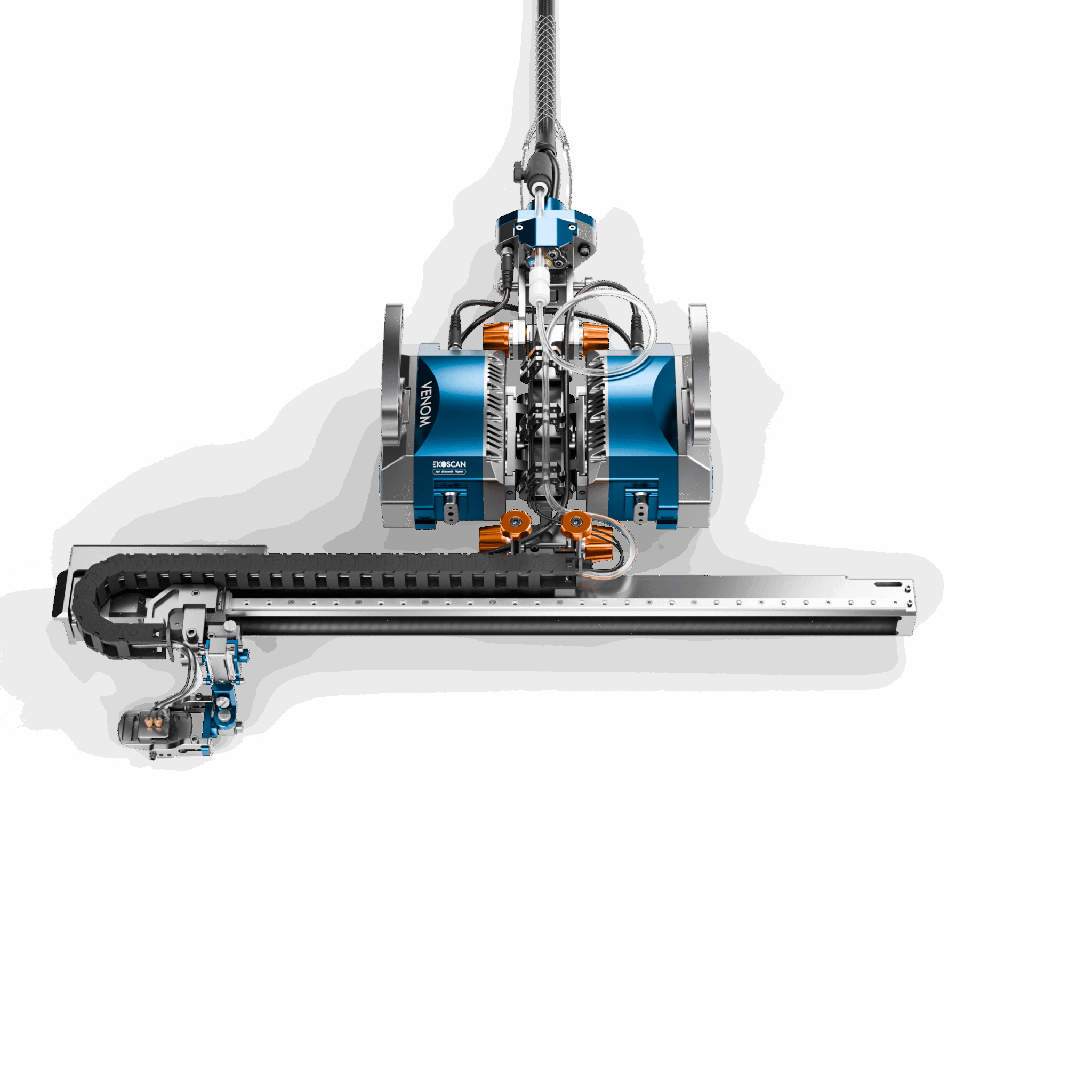

Versatile
Multi-technology:
UT, PAUT, ECA, ET,
VT, Laser
Multi-application:
Corrosion mapping,
weld inspection of
industrial assets
Integrated umbilical
hub designed to
accommodate NDT
electronics and
accessories

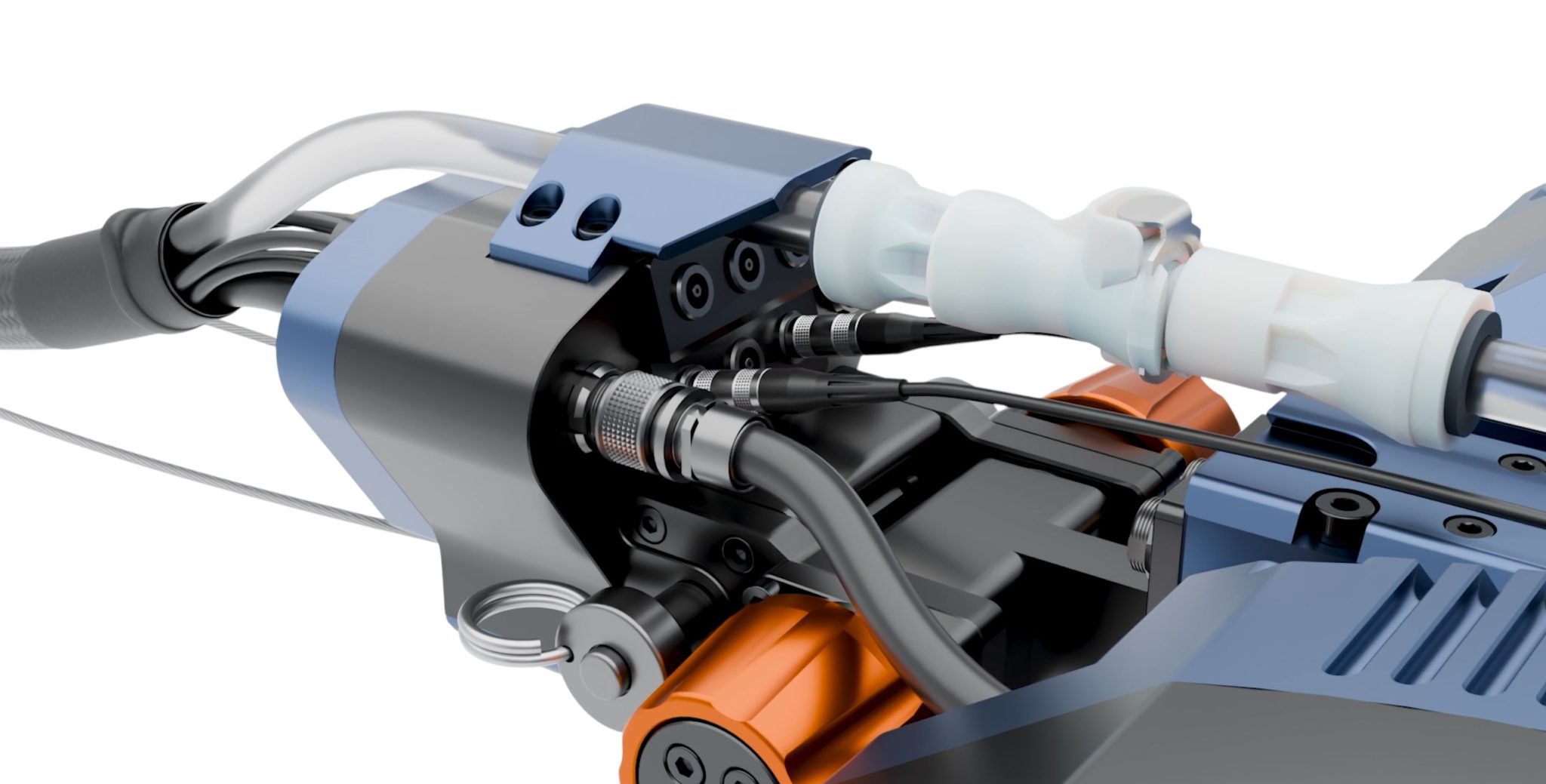

Plug & play
- Toolless adjustments
- Toolless assembly
- Single-connection, lightweight umbilical
- Built-in integration hub for NDT electronics and accessories

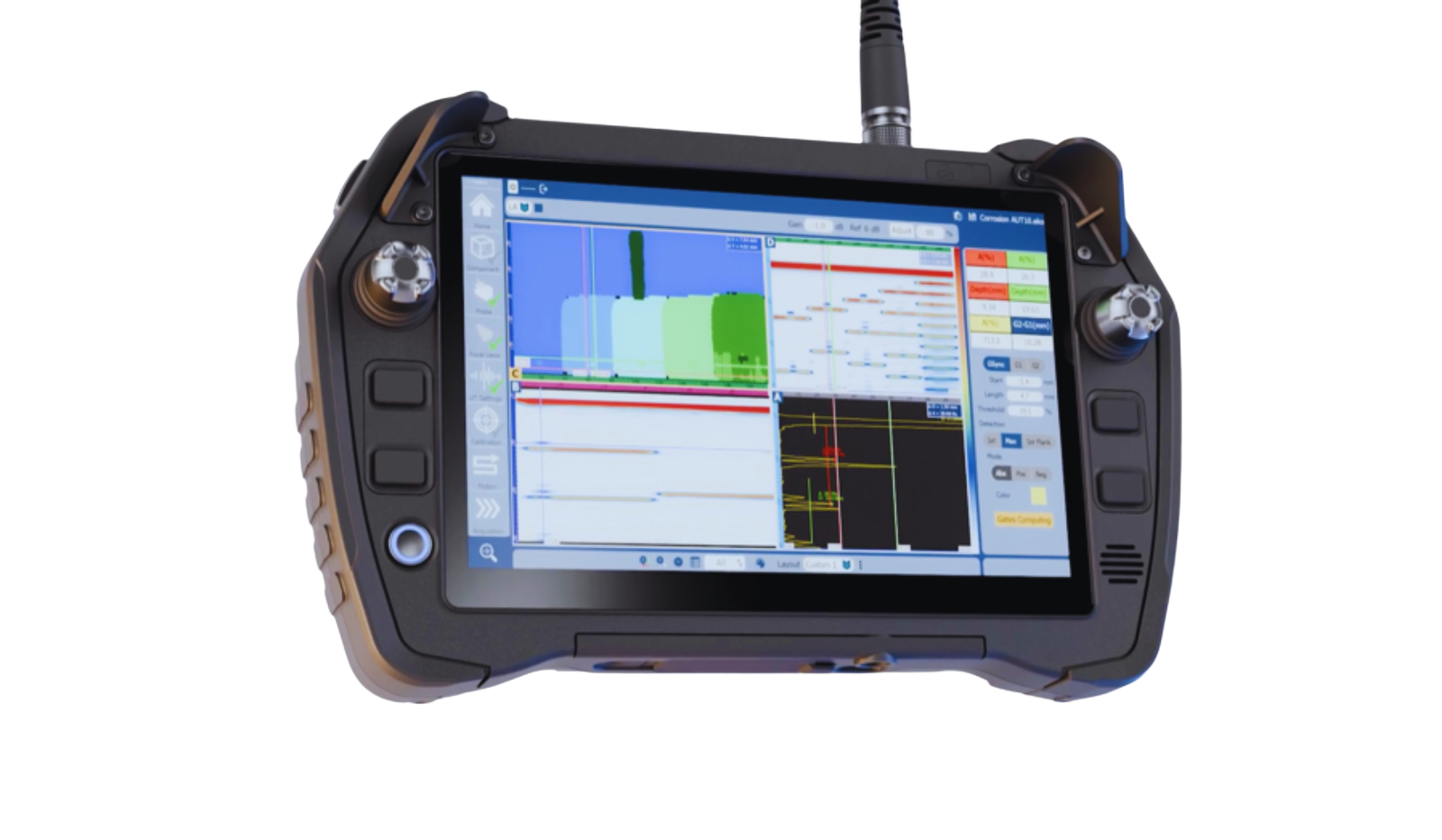

Intuitive crawler control
Wireless Smart Joystick with high resolution screen for VENOM control
Built-in software for displaying PAUT/ECA application software
Built-in software for handling on-board accessories and tools (e.g., video streams)
Customer Benefits
Instant return over investment
With remote operation from the ground, VENOM eliminates the need for rope access and scaffolding, significantly reducing inspection time and cost. VENOM is compatible with a wide range of standard NDT devices and does not rely on proprietary flaw detectors, ensuring flexibility with existing equipment. Its intuitive graphical user interface for crawler control allows operators to get started quickly with minimal training.
Rugged for field use
Built tough to handle demanding conditions and repeated use, VENOM builds on over a decade of proven field performance to meet the needs of future applications. Leveraging the legacy of ACCUTRAK, the group’s flagship motorized crawler, VENOM advances inspection capability with greater payload capacity, adaptability, and reliability for the most challenging environments.
Compatible with traceability requirements of most standards
With precise encoding compatible with most flaw detectors (LEMO 16 connector), VENOM provides accurate mapping coordinates to NDT data, ensuring reliable correlation between inspection results and physical locations. This enhances traceability, improves reporting accuracy, and streamlines post-inspection analysis.
Increased job productivity
Designed for easy maintenance with readily available spare parts, VENOM ensures uninterrupted NDT operations and minimizes downtime.
Easy to deploy
With its quick, adjustable, toolless design, VENOM is an intuitive, single-operator scanner that can be set up effortlessly.
