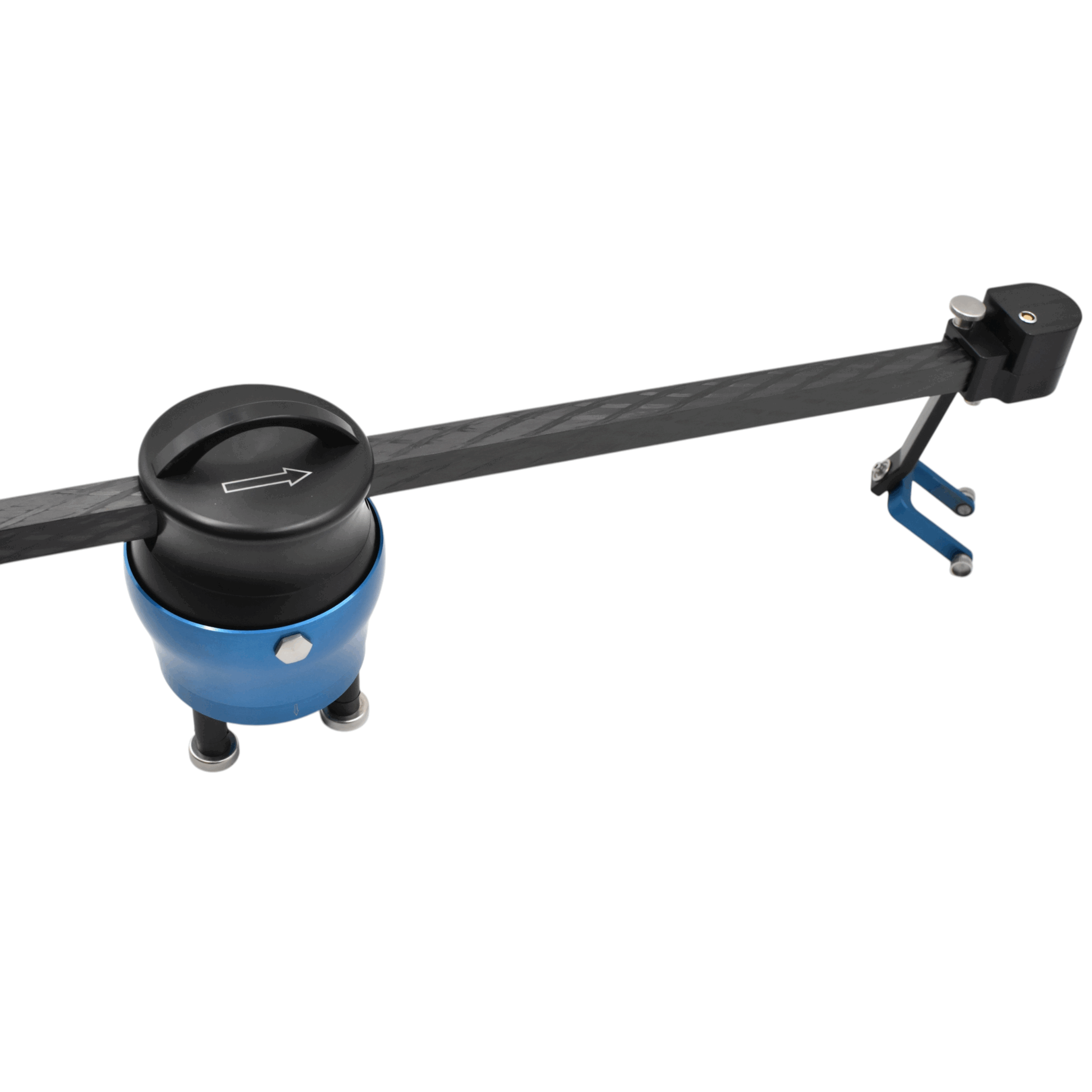

MATRYX RT

Light-weight paint-brush scanner.

Polar scanner with 3-axis encoding. This scanner allows for paintbrush mode inspections. Three axes are encoded: extension (R), rotation (Theta) and Skew (Theta 3):
– θ axis: 360° rotational support
– R axis : extension carbon composite arm
– θ3 axis: 360° skewing angle.

  • Features
  • Includes
  • Applications
  • Scaled mapping with 3-axis encoding.
  • Rotational support
  • Carbon-composite arm (830mm)
  • Rotational probe holder Ø8mm
  • 3-meter encoding cable Lemo10
  • Carrying case
  • Panel inspection (metallic and composite)

Description

Customer Benefits

Easy to deploy

With suction cups / magnetic fixtures.

Rugged for field use

Built tough to handle demanding conditions and repeated use, MATRYX XY has been in the field for 10+ years.

Compatible

With all probes & 3-axis encoding flaw detectors.
