Description
Customer Benefits
Agile

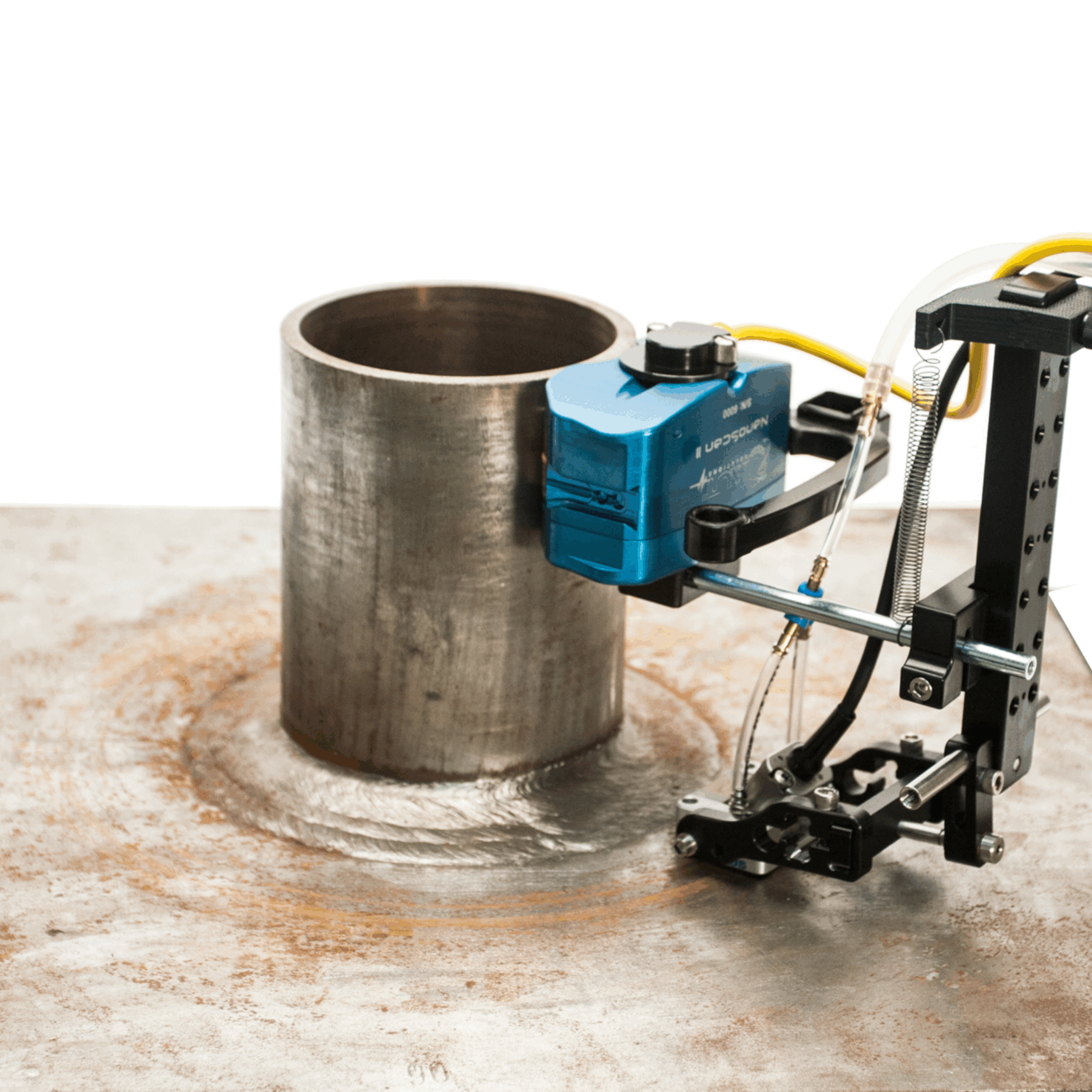

The Nanoscan enclosed drive train with a universal probe holder makes it usable like a computer mouse.
Easy to deploy
With quick detachable encoder cable, probe gimble and accesorries, Nanoscan deploys and adapt to any configurations. Nanoscan is a 1-man operated intuitive scanner that requires no training.
Rugged for field use
Built tough to handle demanding conditions and repeated use, Nanoscan has an IP68 rating.
Compatible with traceability requirements
With a precise encoding compatible with most flaw detectors (LEMO 16 connector), Nanoscan provides encoding to weld inspection data.
Increased job productivity
Easy to maintain with spare parts on the shelf, NDT jobs never get stuck. When facing an unexpected configuration, Nanoscan and its accessories adapt to access conditions.
Technical specifications
| Scanner dimensions | 5 x 6 x 3” (12 x 15 x 7.6 cm) |
| Weight | 1.5 lb (0.8 kg) |
| Operating environment | Up to 500°F (260°C) |
| Encoder resolution | 766 ticks / in (30.15 ticks / mm) |
| Encoder cable | 5 m |
| Circumferential OD | 4 up to 24” (10 to 61 cm) |
| Travel case dimensions | 15 x 12 x 7” (38 x 31 x 18 cm) |
