EK10 11 12 LA WEDGE

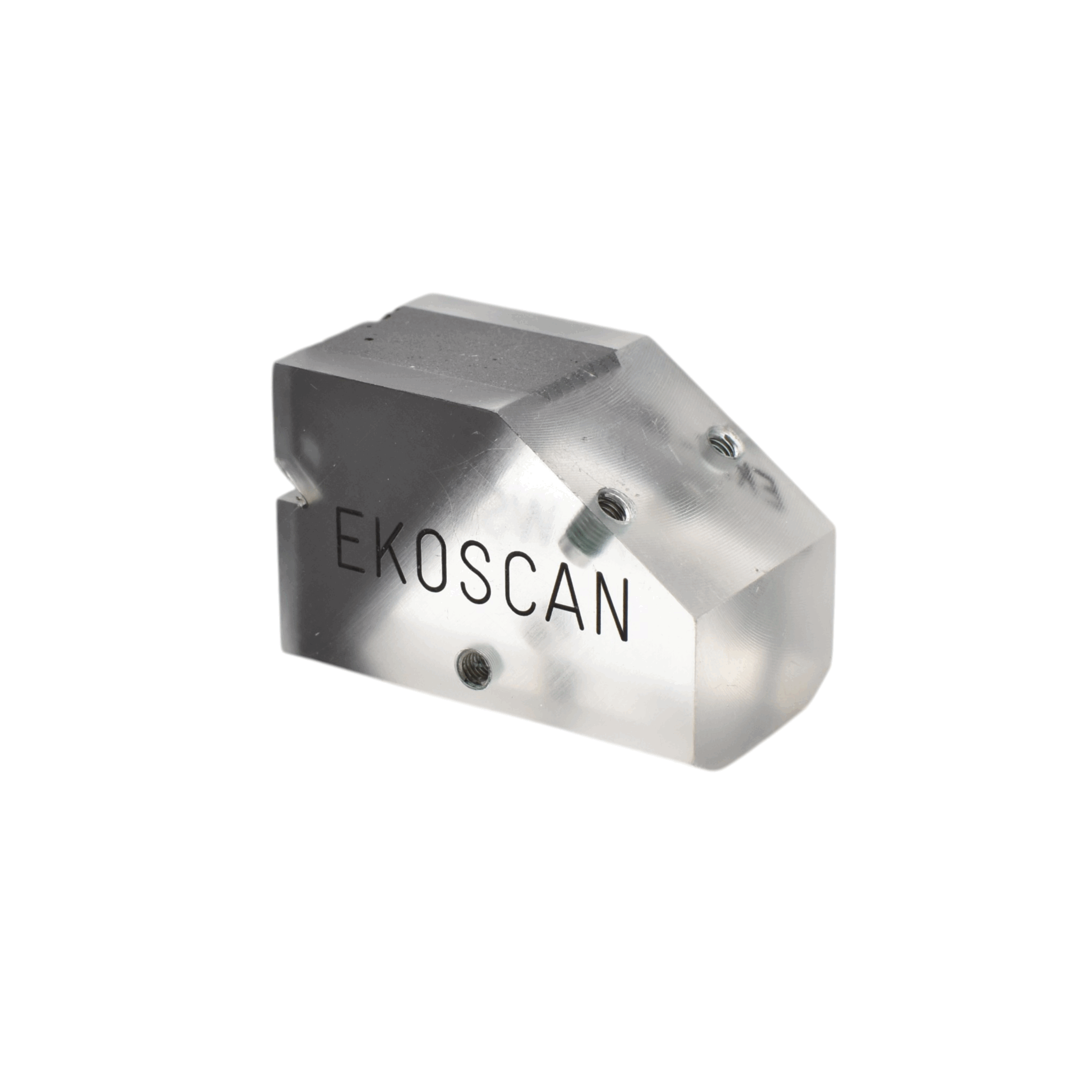

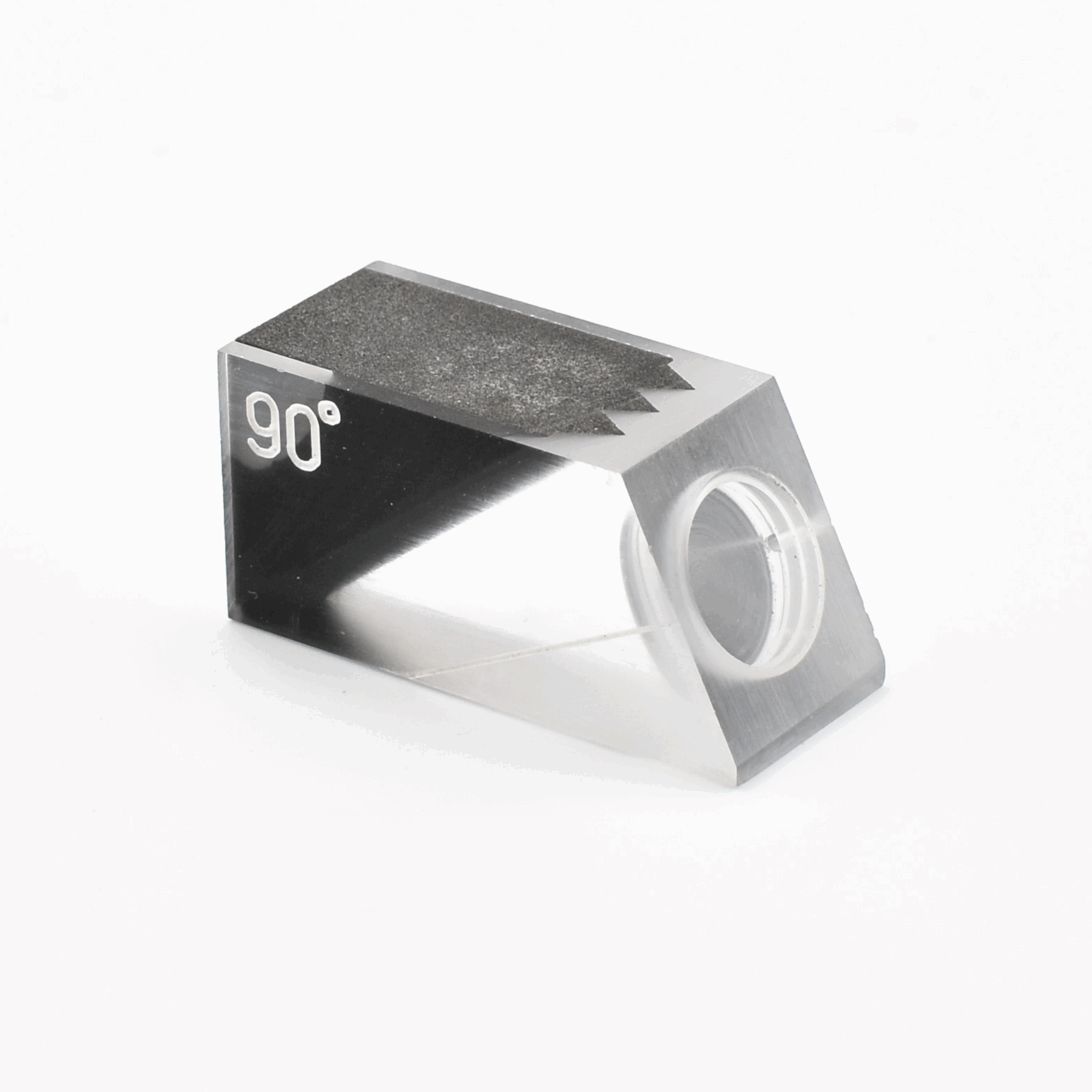

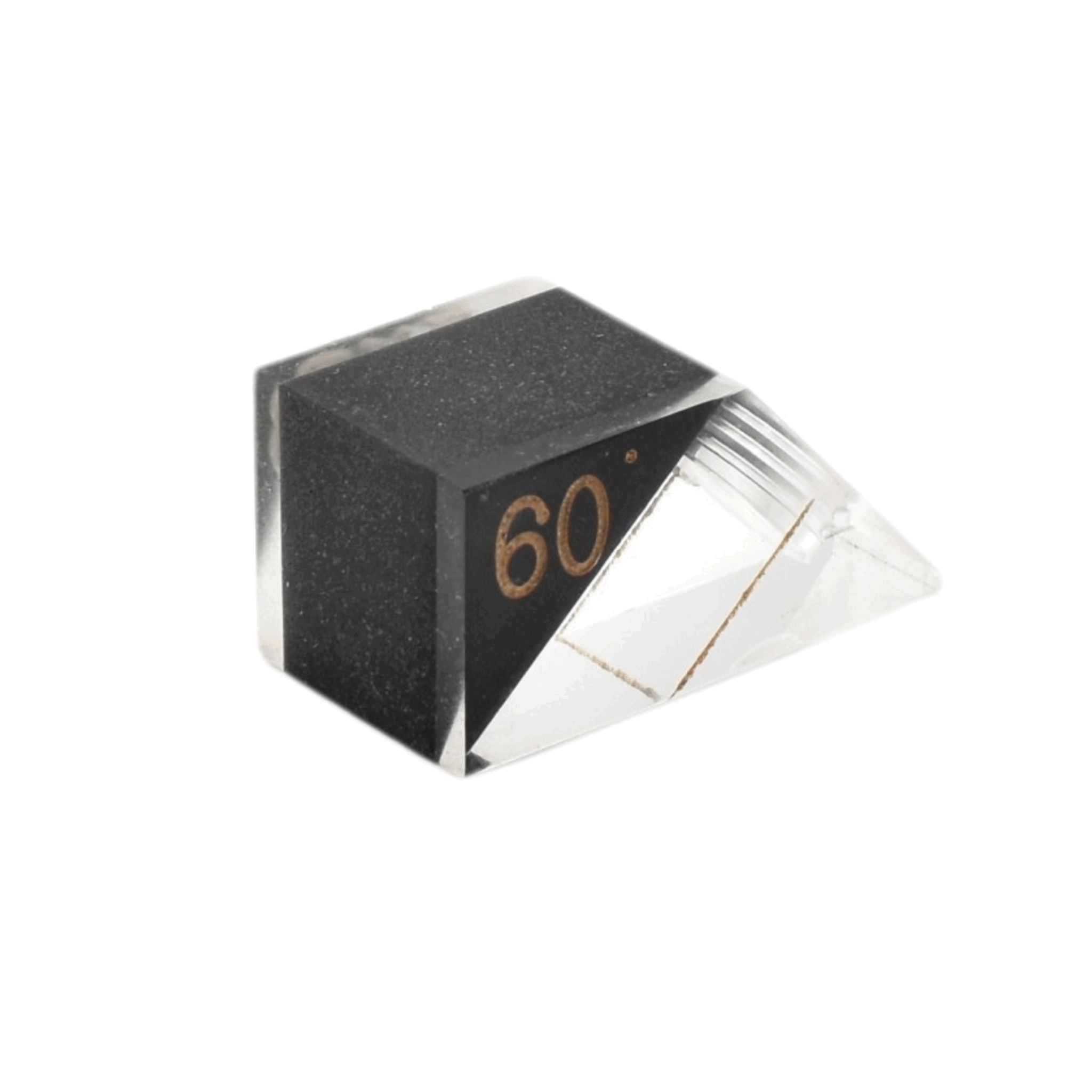

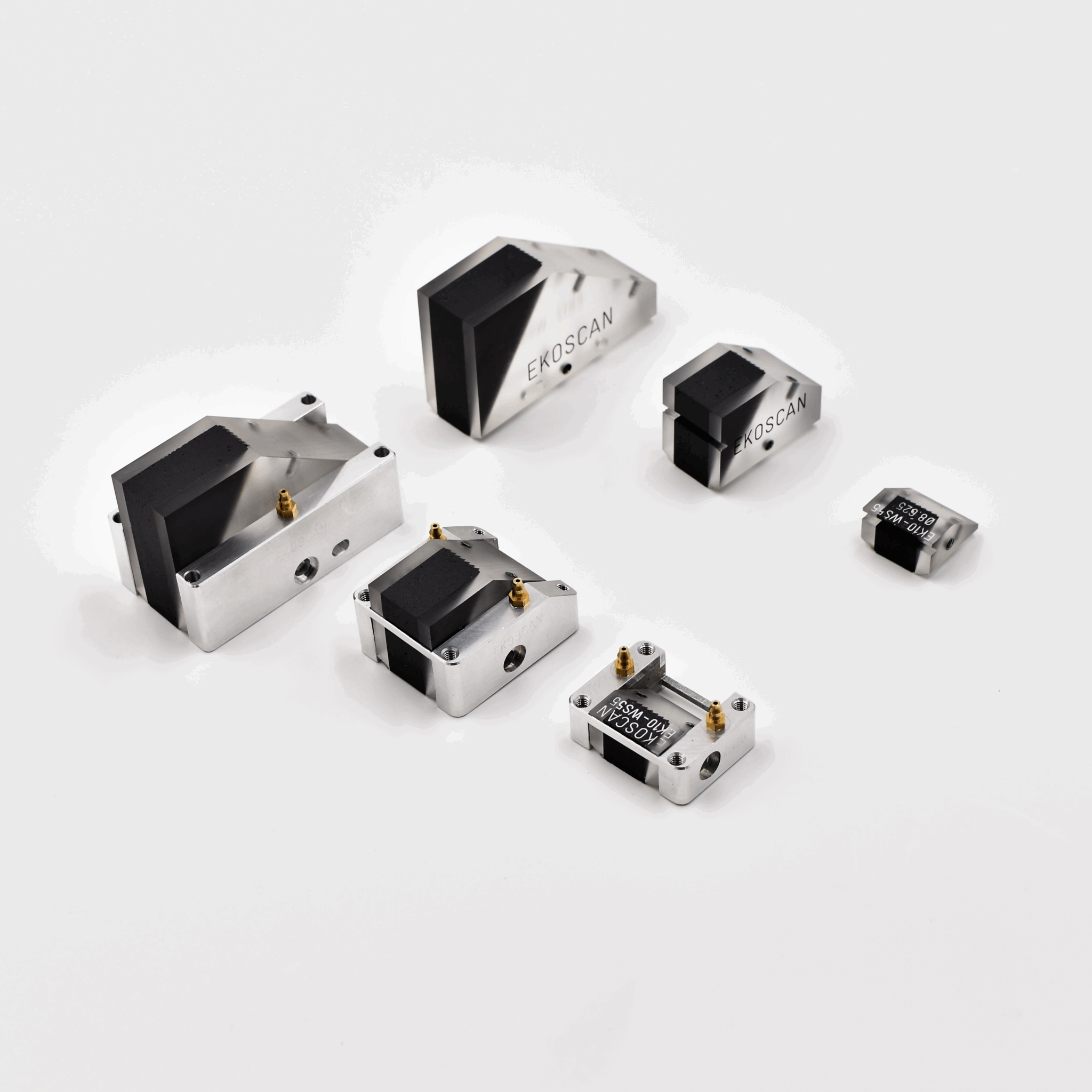

These wedges are compatible with the EK10, EK11 and EK12 PAUT probes, respectively. They are available for normal incidence, 60° longitudinal waves and 55° shear waves. They can be provided with integrated irrigation and carbides or without and thus compatible with IDC10, IDC11 and IDC12, respectively.

  • Features
  • Options
  • Applications
  • Probe compatibleEK10, EK11 and EK12
  • MaterialRexolite
  • Ultrasonic velocity2340m/s
  • AOD wedges from 2.375” to 24”
  • COD wedges from 3.5” to 14”
  • IDC10, IDC11 and IDC12
  • Weld inspection
  • Tubes and bars
  • Pressure vessels
  • Nozzle inspection
  • Corrosion mapping
  • Thickness measurement
  • Base material inspection

Description

Technical specifications

Reference Type L / S Probe housing Refracted angle in ° L W H
EK10–WL0 L EK10 0 25 23 20
EK10–WS45 S 45 23 23 14
EK10–WS55 S 55 23 23 14
EK10–WL60 L 60 26 23 30
EK11–WL0 L EK11 0 35 23 23
EK11–WS45 S 45 41 23 29

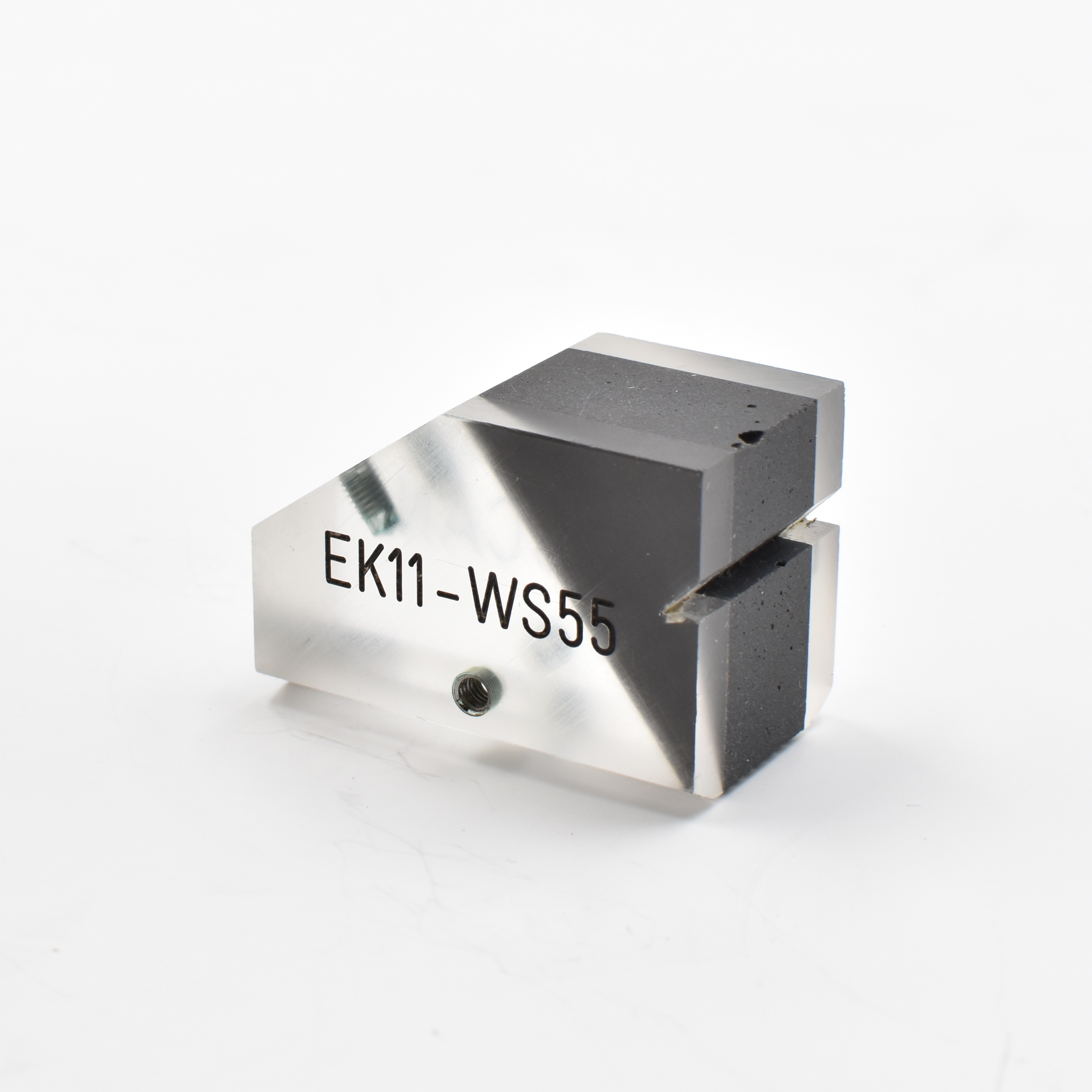

EK11–WS55 S 55 41 23 29
EK11–WL60 L 60 43 23 53
EK12–WL0 L EK12 0 62 23 20
EK12–WS45 S 45 73 23 45
EK12–WS55 S 55 73 23 45
EK12–WL60 L 60 61 23 53
